5 days of preparation excluding made to order items
€189.00
VAT included
189
5 days of preparation excluding made to order items

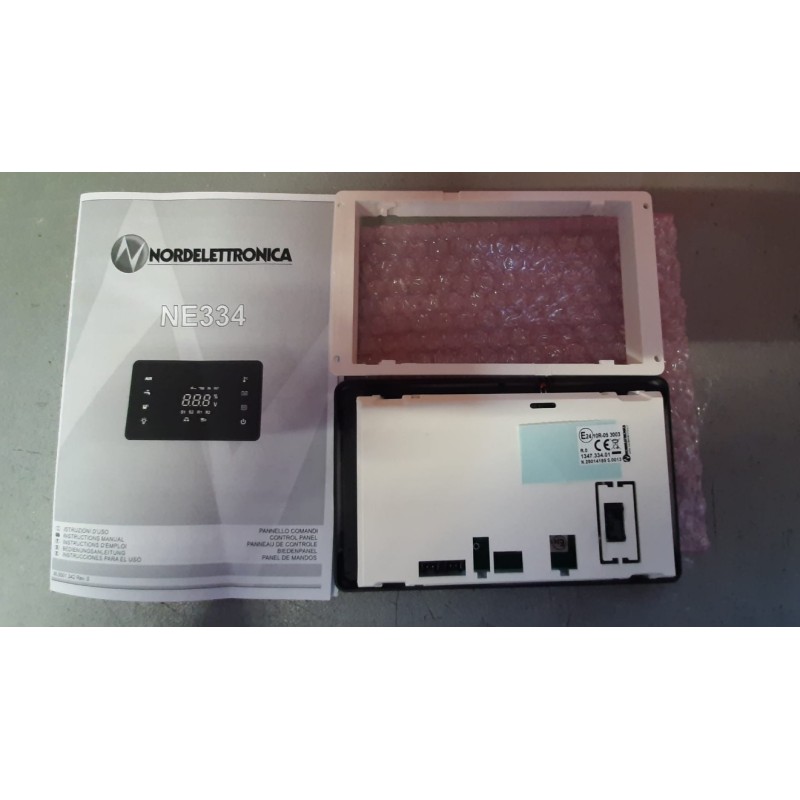

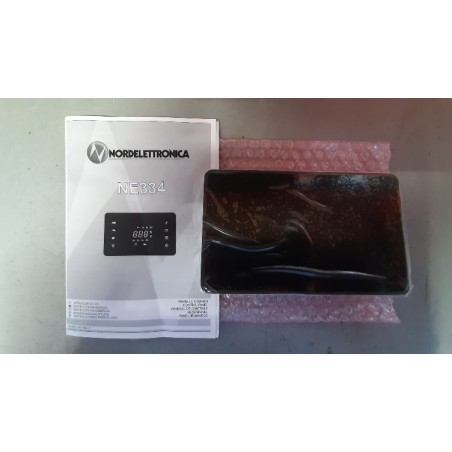

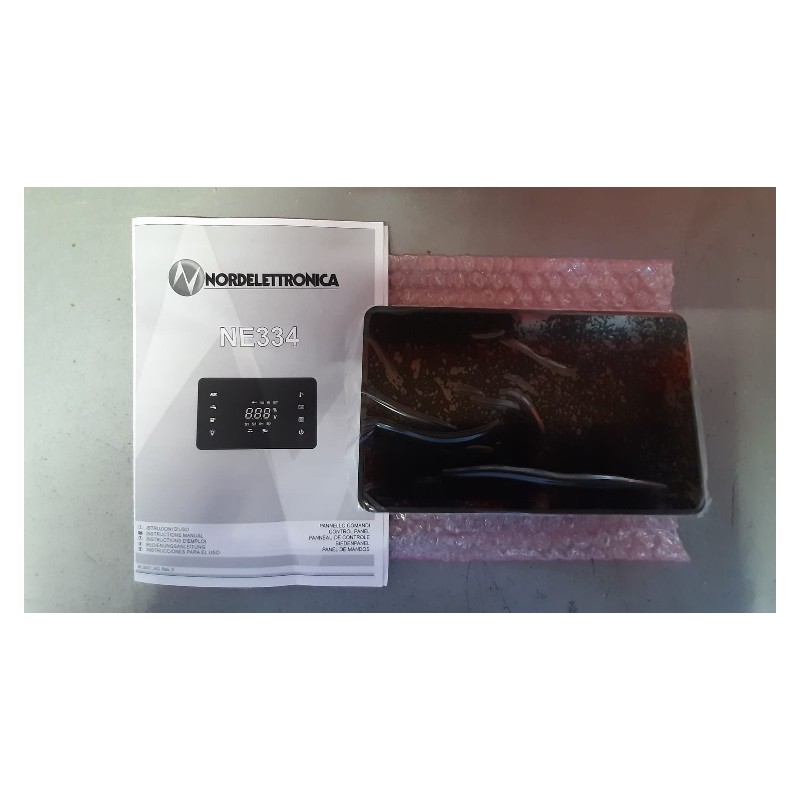

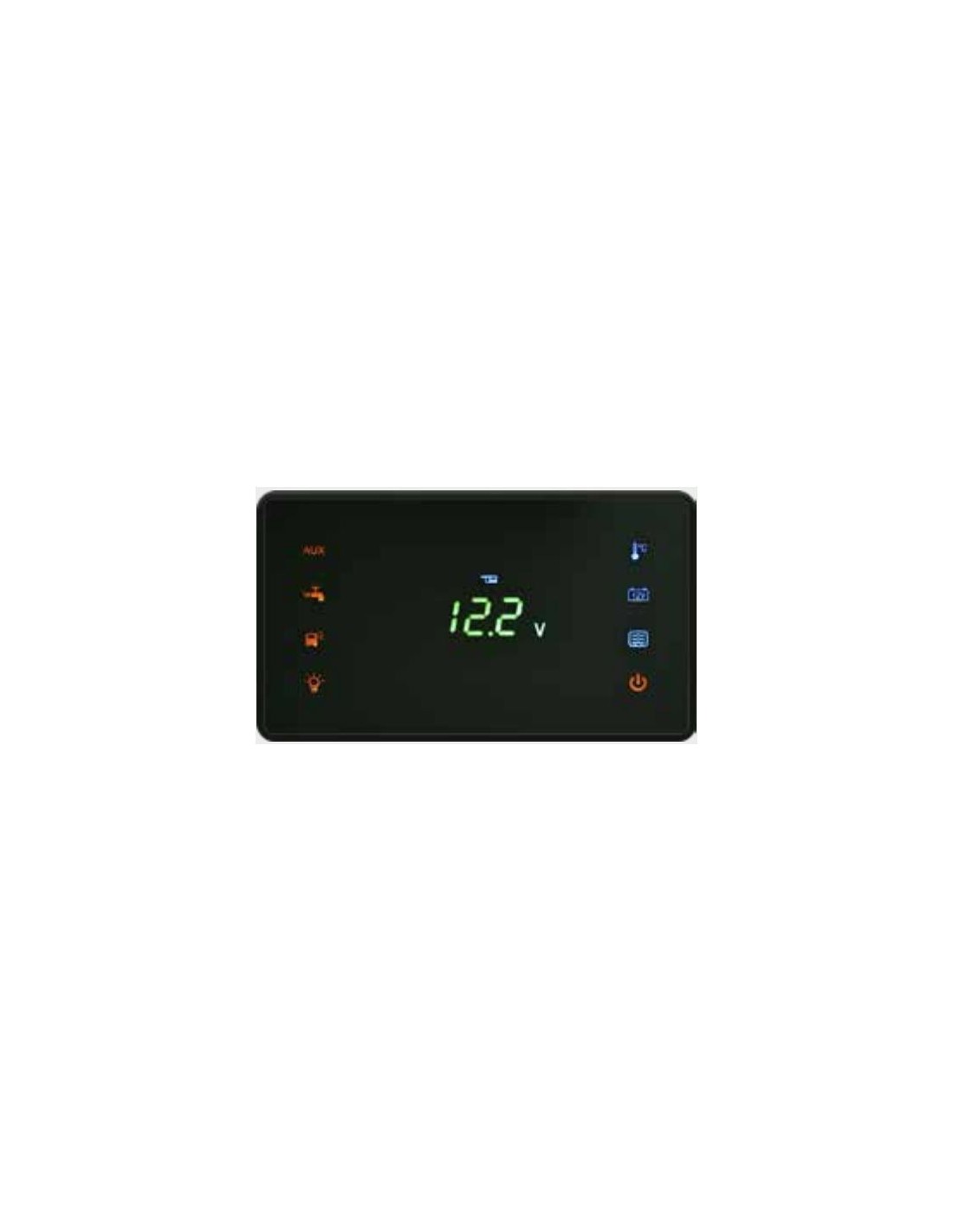

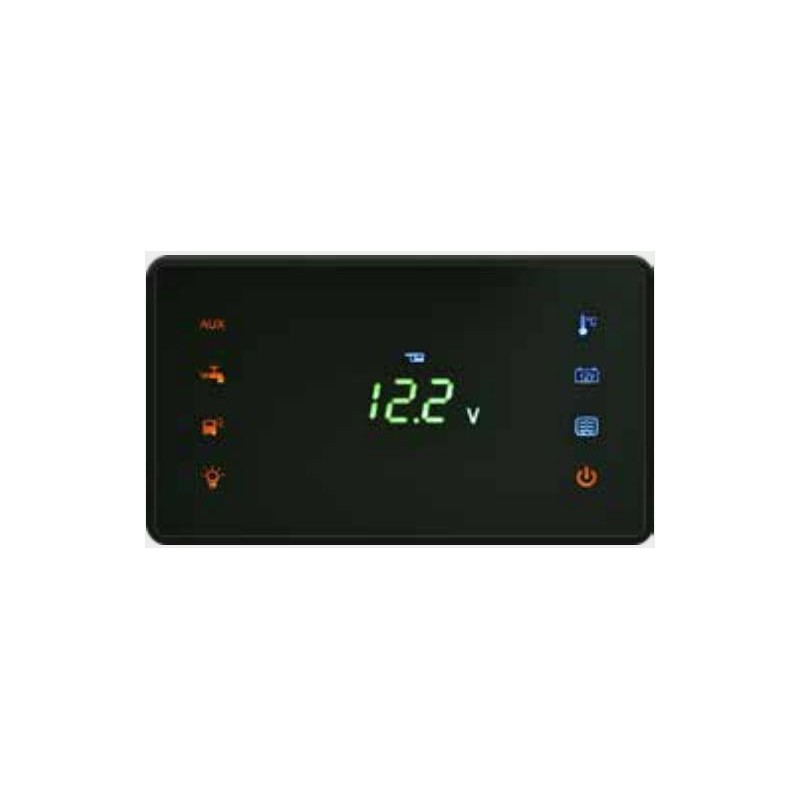

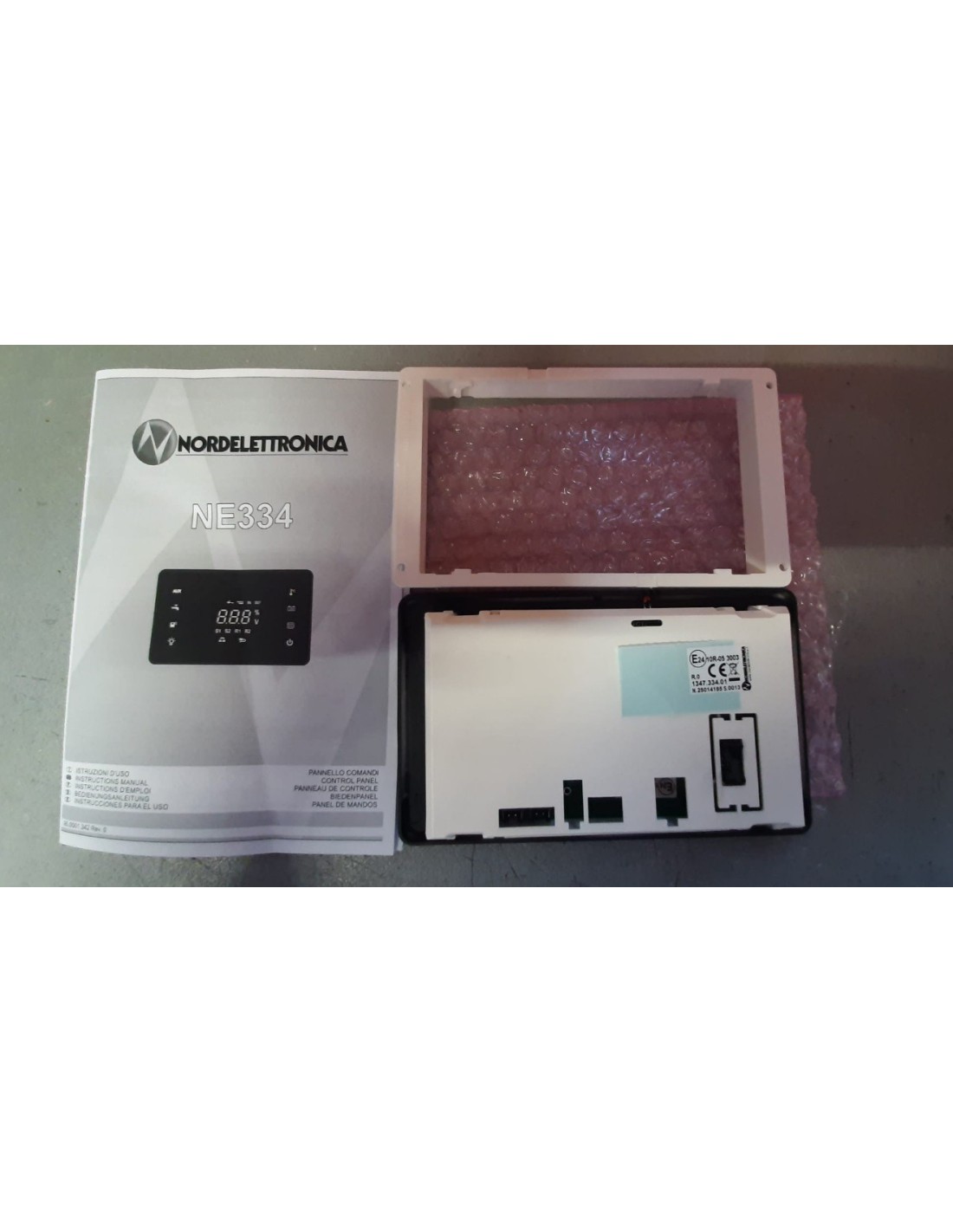

1347.334.01 NE334 glass control panel replacement

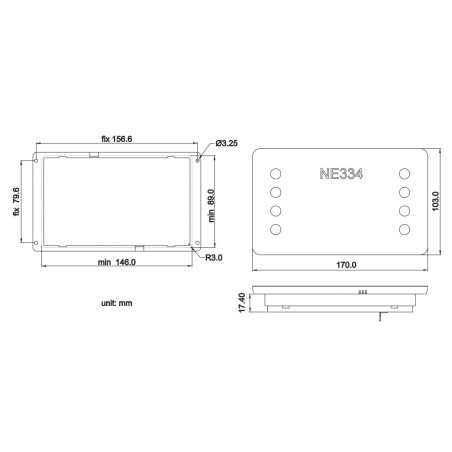

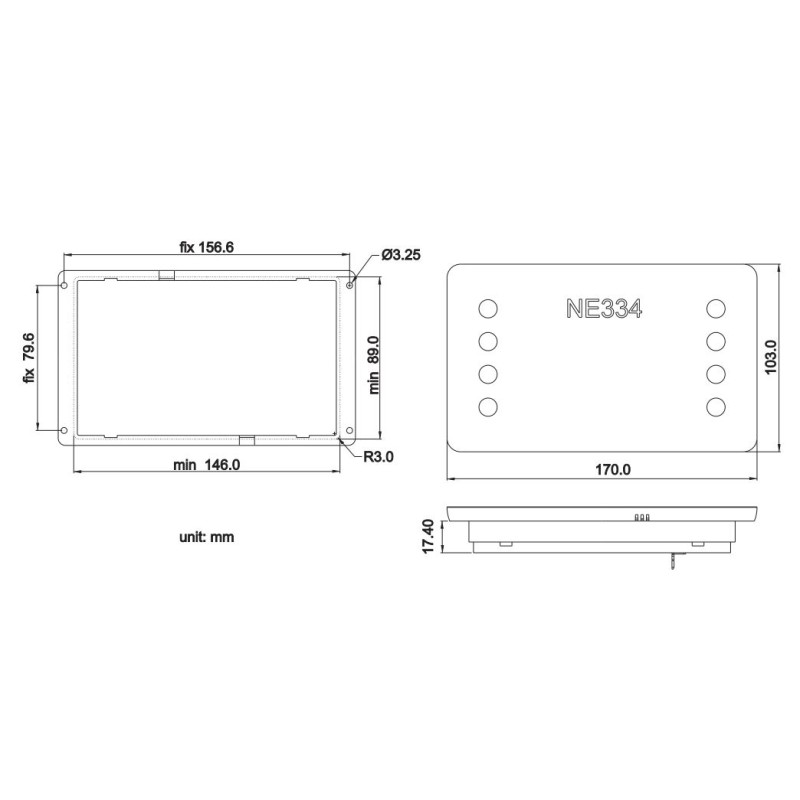

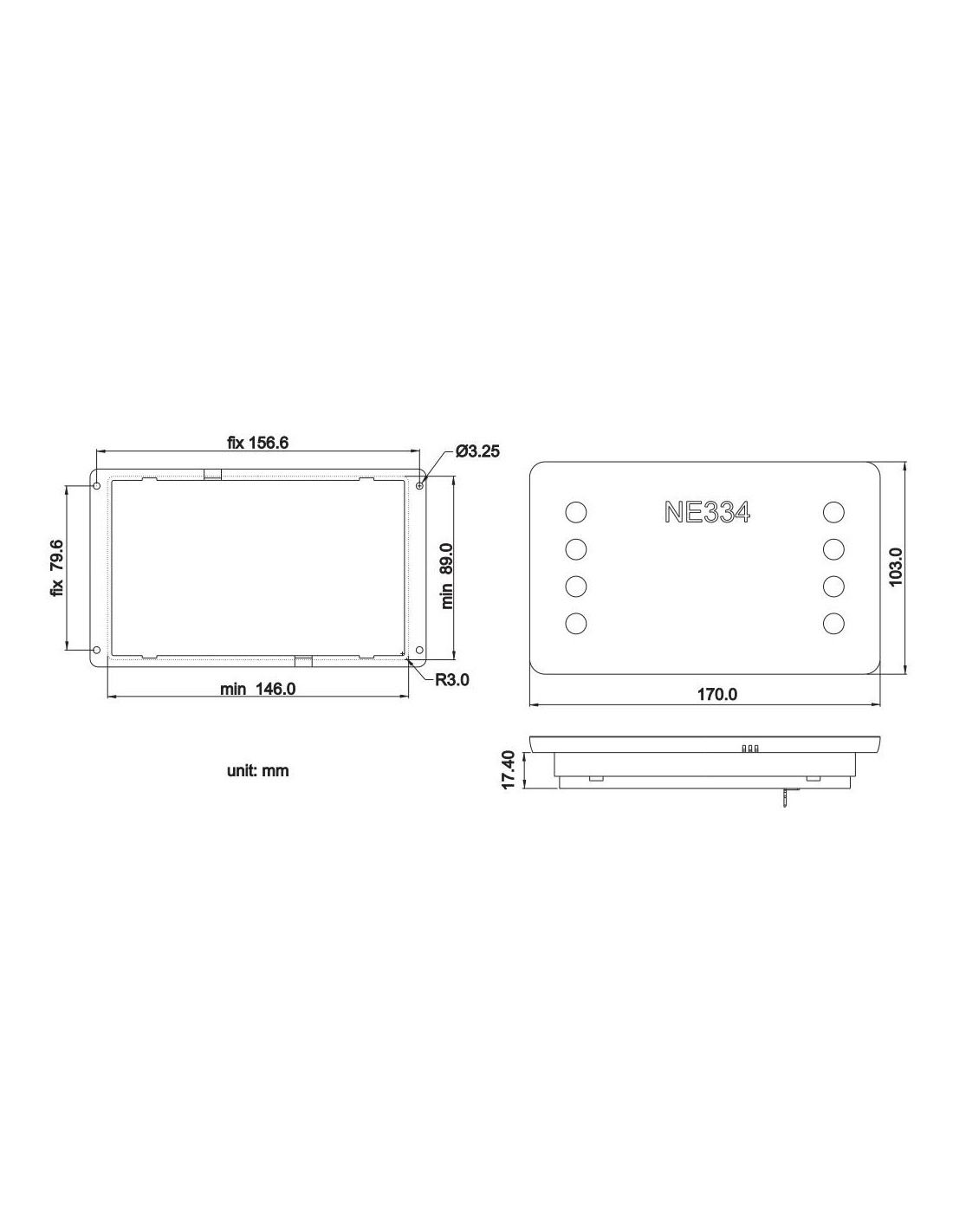

Panel dimensions 170 x 103 mm

Main features and functions of the complete system

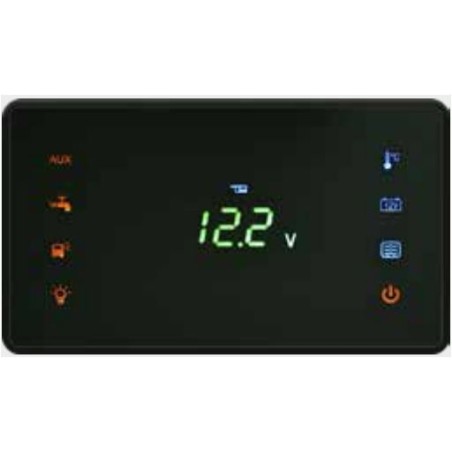

  • LED TOUCH control panel with 3-digit display.
  • Check in volts and graph of the car battery and service battery status.
  • Percentage check and graph of fresh water tank status.
  • Waste water tank reserve alarm.
  • Integrated electronic battery separator.
  • Trivalent fridge management.
  • 13 12V user protection fuses
  • Car battery recharge (maintenance).
  • Undervoltage control ("battery saver" function).
  • Digital clock.
  • Integrated internal and external temperature display opt
  • Display brightness adjustment function.

Composition of the complete system

  1. NE334 control panel code 1347.334.01
  2. 12V user distribution panel, 13 NE356 fuses code 1347.356.01.
  3. Potable water tank probe S1-S2 type SST/75 code 1347.000.04.
  4. Recovery water tank probe R1-R2 type SSR code 000.400.32.
  5. Tank probe wiring S1=6 m - R1=6 m type CCS700 code 000.404.66.
  6. Control panel wiring L=8 m type CP700 code 000.400.700.
  7. External temperature wiring L=4 m type CTE code 84.0060.040.
