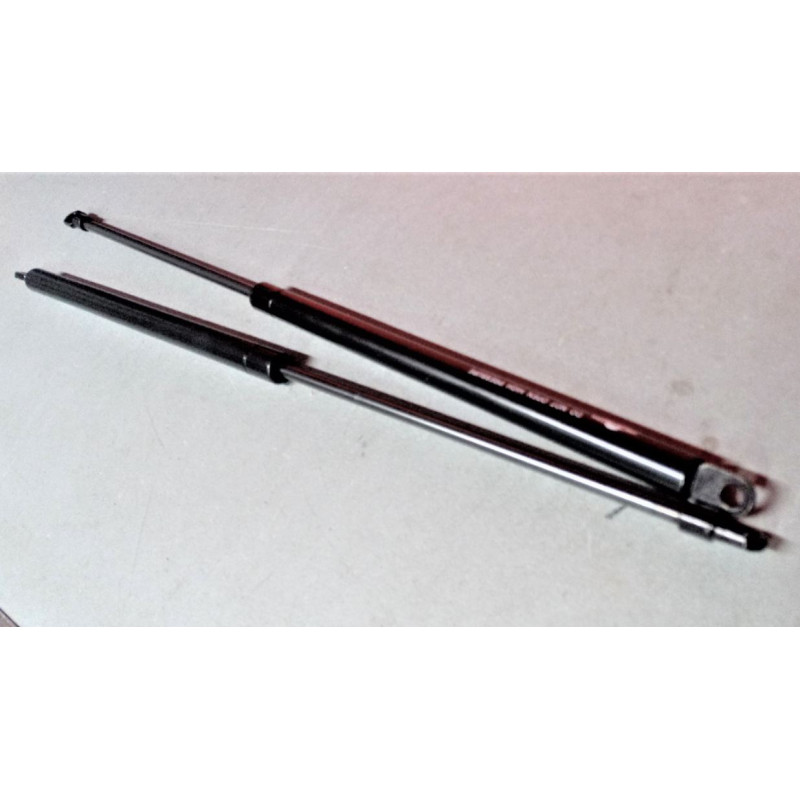

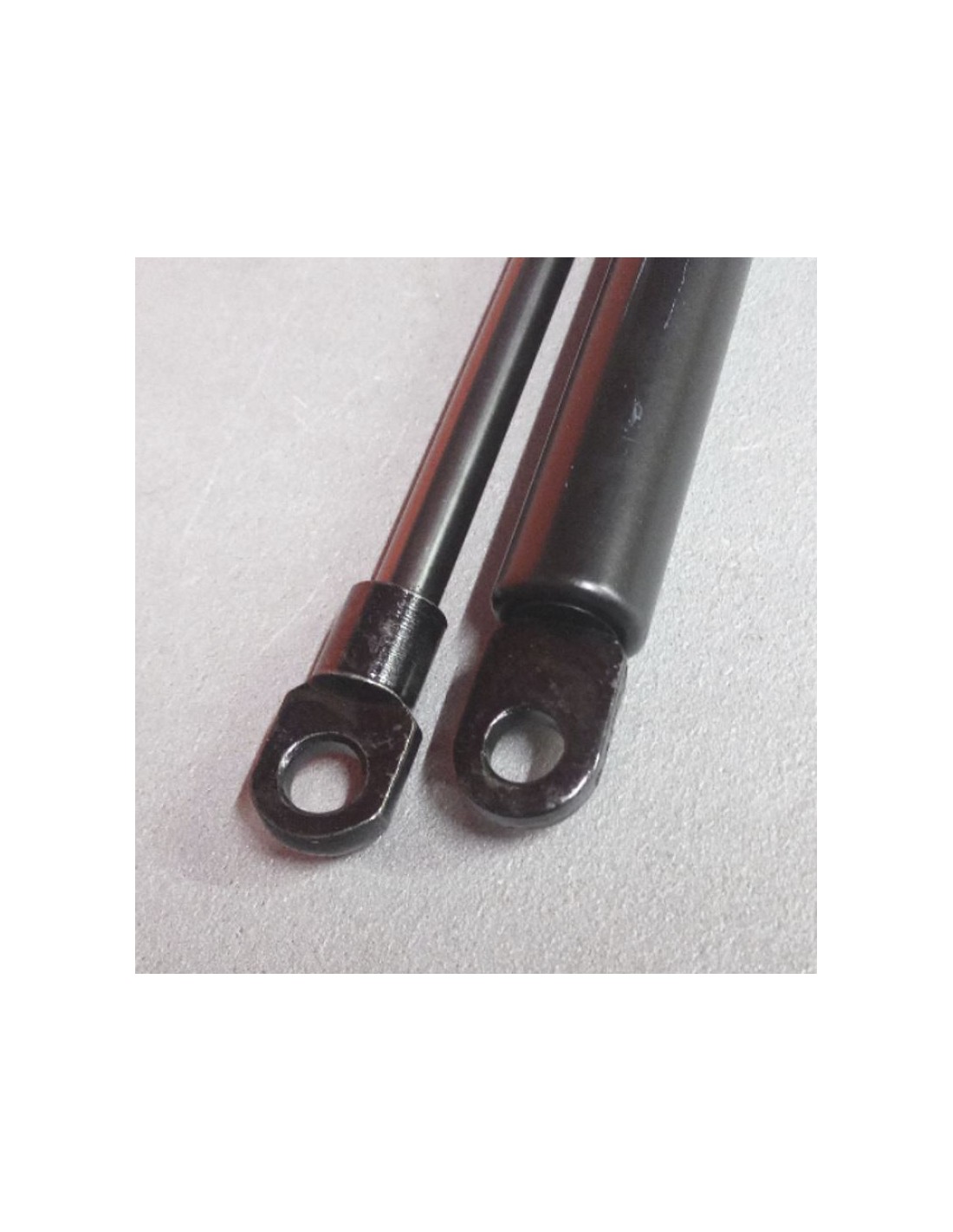

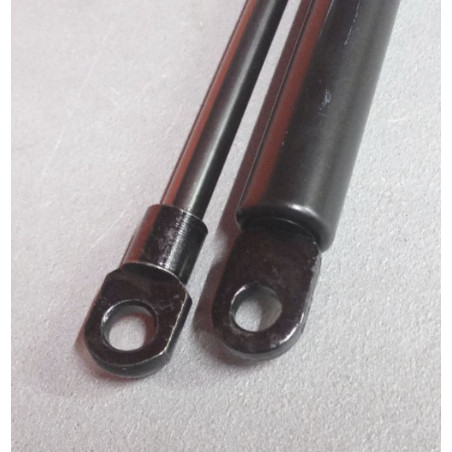

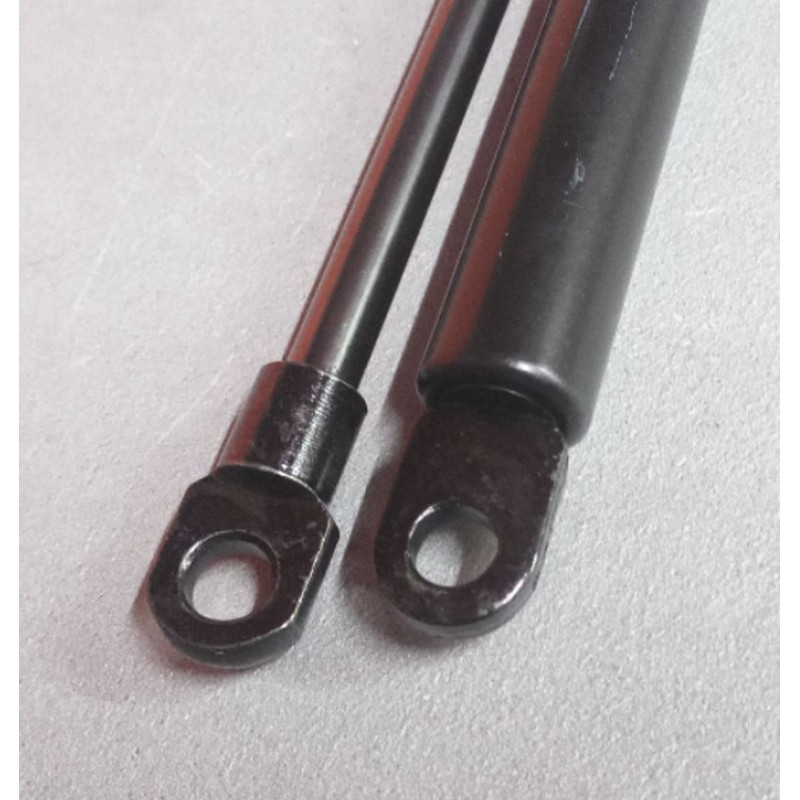

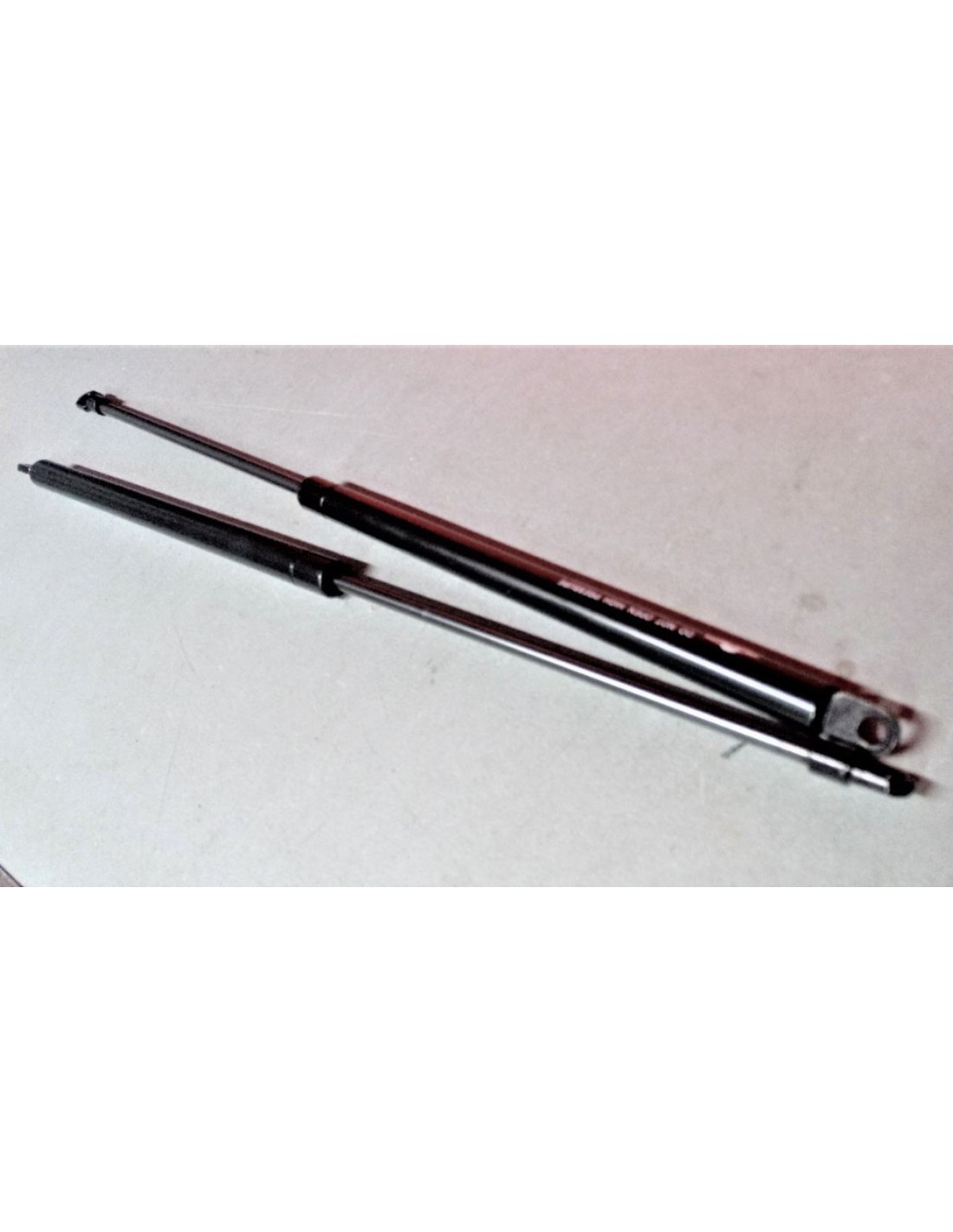

Pair of 200N gas pistons for folding bed 550/230 mm

Pair of 200N gas pistons for folding bed 550/230 mm

Stem diameter 8 mm

Body diameter 18.5 mm powder coated tube

Total length 550 mm

Stroke 230 mm

200N = 20kg

The values indicated refer to:

• open size
• closed dimension
• flow rate in newtons

The gas spring consists of a steel cylinder containing nitrogen and oil under pressure and a ground steel rod that slides in the cylinder itself through a sealing ring.

The oil has the function of lubricating the seals and the stem.

The gas compresses and makes a thrust on the rod proportional to the weight to be moved, with a flat force curve for any stroke.

The most widespread applications are on vehicle doors, on protective casings, on furniture doors, on attic windows, and on supermarket sales counters.

The operating temperature varies the thrust of the gas spring by approximately 4% every 10°C above the standard operating temperature of 20°C.
