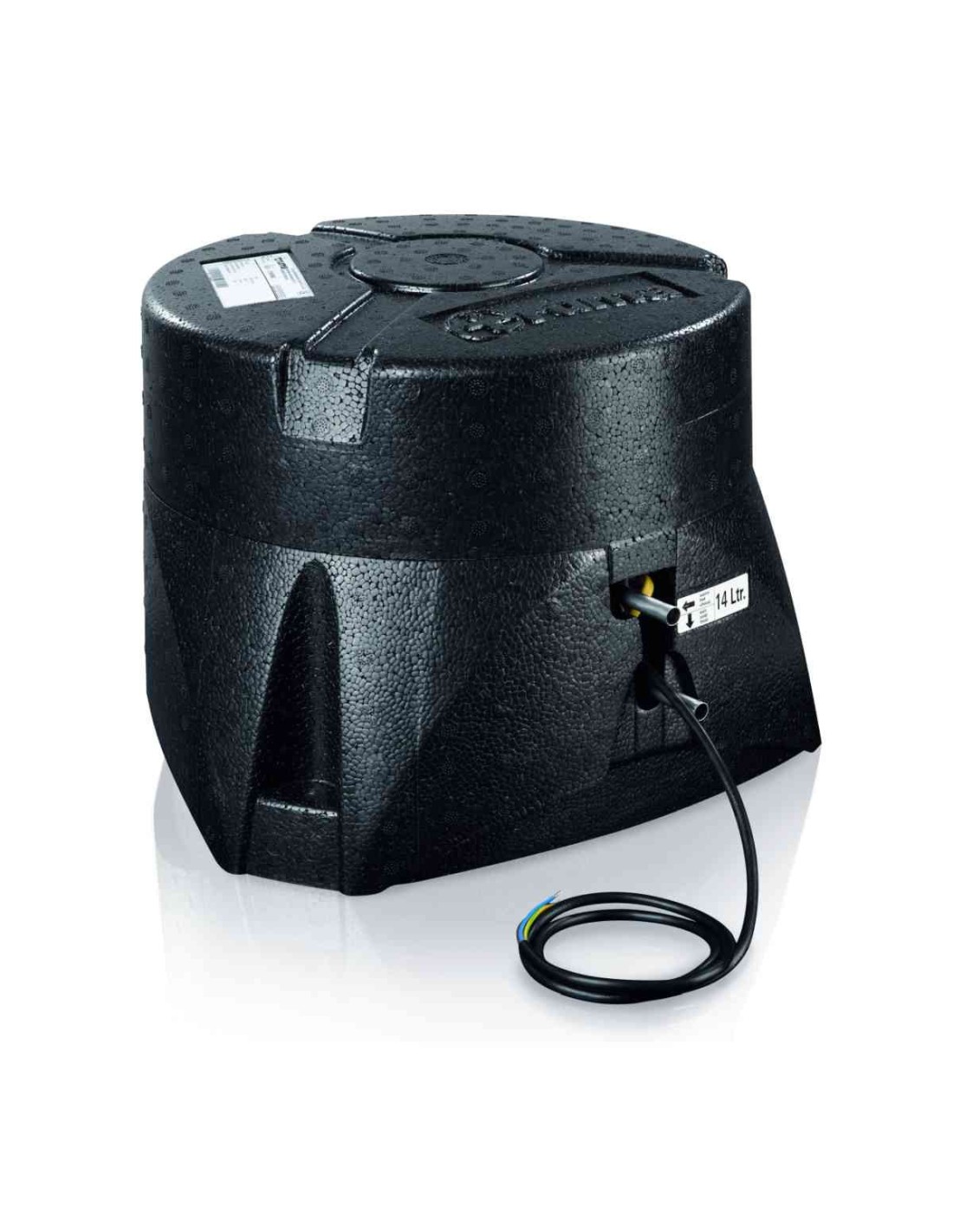

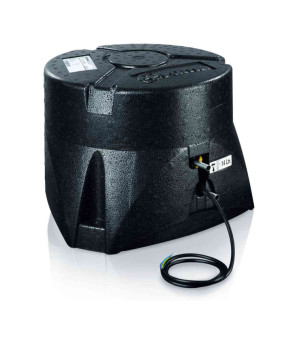

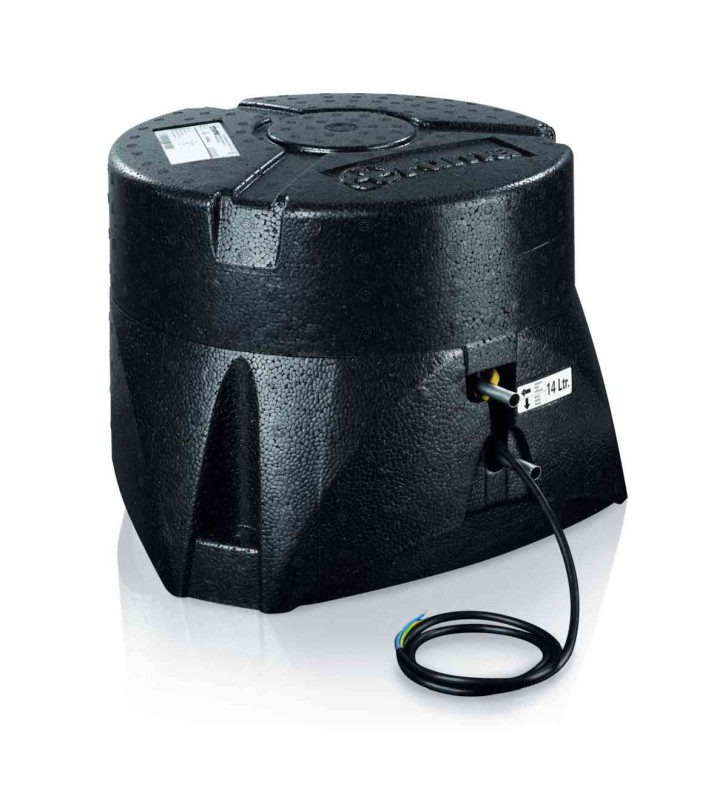

Electric boiler TRUMA 220V/850W 14L - 71201-20

Truma Electric Boiler 230 V – 850 W, 14 litres - 71201-20

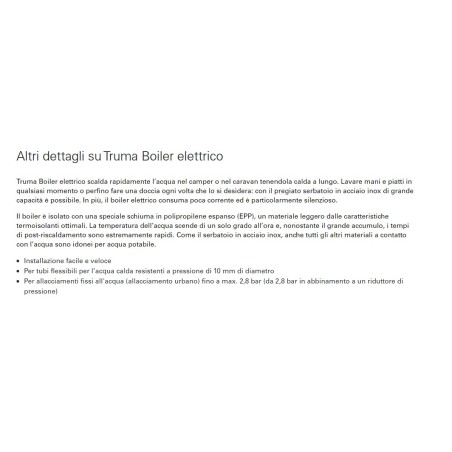

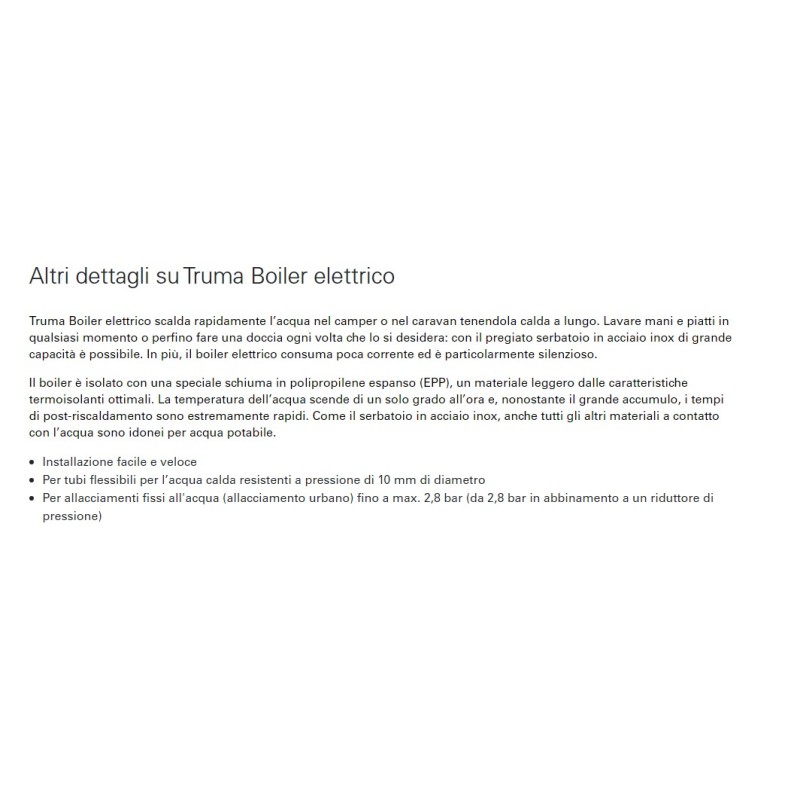

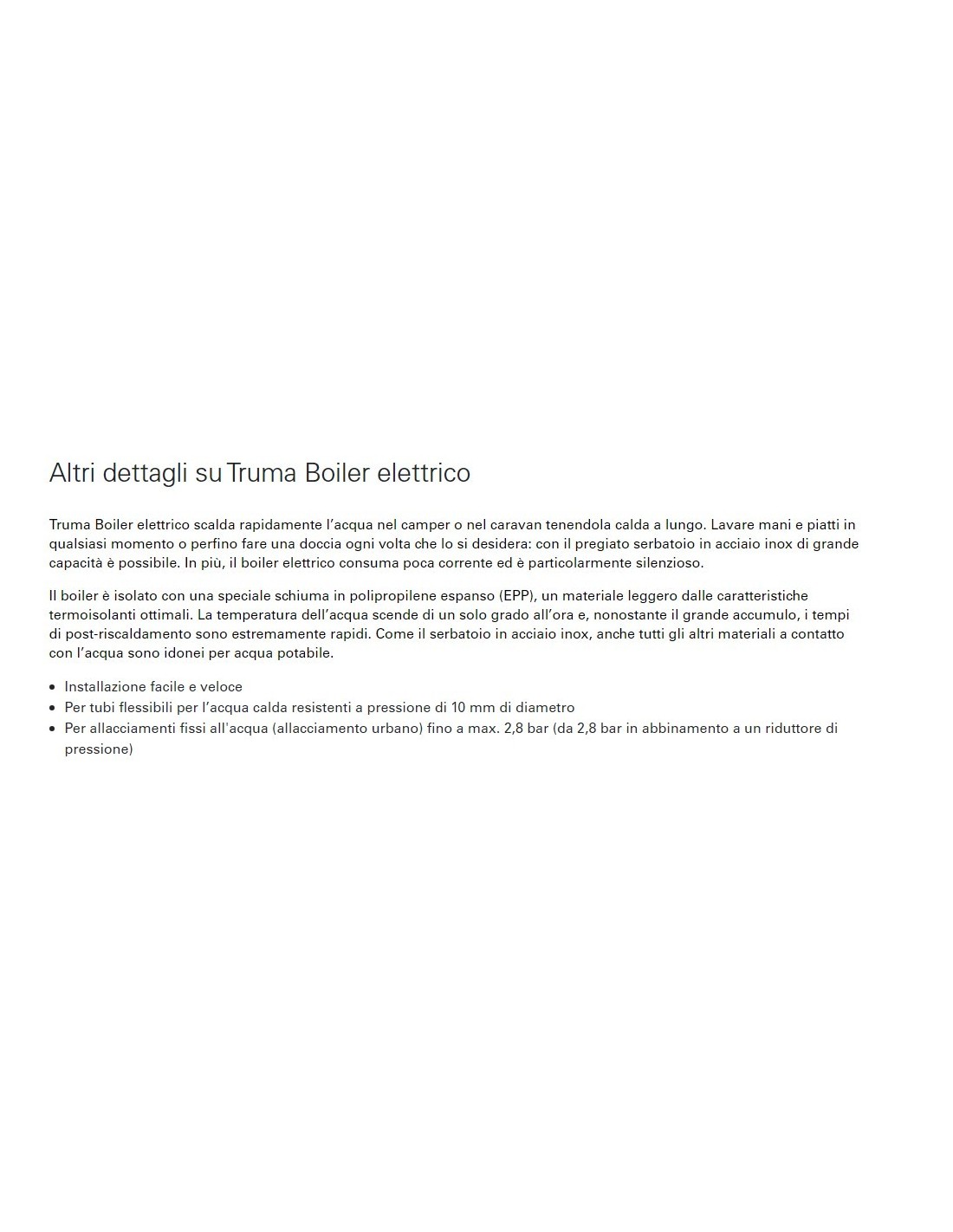

SPECIAL EPP FOAM INSULATION

THIS ELECTRIC BOILER CONVINCES WITH ITS PERFECT INSULATION WITH MINIMAL HEAT LOSSES.

THE TEMPERATURE DROPS BY ONLY 1°C PER HOUR!

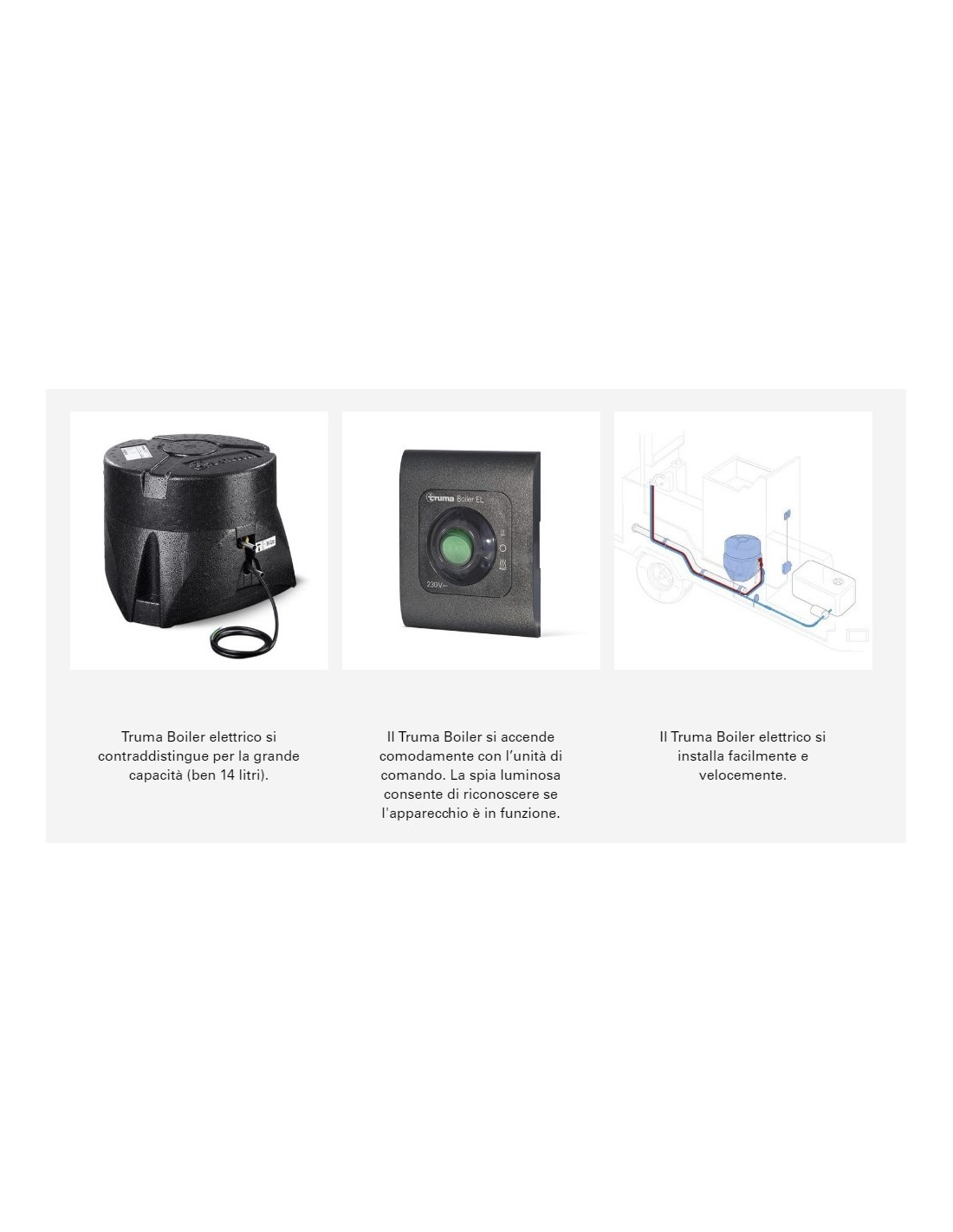

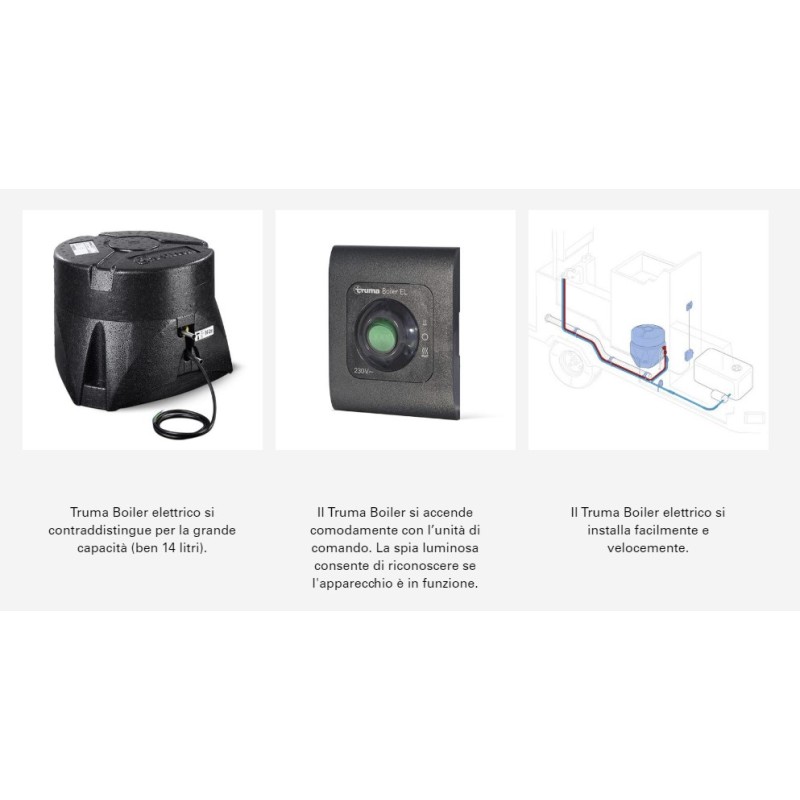

The Truma boiler brings the comfort of hot water that we are used to at home to caravans and motorhomes.

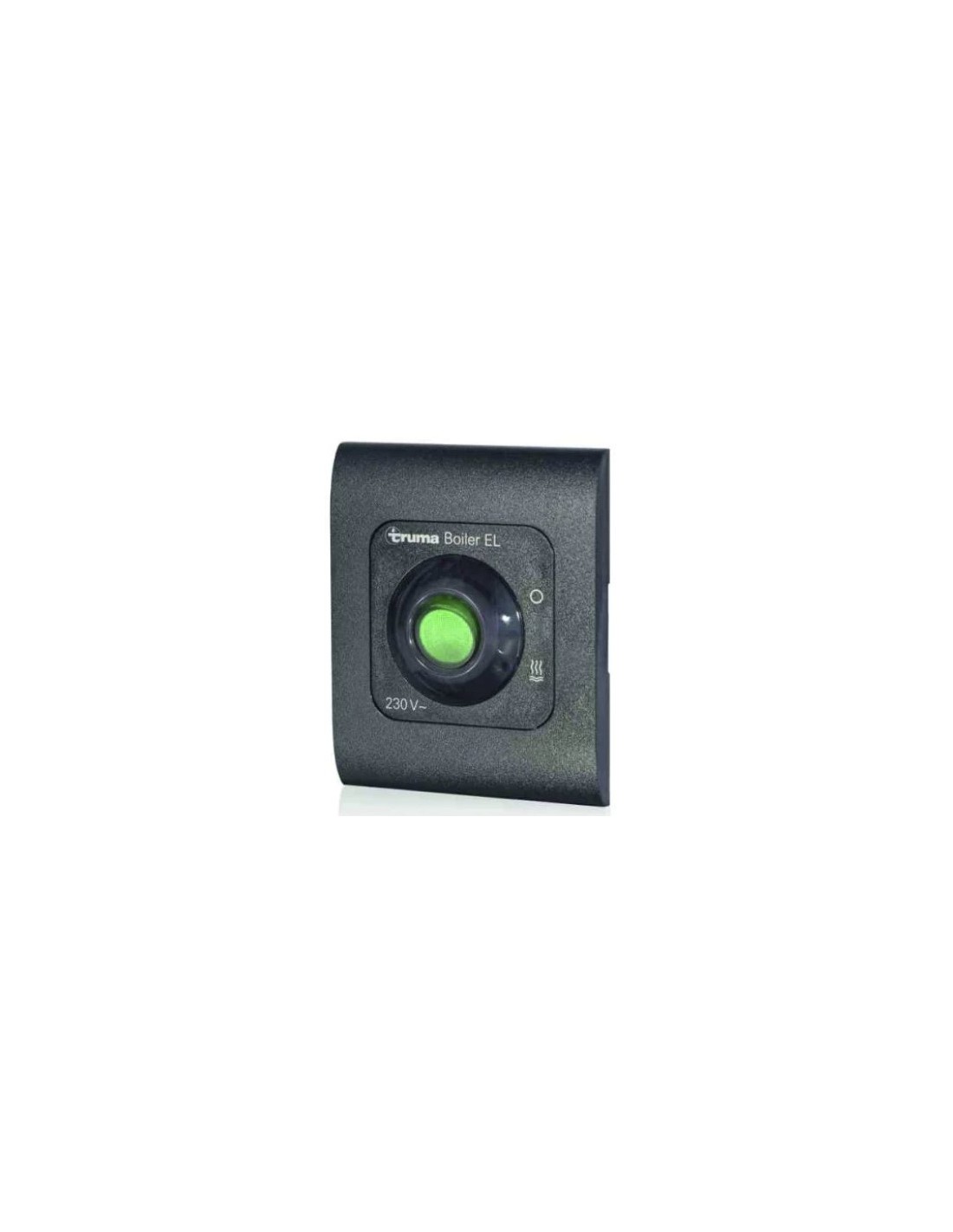

The control is conveniently carried out from inside.

The electronic system provides precise and safe ignition, temperature regulation and flame control.

The water tank is made of stainless steel.

The device is very compact, easy to install and can be integrated into the existing water system.

Submersible pumps or pressure switch pumps up to 2.8 bar are well suited for this purpose.

All standard commercial taps can be used.

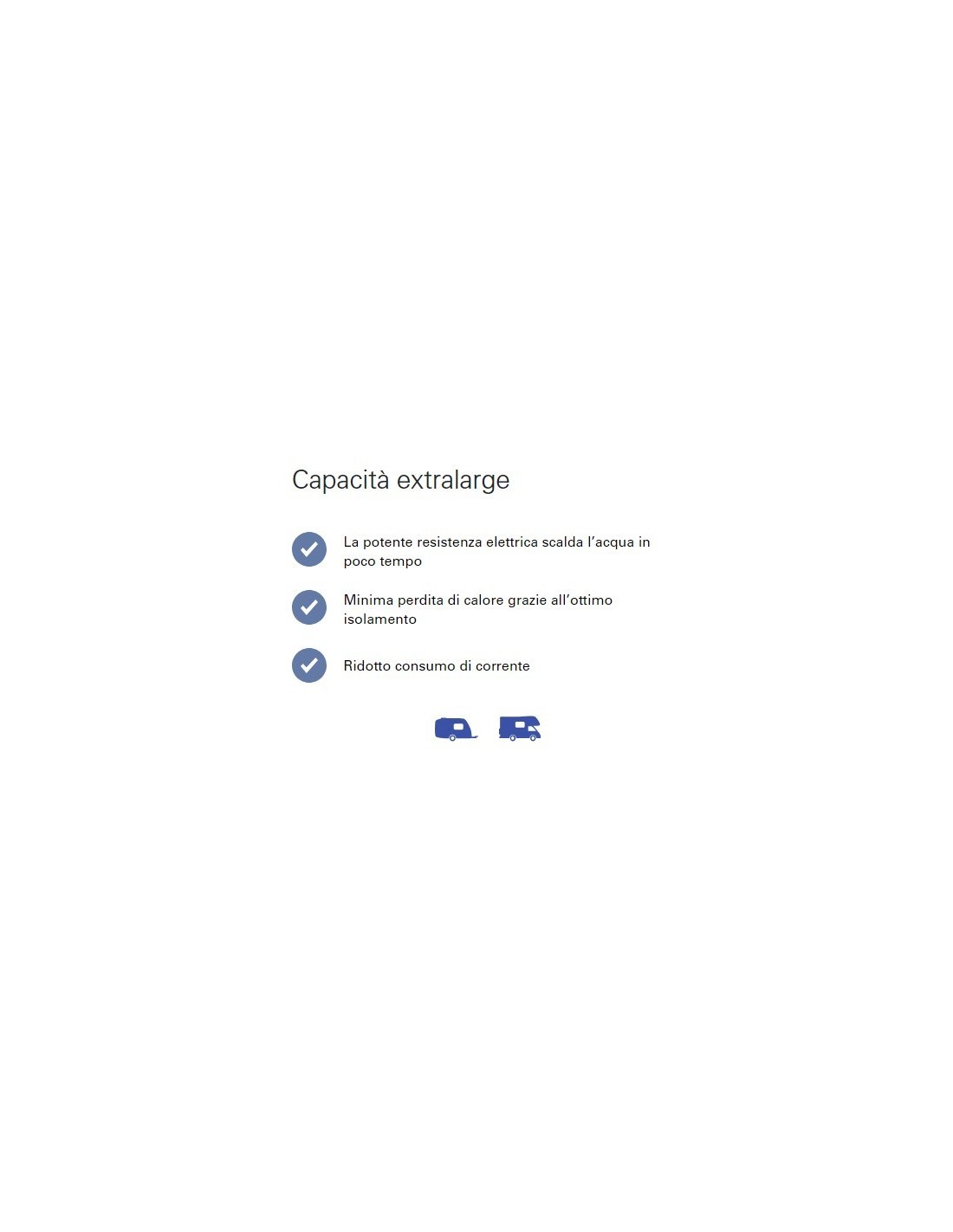

ADVANTAGES:

• The powerful electric resistance heats the water in a short time
• Minimal heat loss thanks to excellent insulation
• Reduced power consumption

TECHNICAL FEATURES:

• Capacity: 14 litres
• Weight: 3 kg

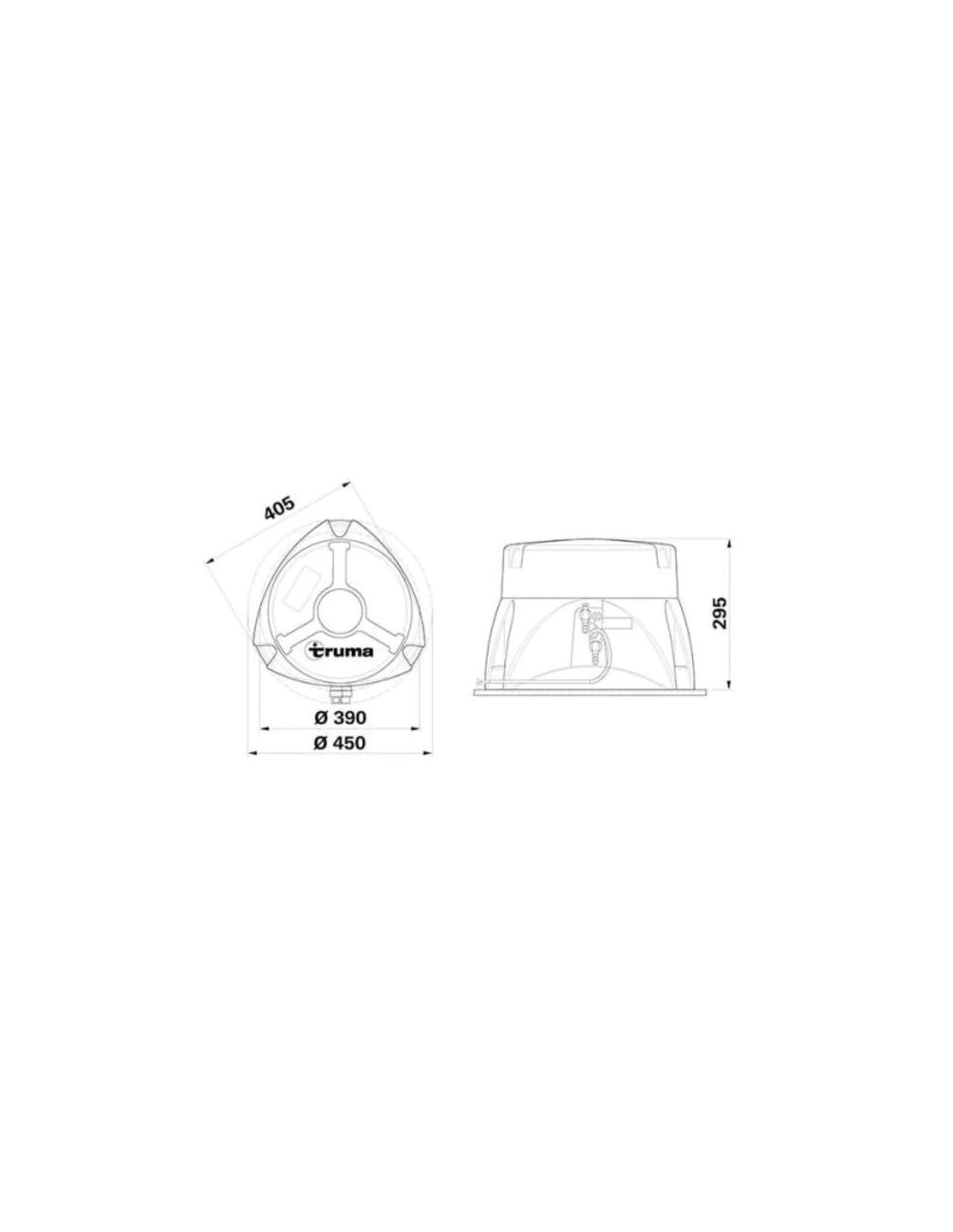

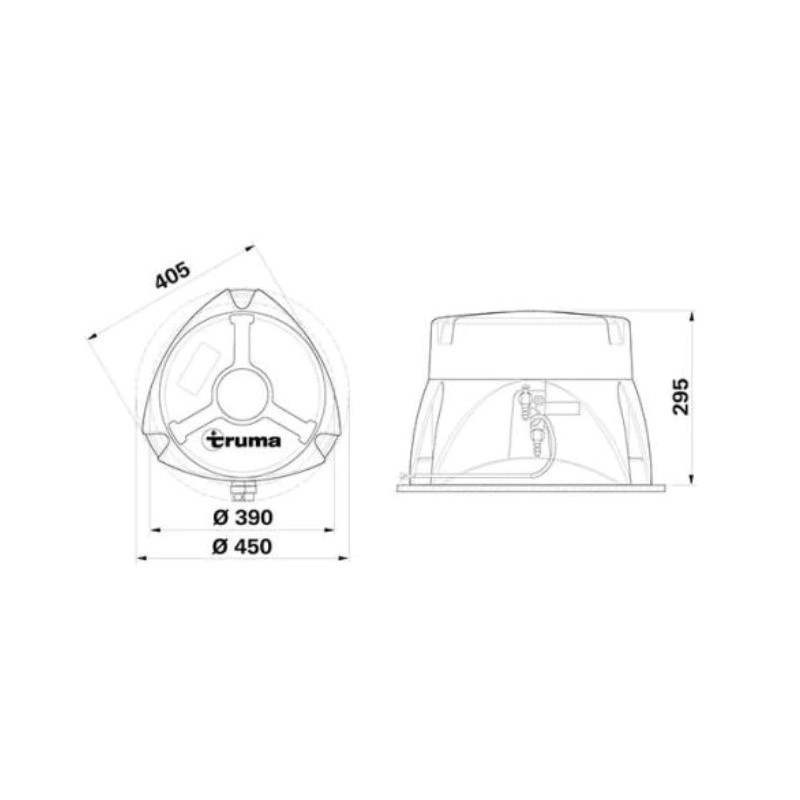

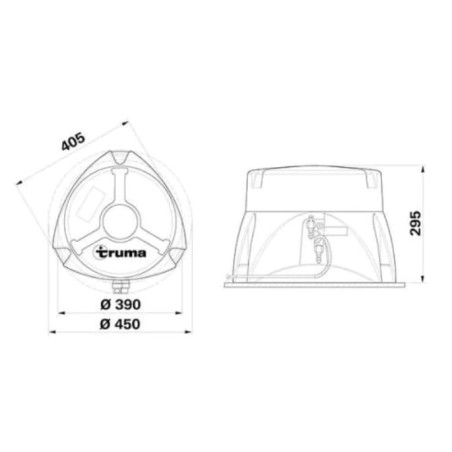

• Dimensions: 405 x 405 x 295 mm
• Electric resistance power 850W
• Current consumption - ignition: 3.7A
• Current consumption - heating: 3.7A
• Current consumption in steady state: 3.7A
• Water inlet pressure: max 2.8 bar
• Maximum temperature 70°C
• Heating time from 15° to 70° C: approximately 70 minutes.

NB Purchase the water connection kit separately

TRUMA 71201-20

Complete with:

• Boiler

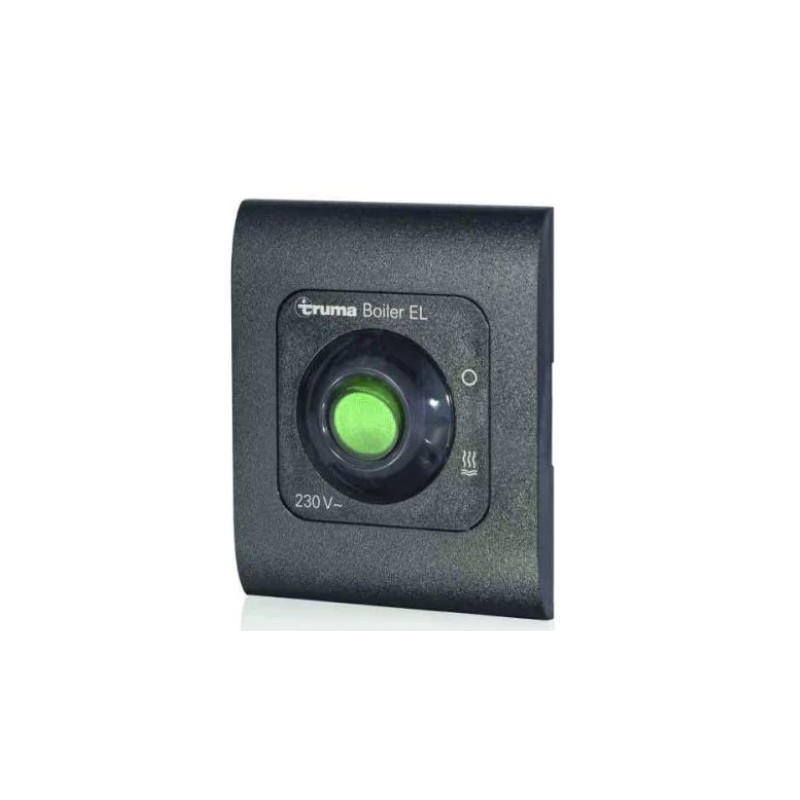

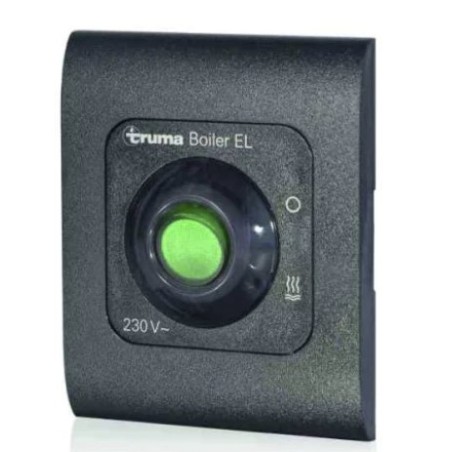

• Control with 3m cable.
• Safety valve drain

THE LONG HEAT STORAGE ENSURES VERY SHORT POST-HEATING TIMES DESPITE THE LARGE WATER TANK.

REDUCED ELECTRICITY CONSUMPTION FOR HEATING SAVES ENERGY AND REDUCES COSTS.

THANKS TO THE SILENT OPERATION, YOU WILL NOT BE DISTURBED AT ALL.

EASY TO ASSEMBLE

SUITABLE FOR FIXED WATER CONNECTIONS (URBAN CONNECTION) UP TO MAX. 2.8 BAR (ABOVE THIS A PRESSURE REDUCER IS REQUIRED).

FOR COMPRESSION-RESISTANT HOT WATER FLEXIBLE HOSES WITH A DIAMETER OF 10 MM.
