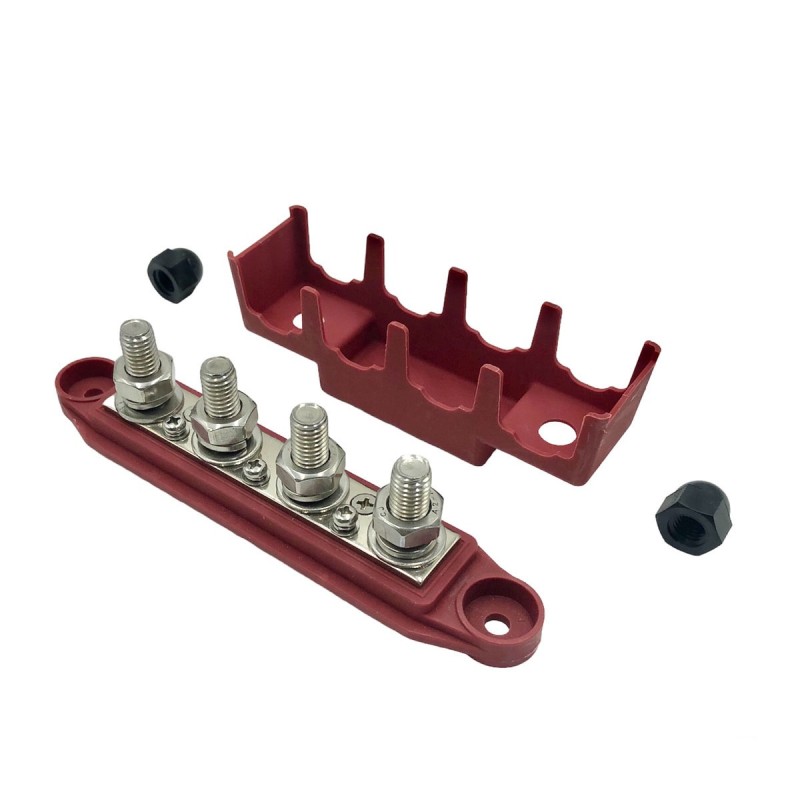

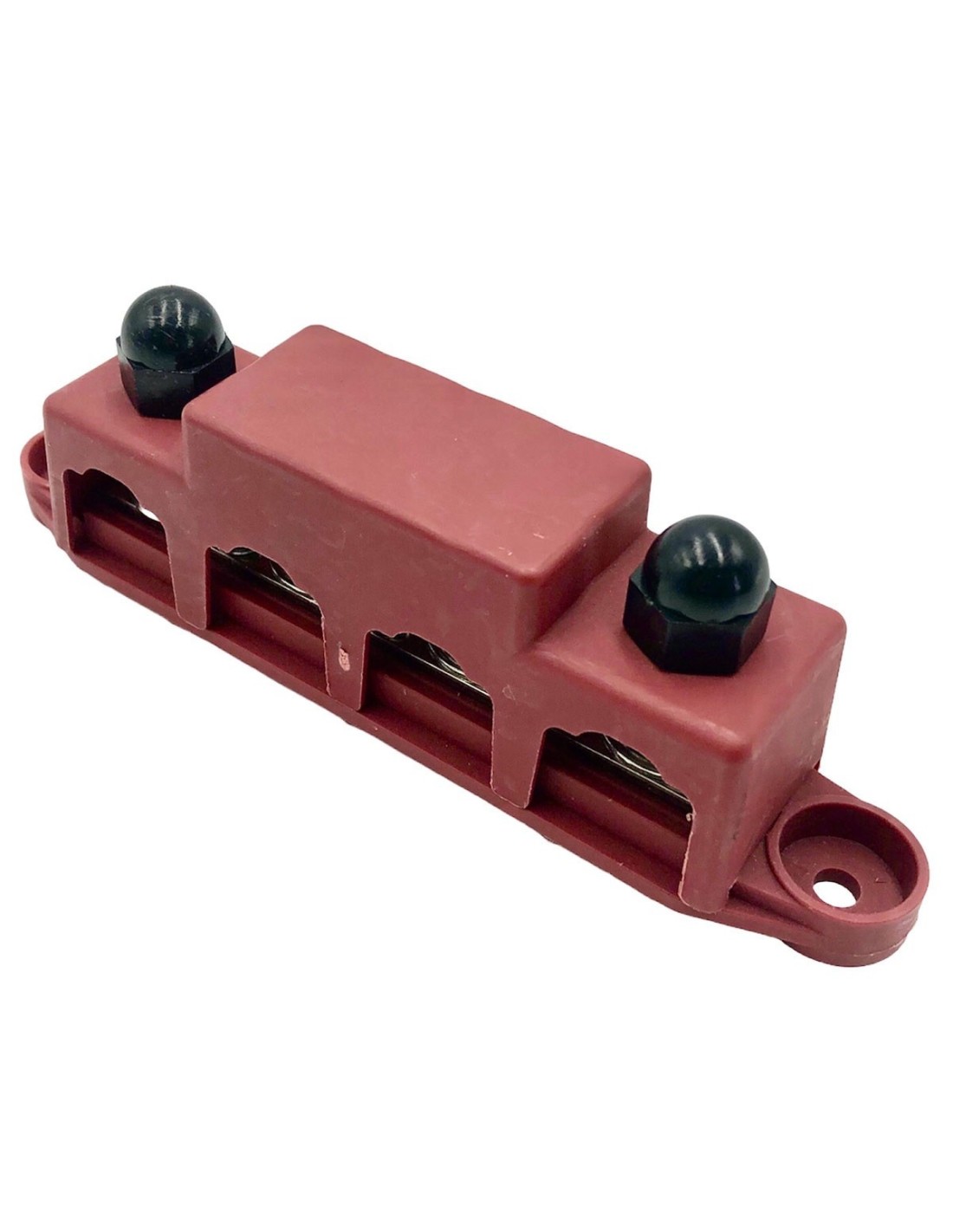

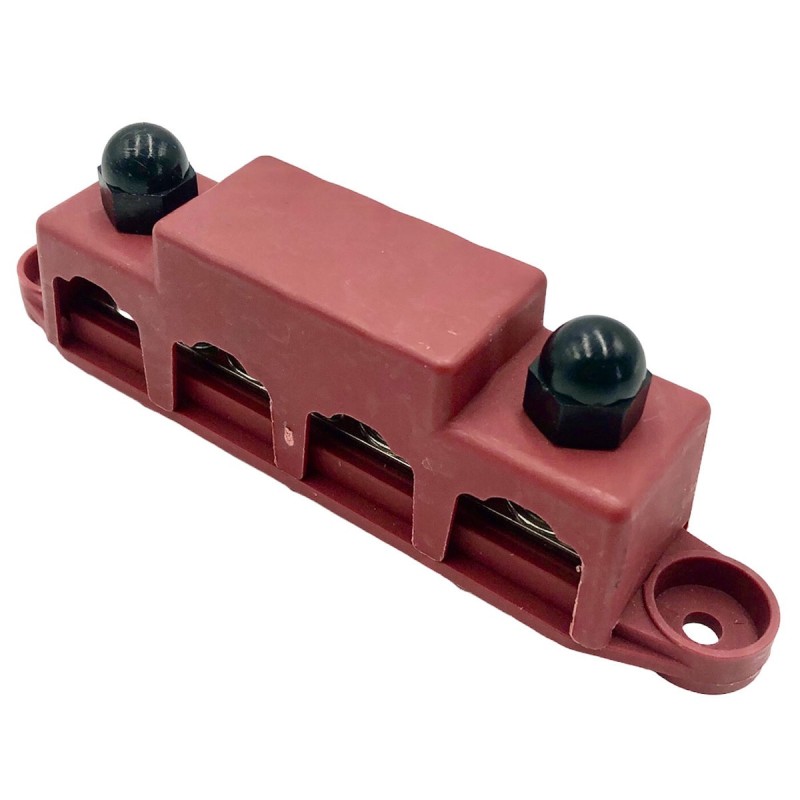

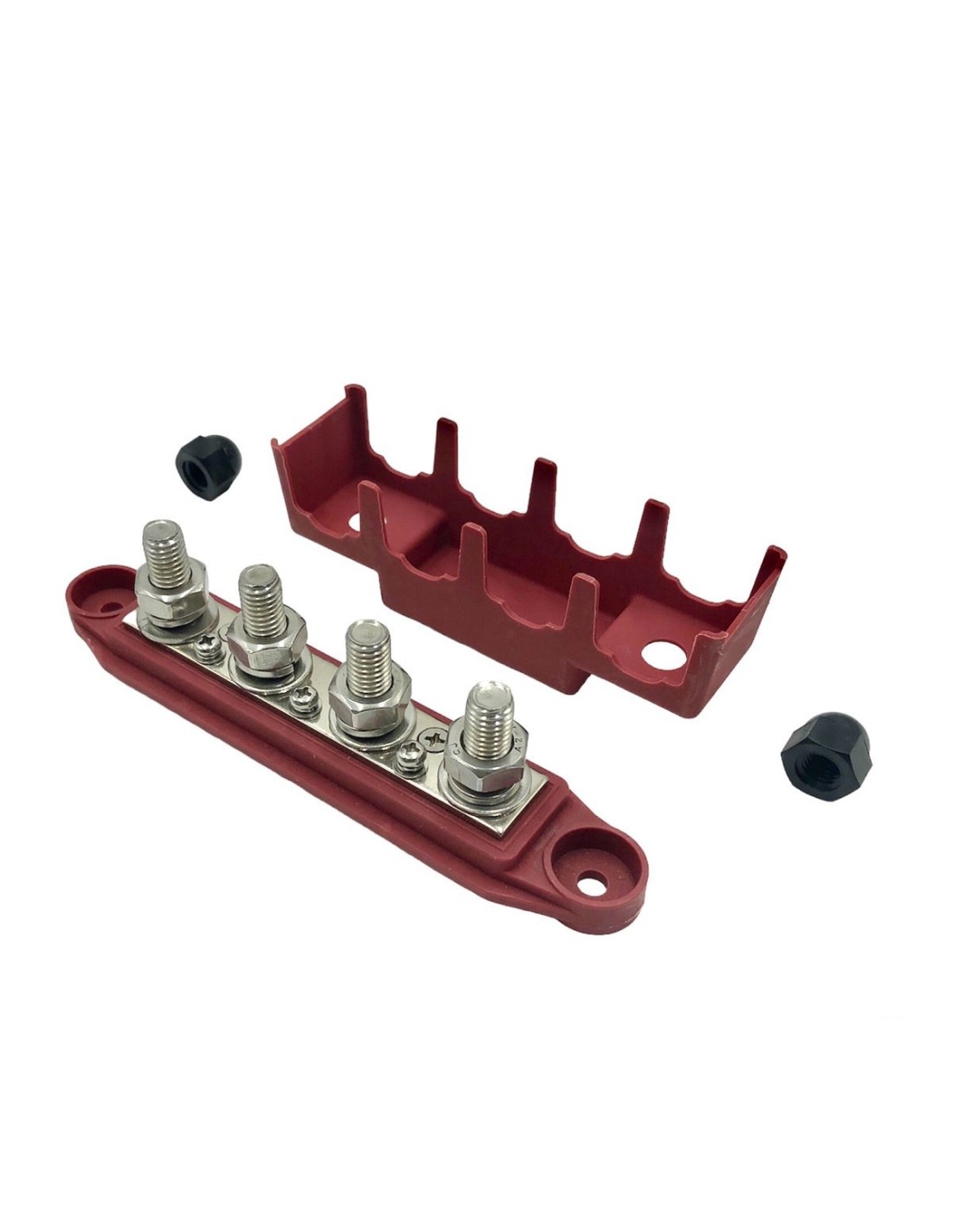

Red connection bar 4 pins x M10 + 4 screws x M4 maximum 250A - 48vdc with protective cover
Red connection bar 4 pins x M10 + 4 screws x M4 maximum 250A - 48vdc with protective cover
Red connection bar 4 pins x M10 + 4 screws x M4...
Red connection bar 4 pins x M10 + 4 screws x M4...

Red connection bar 4 pins x M10 + 4 screws x M4 maximum 250A - 48vdc with protective cover

5 days of preparation excluding made to order items
€24.90
VAT included
24.9
5 days of preparation excluding made to order items

Red connection bar 4 pins x M10 + 4 screws x M4 maximum 250A - 48vdc with protective cover

Dimensions 168 x 35 x h50 mm

Fixing centre distance 140 mm

Red plastic material color.

Multiple connection points, to accommodate multiple power connections supplied with protective plastic cover.

Nickel-plated brass contact plate: high current and anti-corrosion.

Maximum amperage: 250 amps at 12Vdc per connection.

Maximum voltage: 48 vdc.

TERMINAL PINS: 4 X M10 / 4 X M4
