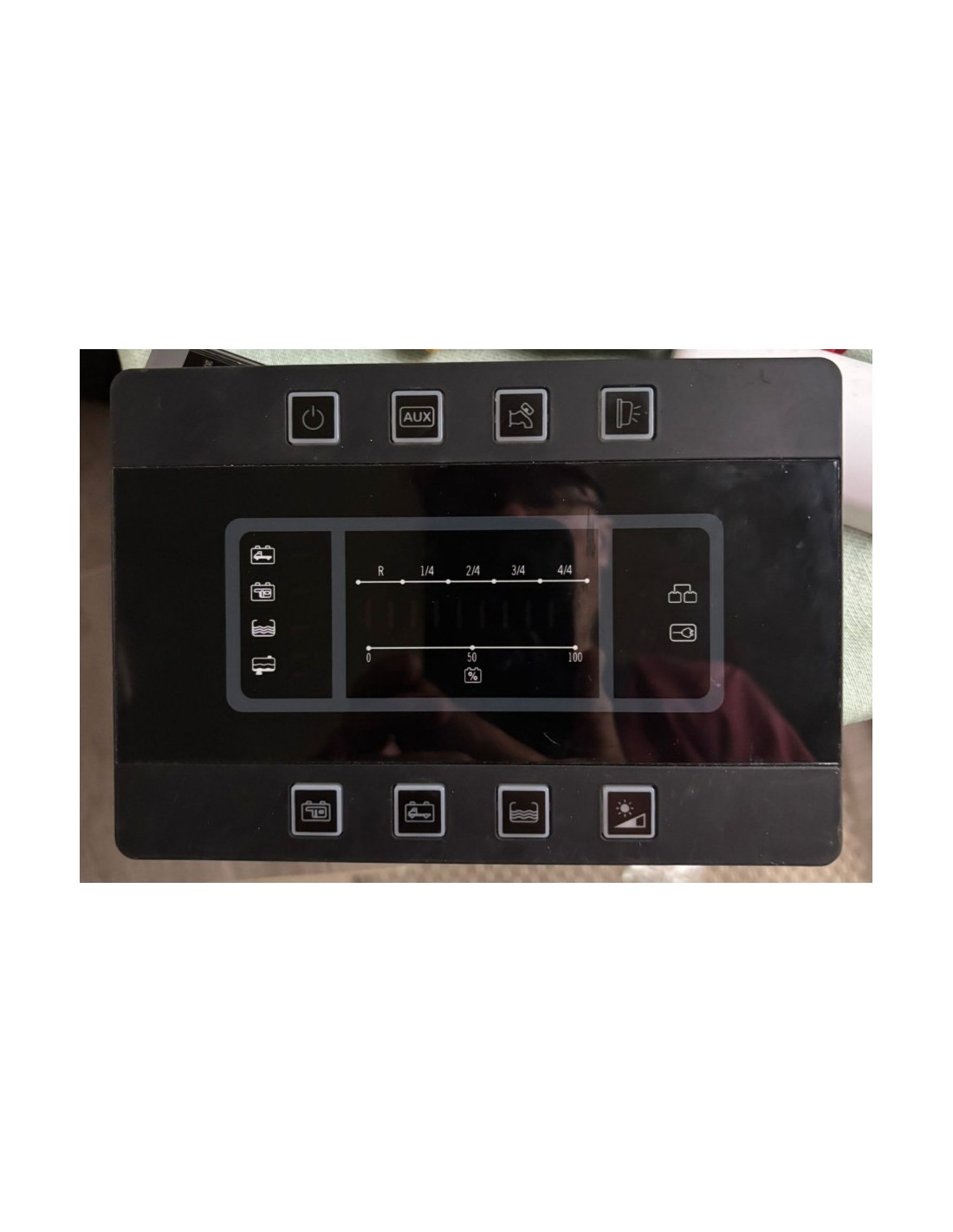

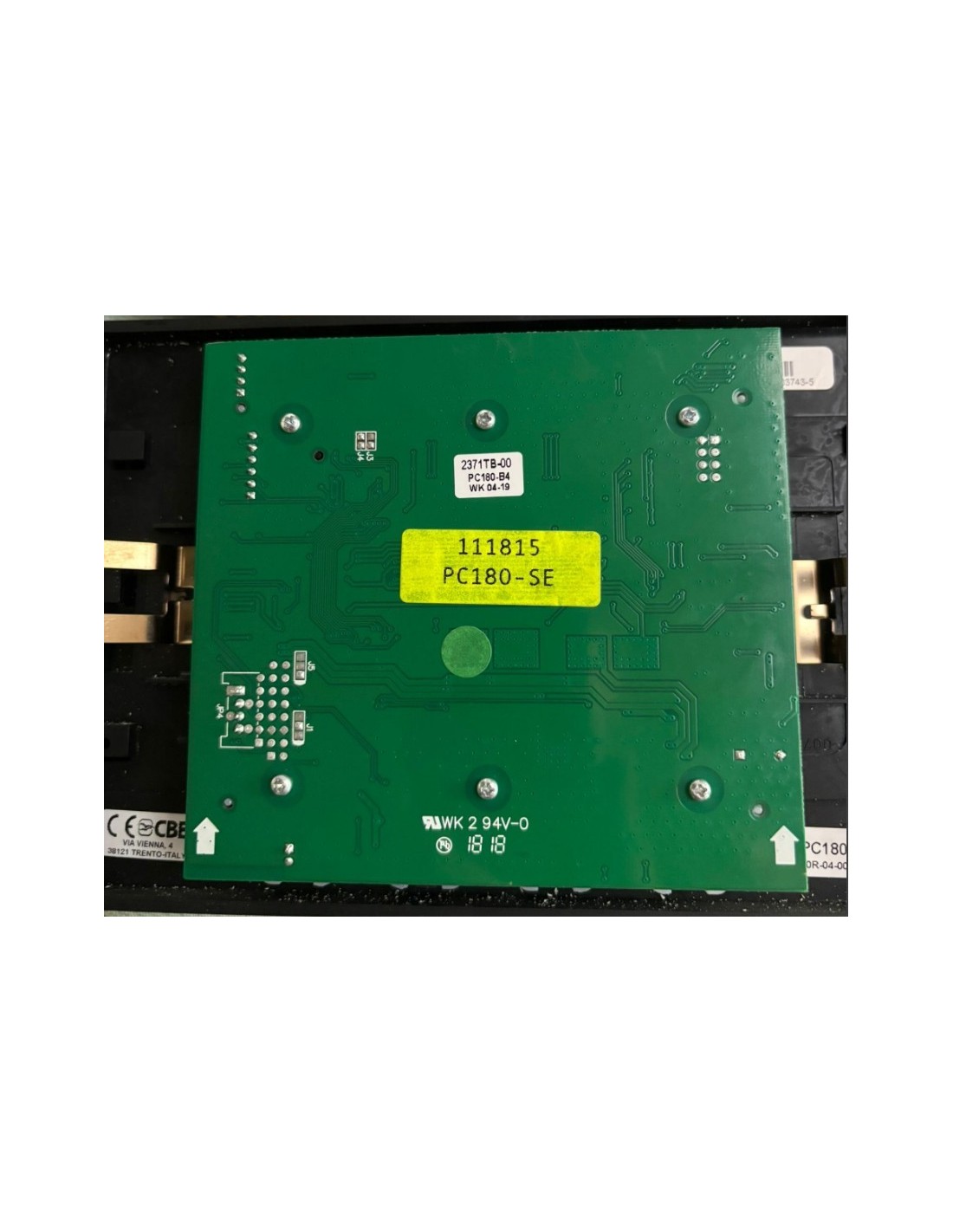

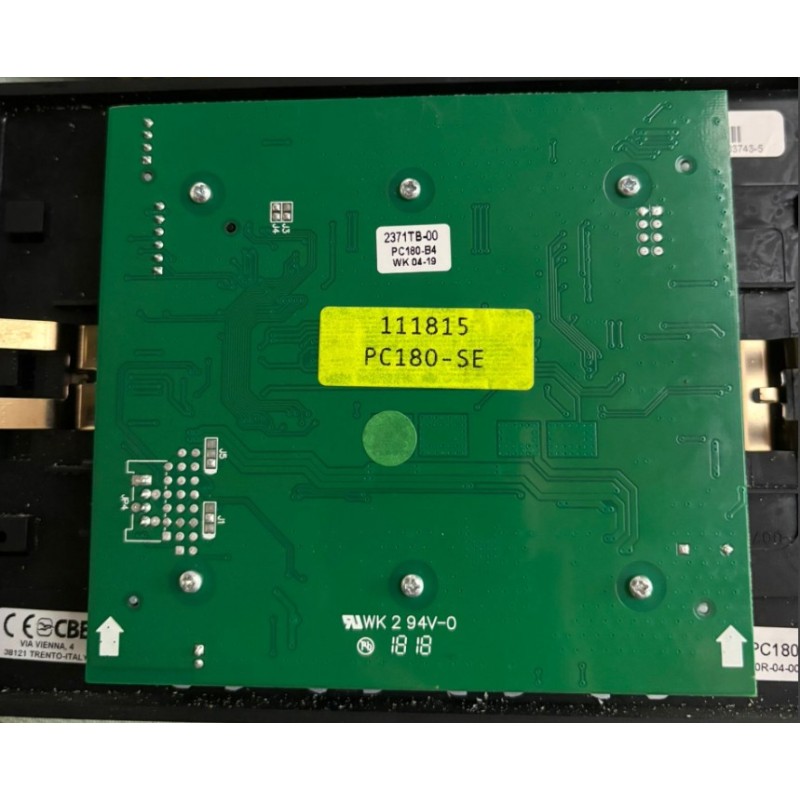

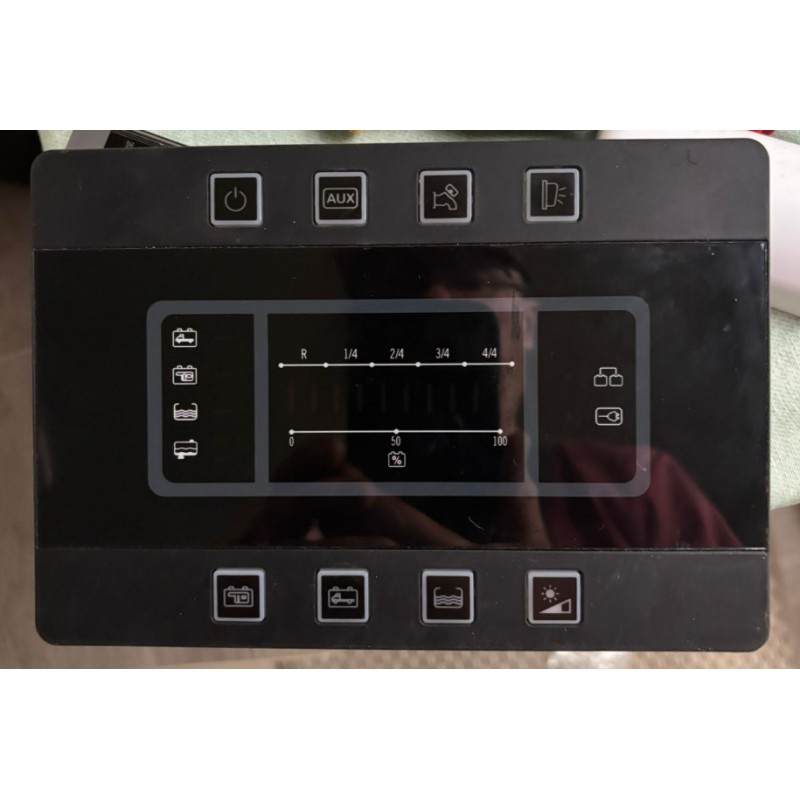

CBE PC180-SE 111815 BLACK CONTROL PANEL LED

PC180-SE LED CONTROL PANEL BLACK 111815

Utility control and battery test.

The “PC180-SE” CONTROL PANEL is associated with the 12V DISTRIBUTION PANEL “RB450-SE”

FUNCTIONS

• CAR BATTERY ALARM (B1)
• SERVICE BATTERY ALARM (B2)
• MINIMUM VOLTAGE CONTROL (BATTERY SAVER)
• AUTOMATIC SHUTDOWN OF EXTERNAL LIGHT
• TWILIGHT FUNCTION

See the extended description for the detailed description of the functions

Mounted on MOBILVETTA

CAR BATTERY ALARM (B1)

When the car battery reaches a voltage lower than 12V, the low battery alarm is automatically activated and the symbol ref.9 flashes.

SERVICE BATTERY ALARM (B2)

When the service battery reaches a voltage lower than 11V, the low service battery alarm is automatically activated and the symbol ref.10 flashes.

MINIMUM VOLTAGE CONTROL (BATTERY SAVER)

An electronic device disconnects all 12V consumers when the service battery reaches the level
minimum voltage of 10V. It is possible to manually reset the utilities for approximately one minute
by turning the main button off and on again. The refrigerator, the step, and the utilities powered directly by B2 are excluded from this device.

AUTOMATIC SHUTDOWN OF EXTERNAL LIGHT

An electronic device automatically turns off the external light when the engine is running.

TWILIGHT FUNCTION

In “night” mode, thanks to a sensor positioned behind the button ref.8, the intensity of the
LED backlight is automatically reduced to the level preset by the user (for setting
hold down the button ref. 8 for more than 3 seconds, until the indicated level is reached).
