Alde AquaClear UV-C is a robust and efficient 12V water disinfection product for increased water quality assurance in low pressure systems where the water is replenished externally and stored in a tank and where the risk of microbiological growth is therefore greater.

Disinfection is based on ultraviolet light, through the latest UVC LED technology, and the product neutralizes approximately 99% of microorganisms in water flows (up to 4 litres/min).

Alde AquaClear has a lifespan of approximately 70 cubic meters of water, or approximately 300 hours of active time. (With use of approximately 20 minutes per day, the product life is approximately 900 days.)

The pressure drop on the AquaClear is up to 0.9 bar, so a fresh water pump with a pressure of at least 2 bar is recommended.

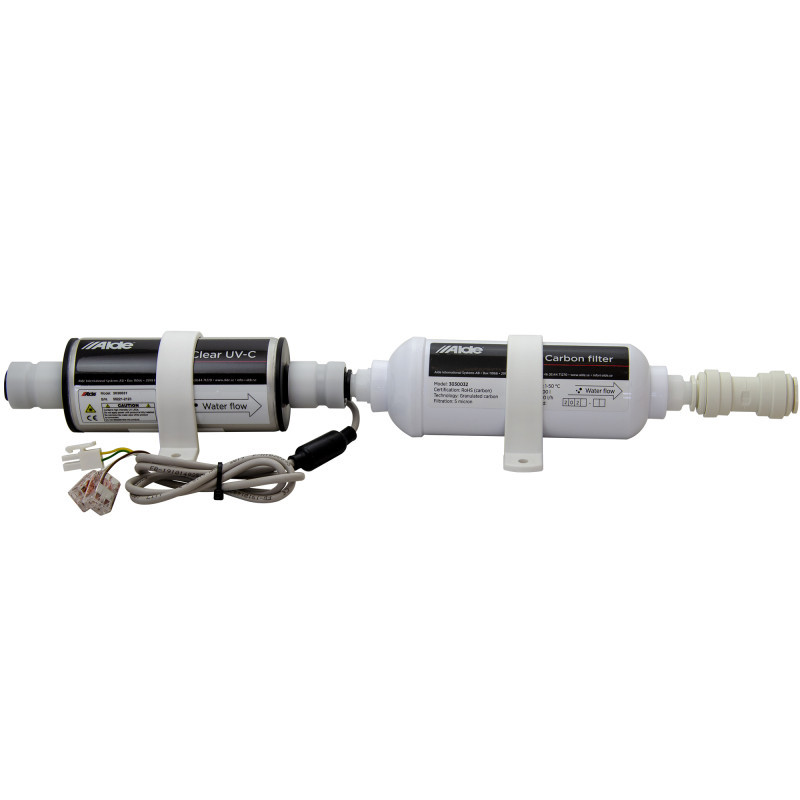

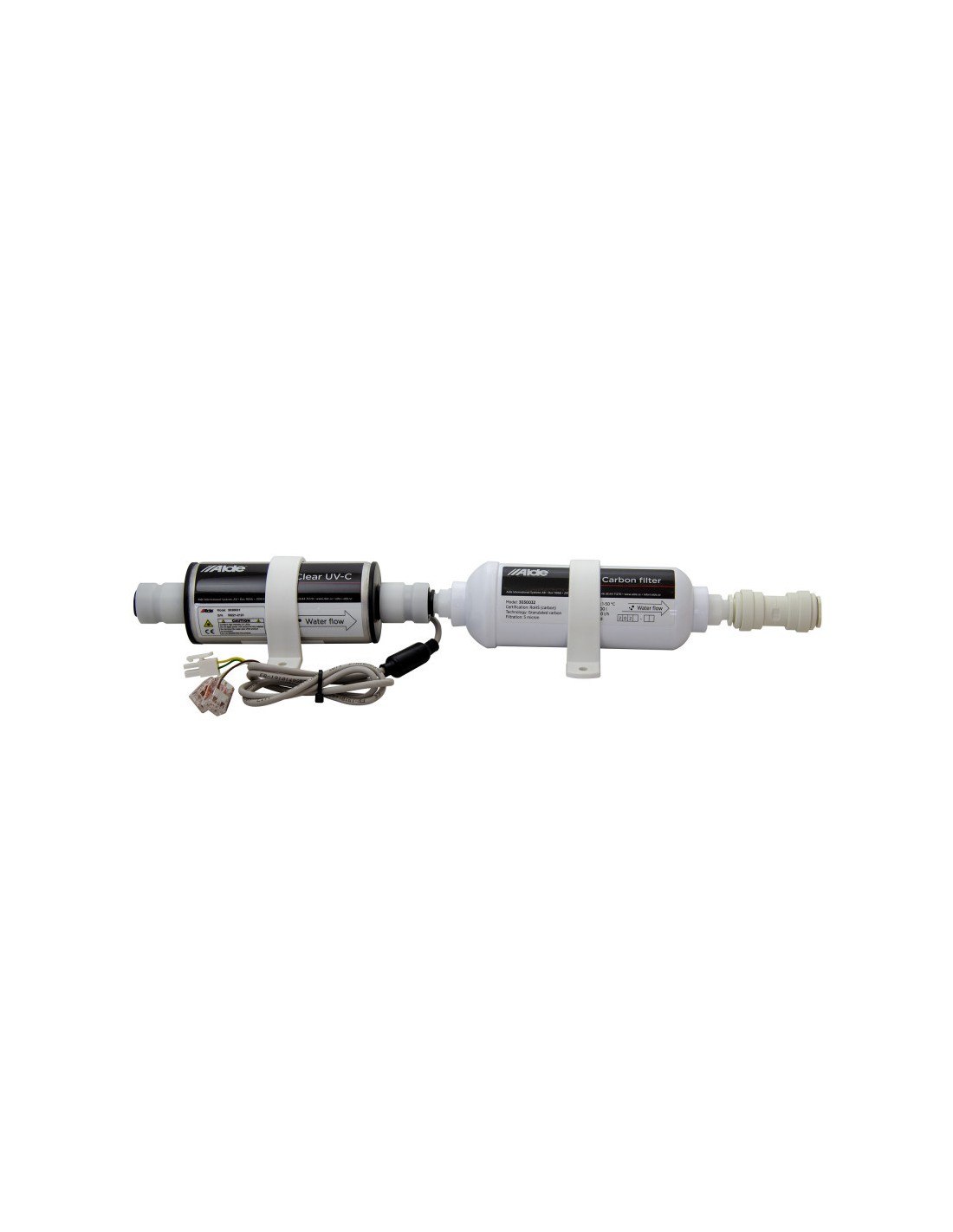

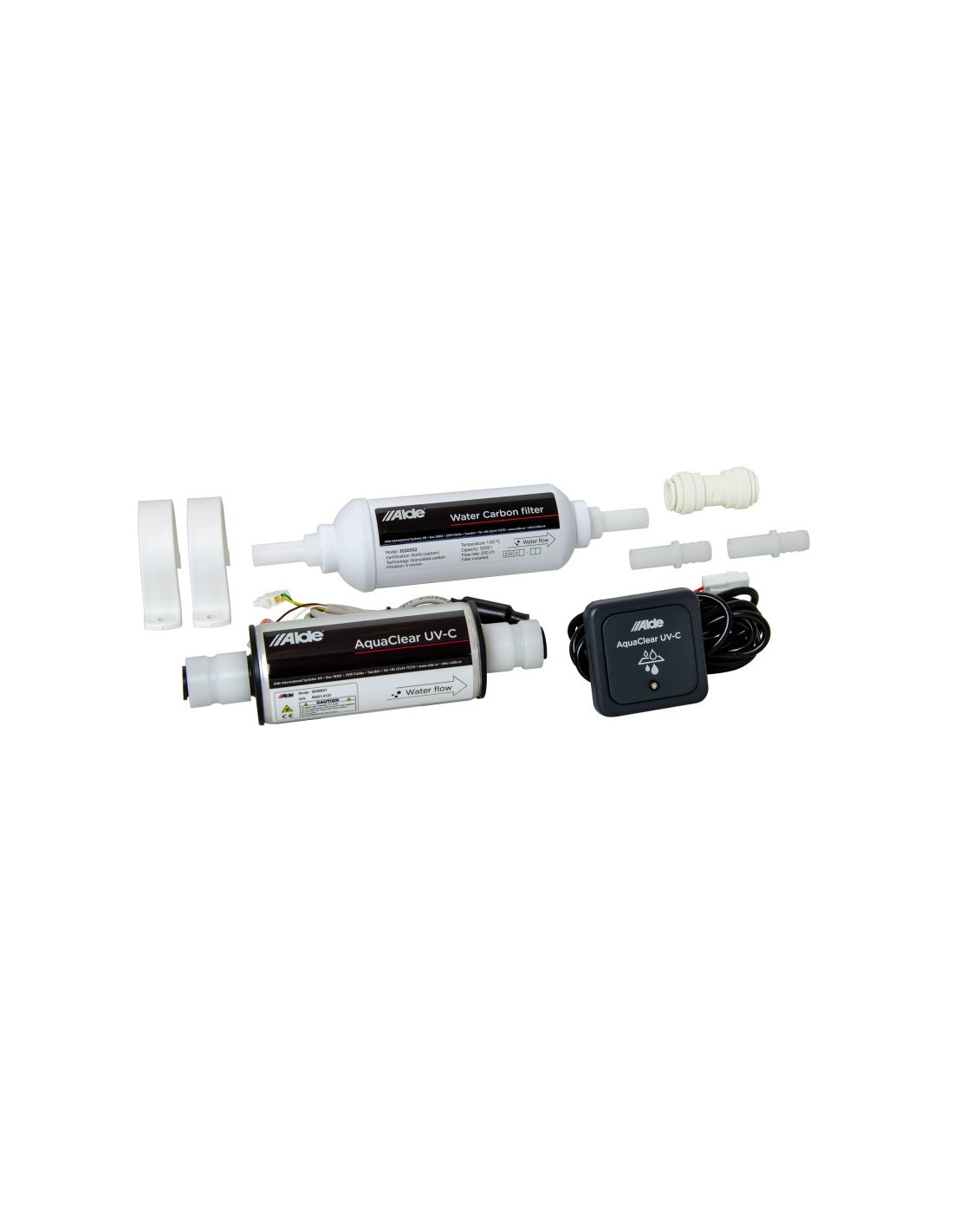

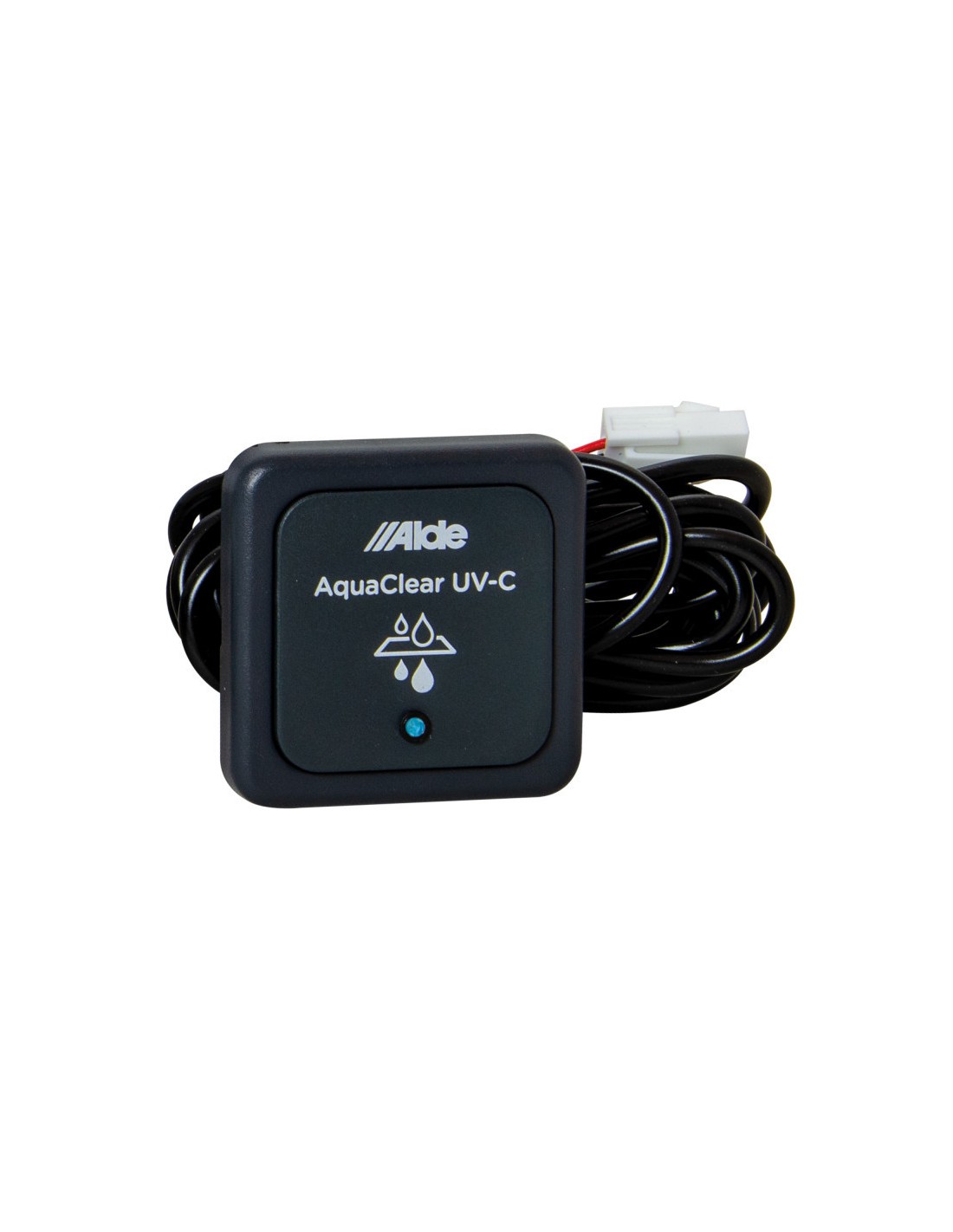

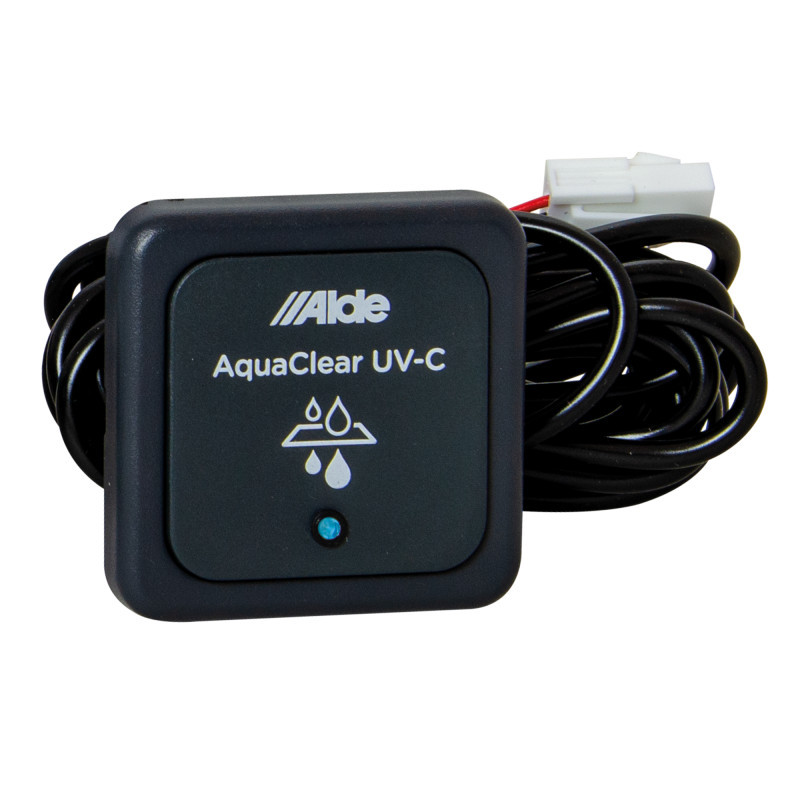

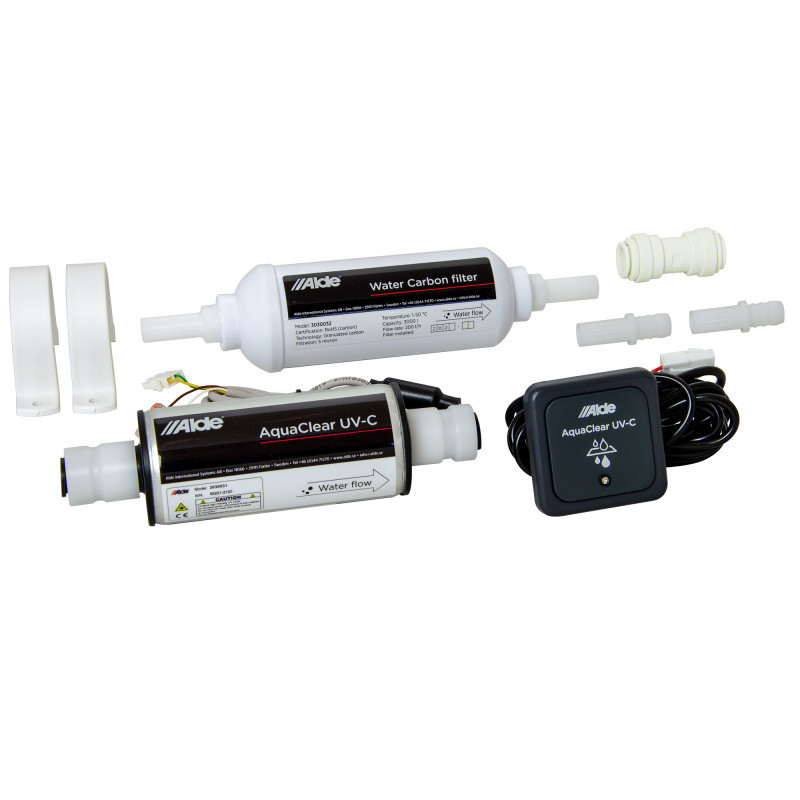

Includes: Water disinfection unit, clamps, control panel with 3m cable, 12mm hose adapters and carbon filter.

Disinfection function

Eliminates : E-coli* bacteria, Legionella* bacteria, chlorine and odors.

Reduces : pesticides and heavy metals.

Improves : Taste.

* 99.9% with water flow <4.0 liters per minute.

Bioanalysis validated by an accredited third-party laboratory.

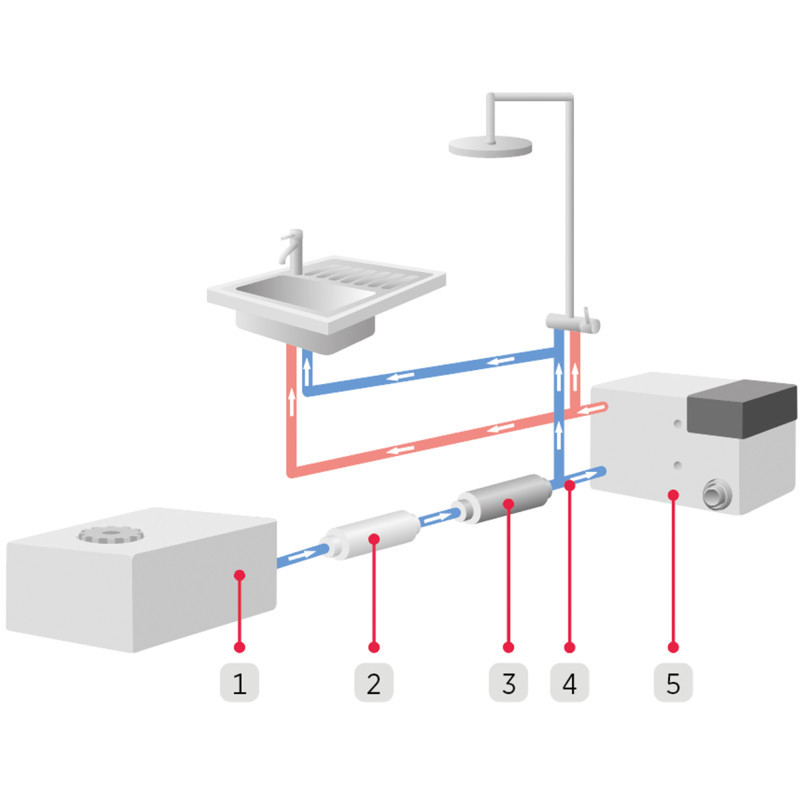

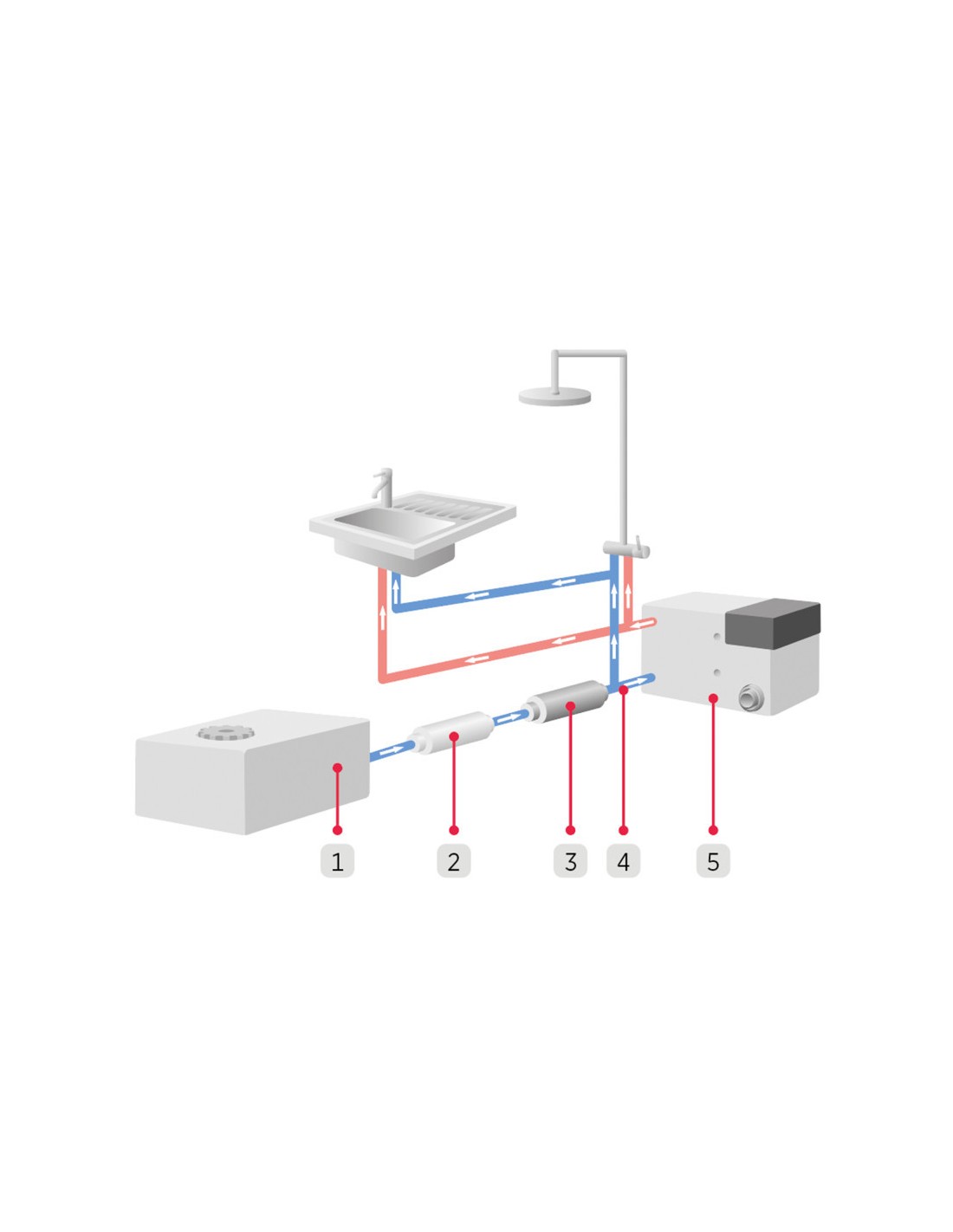

How does it work

Cold water is pumped from the clean water tank using the clean water pump.

The water is purified in the first stage of the Alde AquaClear UV-C unit.

The water is purified in the second stage via the Alde Water Carbon filter.

Then the water goes to a T-connection and from there as cold water to the kitchen, shower and Alde boiler.

The cold water is heated in the Alde boiler and from there it goes as hot water to the kitchen and shower.
