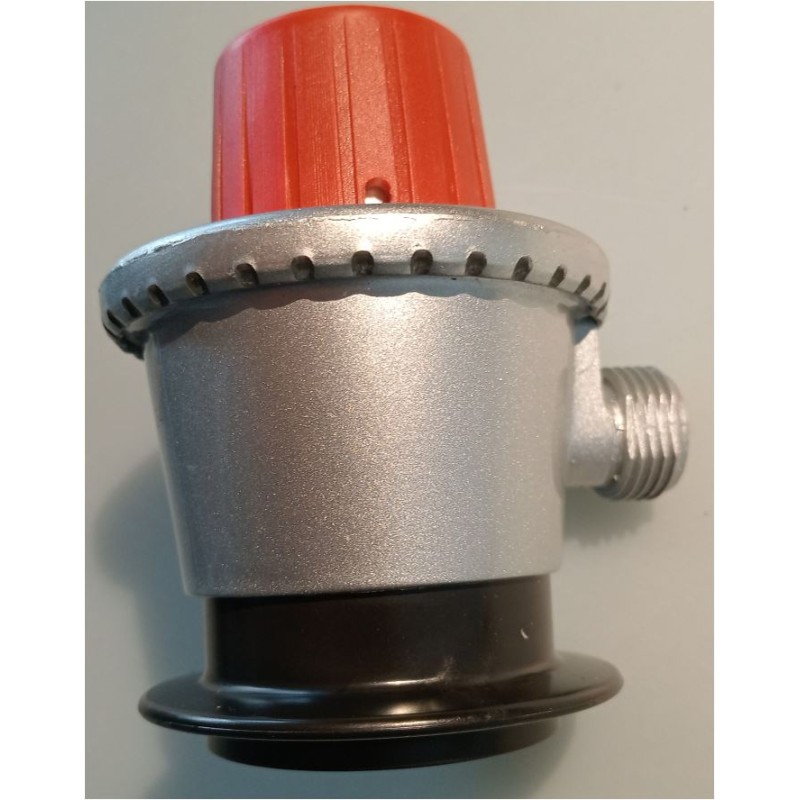

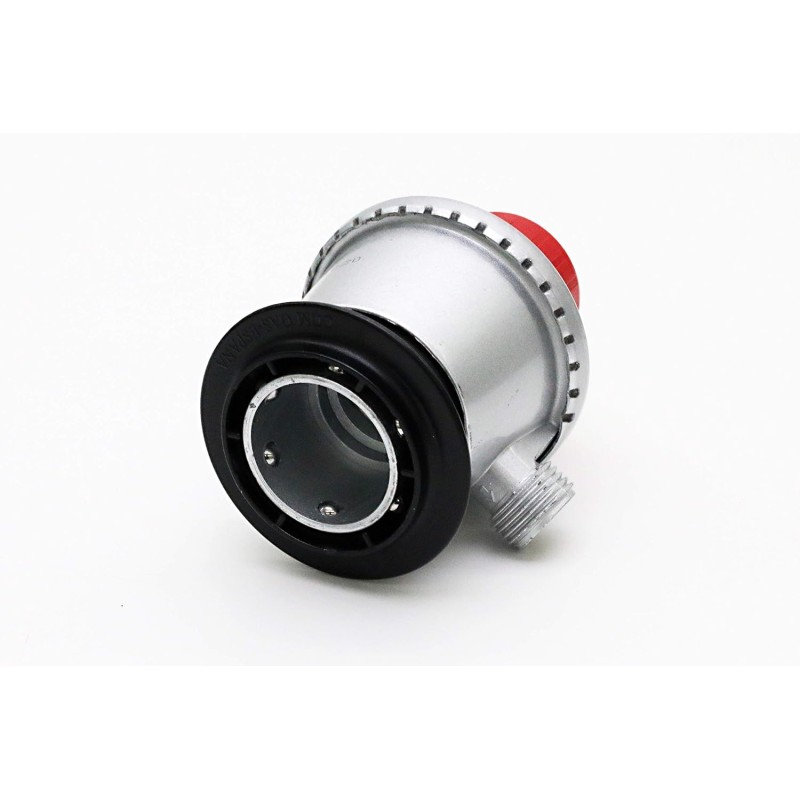

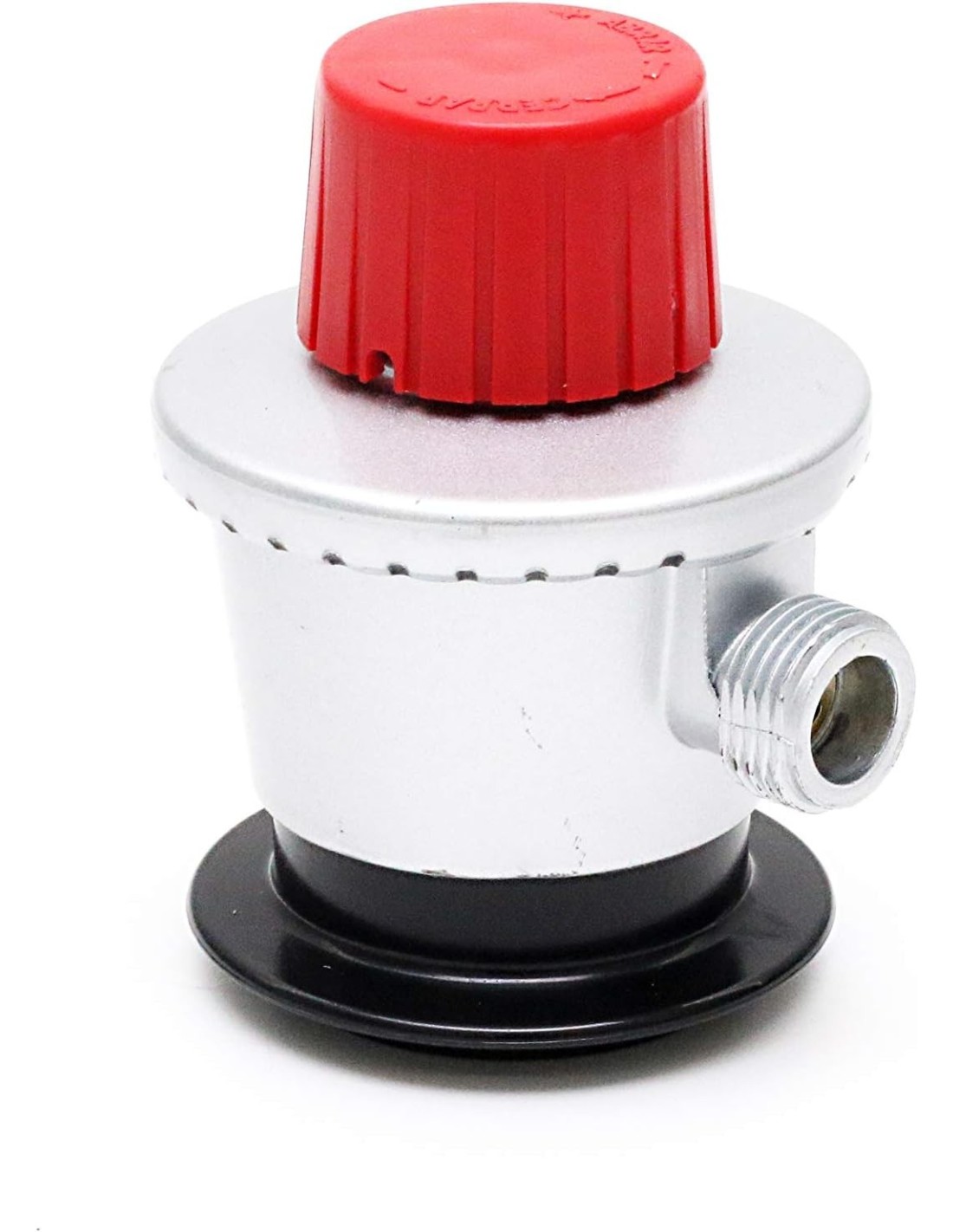

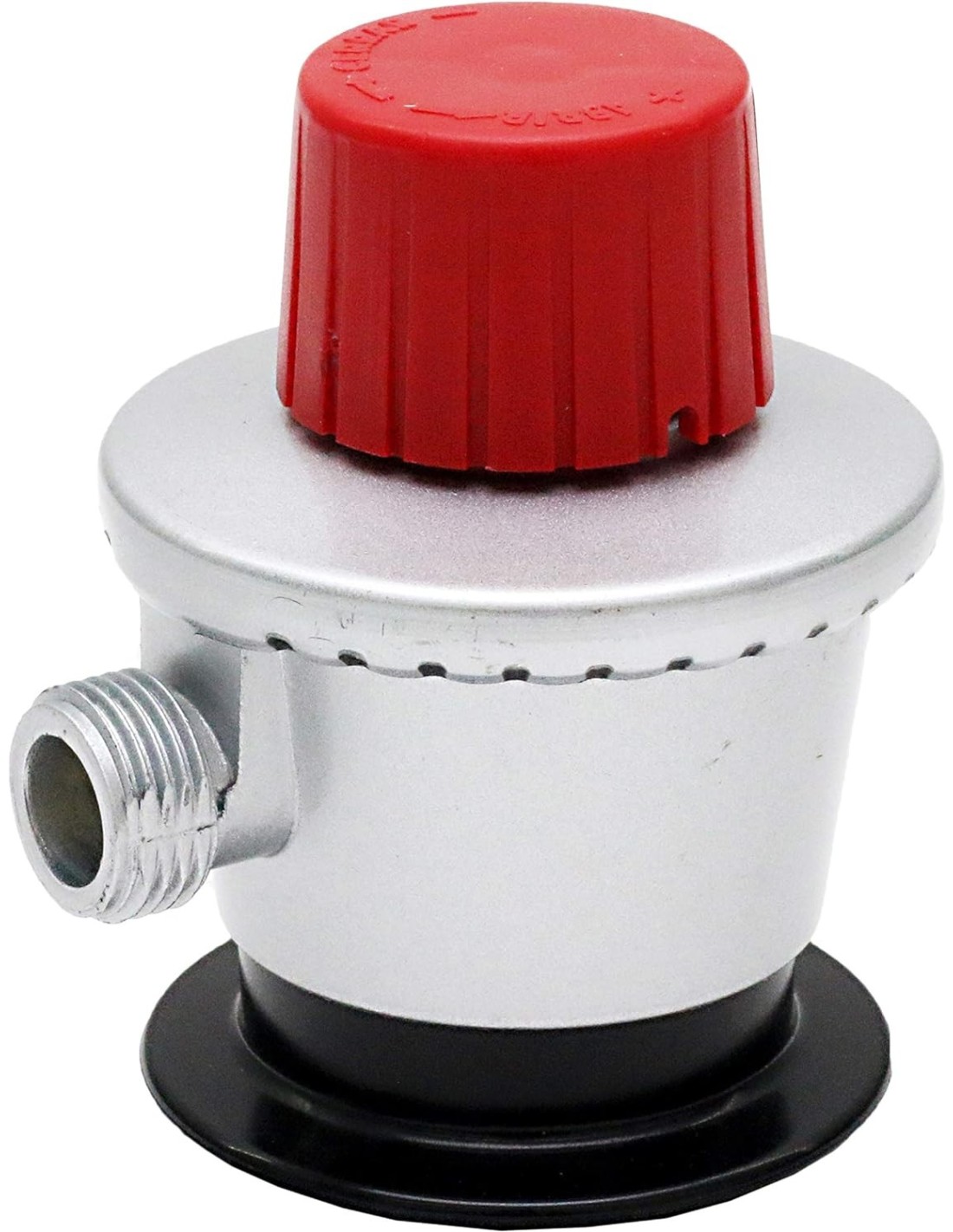

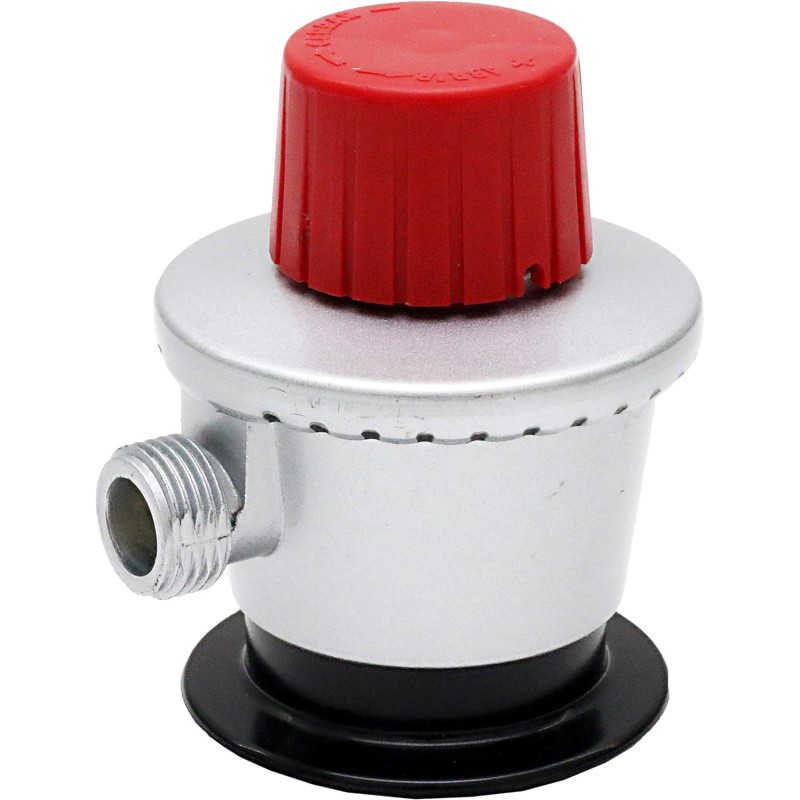

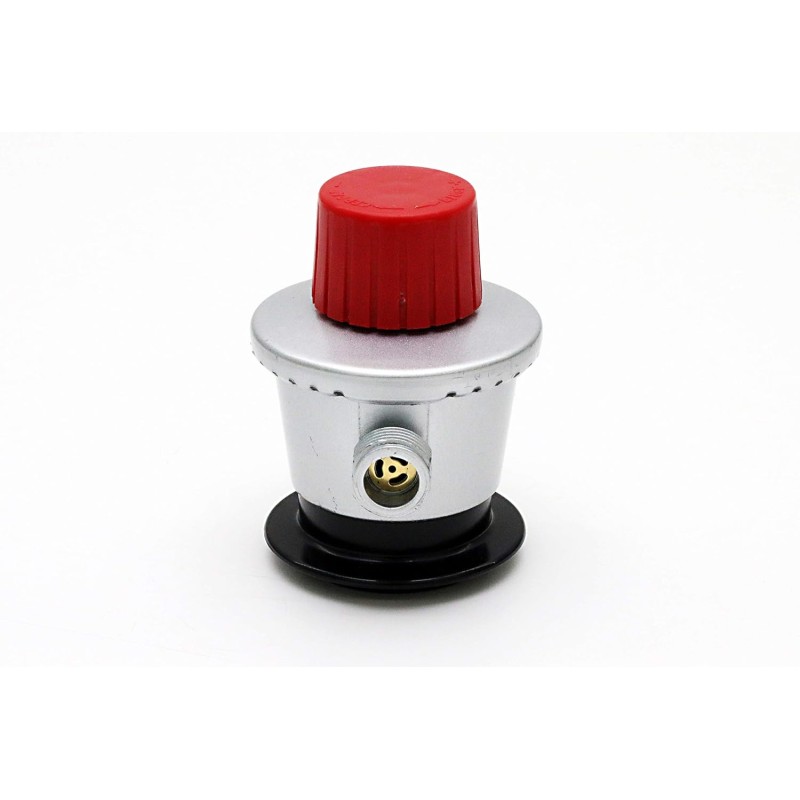

Clip-On Adapter from G.56 (35mm) to G2 (W21.8 X 1/14 LH)

Clip-On Adapter G.56 (35mm) to G2 (W20 X 1/14 LH - Italy)

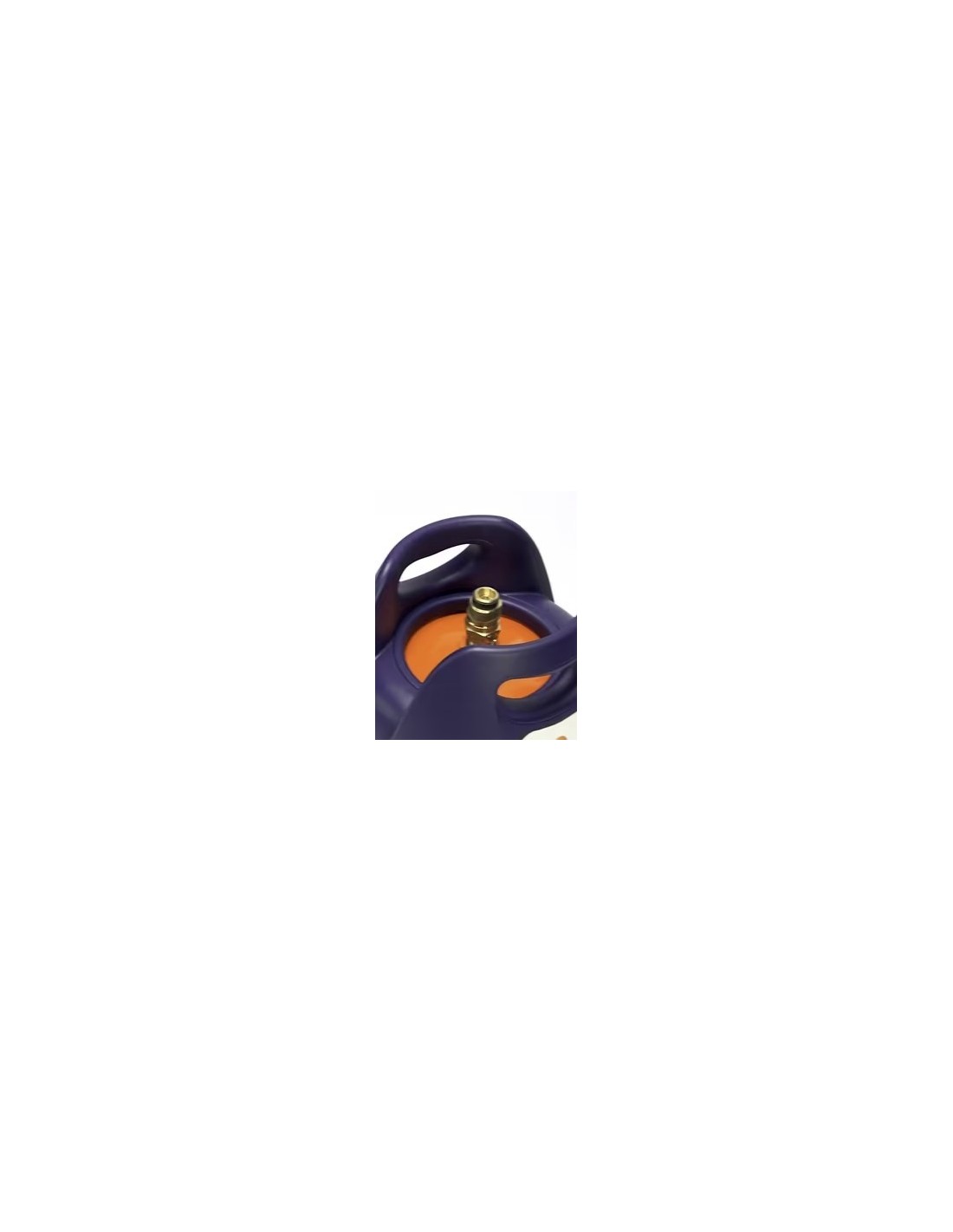

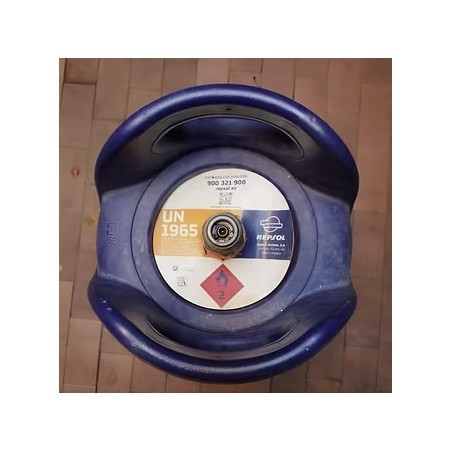

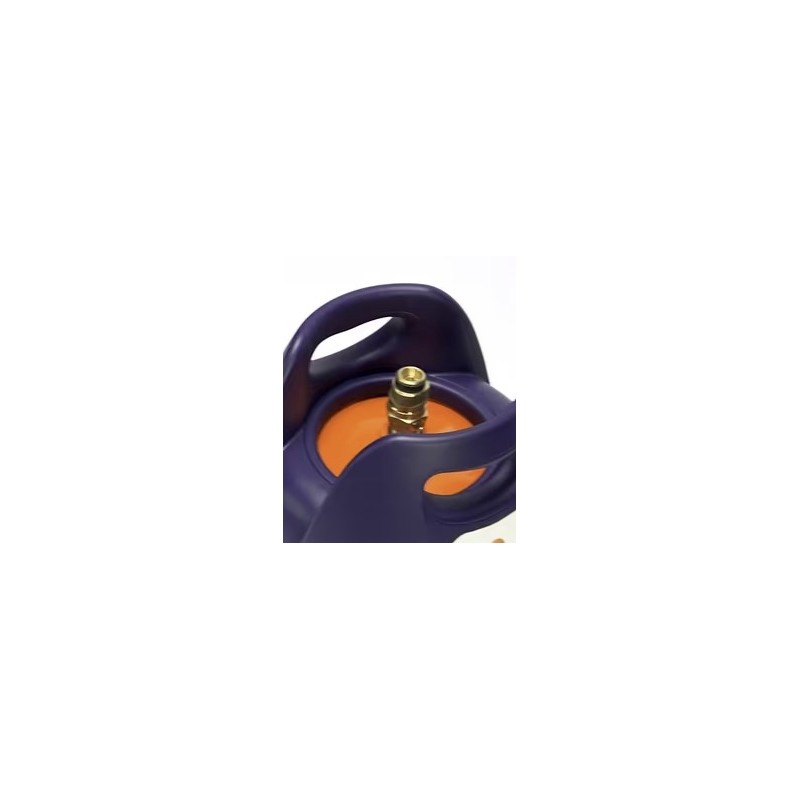

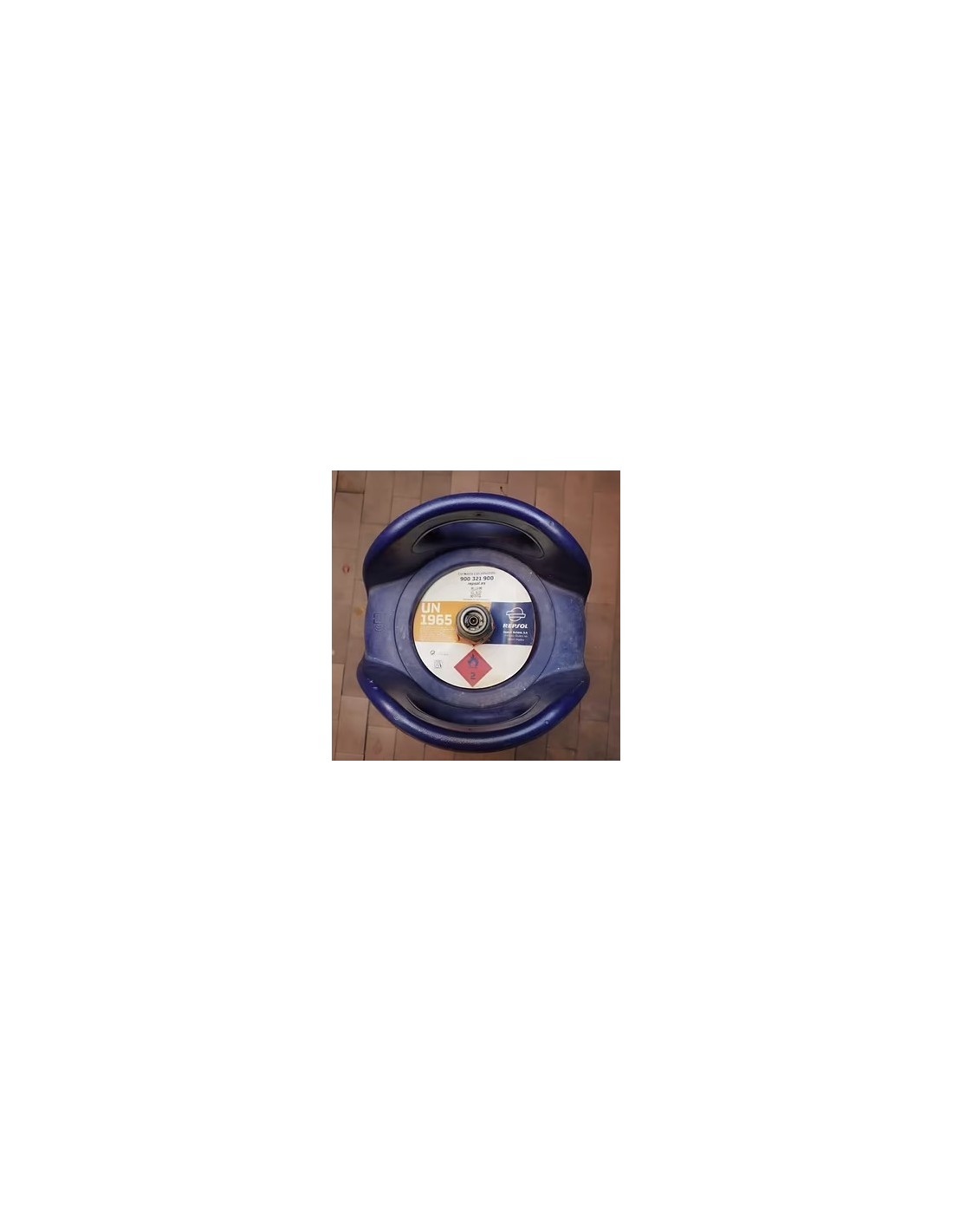

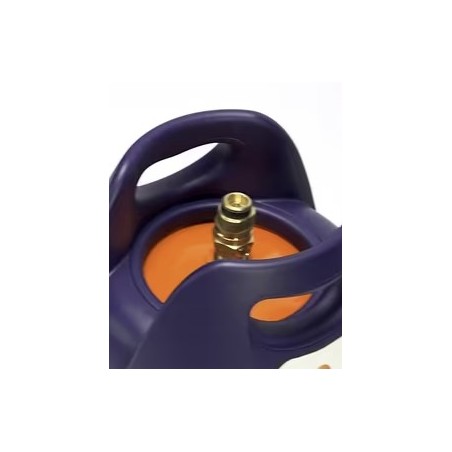

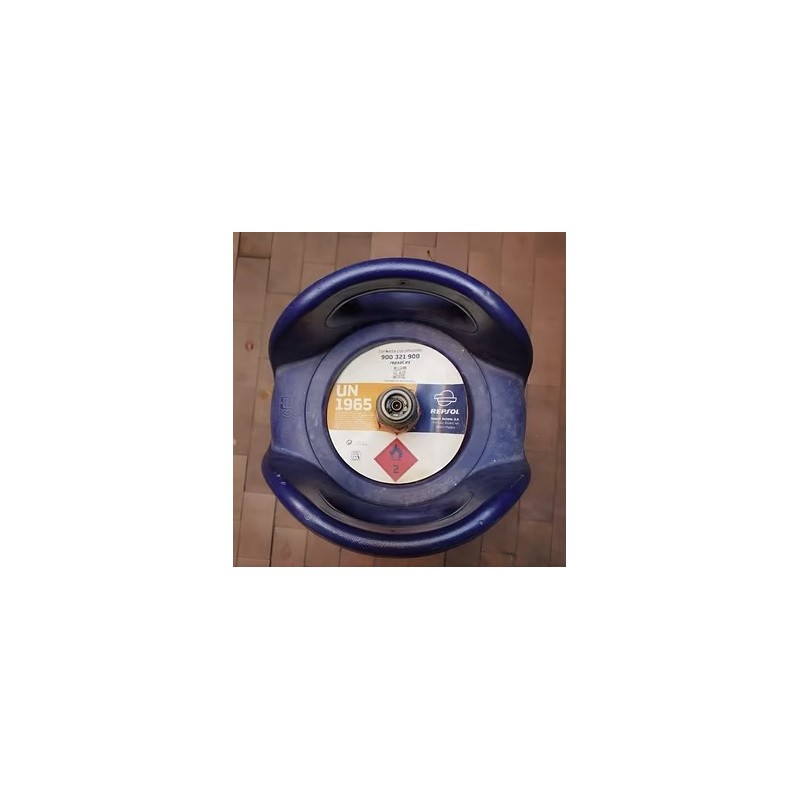

G.56 inlet diameter 35 mm for cylinders with a clip-on sampling valve, for example brands KOSAN GAS, REPSOL , CEPSA, AGA.

The adapter can be used for Clip-On G56 (35 mm) cylinders from the following countries:

Spain, Ireland, Portugal, England, Cyprus, Finland, Norway, Sweden, Denmark.

This high pressure adapter allows you to fit a HP pipe or a gas regulator with a left-hand G.2 Italia W20 X 1/14 LH system connection.

Technical details:

• Height: 9.5cm
• Input: Clip-On (quick coupling) Type G.56 - Diameter 35mm

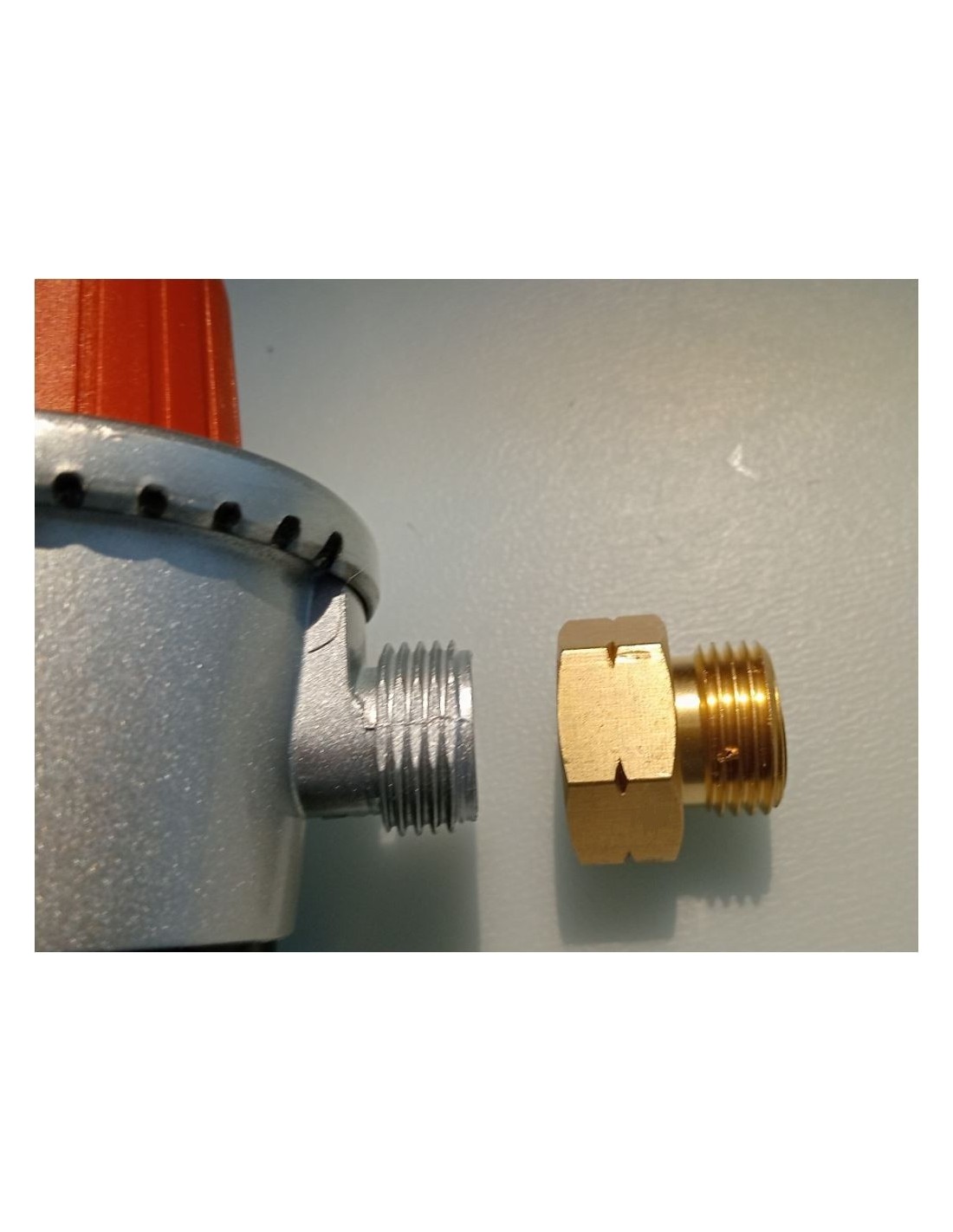

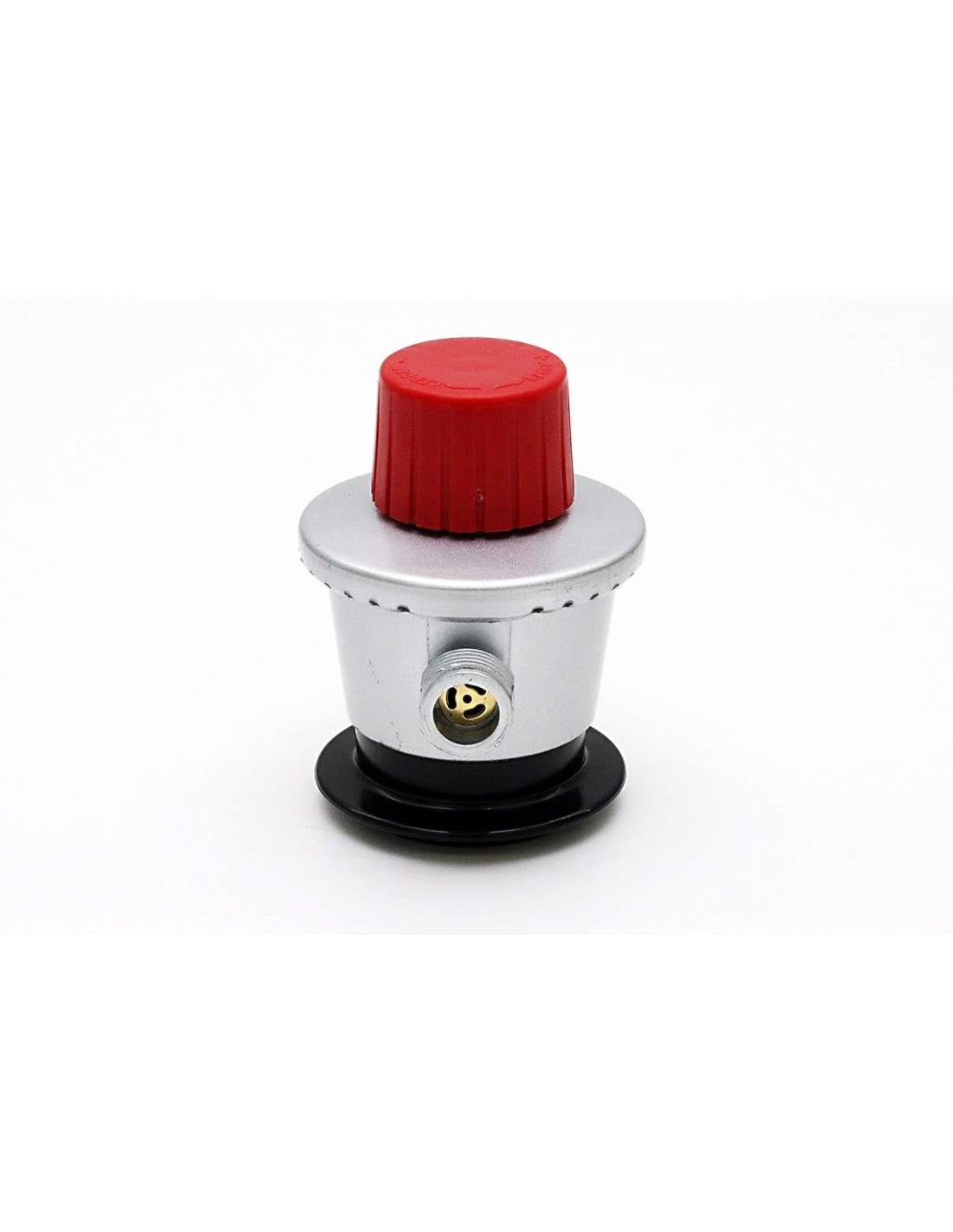

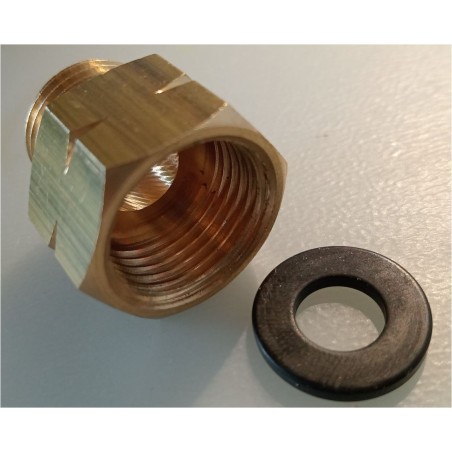

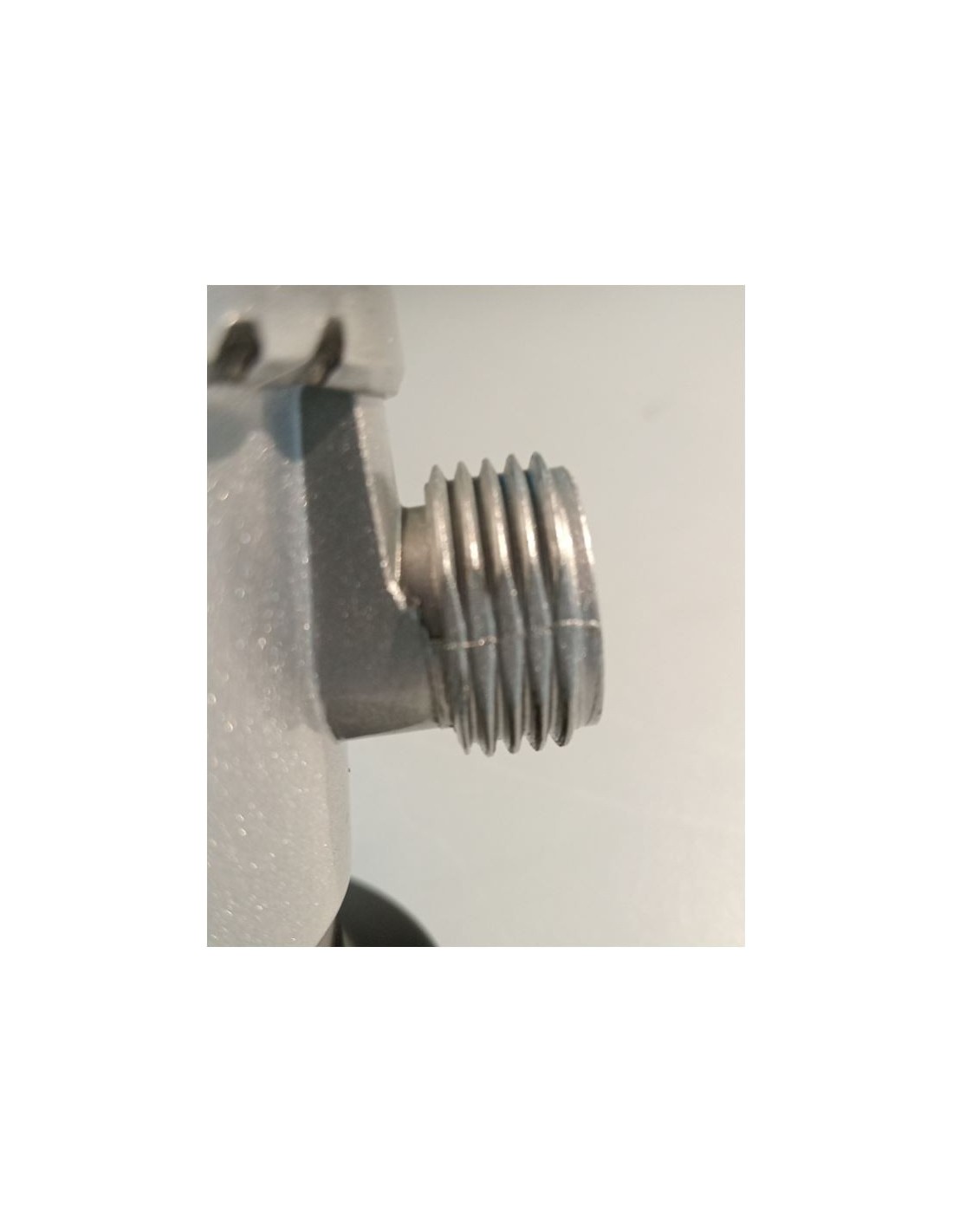

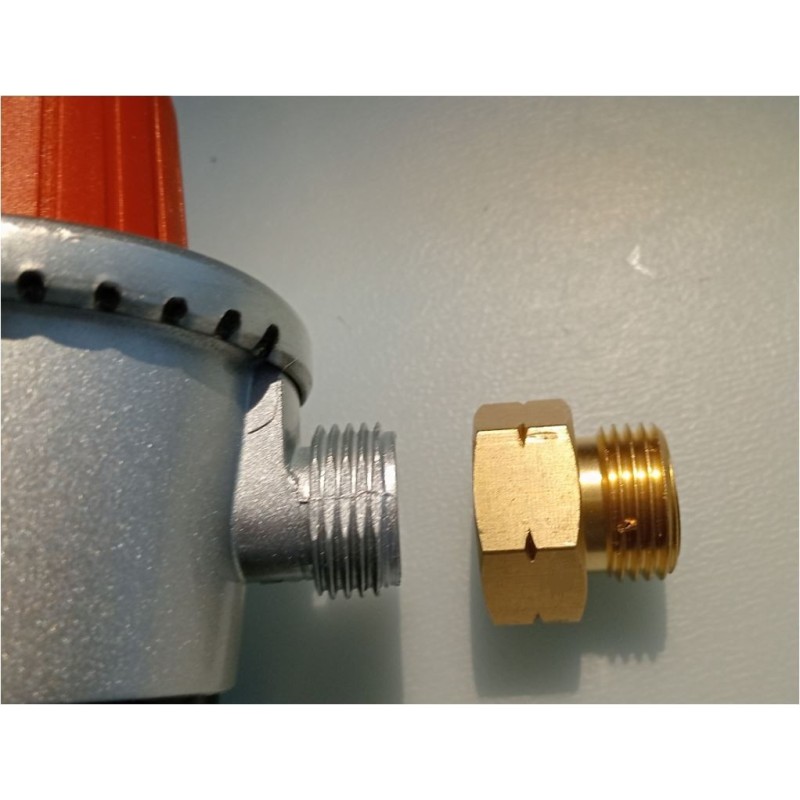

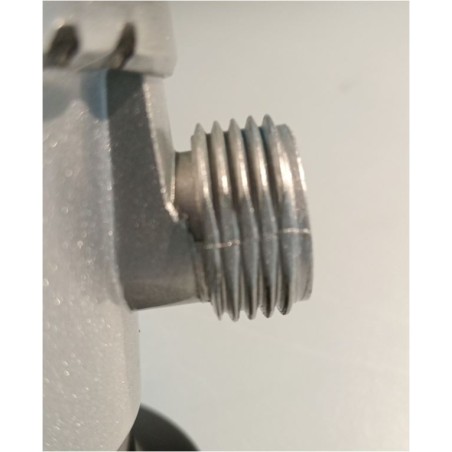

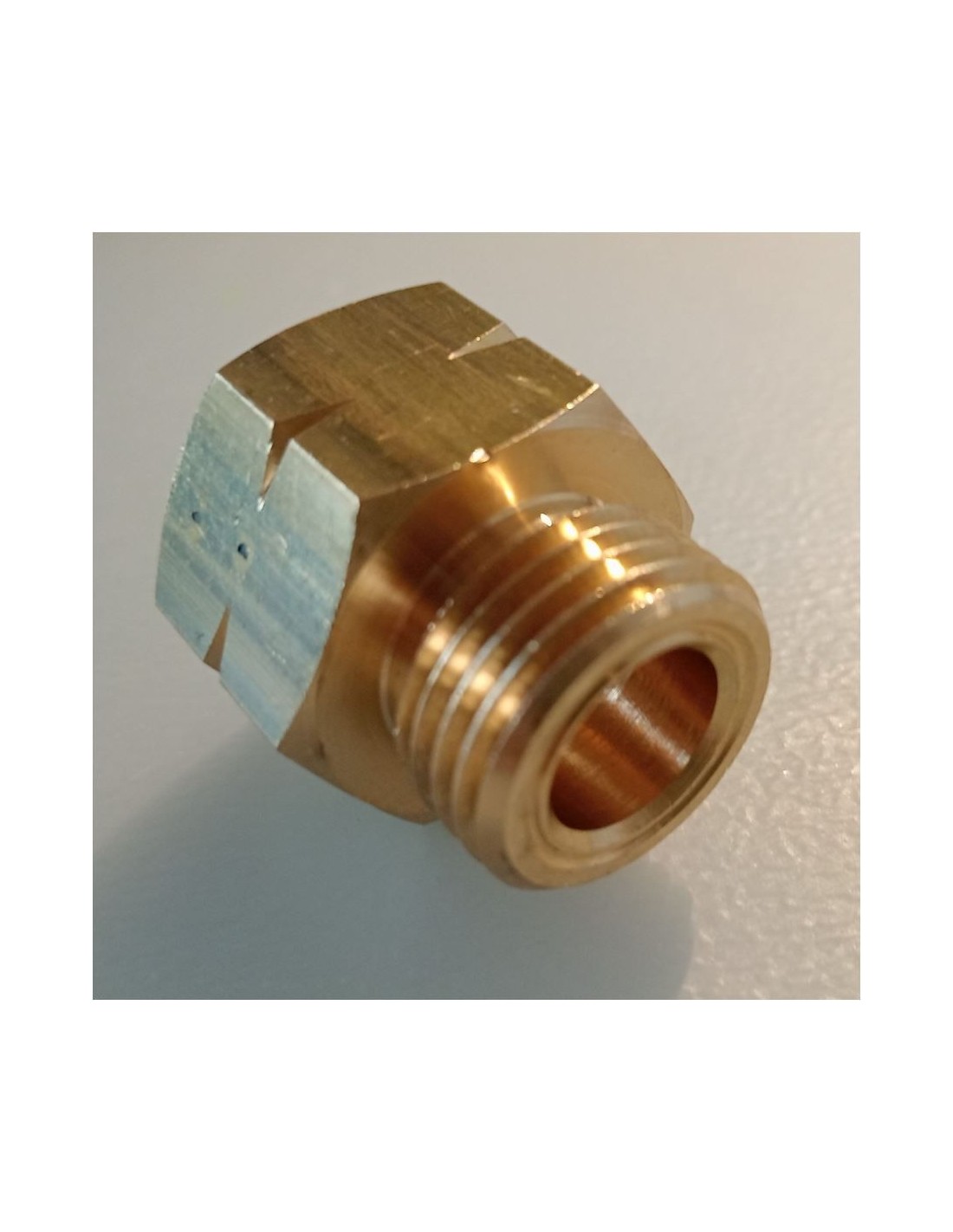

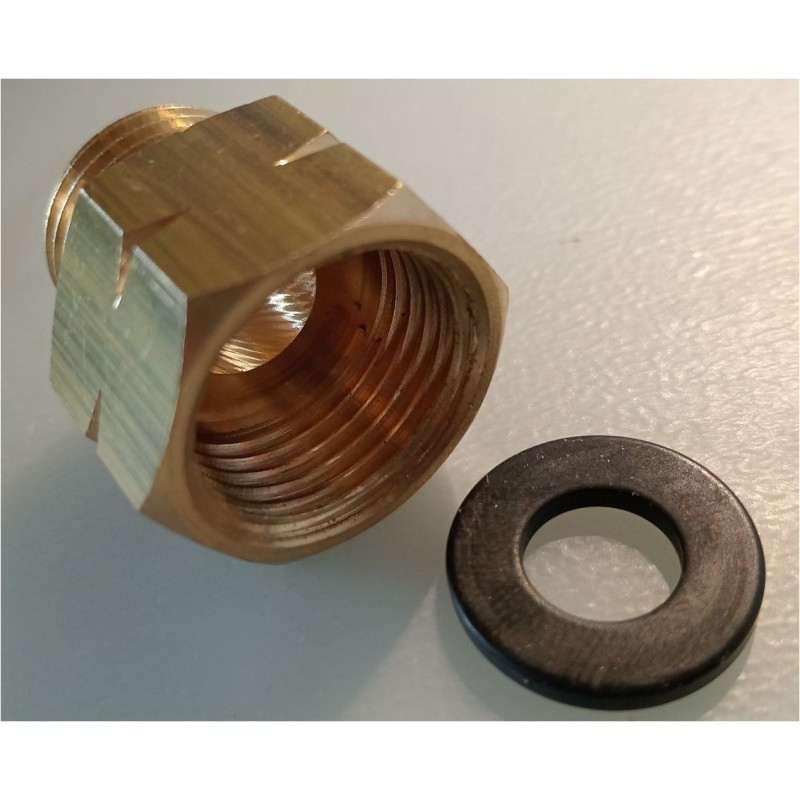

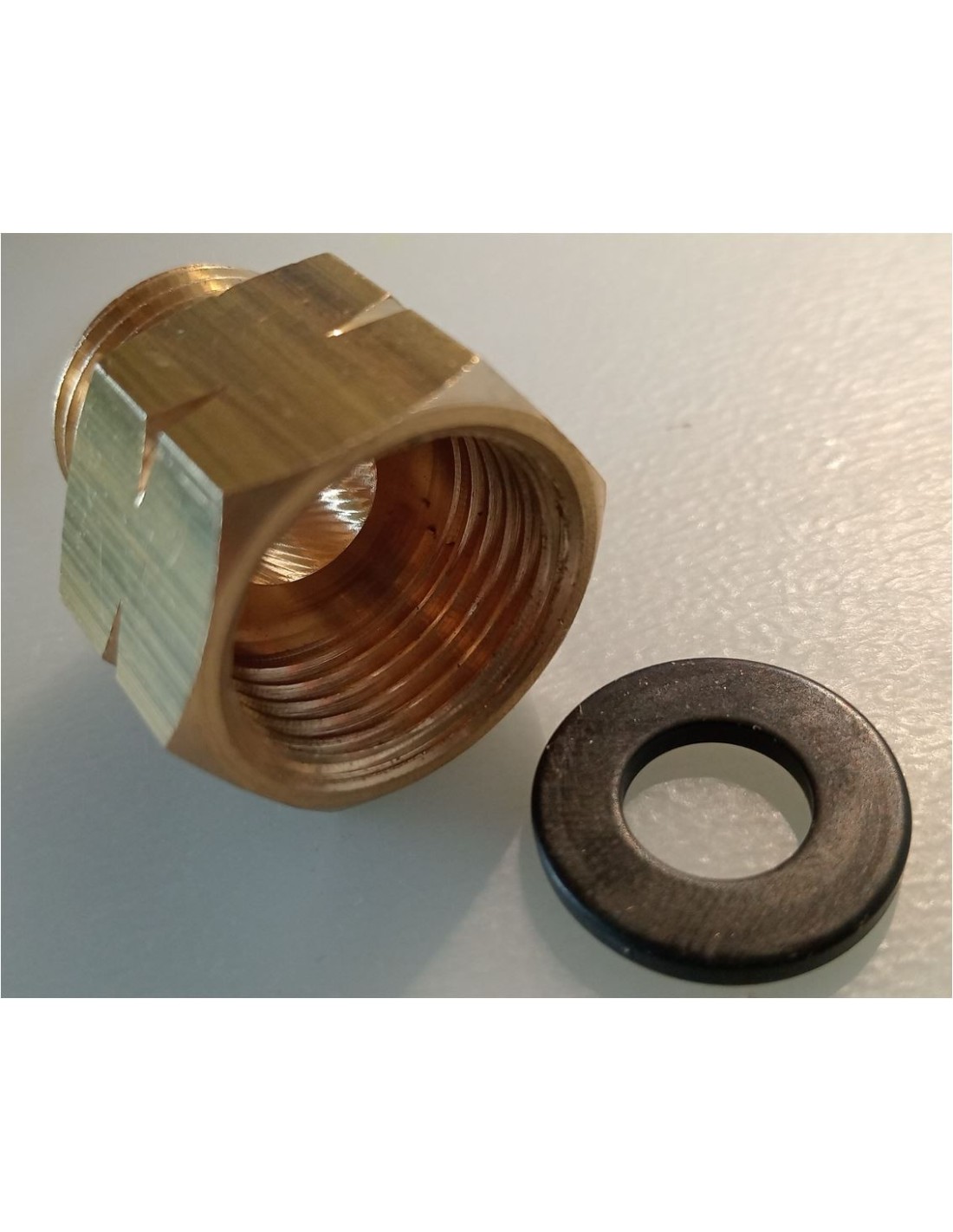

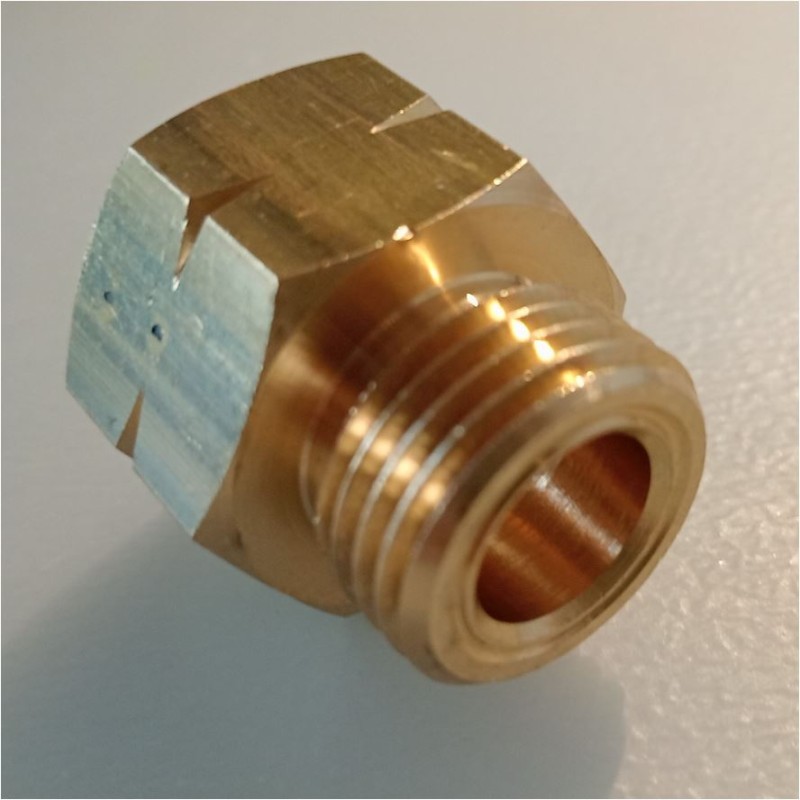

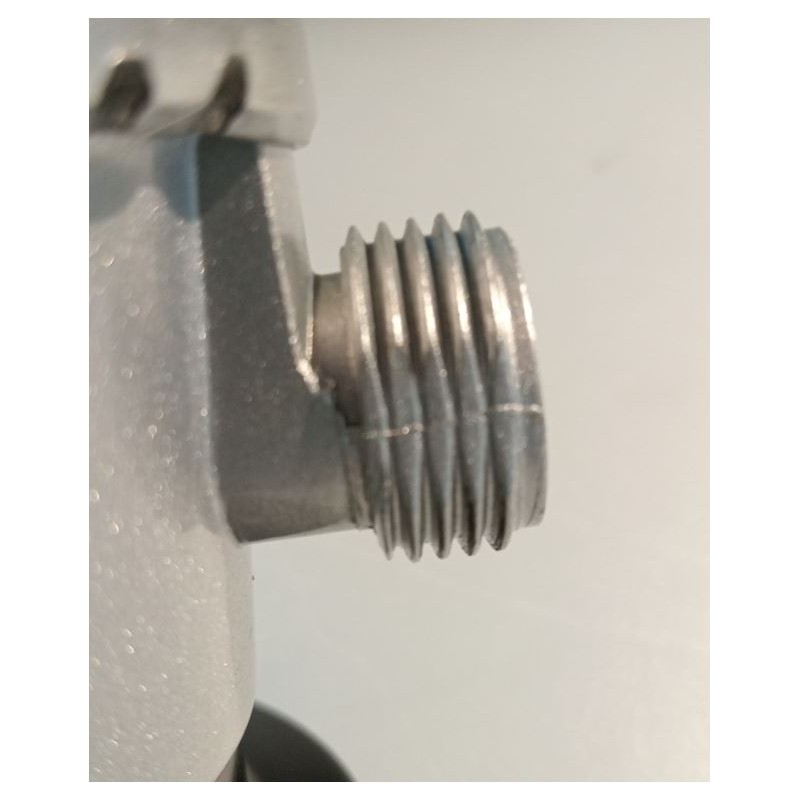

• Output: German male thread M 20X1/14 LH and German female/Italian male threaded connection W21.8 X 1/14 LH Italy. Make sure the rubber sealing gasket is fitted.
• Outlet pressure: free rise not reduced - a pressure regulator must be used!
• Approval: EN15202

How to use:

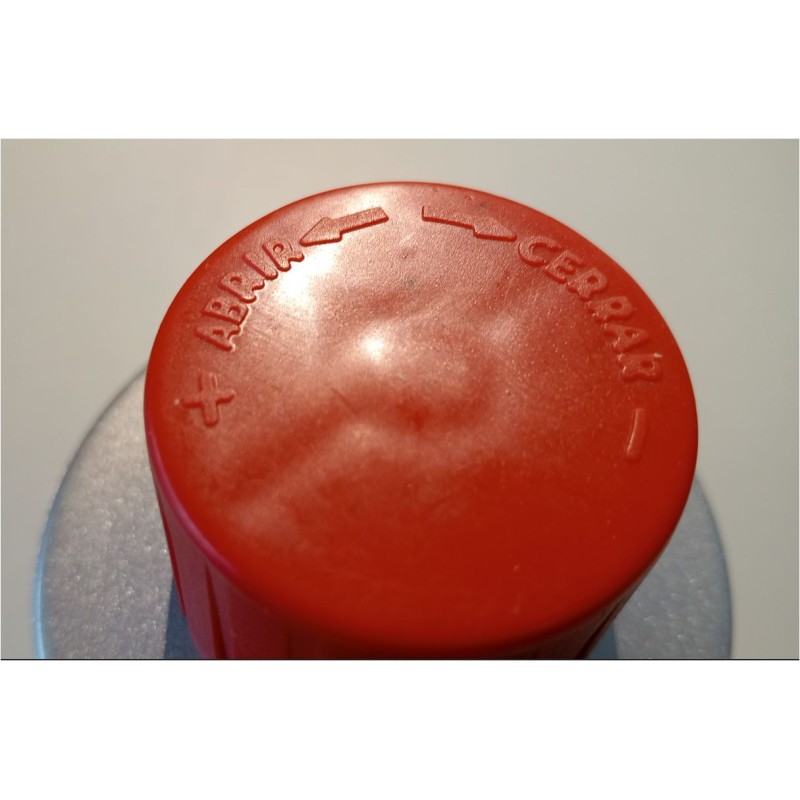

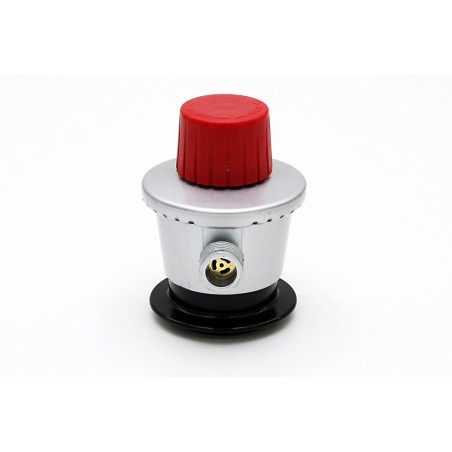

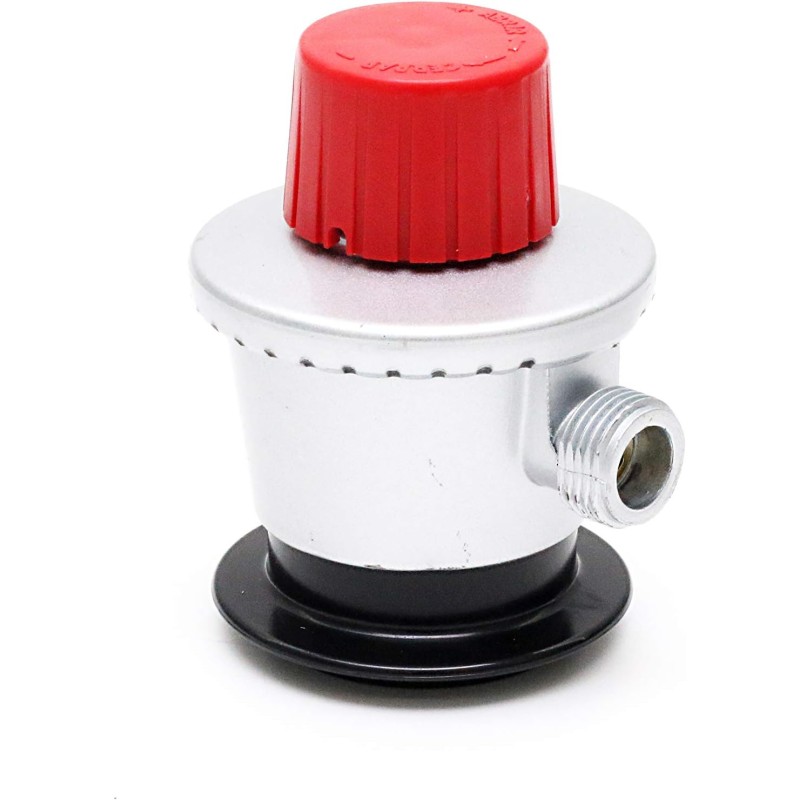

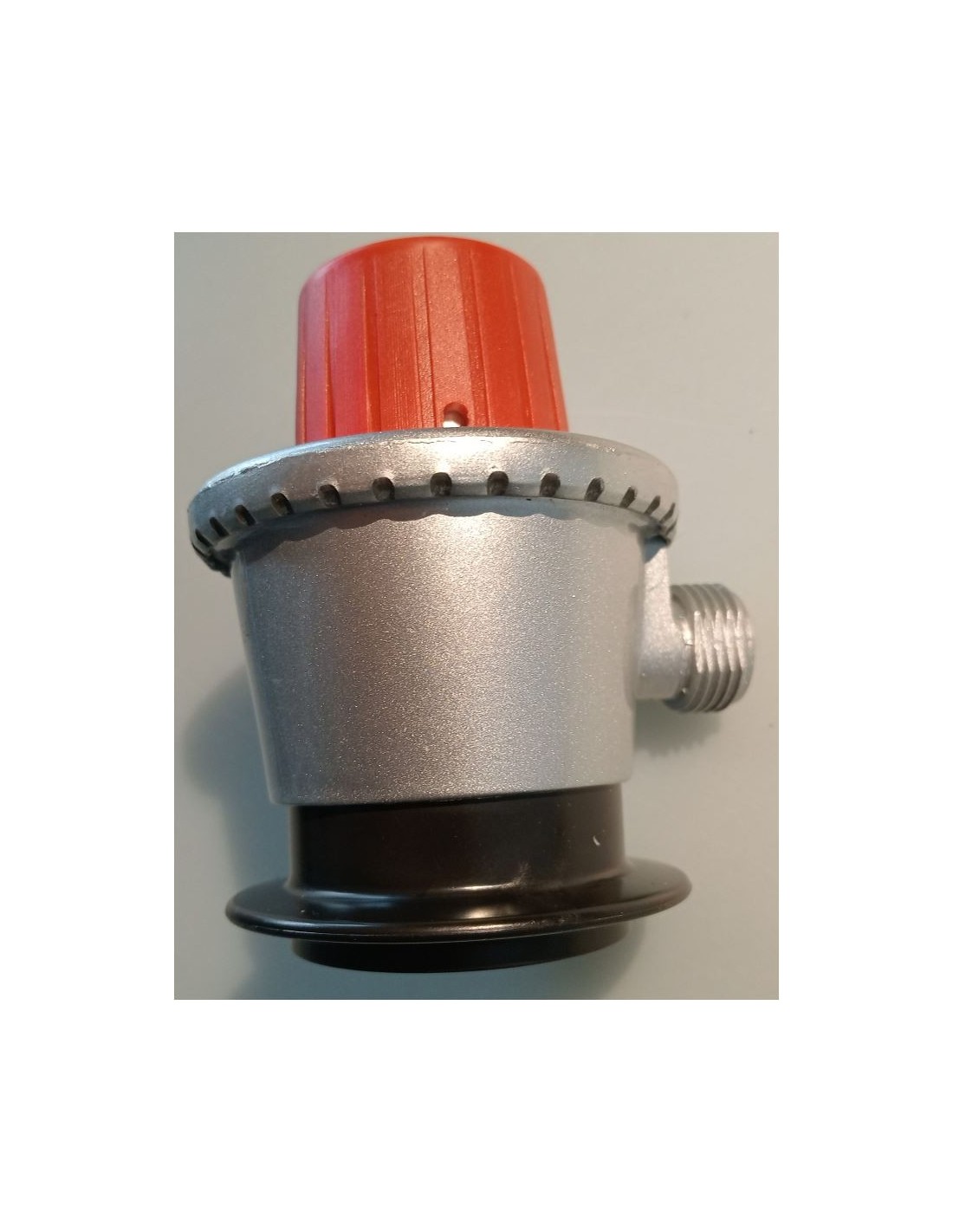

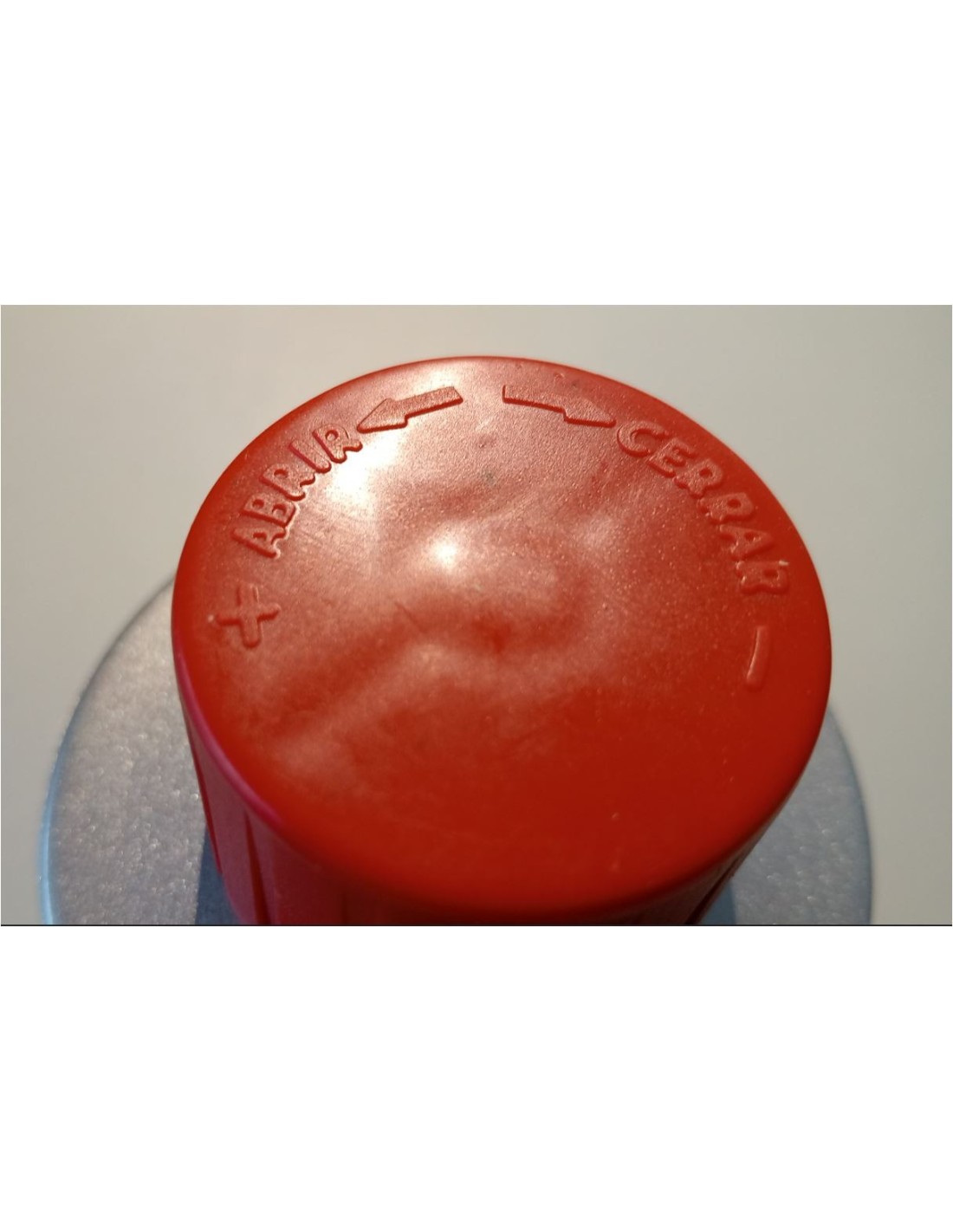

1. Make sure the red knob is in the "closed" position (to the right).

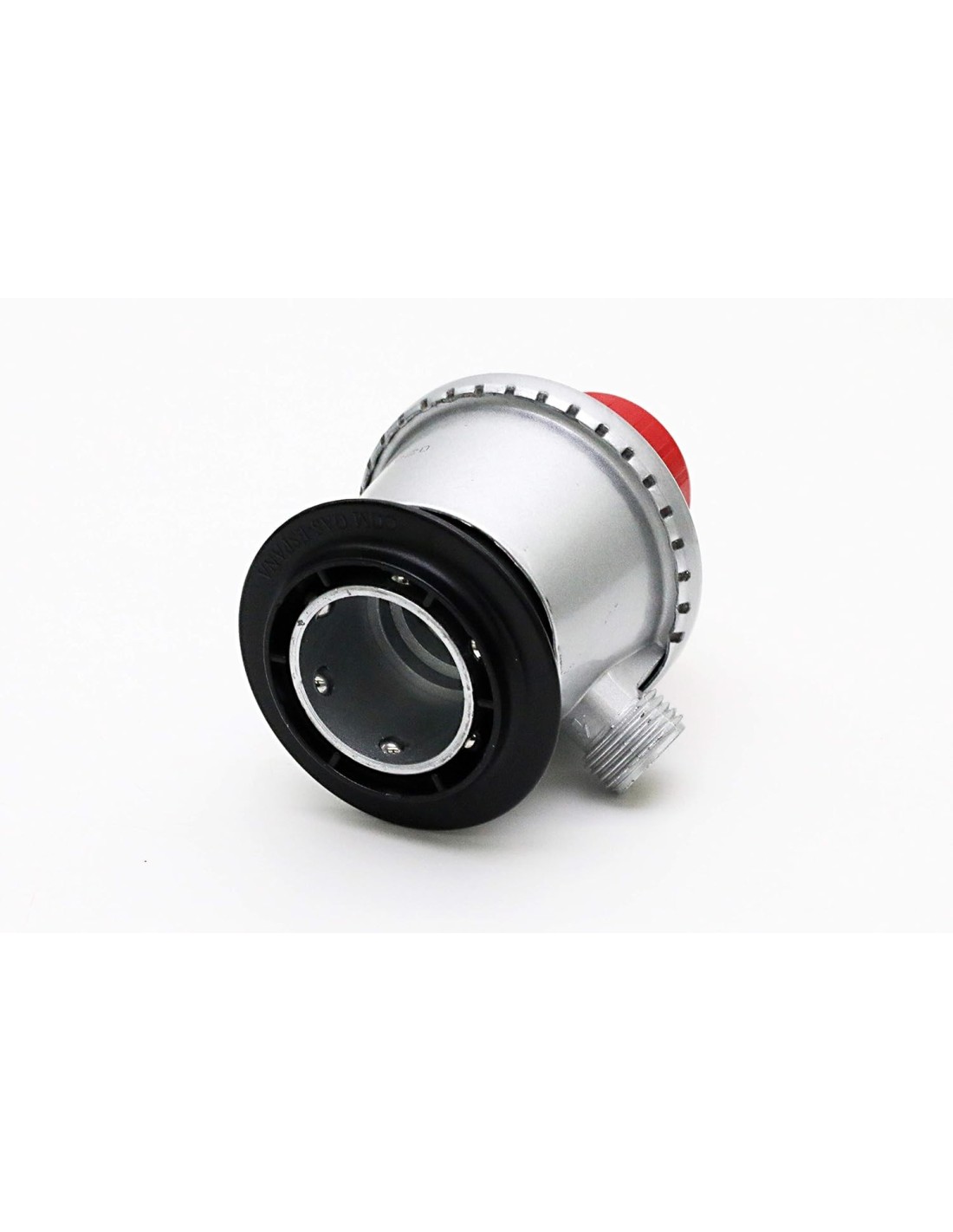

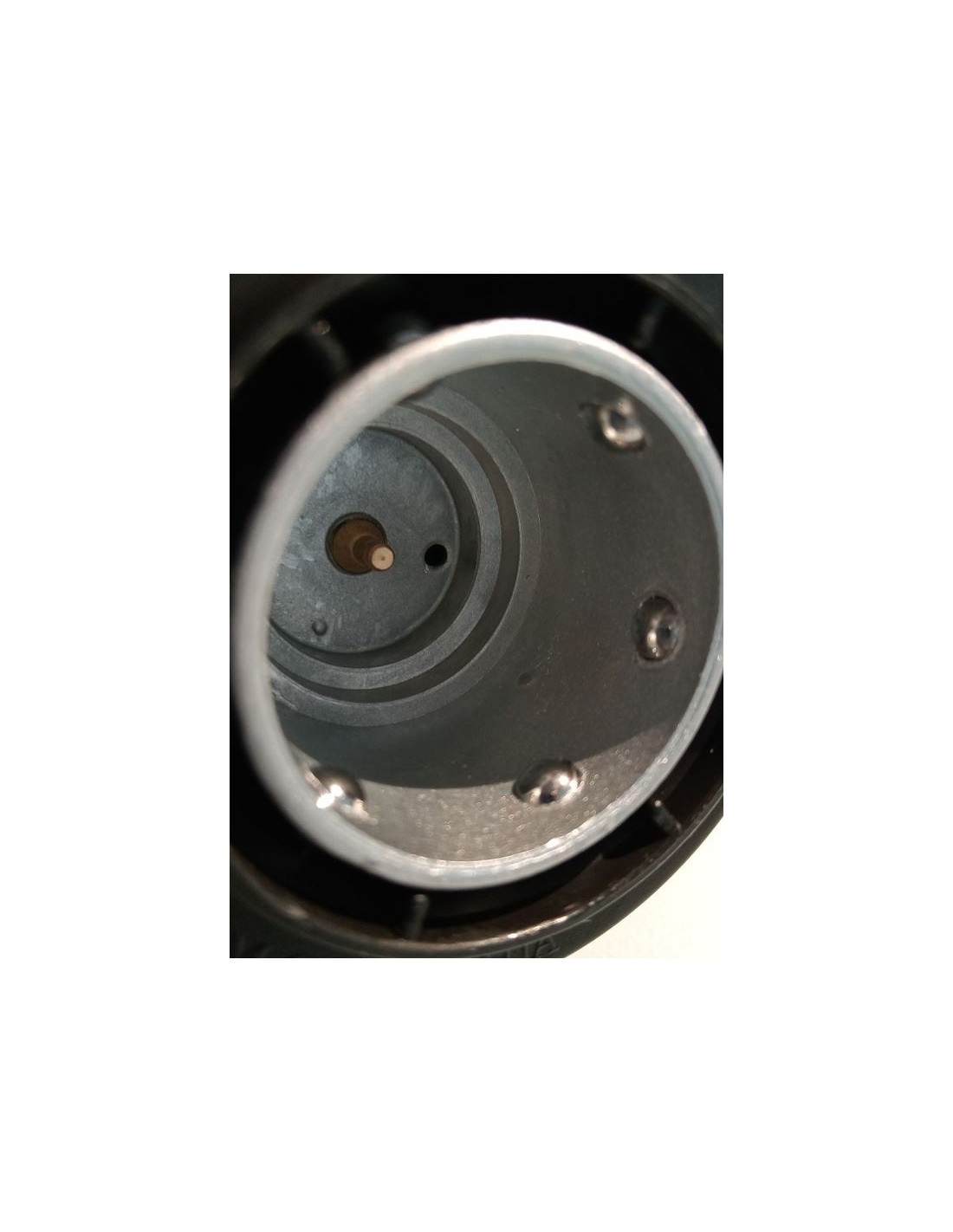

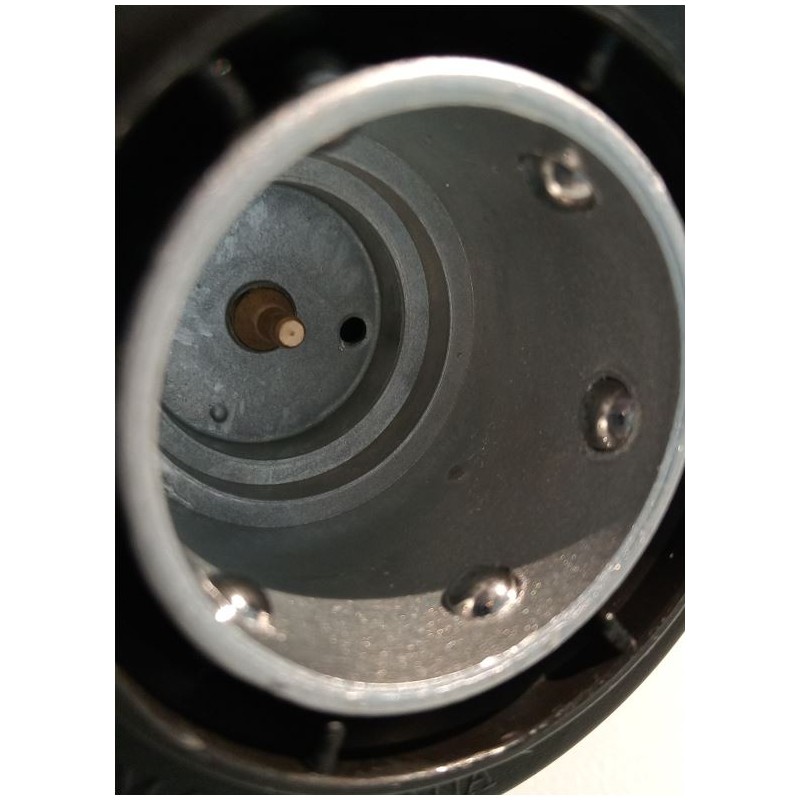

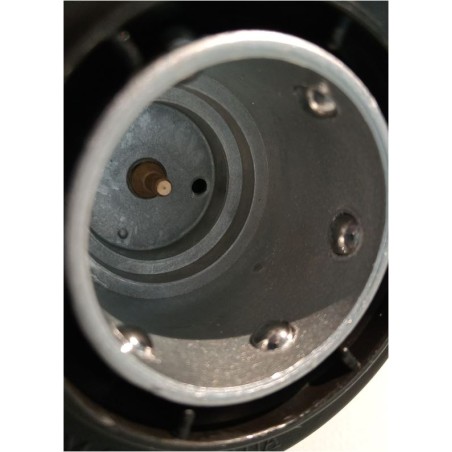

2. Insert the lower part of the adapter onto the cylinder valve, holding the black ring that releases the steel balls up with both hands.
3. Push down with both hands and release the black lower ring which will lock the locking balls.
4. Make sure that the connection has been made correctly by lifting the cylinder which must remain connected to the adapter.
5. Connect the gas system pipe.
6. Open the red knob for gas release (to the left).
