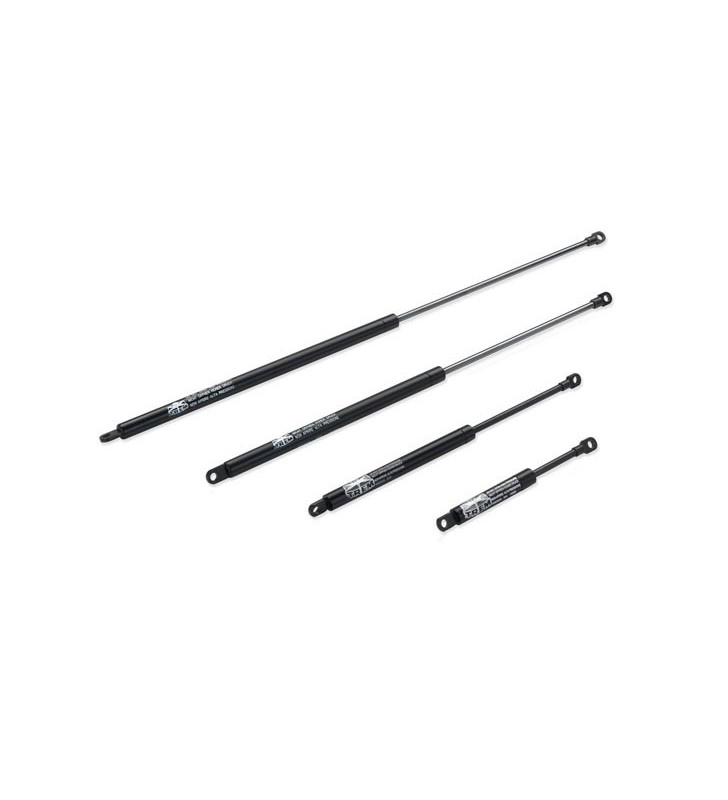

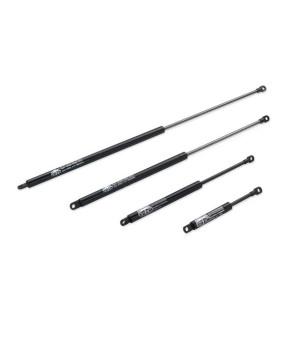

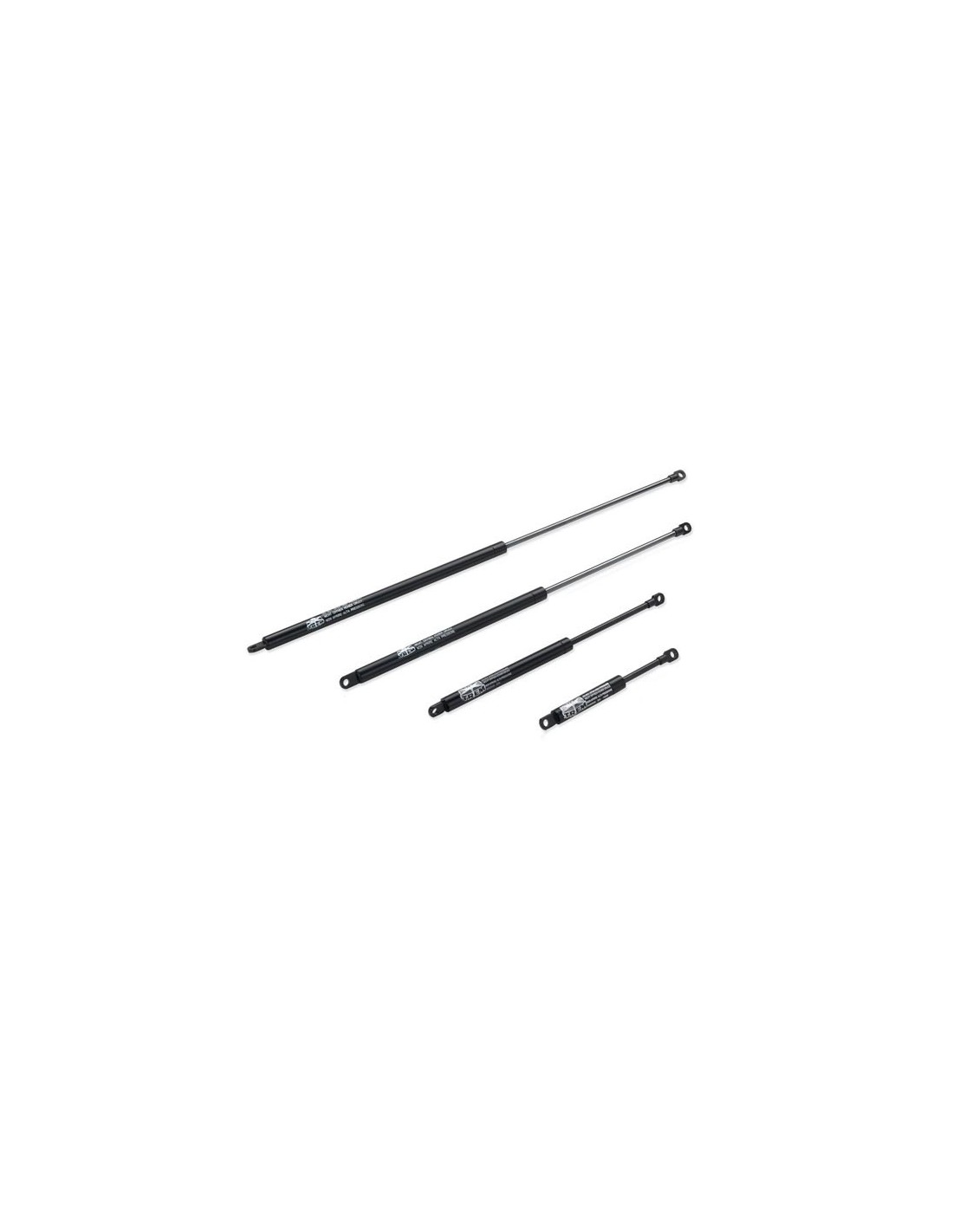

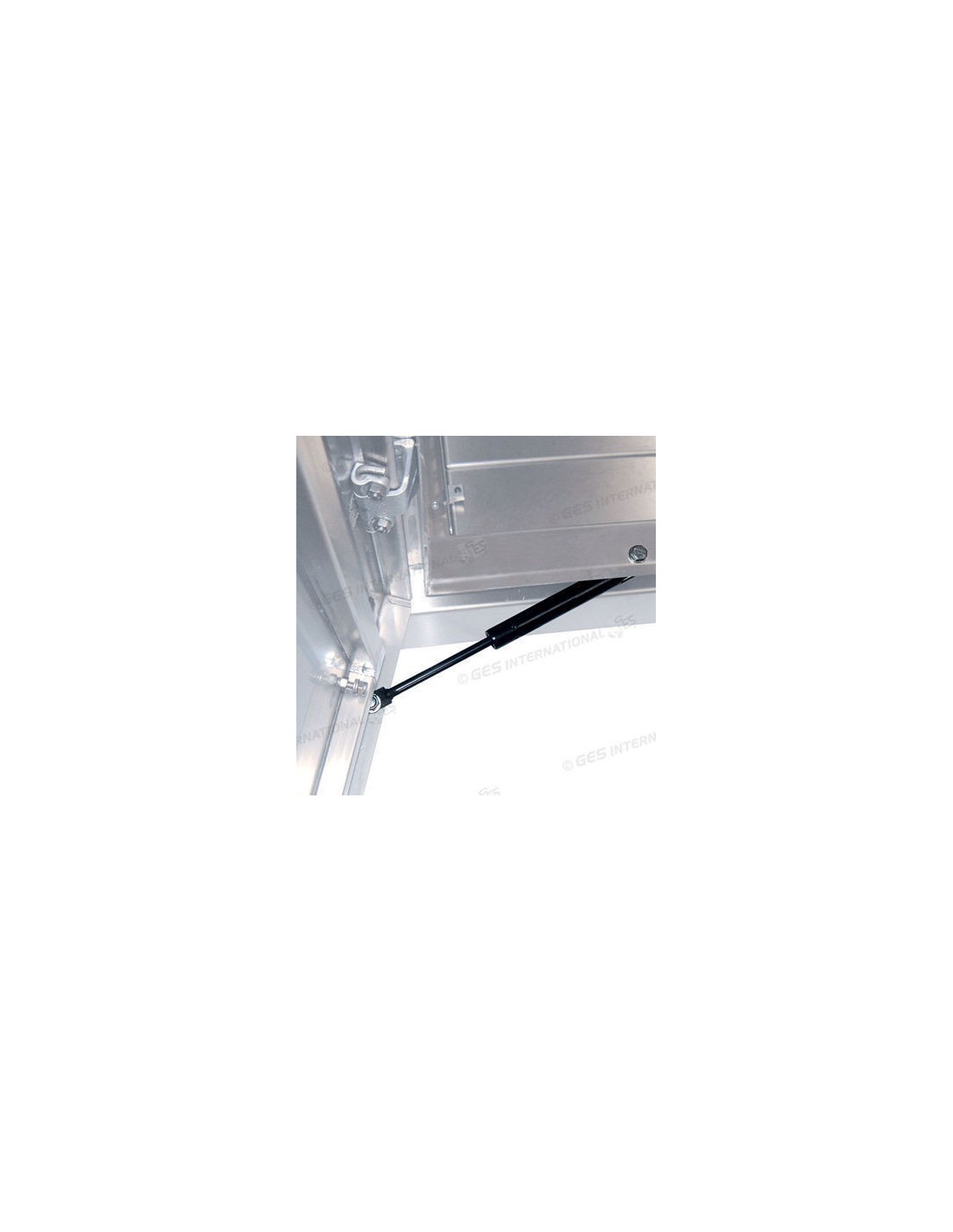

PAIR of gas springs 600-255-200 steel rod Ø8

PAIR of telescopic gas springs 600-255-200 in painted steel rod Ø 8 mm

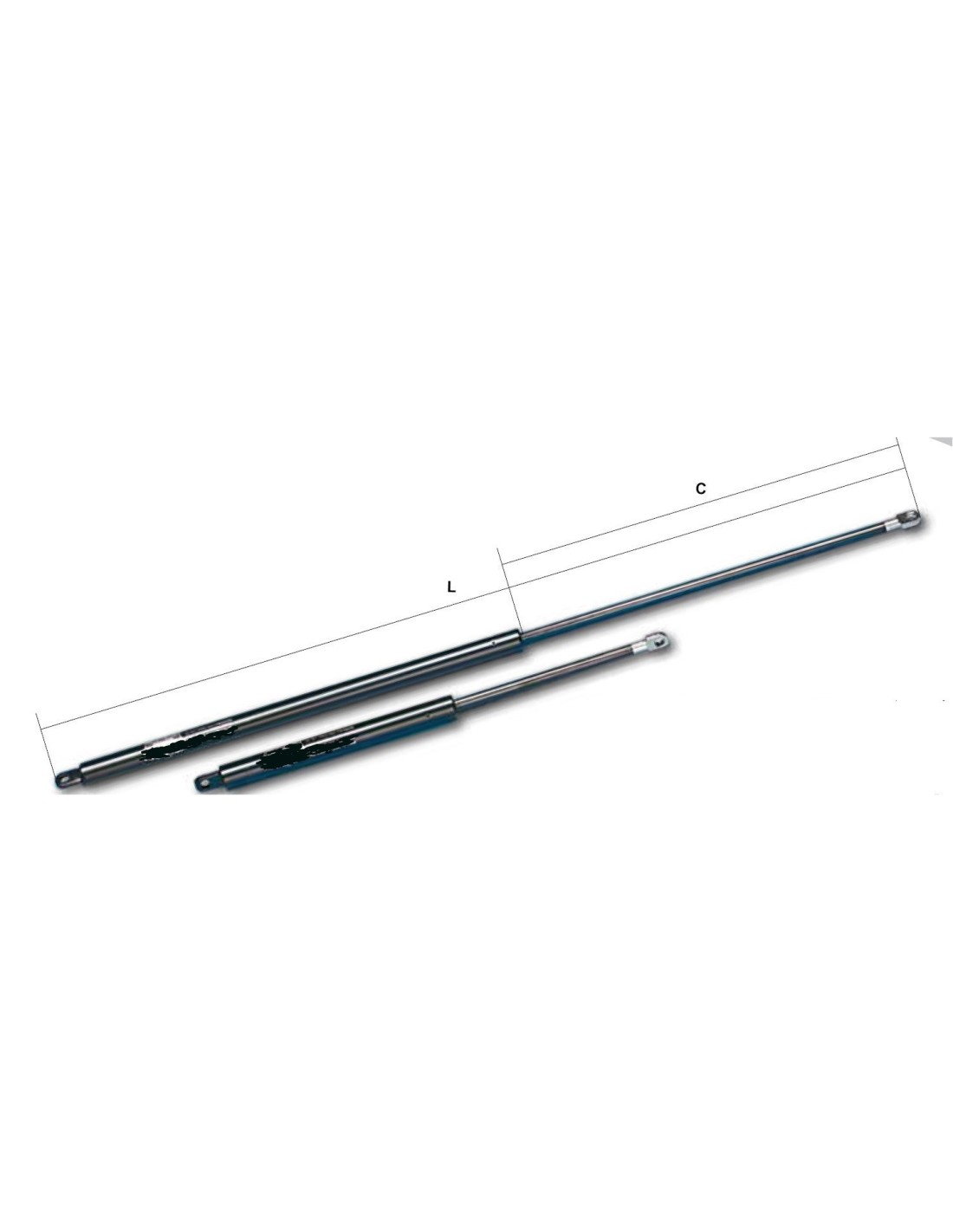

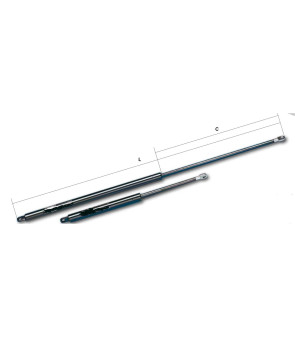

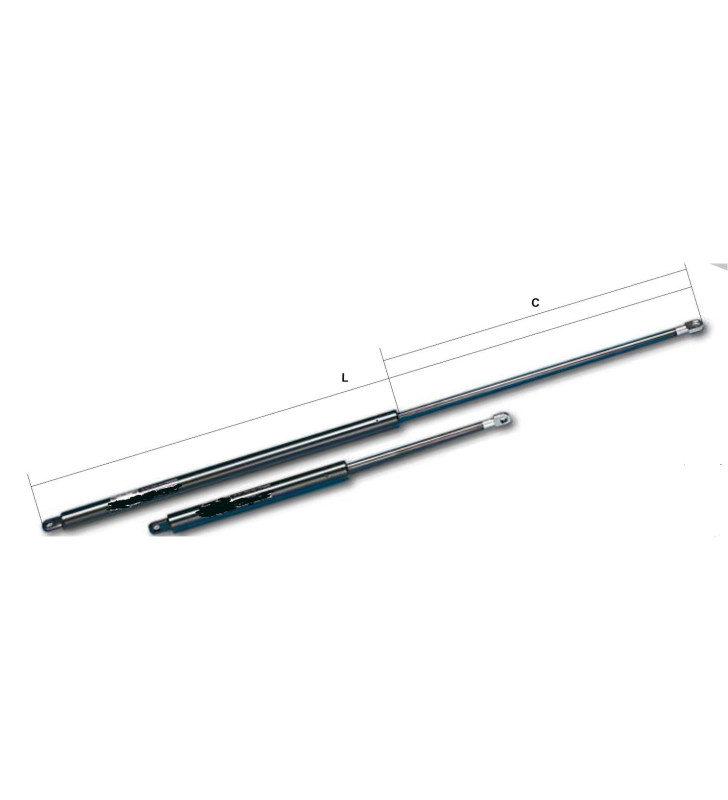

The values indicated refer to:

• open size
• closed dimension
• flow rate in newtons

Technical data:

• Stem Ø 8 mm
• Ø 18.5 mm powder coated tube
• black colour
• screw coupling for the application of eye sockets on the stem.
• Standard eye connection on the tube.
• Eye connections Ø 8 mm

The gas spring consists of a steel cylinder containing nitrogen and oil under pressure and a ground steel rod that slides in the cylinder itself through a sealing ring.

The oil has the function of lubricating the seals and the stem.

The gas compresses and makes a thrust on the rod proportional to the weight to be moved, with a flat force curve for any stroke.

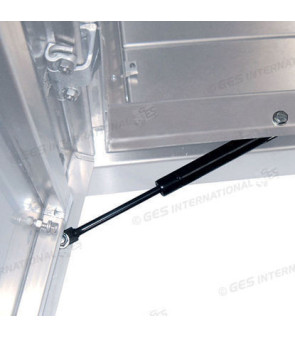

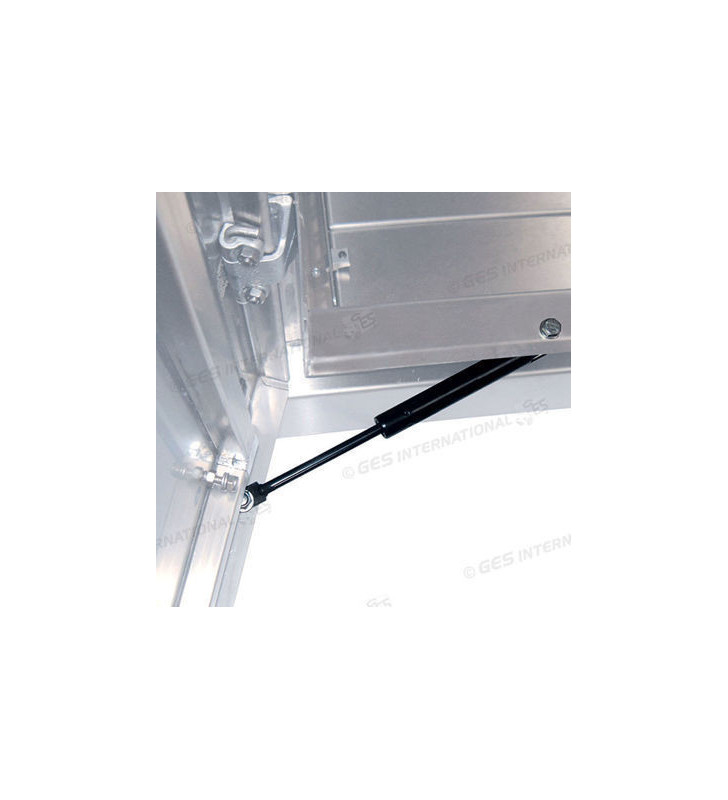

The most widespread applications are on vehicle doors, on protective casings, on furniture doors, on attic windows, and on supermarket sales counters.

The operating temperature varies the thrust of the gas spring by approximately 4% every 10°C above the standard operating temperature of 20°C.
