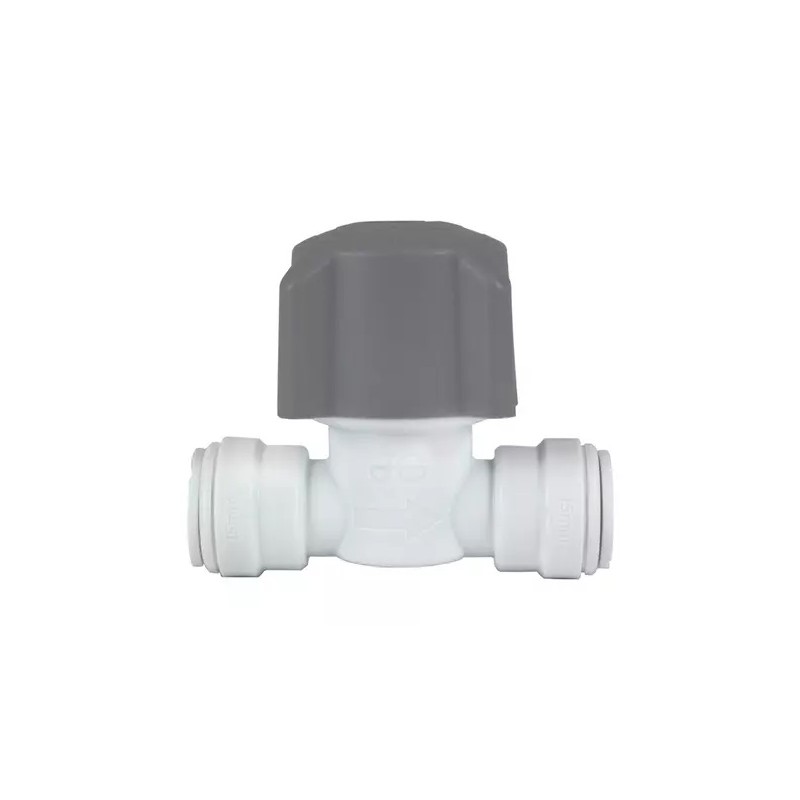

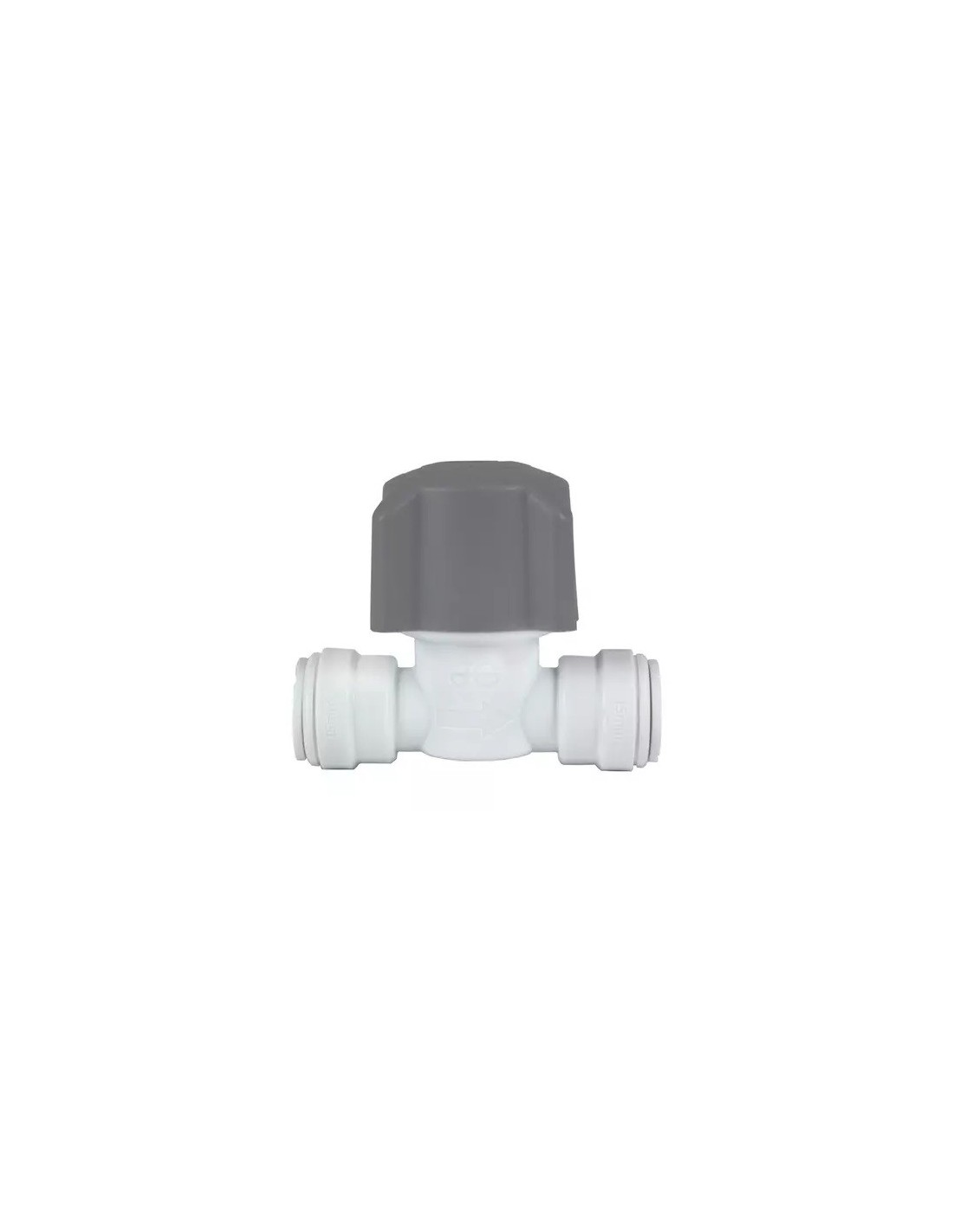

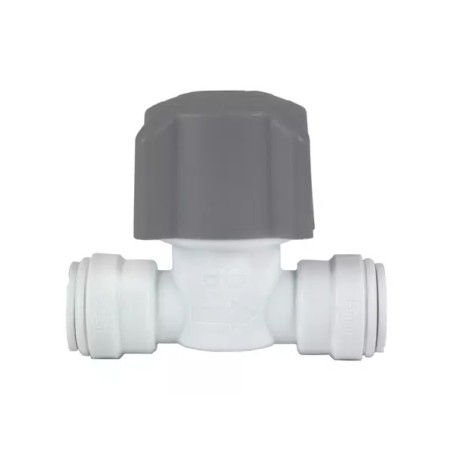

Intermediate tap 22 mm JG connections - 01822STV

Intermediate Tank Tap 22mm John Guest Connections - 01822STV/2

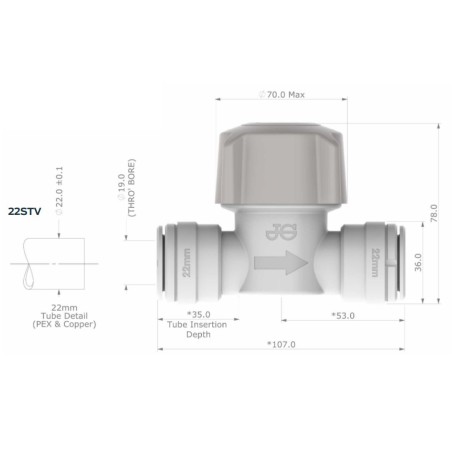

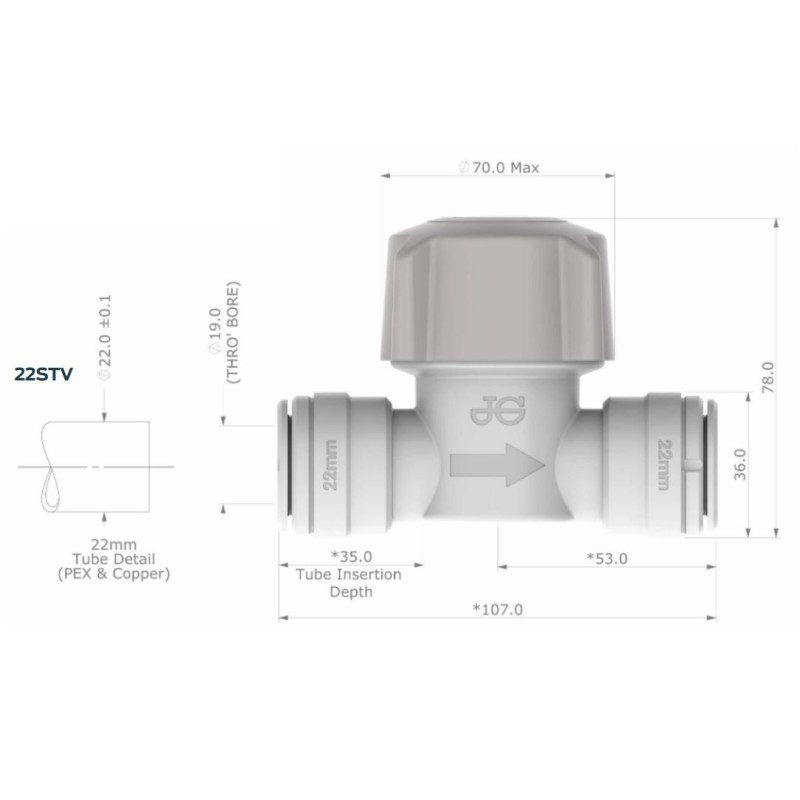

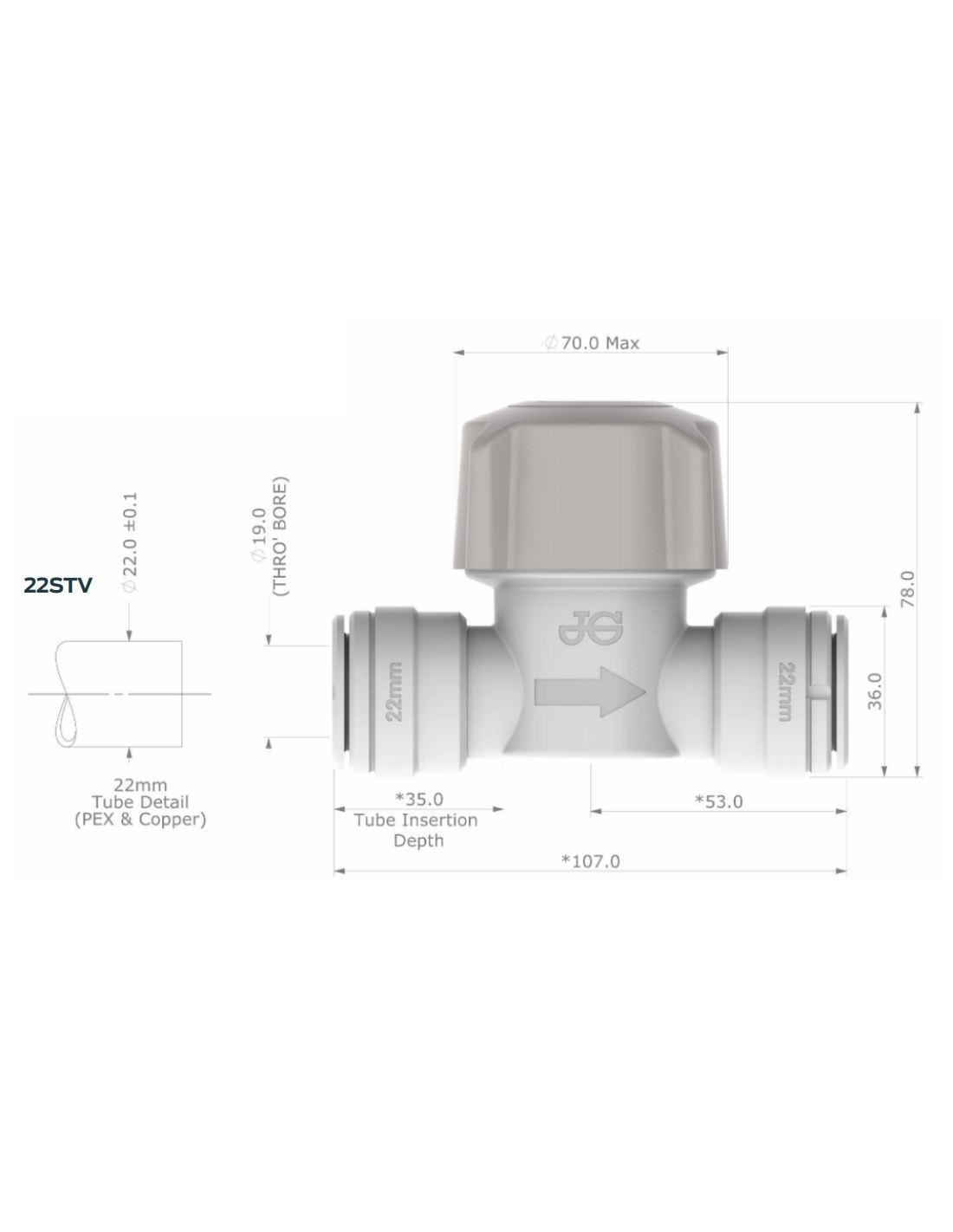

Dimensions 107mm x 78mm

The JG Speedfit shut-off valve allows the user to shut off the flow of water to an appliance or area in the event of an emergency or repair work. Simply push the valve fully onto the hose. To remove the quick-connect end, pull the clip towards the body of the quick-connect fitting and pull the hose to release.

The push fit fitting is quicker and easier to install in tight spaces than traditional methods as it eliminates the need for hot work or tools. Designed, manufactured and assembled in the UK.

Features and Benefits

• The compact design is ideal for installation in areas where space is limited
• Instant quick-fit connection and screw-type network shut-off valve
• Installation and disassembly in seconds without tools
• Safe flame-free installation, without hot work, glue or sealing agents
• Grip & Seal™ tweezers with stainless steel teeth and main O-Ring
• Compatible with PEX Speedfit and polybutylene plastic pipe (inserts required) and copper pipe
• Suitable for hot and cold water (not suitable for central heating systems)

Operating temperature and pressure:

Temperature 23°C Pressure 10 bar

Temperature 70°C Pressure 7 bar
