Eberspächer Airtronic AM3 12V/DIESEL Commercial 4kW Heating

Eberspächer Airtronic AM3 12V/DIESEL Commercial 4 kW heating

MADE TO ORDER

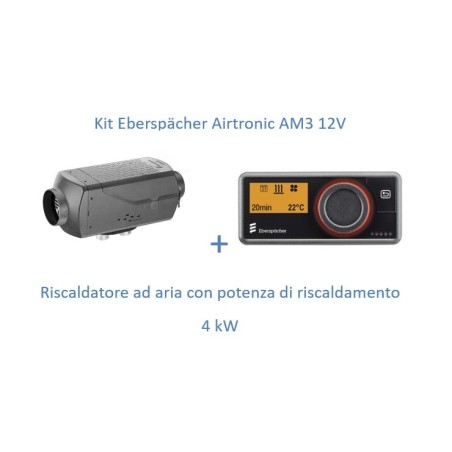

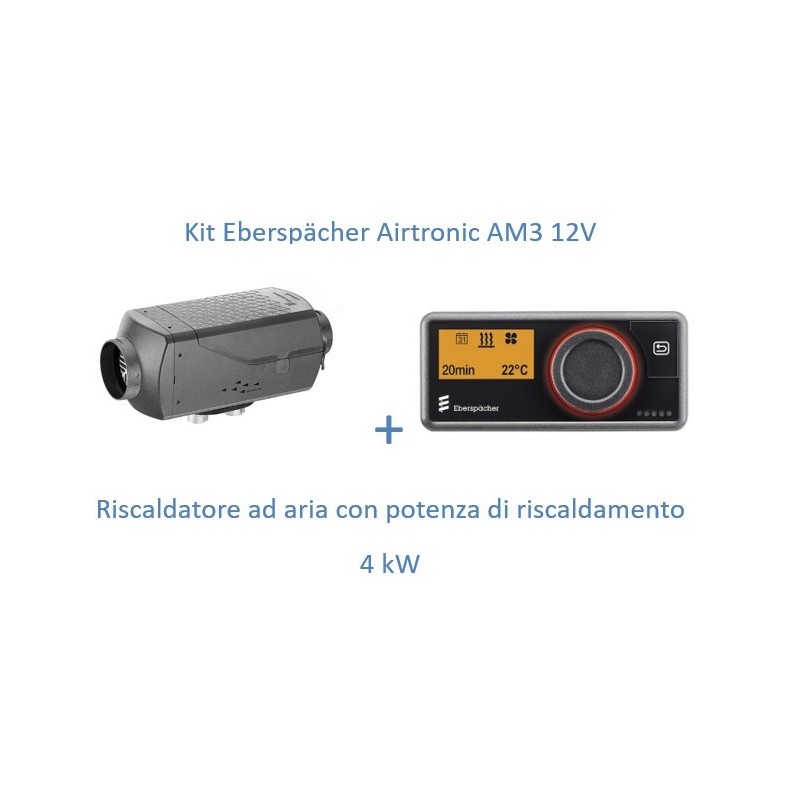

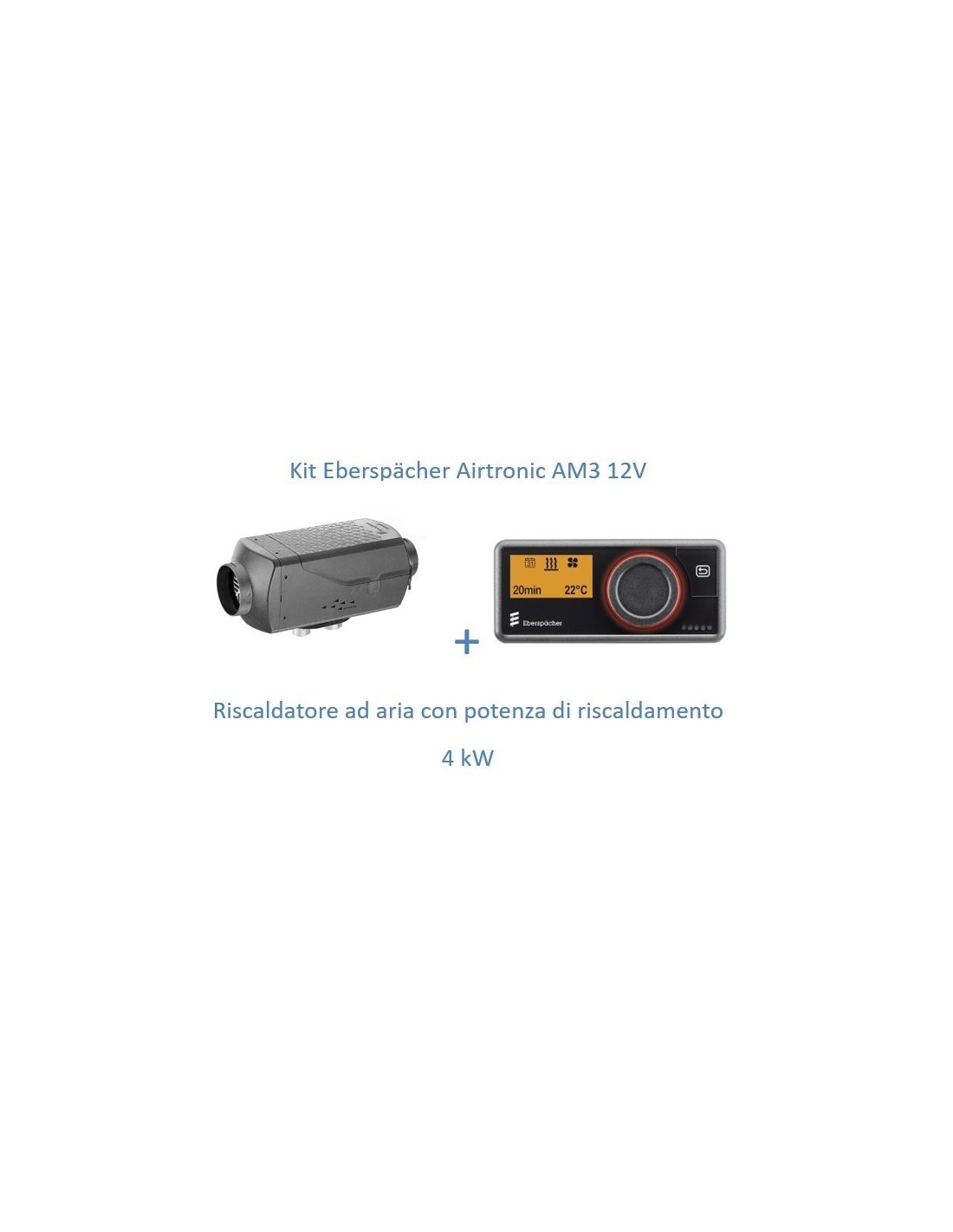

Eberspächer Airtronic AM3 12V kit: Quiet, reliable and independent heating for your motorhome adventures

Next-generation Airtronic heating: quieter, more durable, smarter

Designed to meet the growing needs of mobile travellers, the Airtronic AM3 12V heating kit represents the new generation of Eberspächer's pulsed air systems.

Renowned for its robustness and reliability, the system has been completely redesigned to offer an exceptional lifespan of 5,000 hours, optimised acoustics and fully automated operation, even at altitude.

Thanks to the latest generation brushless motor, the silent diesel pump and the progressive power regulation, the AM3 heater integrates perfectly into all types of recreational vehicles: vans, campers or caravans.

Its quiet operation ensures peaceful nights, even in very cold temperatures, without annoying noises or sudden changes in temperature.

Its CAN bus technology enables intelligent communication between the different elements of the system, with an ergonomic and easy-to-use Easystart Pro central control.

Heating designed for extreme conditions

One of the great advantages of the Airtronic AM3 kit is its automatic altitude adjustment system: whether you are stopping in the mountains at 2,500 m or crossing a pass at 5,500 m, the system automatically adjusts combustion to ensure optimal performance, without the risk of clogging or loss of power.

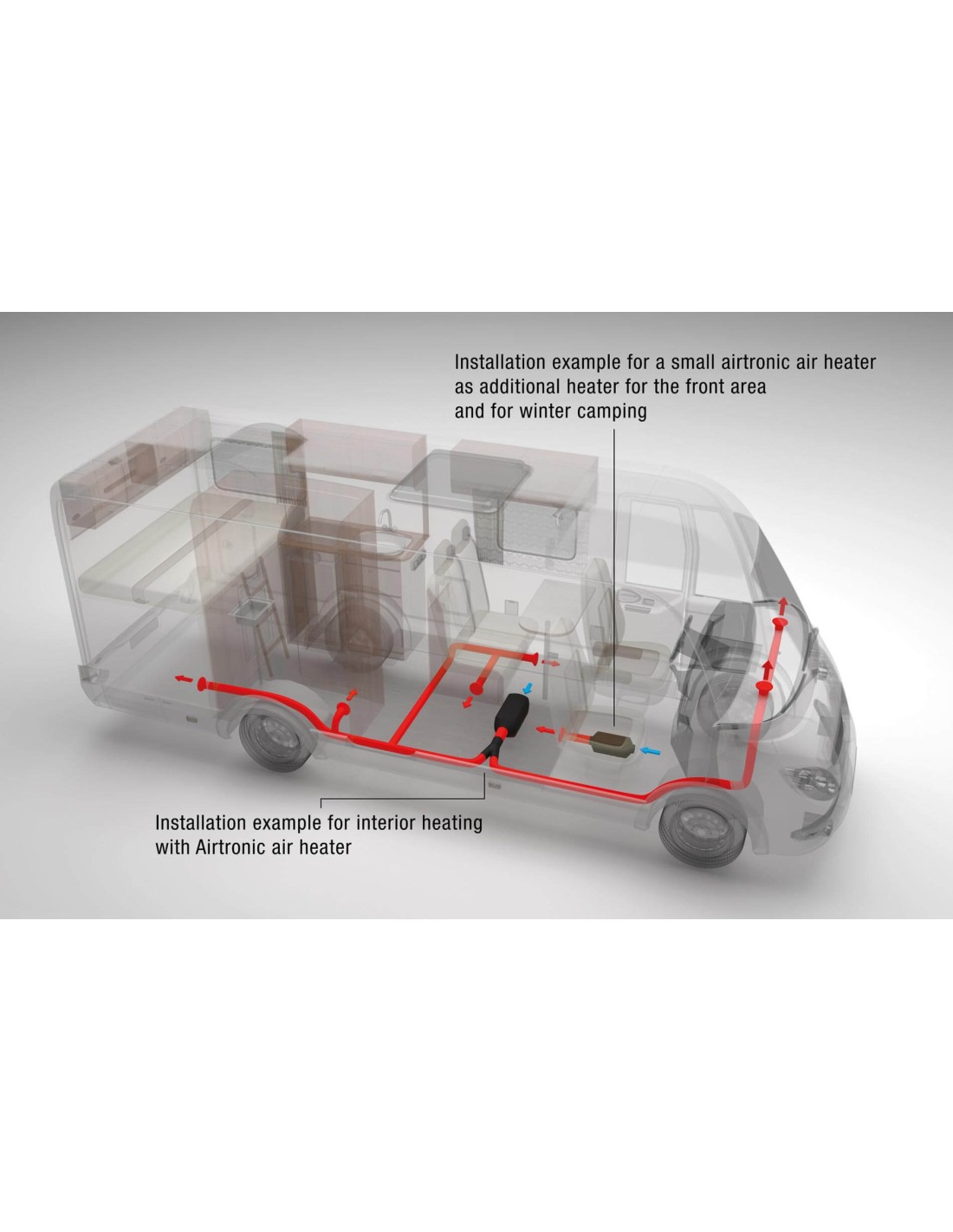

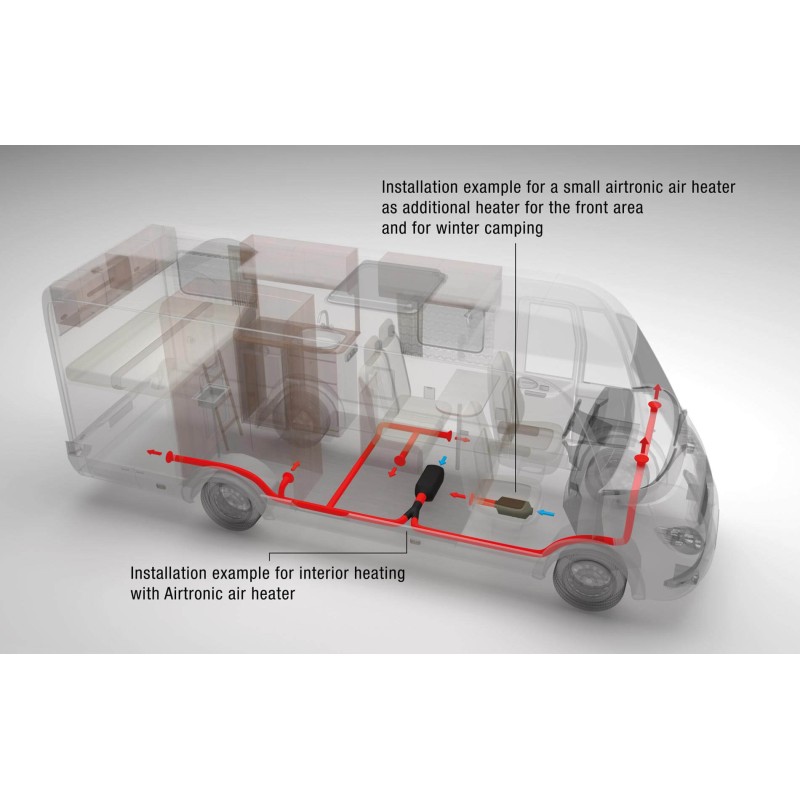

The installation is also designed to fit all configurations thanks to its compact design and 90° tilt flexibility. This adaptability allows for easy integration into technical compartments or under benches, while maintaining access to the main elements for maintenance.

The 75 mm air outlet (adaptable to 60 mm with available options) ensures effective and even heat distribution in the living space, for optimal thermal comfort even in winter.

It includes in particular:

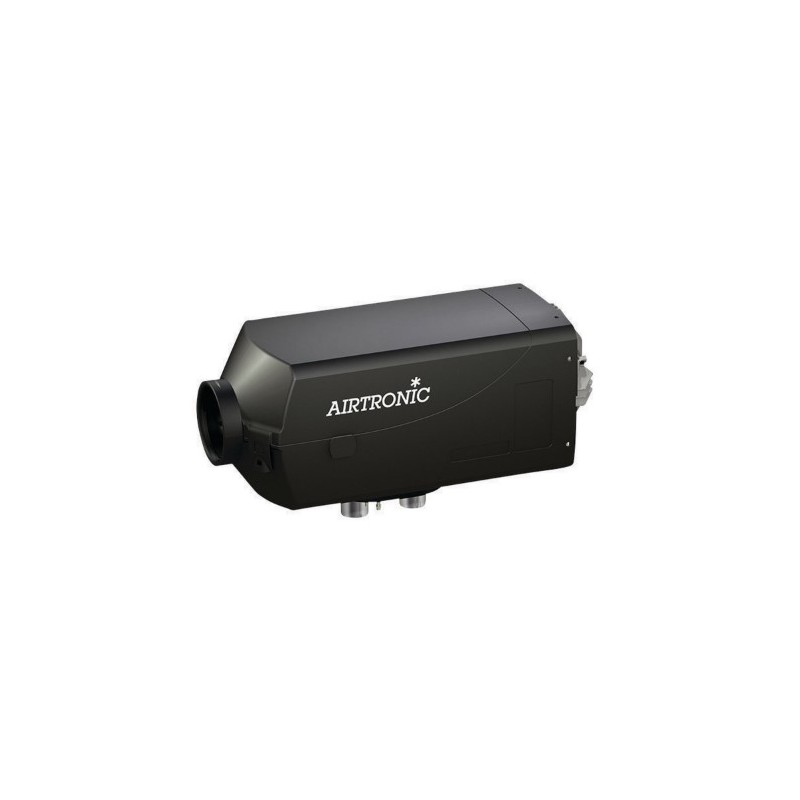

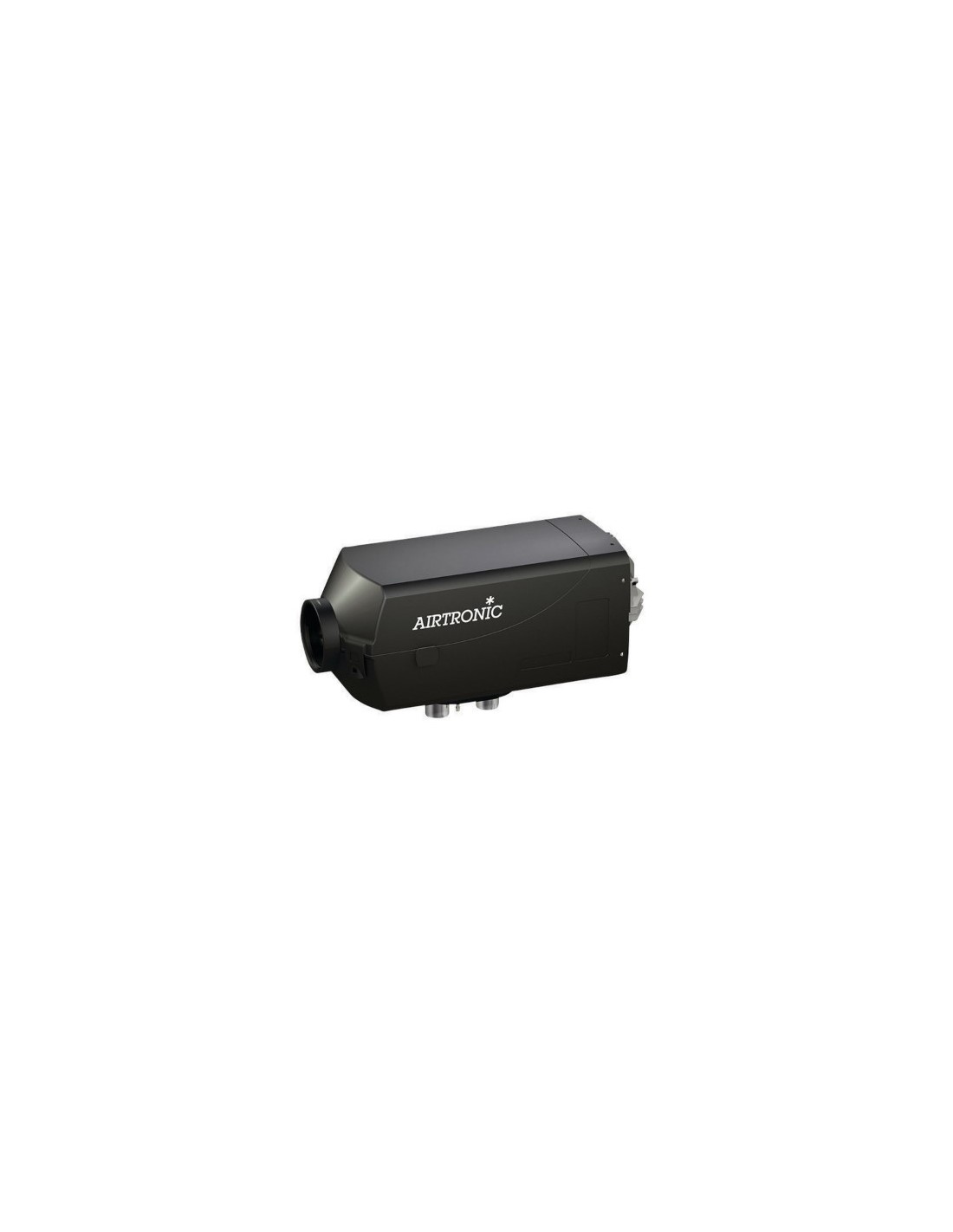

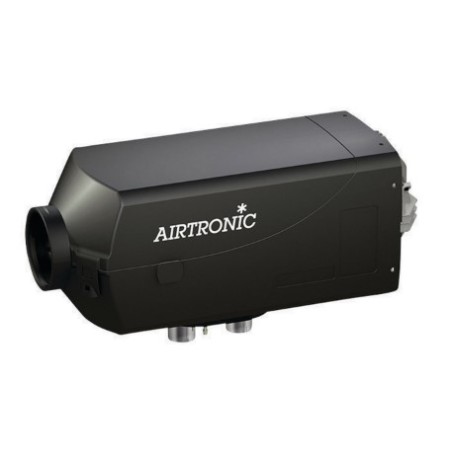

Airtronic AM3 / AS3 heating

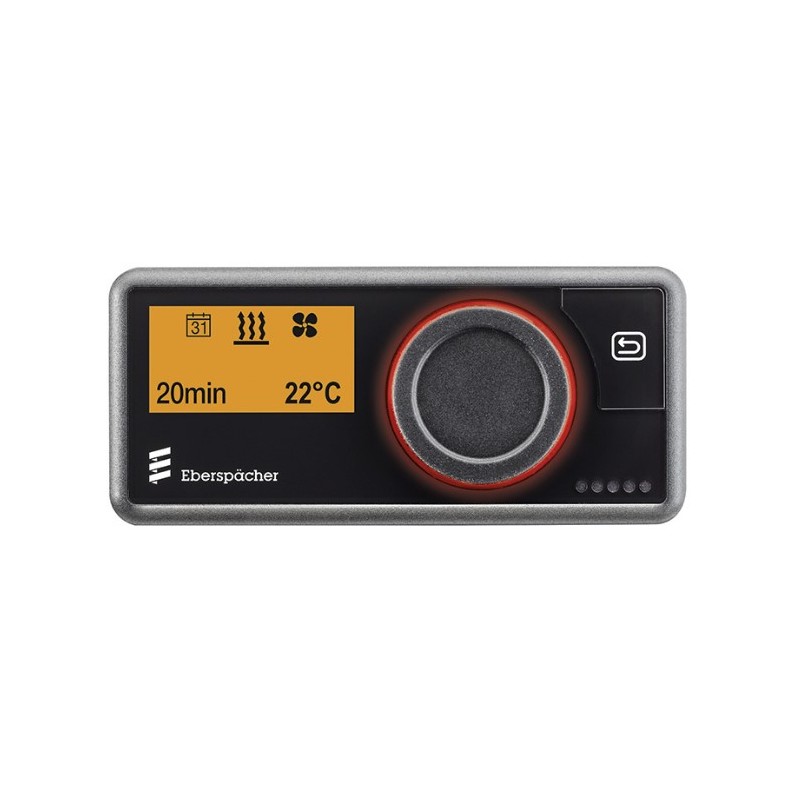

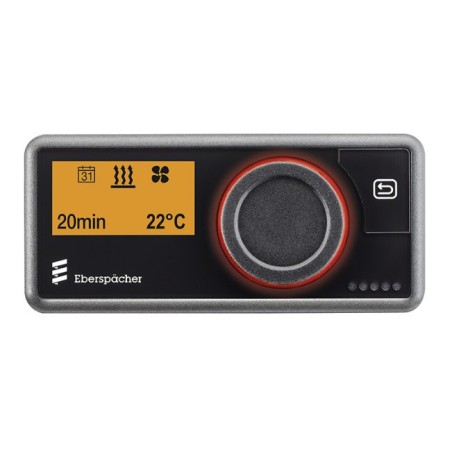

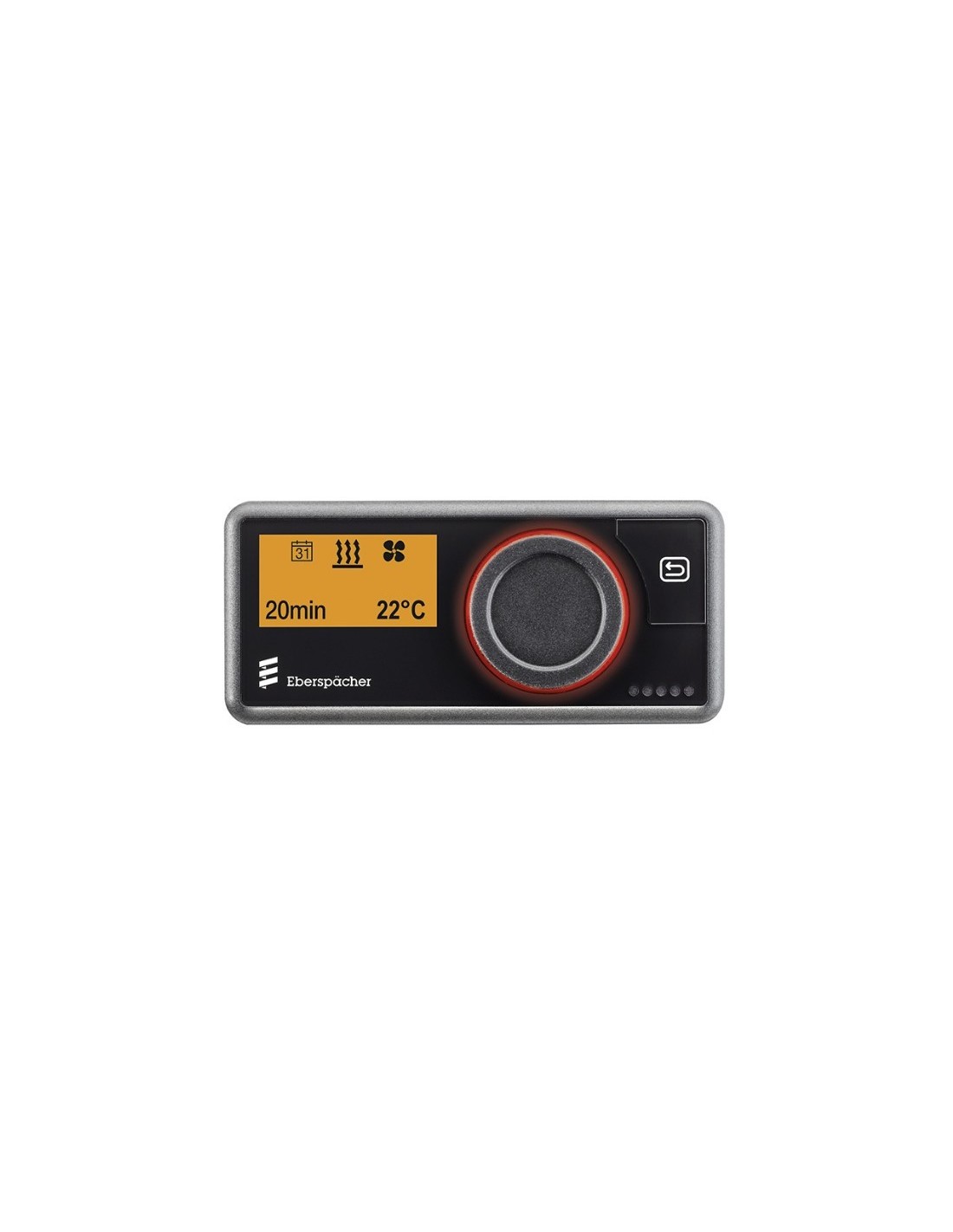

An Easystart Pro control

A complete electrical wiring

A diesel pump and its fuel system

A 0.5 meter stainless steel drain pipe

A combustion intake pipe

One air outlet (60 mm) and an inlet grille

Clips, screws, connectors and mounting accessories

It is the ideal solution for efficiently heating a van or motorhome in complete autonomy, while optimizing the silence and durability of the system.

Technical features:

Voltage: 12 V

Technology: Brushless motor

Lifetime: up to 5,000 hours

Adjustment: automatic, progressive and silent

Altitude: automatic adaptation up to 5,500 m

Air outlet: Ø 60 mm

Control: Easystart Pro included (digital, programmable)

Integrated CAN bus system

Power supply: diesel

Installation: flexible, compact components

Accessories included: bundles, pipes, ducts, screws, grille

Net weight : 4.5 kg
