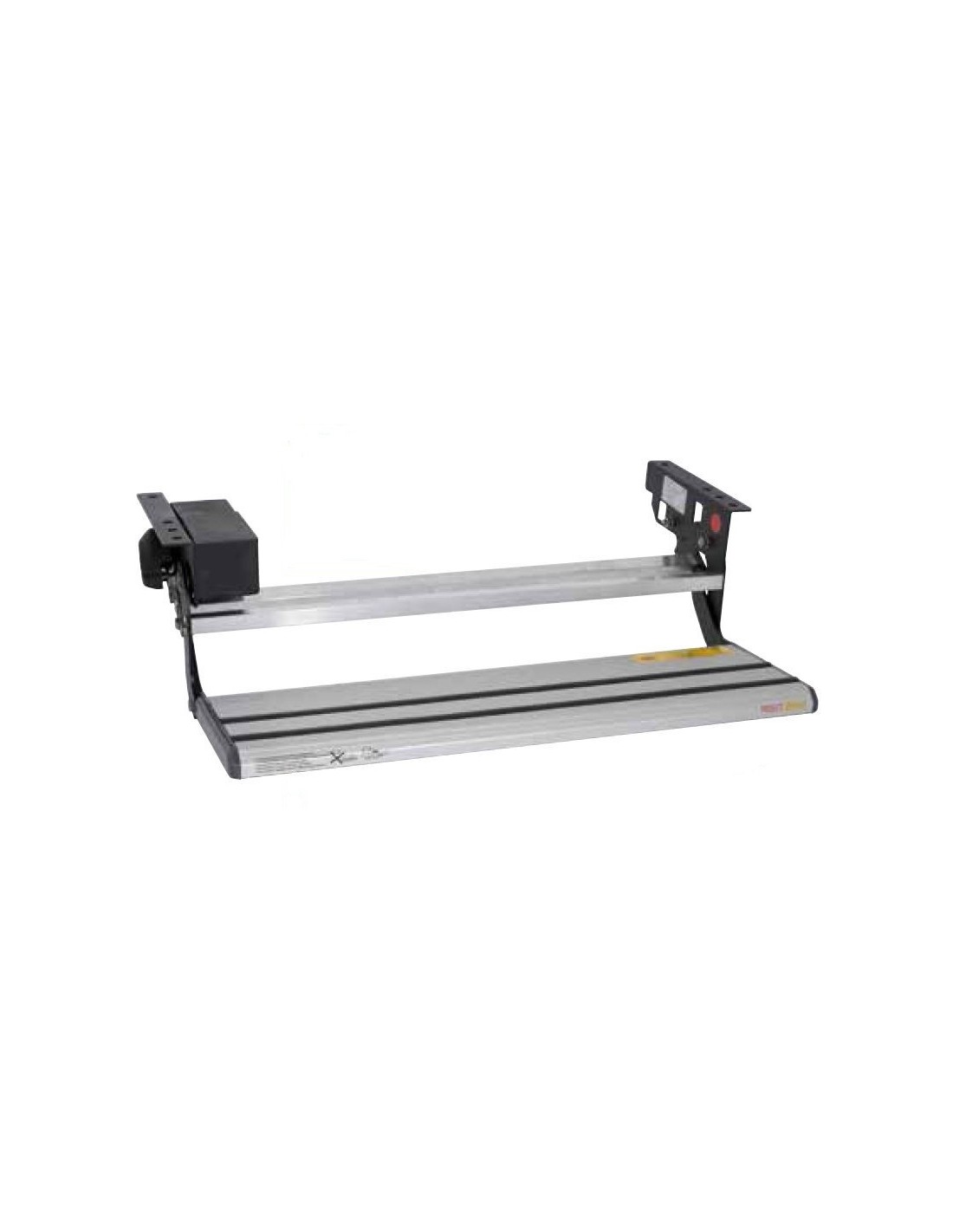

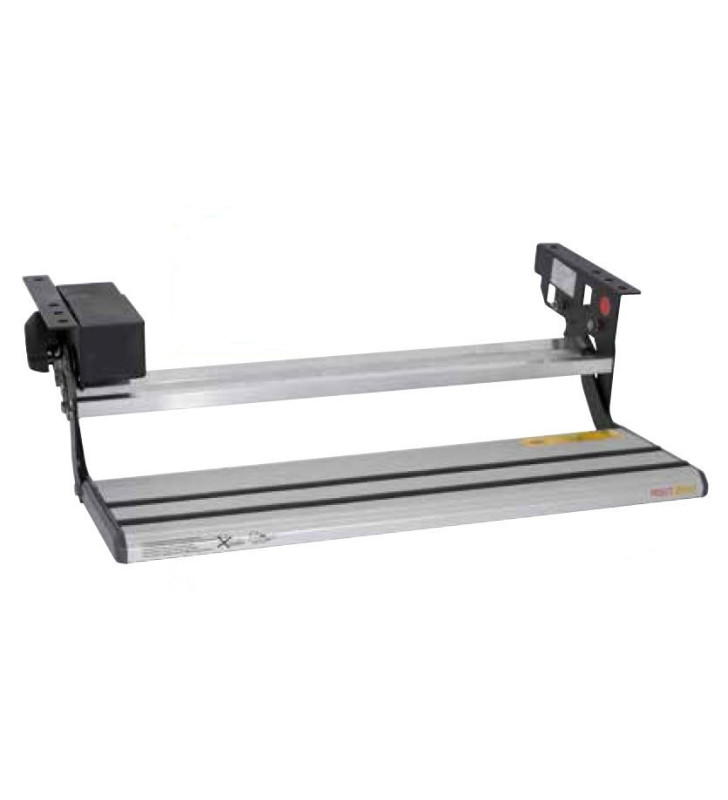

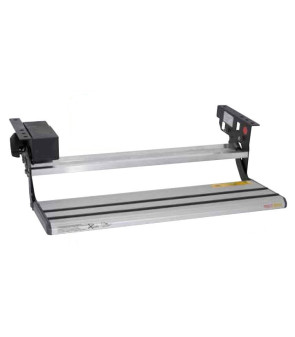

ELECTRIC STEP 550 mm LIPPERT 10750 T SINGLE TILTING

LIPPERT single electric step - 550 mm - with tilting movement - T SERIES - model 10750

10750/440T/96/000 Platform width 460 mm, Weight 5.51 kg

10750/550T/96/000 Platform width 475 mm, Weight 5.84 kg

10750/700T/96/000 Platform width 719 mm, Weight 6.19 kg

• Anodized aluminum platform with non-slip rubber and no water stagnation areas
• Watertight open step warning light incorporated into the engine crankcase
• New steel and aluminum structure designed for greater stability in all conditions and a very light weight.
• Strong salt spray protection of steel parts with galvanizing and epoxy painting and stainless steel bolts.
• Rapid movement on brass bushings capable of guaranteeing fluid movements over time

ELECTRIC VERSION:

• High power gearmotor on ball bearings with thermal protector in case of excessive strain
• Anti-shock clutch that protects the gearmotor from violent impacts on the platform when the step is moving.
• Dead man opening and closing until complete mechanical stop
• Manual opening in case of emergency without the need to disconnect any mechanical component
• Step complete with already mounted wiring
• Very quick step in operation; opening time 1.5 seconds
• Absorption: 3A
