AL-KO ClickFix support feet, manual crank

AL-KO ClickFix manual crank support legs

AL-KO AMC mechanical ClickFix lifting support

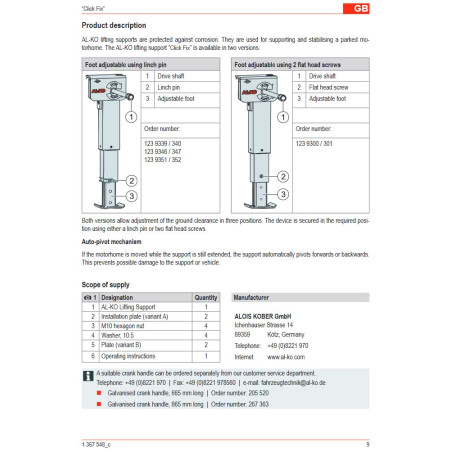

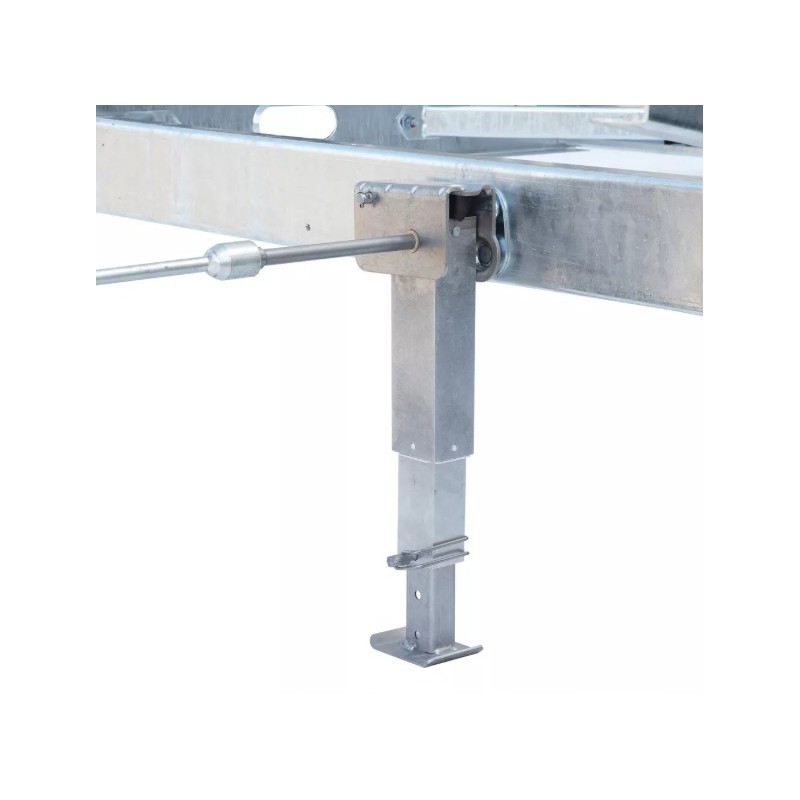

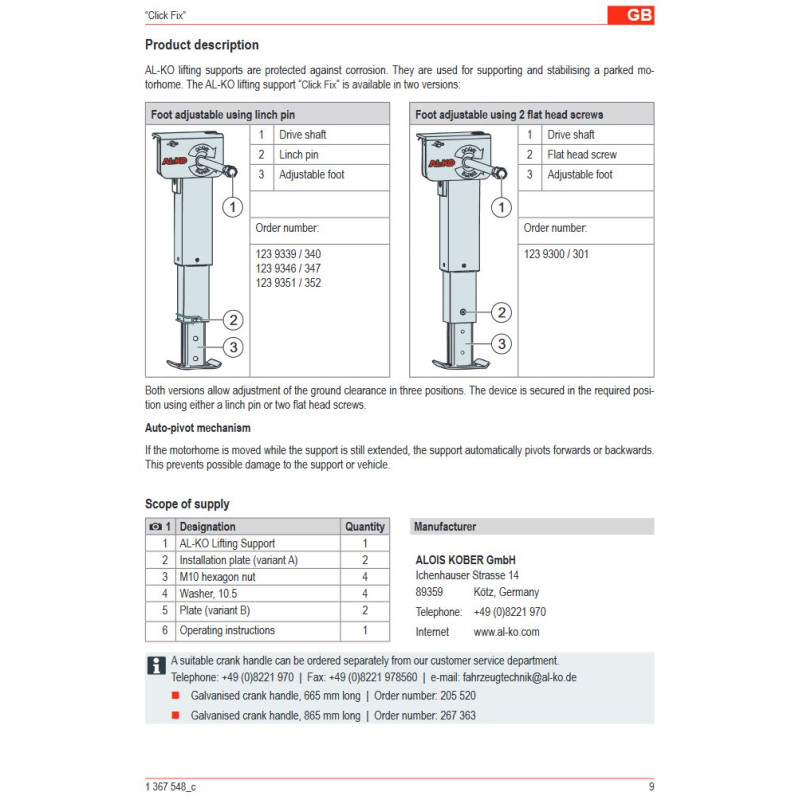

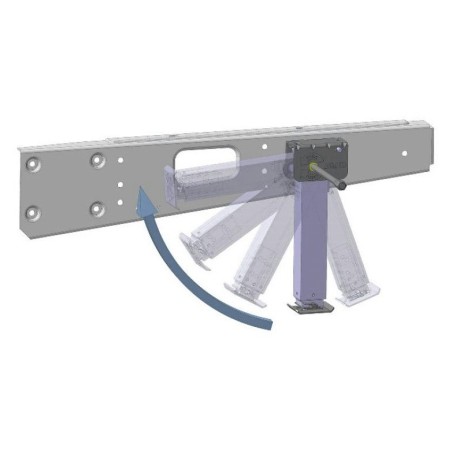

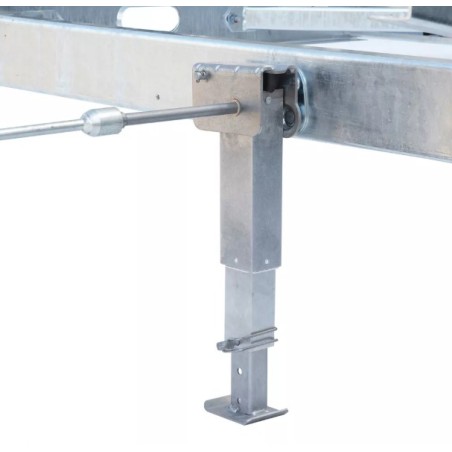

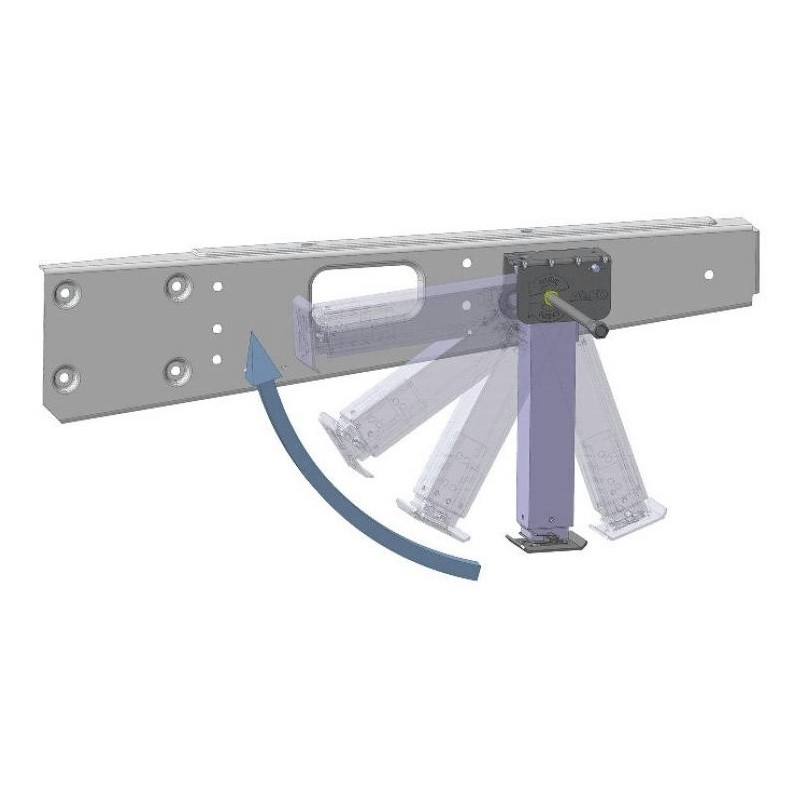

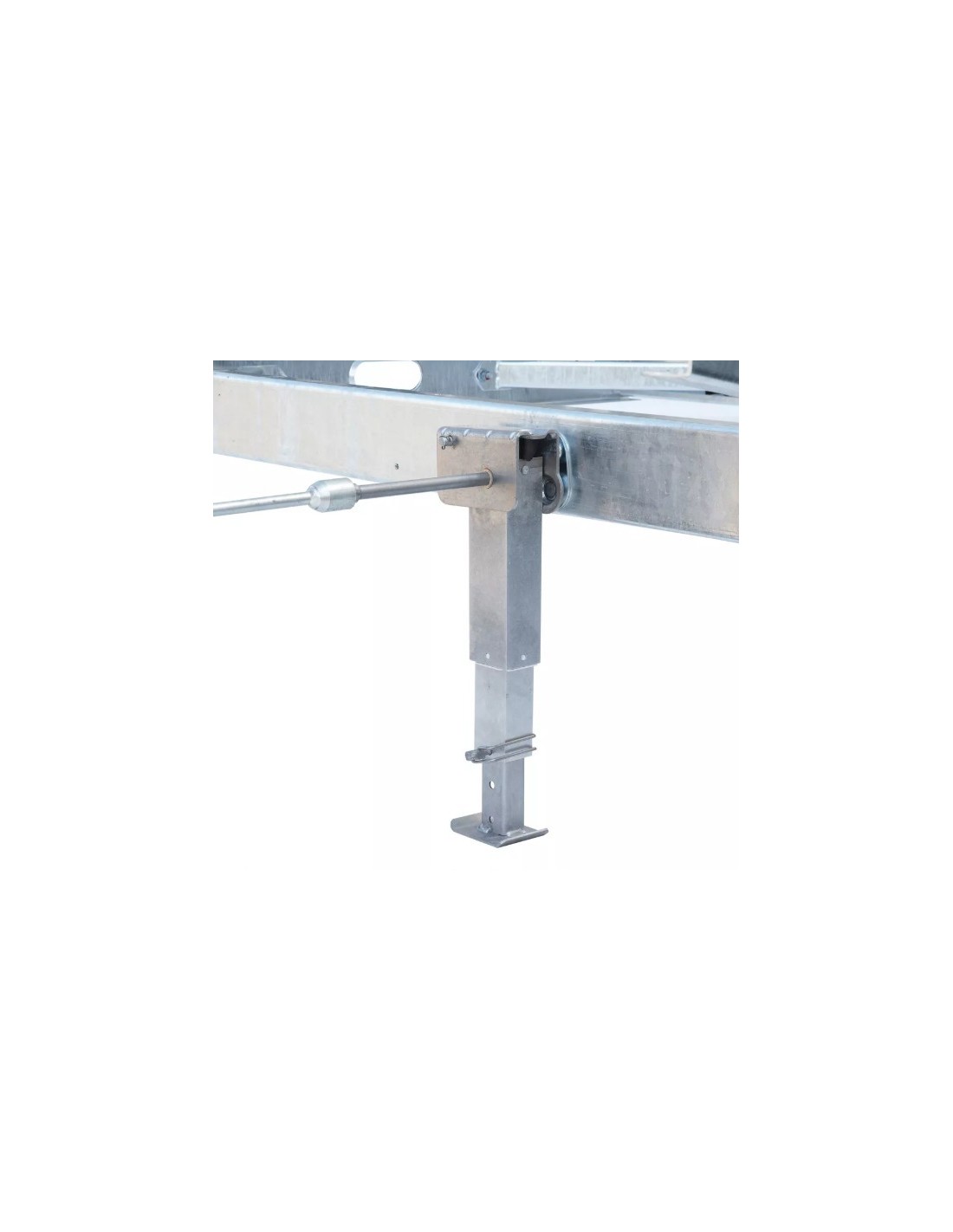

Mechanical jack stands can be mounted on vehicles with AL-KO chassis or chassis extensions. The jack stand is simply raised or lowered with a crank handle. This is particularly convenient and quick, as just a half-turn of the crank handle is all it takes to raise or lower the jack stand into a vertical position and support the vehicle.

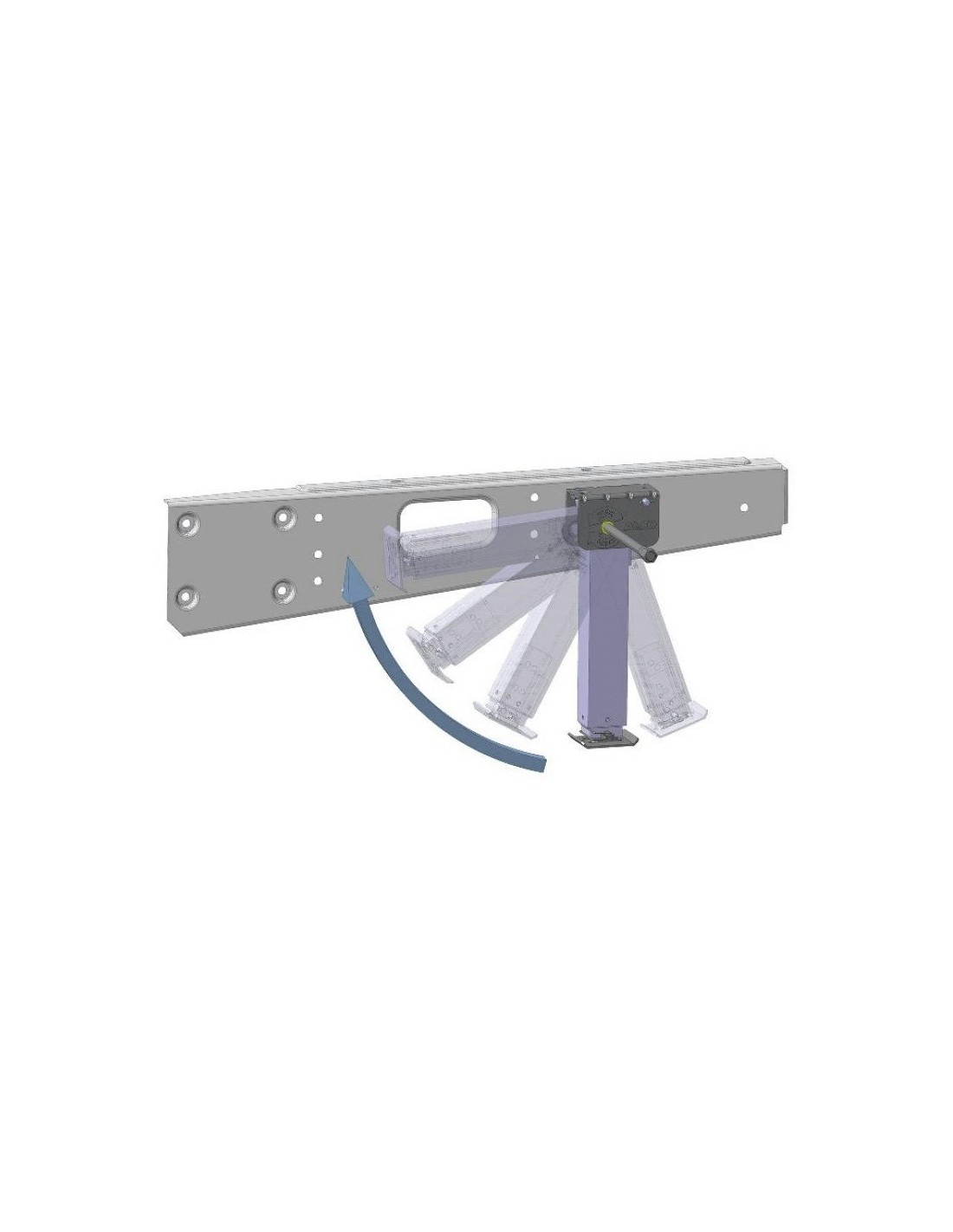

Likewise, lowering is particularly quick and easy – you raise the crank and with the last turn the support automatically swings upwards and locks securely in place.

When the camper starts moving, the safety mechanism tilts the foot forward or backward to prevent damage.

Crank not included in the delivery

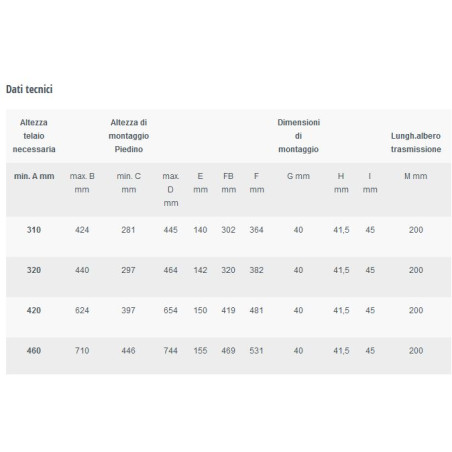

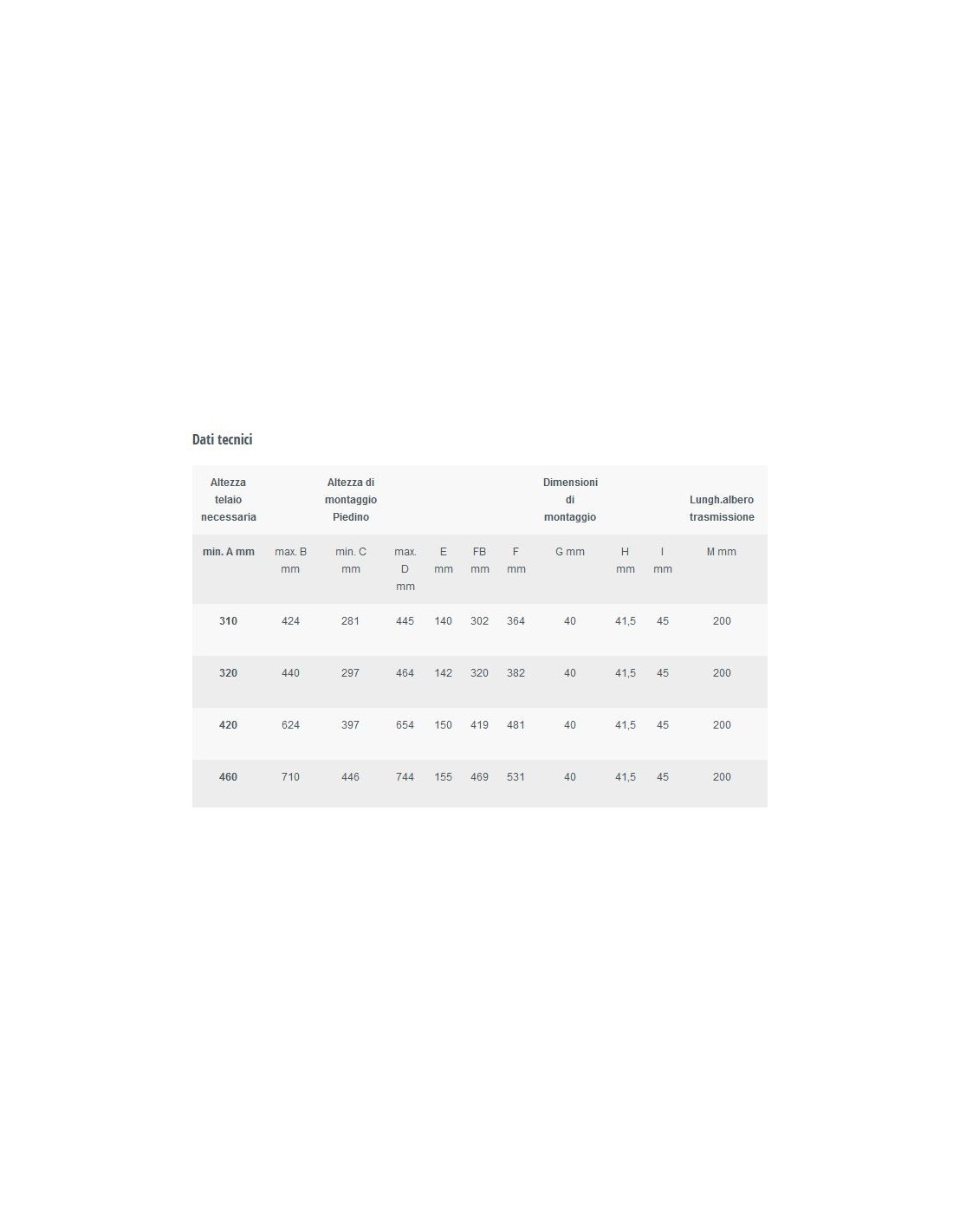

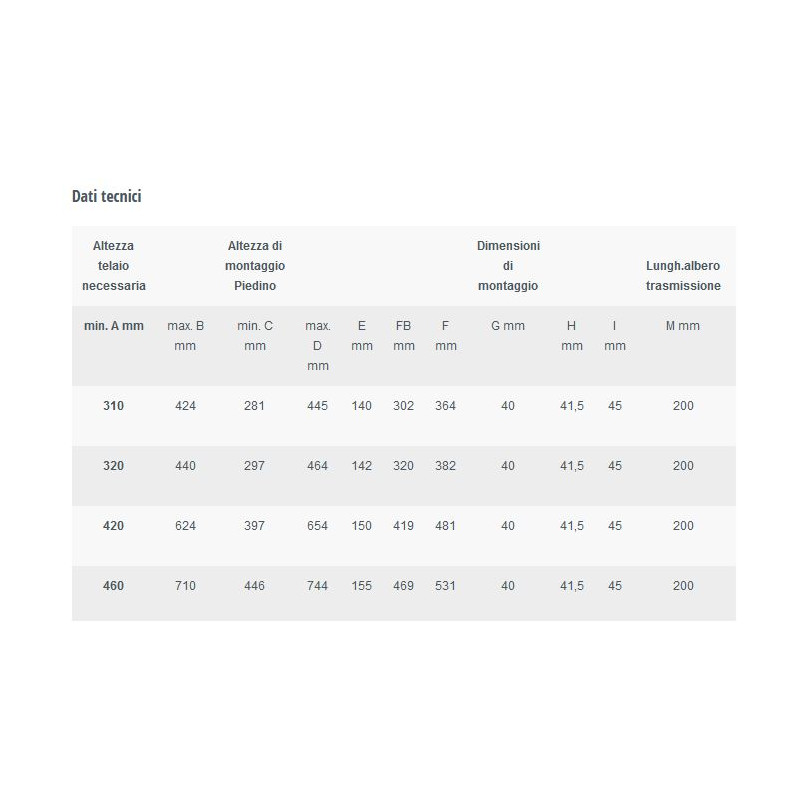

H fully loaded frame - lowering:

• 310/424 mm - <220 mm
• 320/440 mm - 220 mm
• 420/490 mm - 195 mm
• 460/710 mm - 140/100/orig

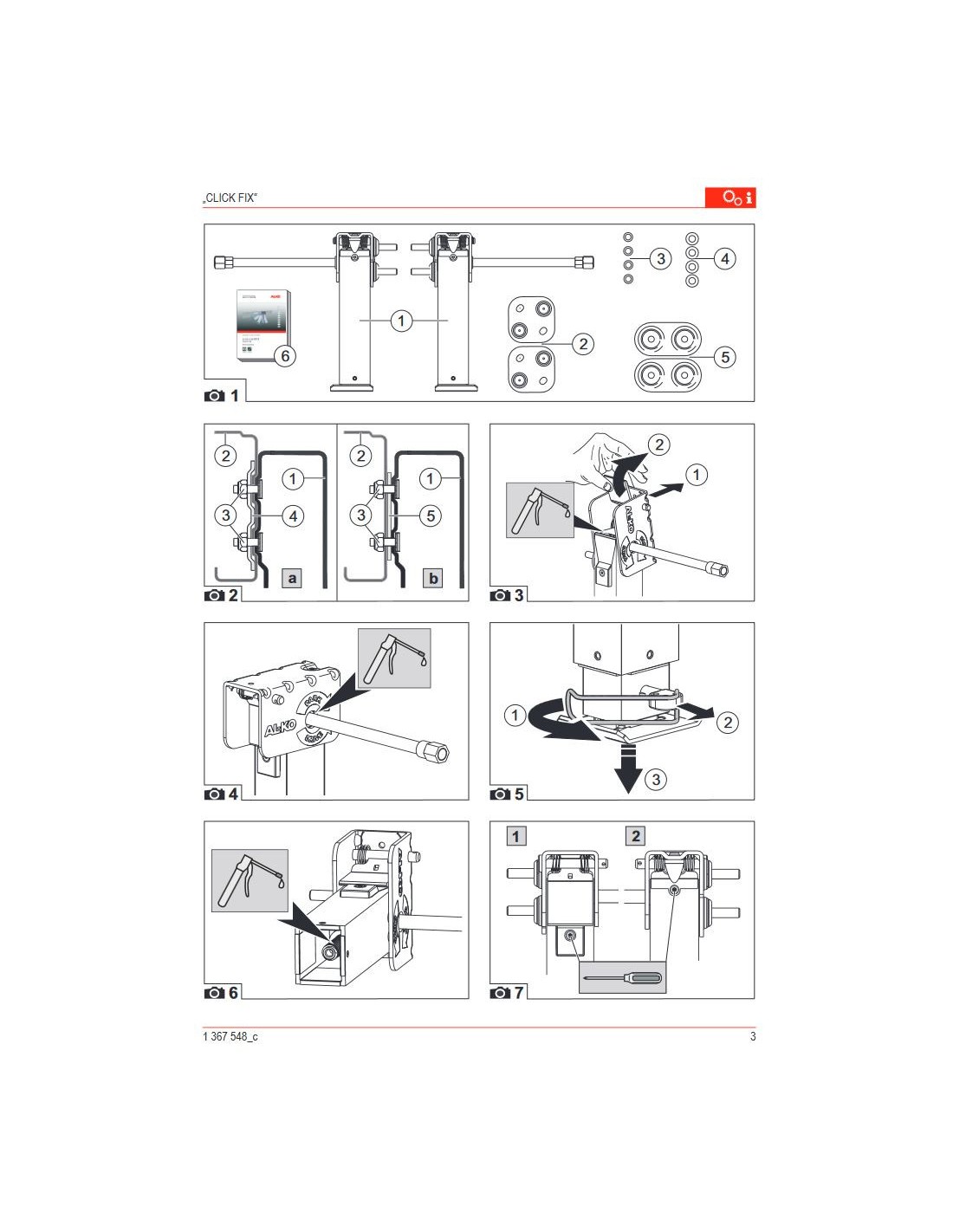

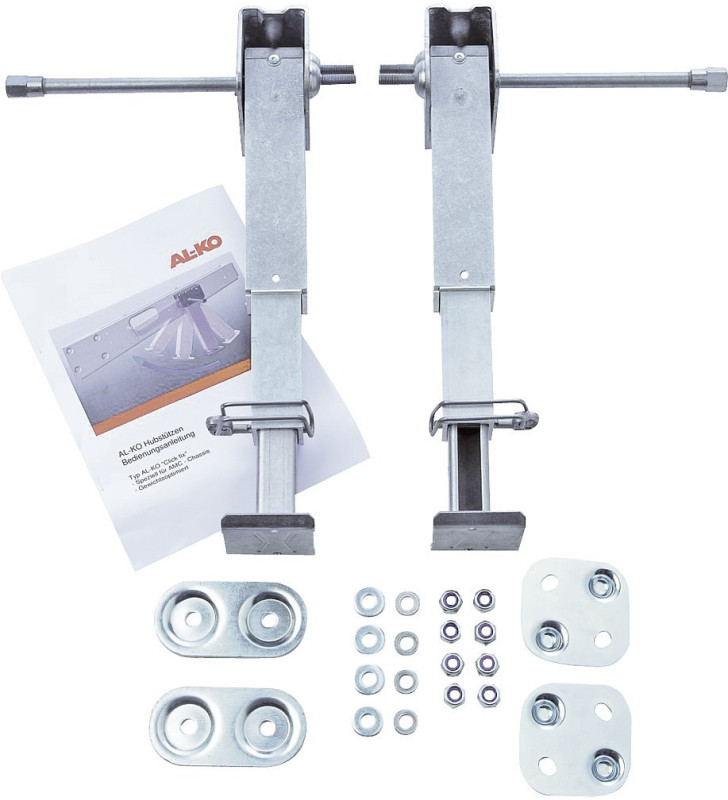

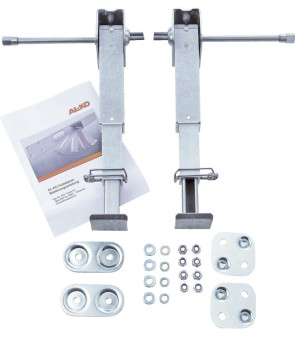

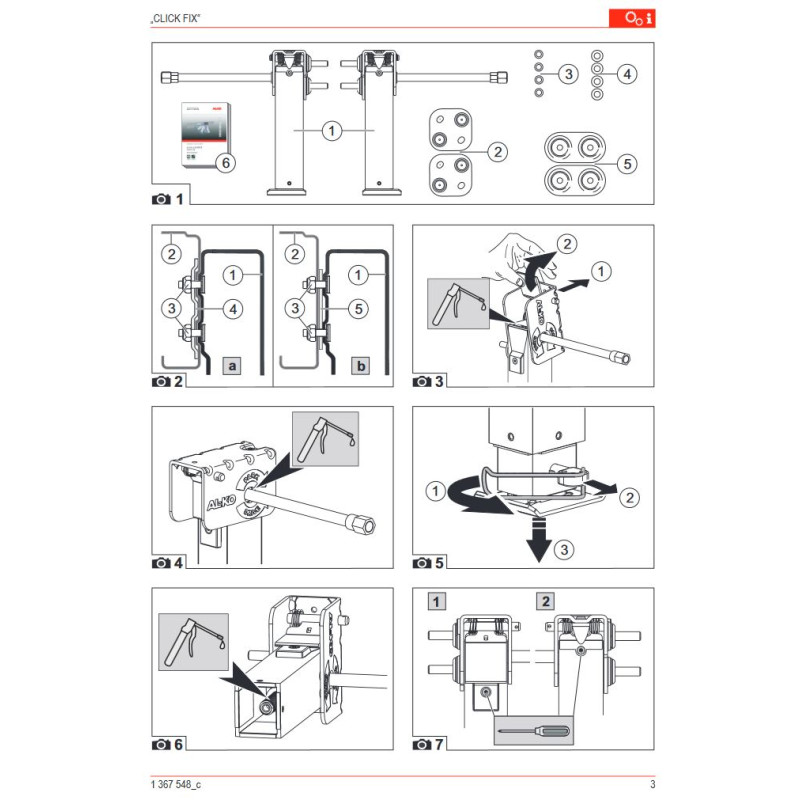

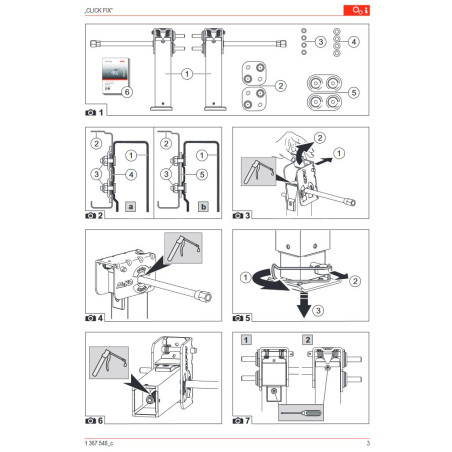

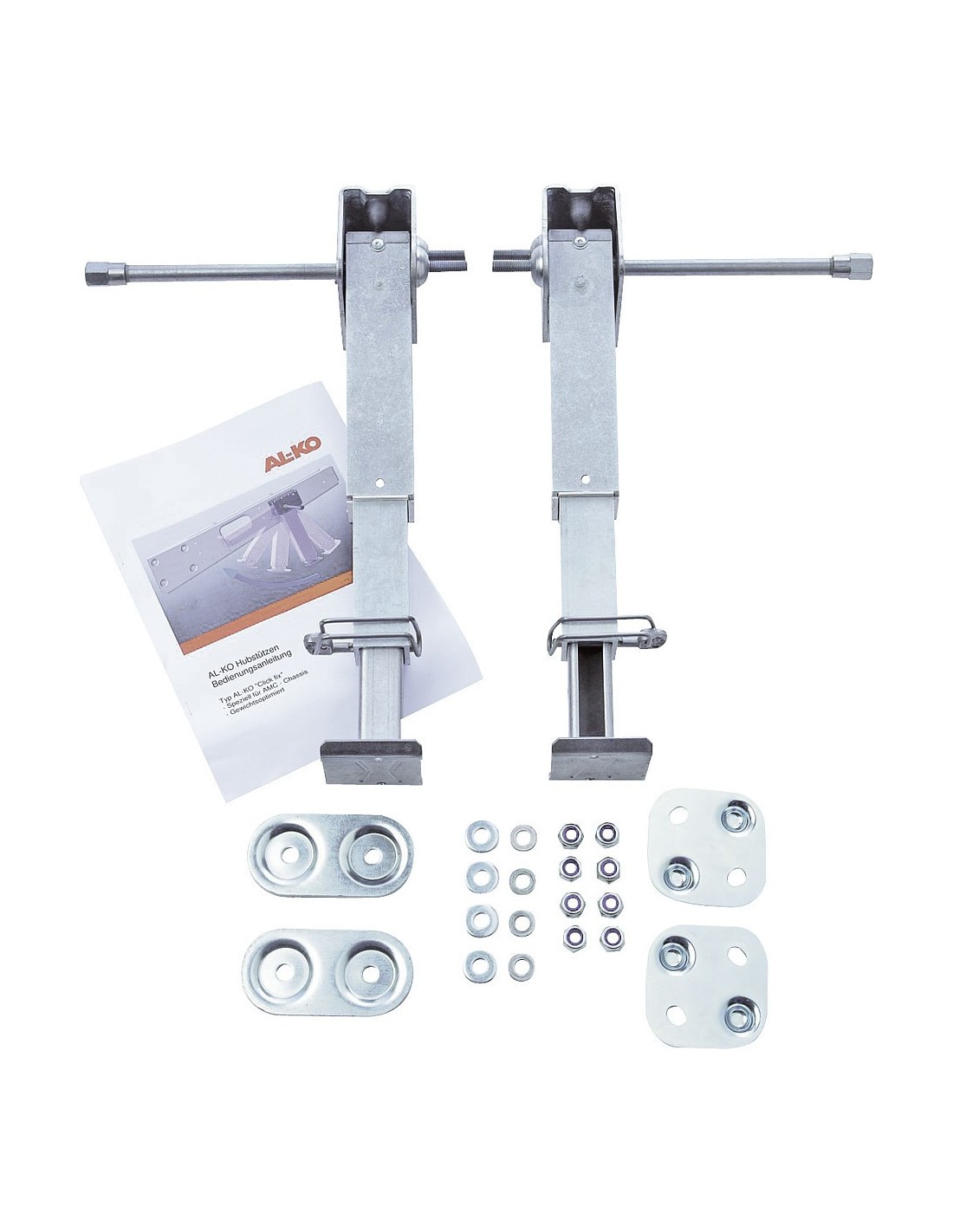

Two support feet, mounting hardware, and instructions for use and assembly. Please order the crank separately.

• Static load capacity: 1,000 kg
• Dynamic load capacity: 500 kg
• Shaft length 200 mm

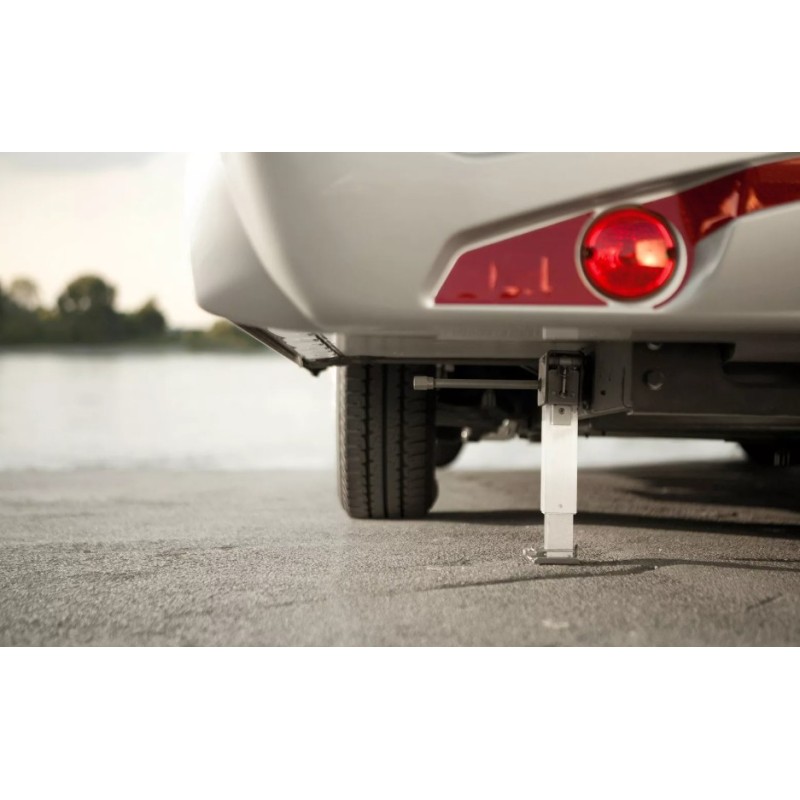

The most beautiful places are often found on sloping or uneven terrain.

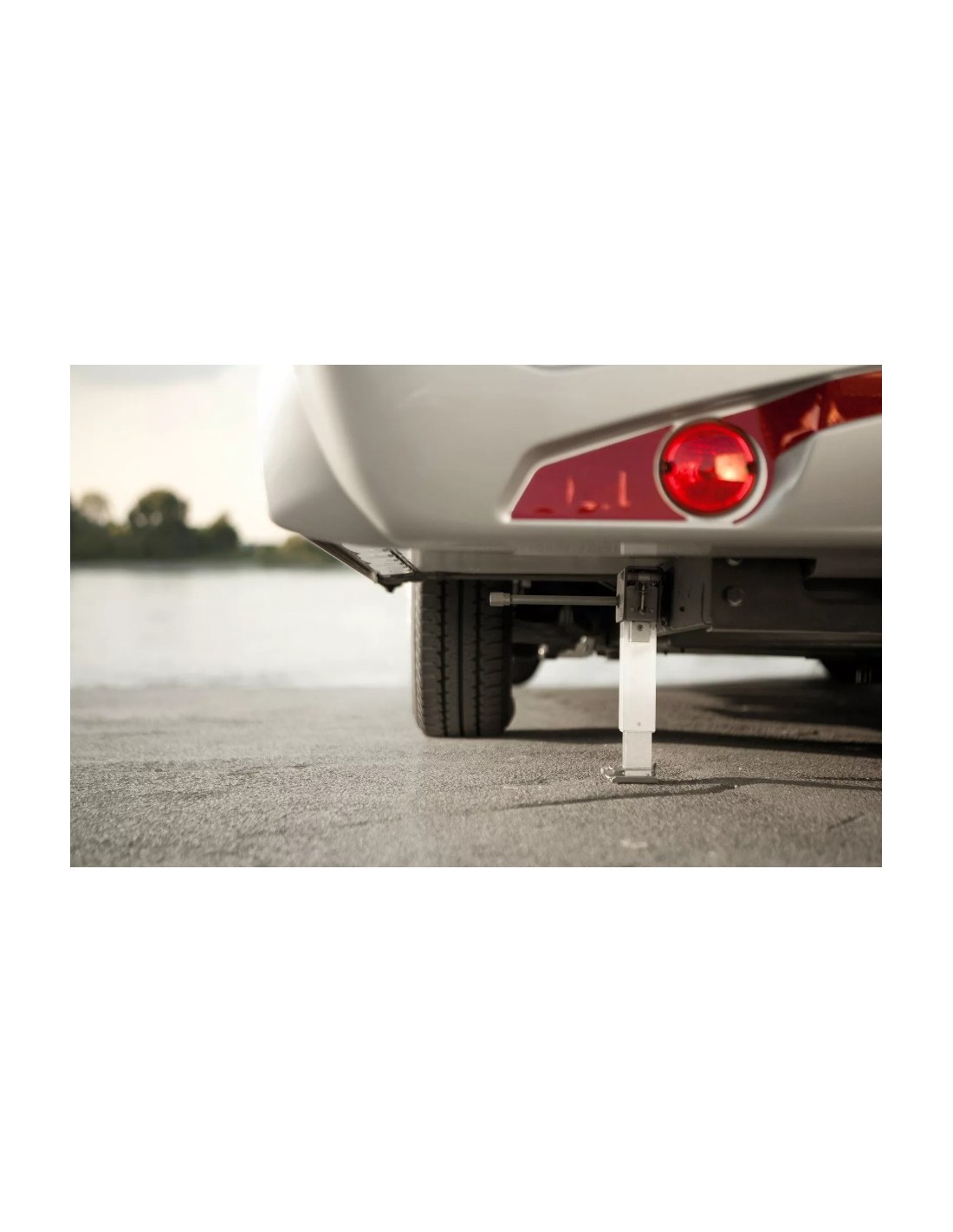

The AL-KO ClickFix lifting supports ensure a secure position for your camper.

On grass, gravel or asphalt the position is absolutely stable.

The length of the feet can be changed manually using a crank.

Maximum stability on any terrain

• Sturdy support feet for a stable and secure position
• Quick and comfortable use
• Automatic tensioning of the feet during lifting
• Safety mechanism when starting even with the feet down
• Internal foot material: hot-dip galvanized
• External foot material: Aluminum
