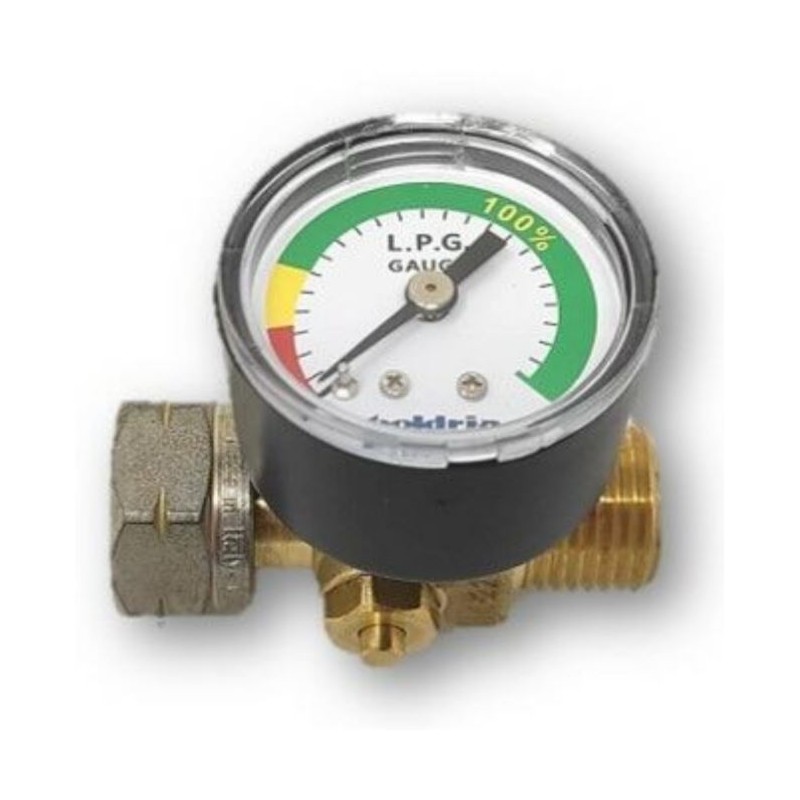

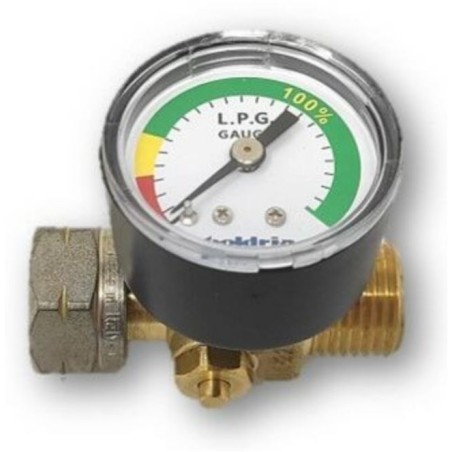

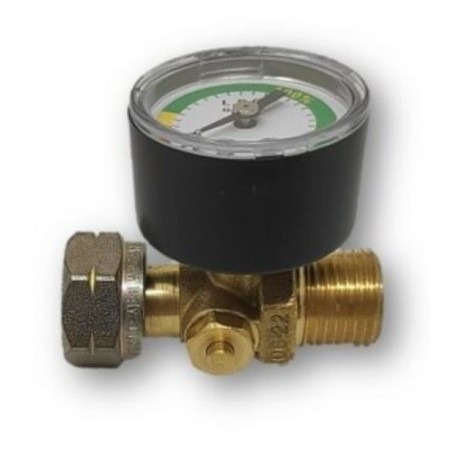

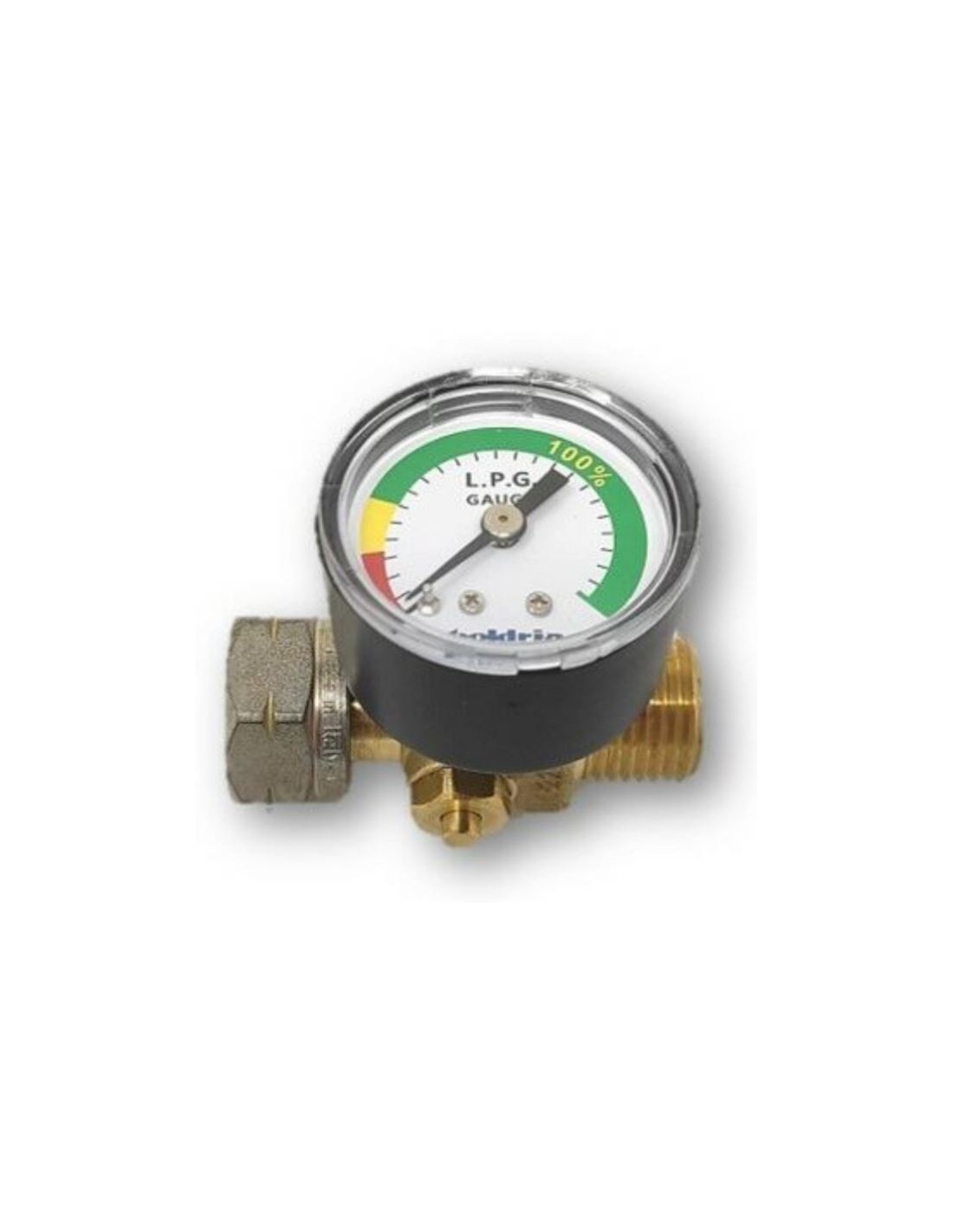

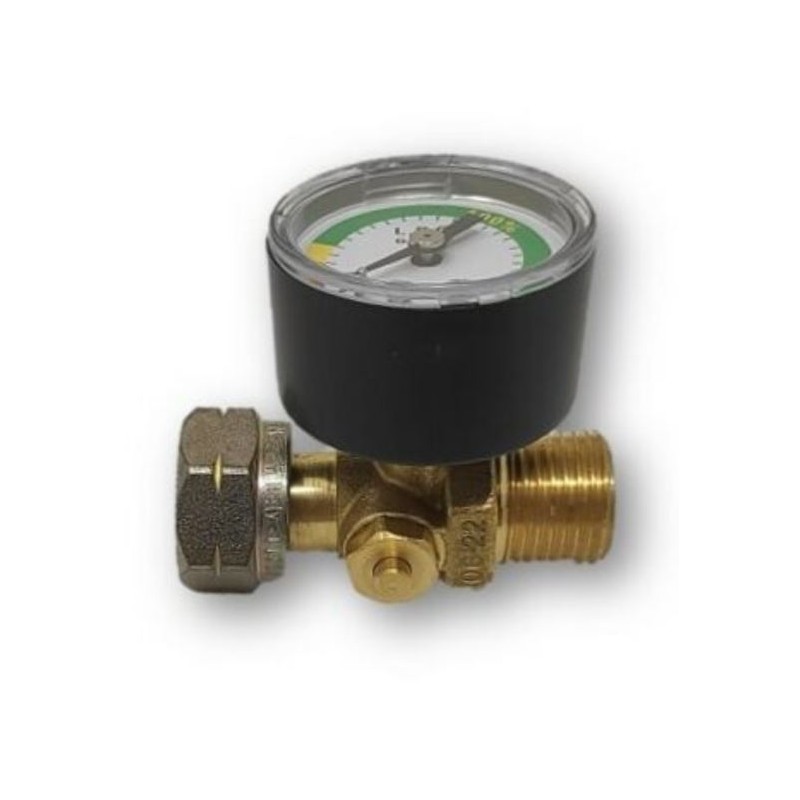

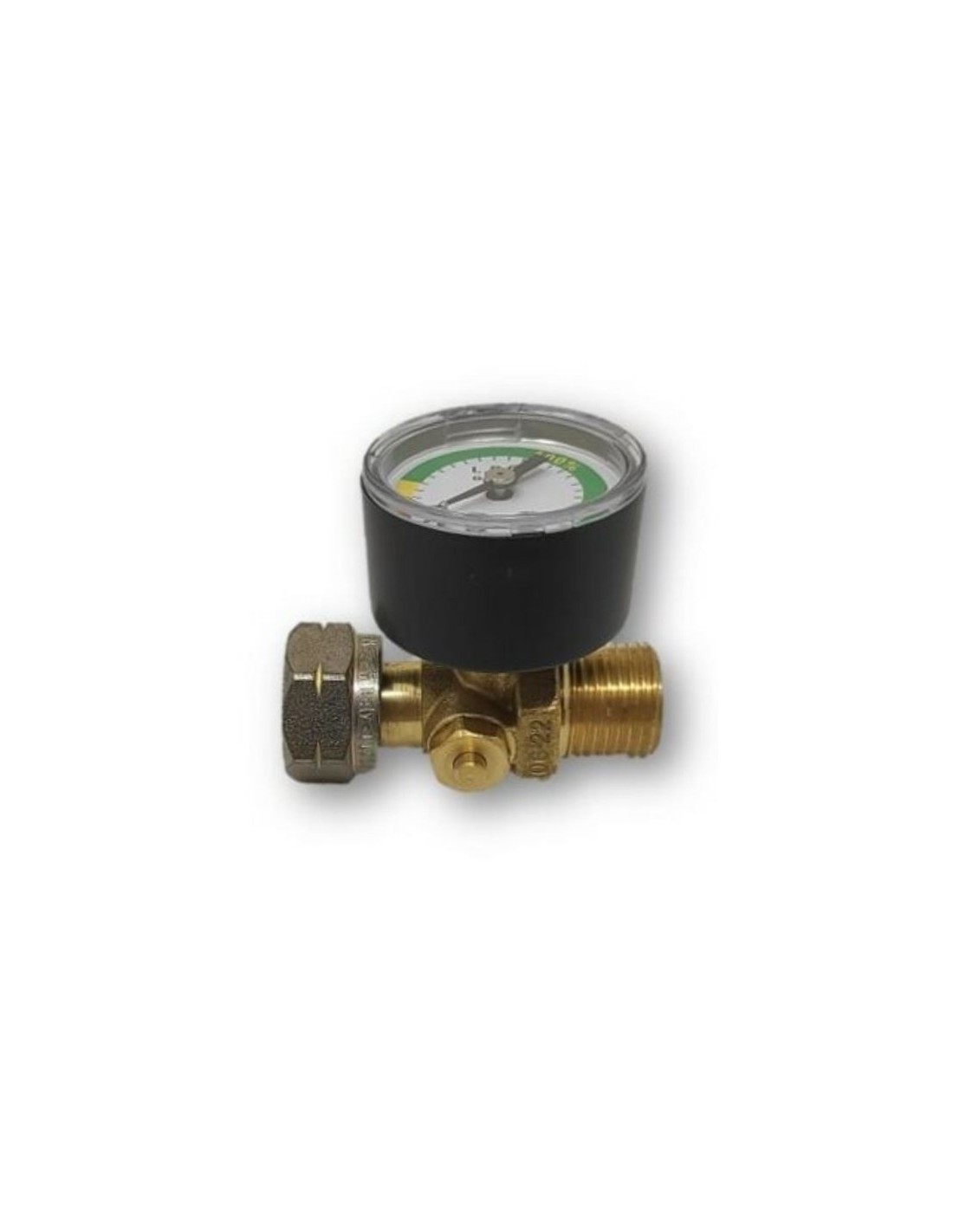

Level indicator for LPG cylinder with excess flow safety valve and thermal safety valve

Level indicator for LPG cylinder with excess flow safety valve and thermal safety valve.

Level indicator for LPG cylinder with excess flow safety valve and thermal safety valve. Inlet connection: Italian cylinder swivel 20x1/14" left and outlet M 20x1/14"10

THE VALVE INCREASES THE SAFETY OF YOUR GAS SYSTEM IN THE CAMPER, CARAVAN.

ARE YOU USING LPG ON YOUR BOAT, IN YOUR PATIO HEATER OR IN YOUR HOME? THE VALVE INCREASES THE SAFETY OF YOUR LIQUID PROPANE SYSTEM, WHICH CAN NOW BE USED SAFELY FOR A WIDE VARIETY OF APPLICATIONS.

SAFETY: 100% AUTOMATIC SHUT-OFF IN THE EVENT OF A MAJOR LEAK.

EASY: EASY TO INSTALL, EASY TO USE, WITHOUT ANY SPECIALIST HELP.

100% EMERGENCY SHUTDOWN

THE VALVE AUTOMATICALLY SHUTS OFF THE GAS SUPPLY IMMEDIATELY IN THE EVENT OF A MAJOR LEAK OR SYSTEM FAILURE.

• GAS TYPE: BUTANE,PROPANE PROPANE,GP L
• INPUT CONNECTOR: W20X1/14” SX (GIRELLO ITALIAITALIA)
• OUTPUT CONNECTOR: M W20X1/14''(REGULATOR CONNECTION)
• P.MAX MAX: 0.30.3÷16 BAR
• CAPACITY: 1 TO 1.5 KG/H
• EXCESS FLOW INTERVENTION: “EFV”: BETWEEN 110% MG AND DETACHMENT OF THE
• THERMAL SAFETY INTERVENTION: 120°C 160 160°C
• OPERATING TEMPERATURE: -20 °C to +50 50°C

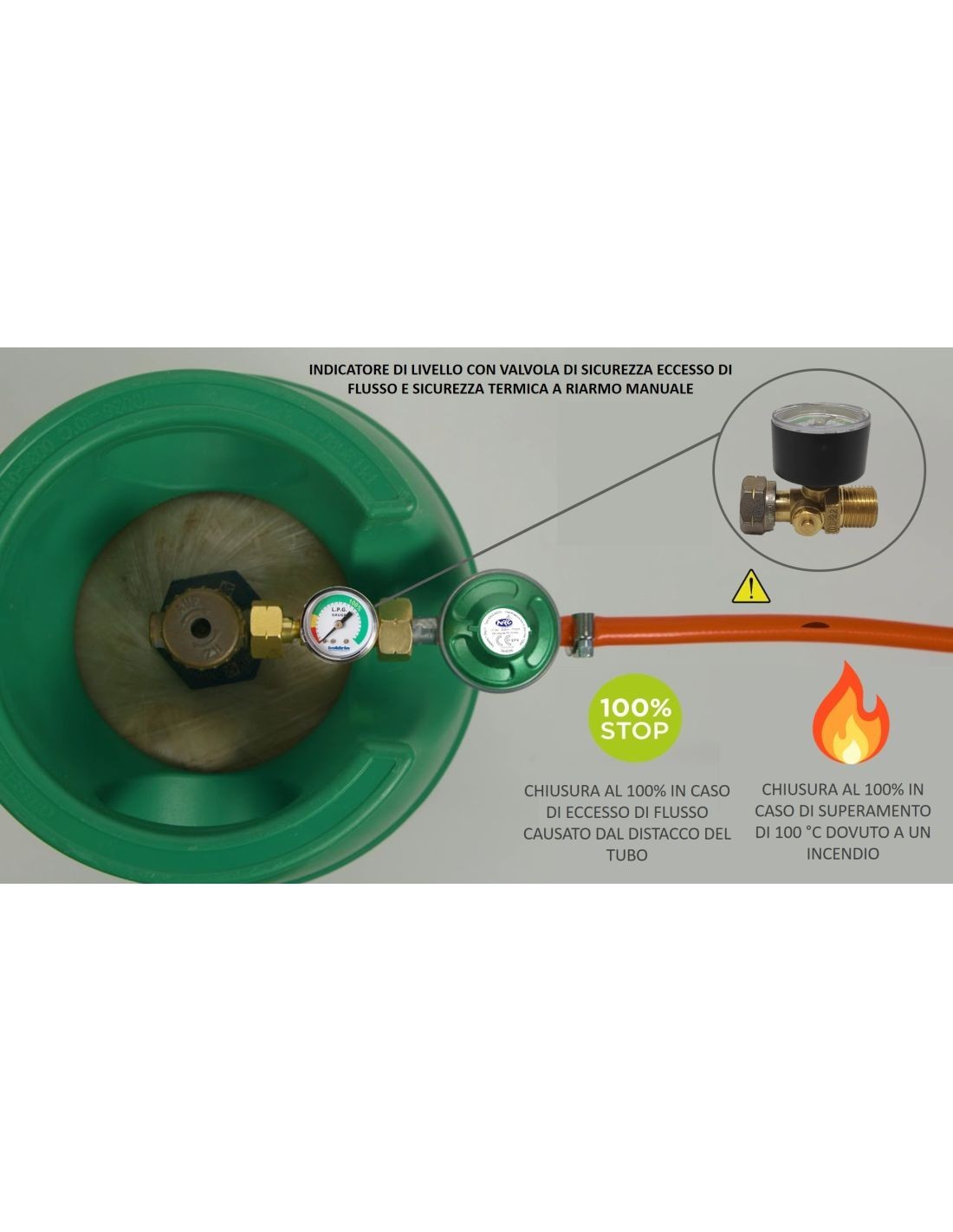

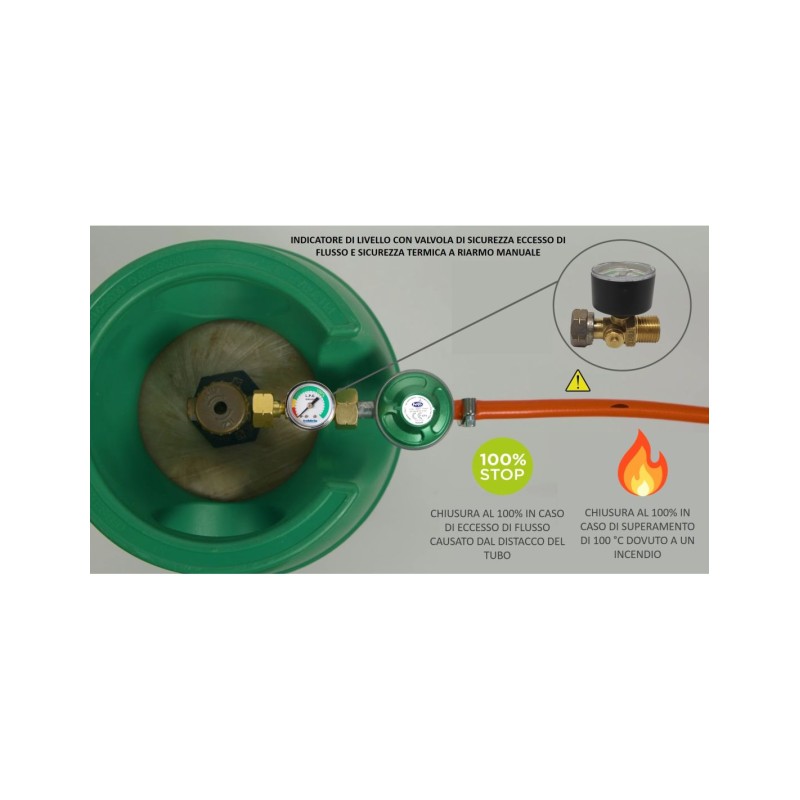

ASSEMBLY:

1. CONNECT THE VALVE TO THE GAS CYLINDER.

2. TIGHTEN THE VALVE WITH THE APPROPRIATE TOOL.

3. CONNECT THE REGULATOR TO THE VALVE AND INSTALL THE PIPE AND APPLIANCE NORMALLY.

4. TURN ON THE GAS AND START THE GAS FLOW.
