Gas regulator TRUMA MONOCONTROL CS 30mbar with crash sensor 8/10 after 2019 - 52412-01

-€10.00

Gas regulator TRUMA MONOCONTROL CS 30mbar with crash sensor 8/10 after 2019 - 52412-01

Name: Gas regulator TRUMA MONOCONTROL CS 30mbar with crash sensor 8/10 after 2019 - 52412-01
Brand: PitStop Camper di Leonardo Niccoli
SKU: A0002316
Price: 119 EUR
Availability: InStock

5 days of preparation excluding made to order items

€119.00 €129.00 -€10.00

VAT included

5 days of preparation excluding made to order items

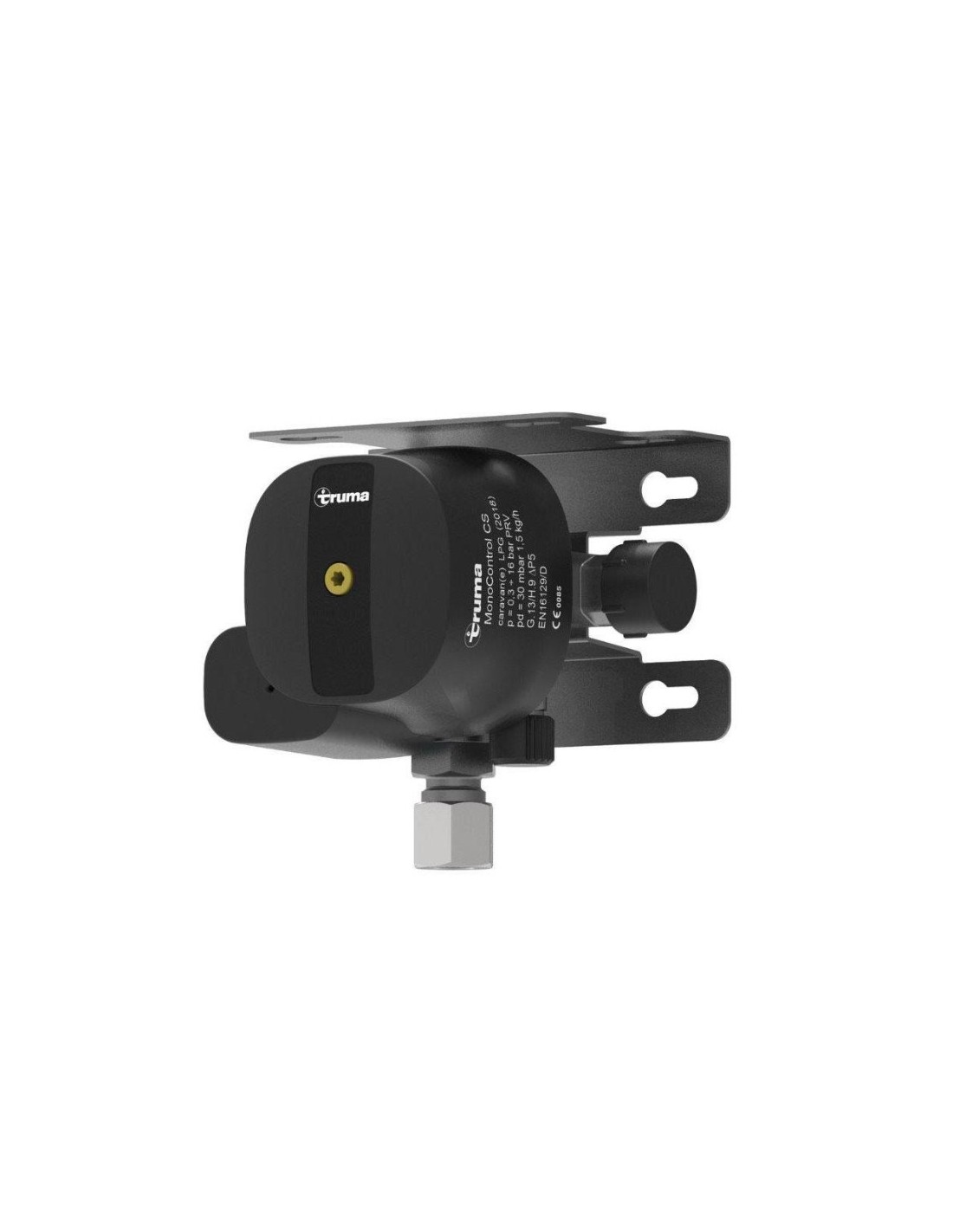

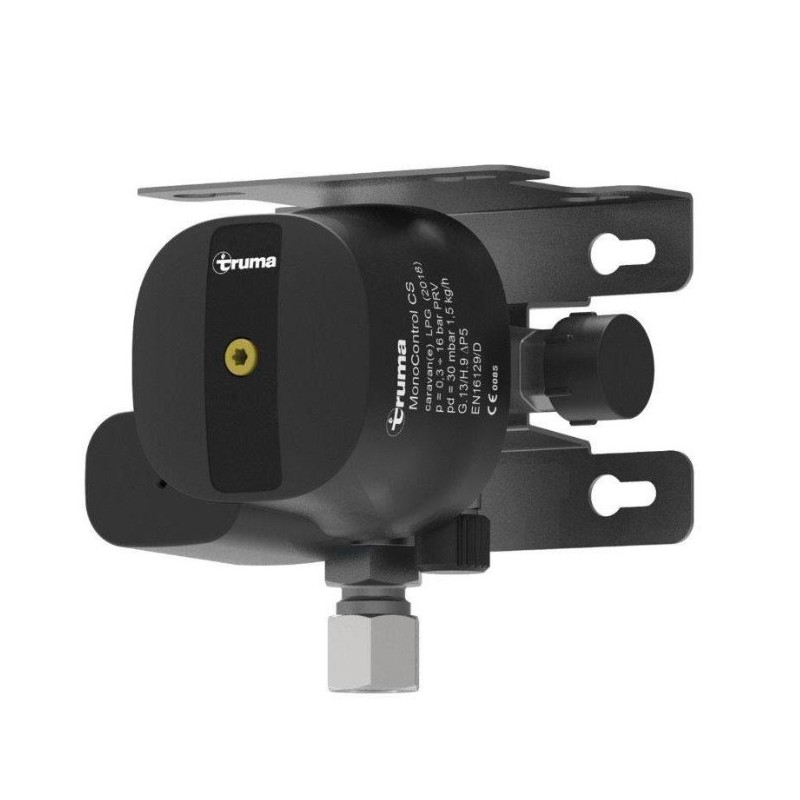

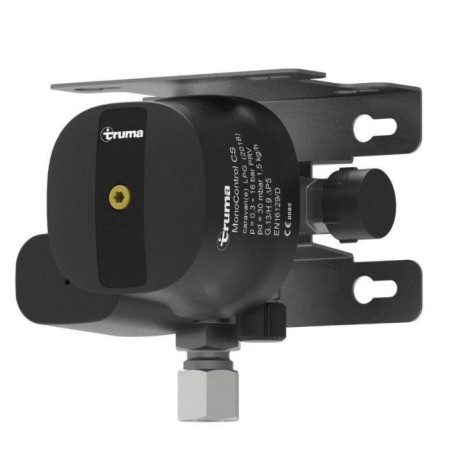

Gas pressure regulator TRUMA MONOCONTROL CS 30mbar with crash sensor 8/10 after 2019 for single cylinder systems - 52412 - 01

Easily visible crash sensor trigger and easy reset
Reduced weight
Quick assembly

SPECIFICATIONS

Gas type Liquid gas (propane / butane)
Inlet pressure 0.3 – 16 bar
Outlet pressure 30 mbar
Flow rate 1.5 kg/h
Regulator input male fitting M20 x 1.5 (G.13) Regulator output 8 or 10 mm ogive fitting (H.9)
Recommended tightening torque
- 3 – 5 Nm for the M20 x 1.5 (G.13) union nut
- 14 – 19 Nm for the 8 mm olive fitting
- 16 – 21 Nm for the 10 mm olive fitting
Horizontal release value 4.0 g ± 1.0 g
Operating temperature -20 °C to +50 °C

Further details on the Truma MonoControl CS gas pressure regulator

The new generation Truma MonoControl CS is a gas pressure regulator with crash sensor for single-cylinder systems. The sensor allows you to heat your camper or caravan safely even while driving: in the event of an accident with an impact speed of 15-20 km/h against a fixed obstacle, the crash sensor immediately stops the gas flow, preventing gas from escaping from the potentially damaged system. The MonoControl CS gas pressure regulator is also perfect for use when camping with the vehicle stationary.

Once triggered, the crash sensor can be easily reset by pressing the yellow reset button on the Truma MonoControl CS gas pressure regulator, which is then ready for operation again. With a flow rate of 1.5 kg/h, the regulator is designed for maximum consumption: neither the consumers nor the flow rate of the gas system need to be calculated.

Truma gas pressure regulators meet the highest standards, but can still be damaged by aerosols from contaminated gas cylinders. Truma therefore recommends always using the Truma gas filter.

12561

Product Details
Reviews (0)

Reference A0002316

In stock 1 Item

No reviews
