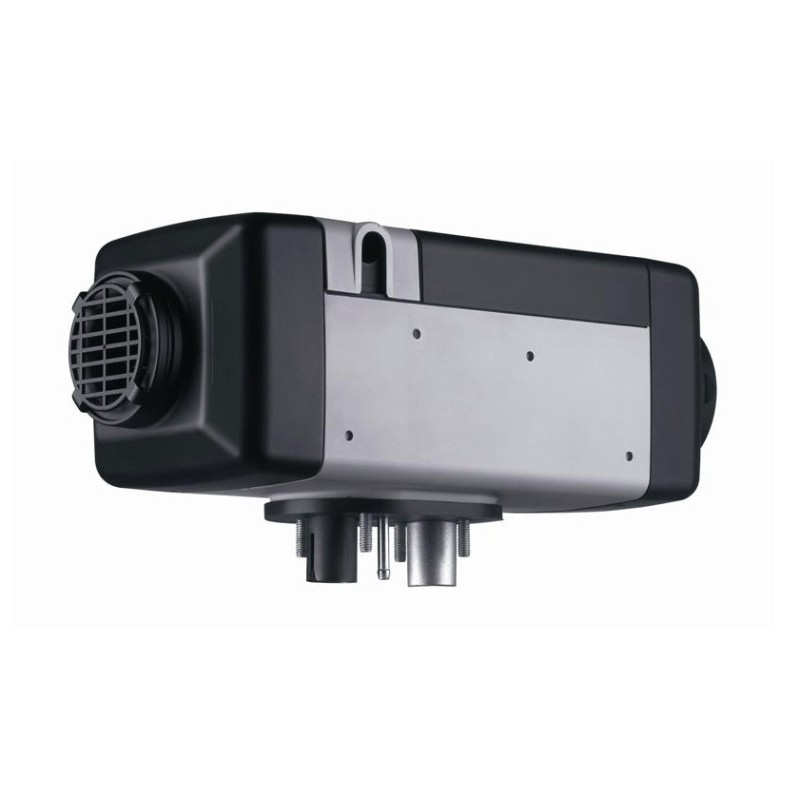

Fuel heater Air Top 2000 Diesel heater kit Air Top 2000 STC-Standard WEBASTO with rotary controller

Fuel heater Air Top 2000 Diesel heater kit Air Top 2000 STC-Standard WEBASTO with rotary controller

Manufacturer reference: 9032154D

MADE TO ORDER IN 15 DAYS

In Attached Documents you can find the PRODUCT SHEET

Description

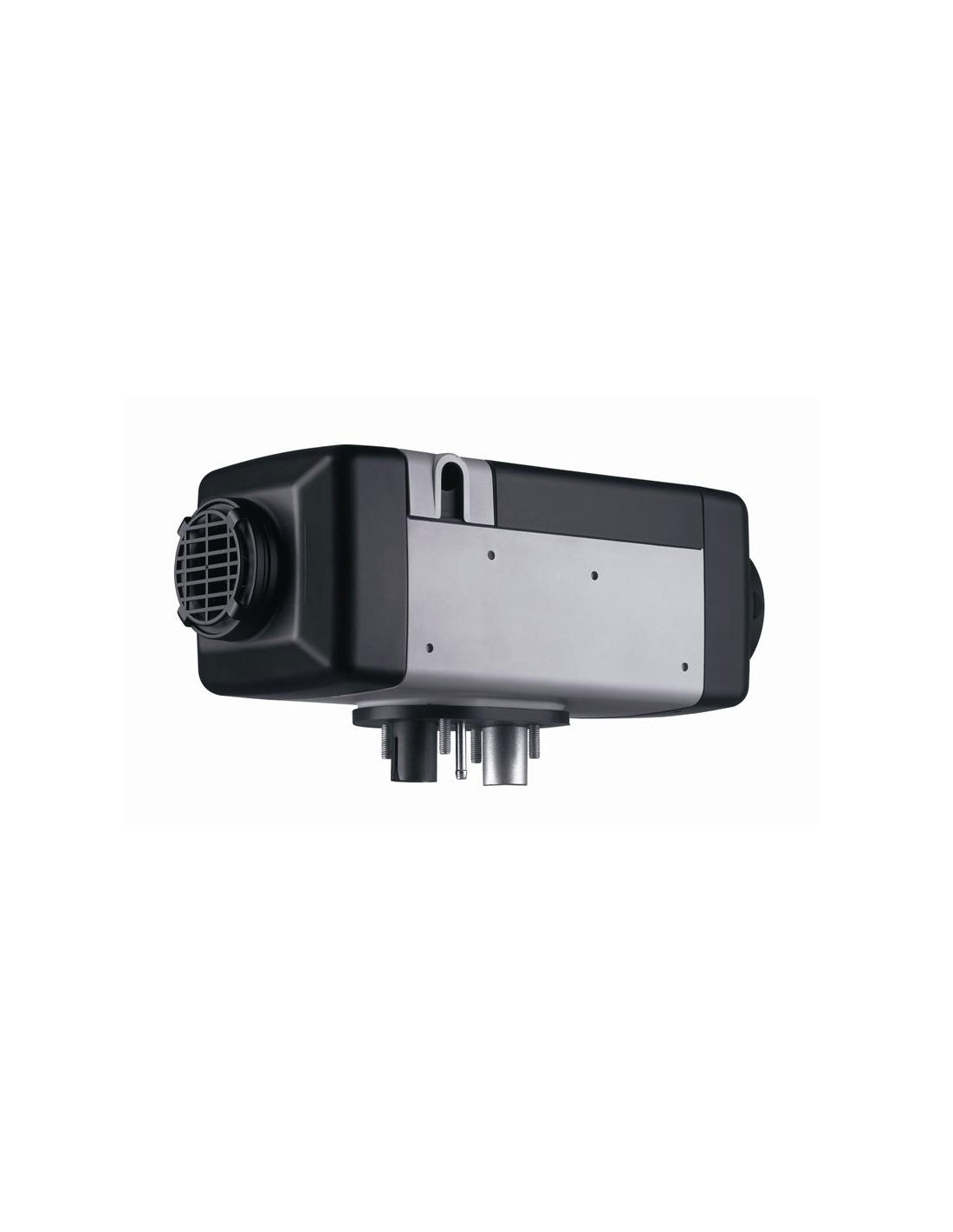

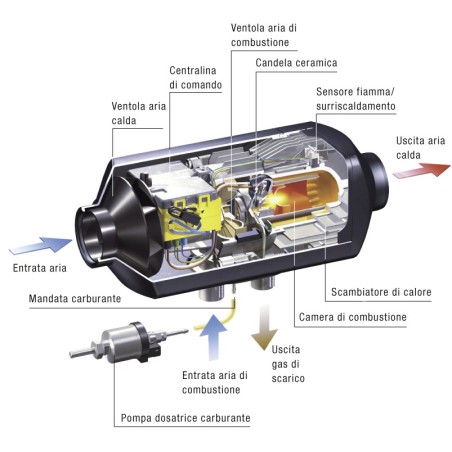

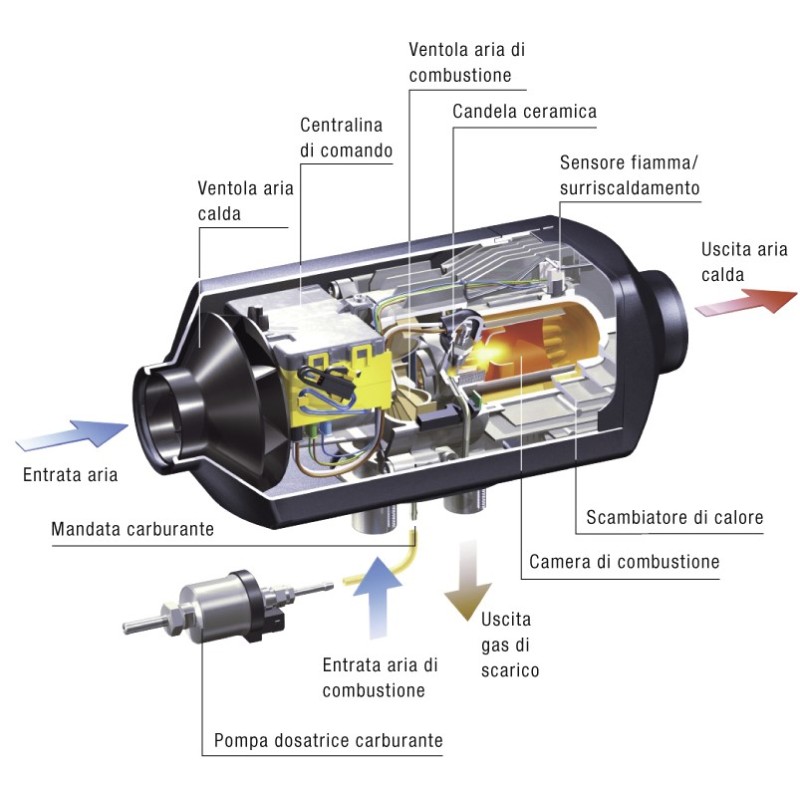

Forced air heating running on diesel.

Quiet and compact for easy assembly.

Direct supply from the carrier vehicle's tank.

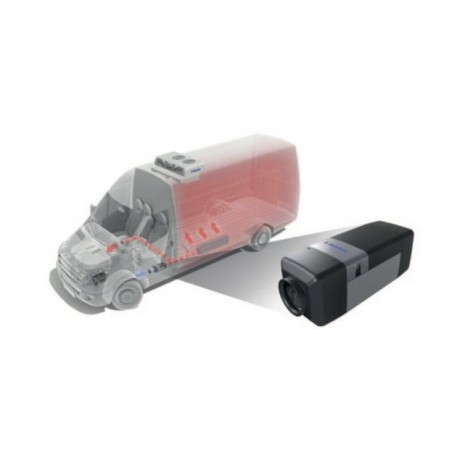

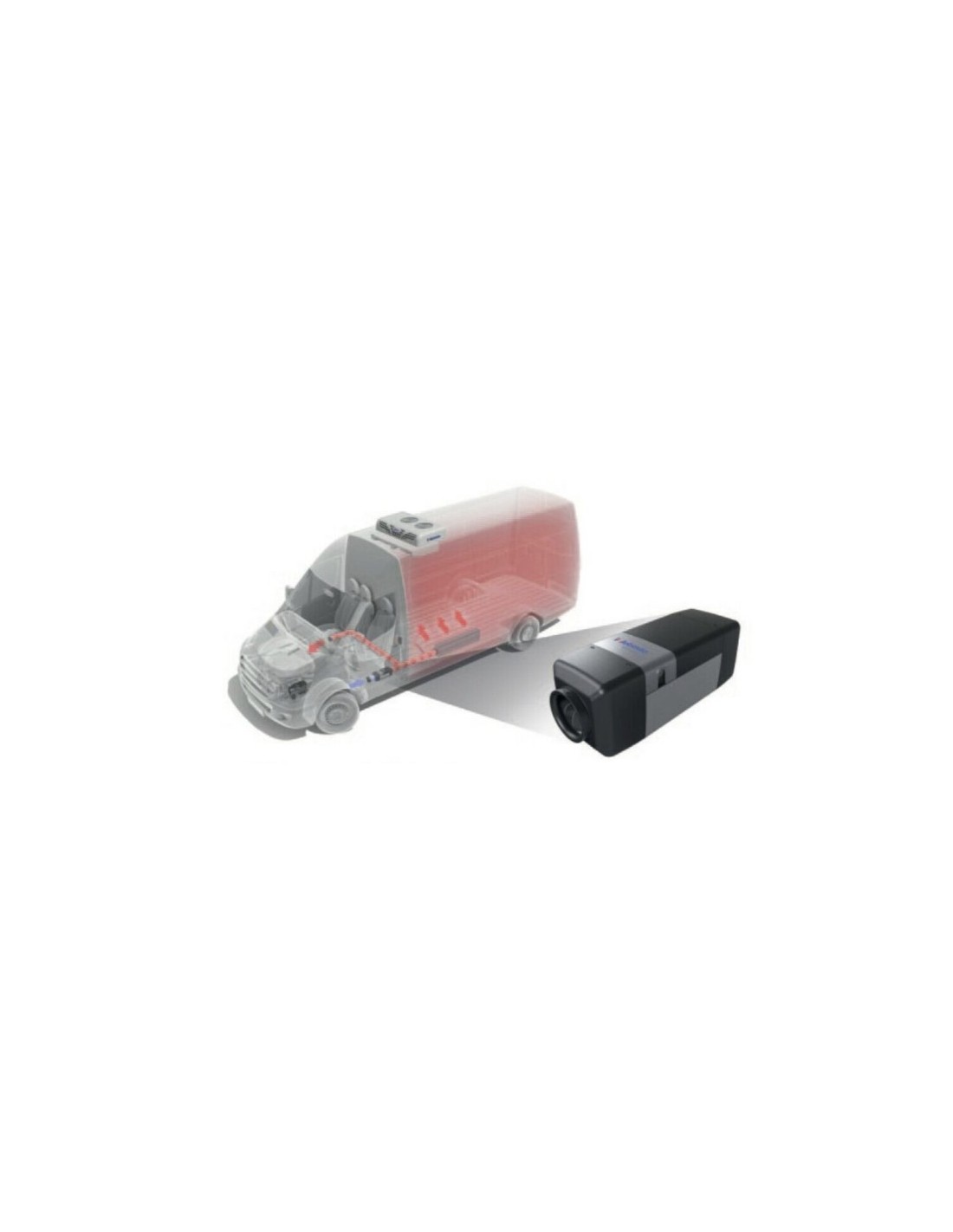

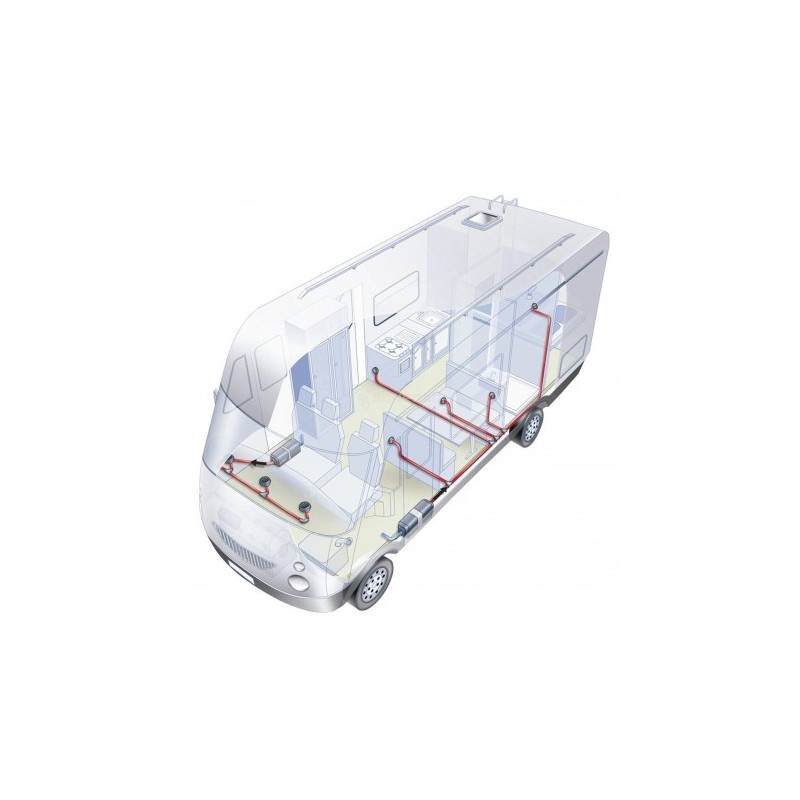

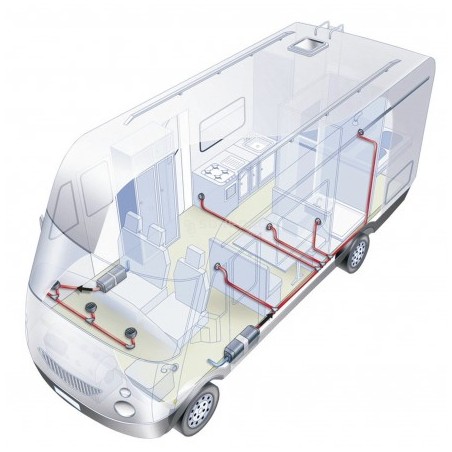

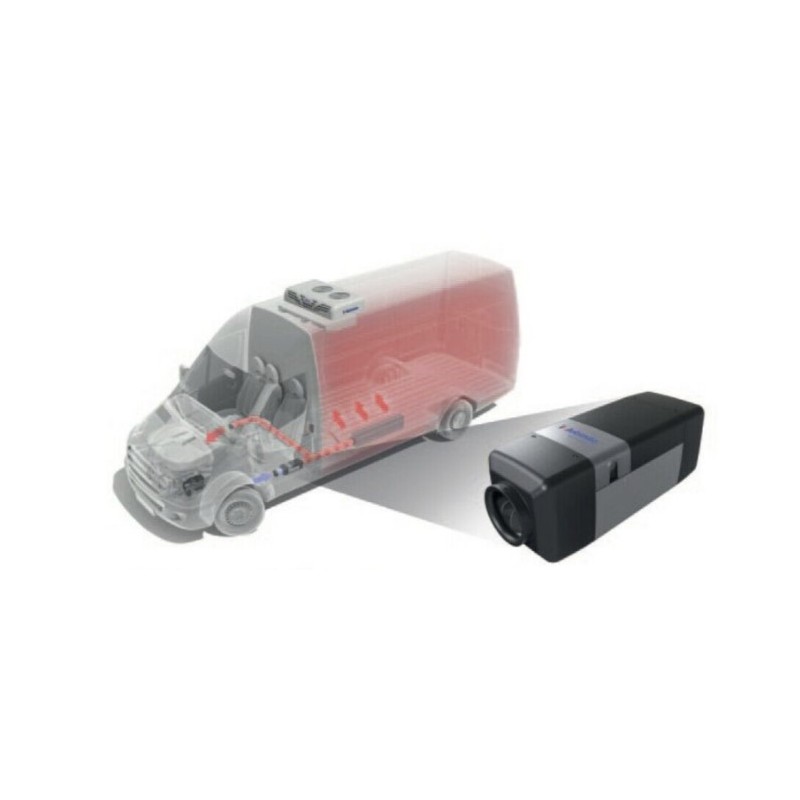

Ideal for vans or as an additional installation in the living area of large campers to ensure preheating of the passenger compartment.

The standard kit comes with a potentiometer type control.

Optimal combustion up to 1500 m.

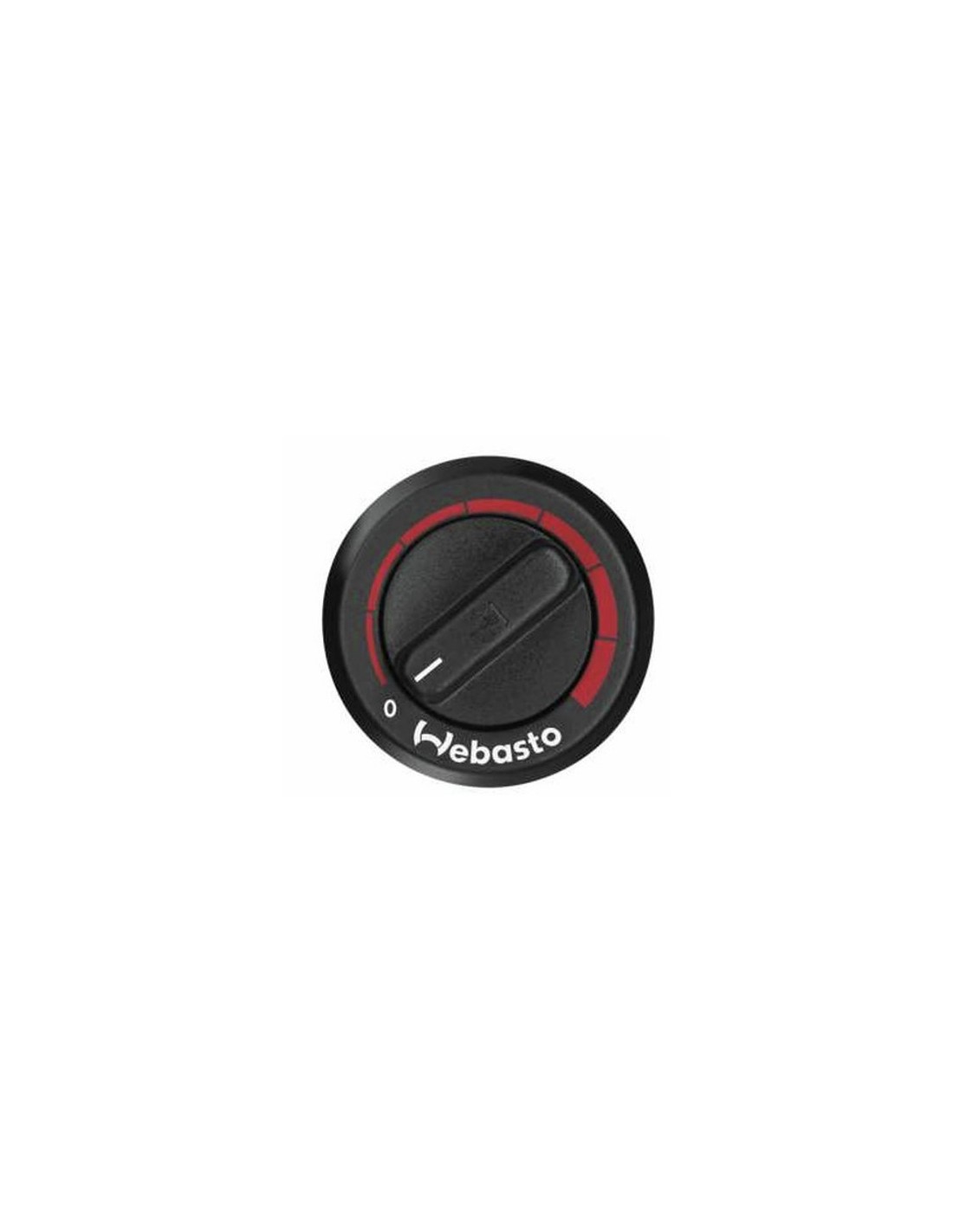

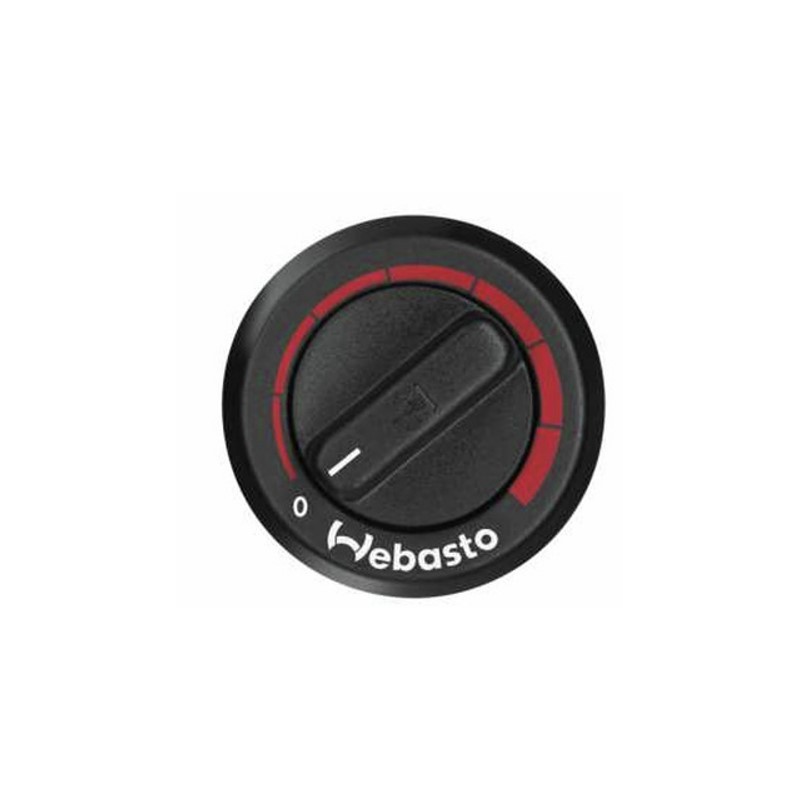

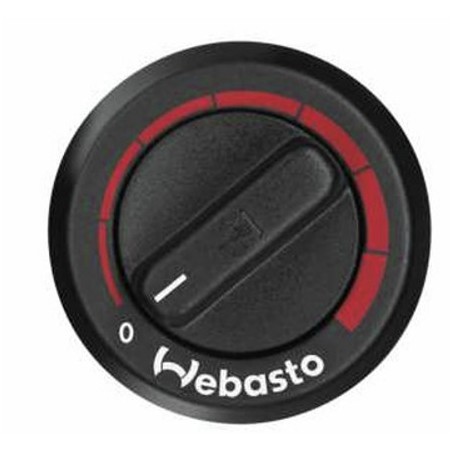

Rotary controller

Characteristics

Voltage: 12V

Power consumption: 14-29W

Diesel consumption: 0.13-0.27 l/h

Heating capacity: 900-2000W

Ventilation: 93 m3/h

Dimensions (WxHxD): 311 x 121 x 120 mm

Maximum combustion: 1500 m.

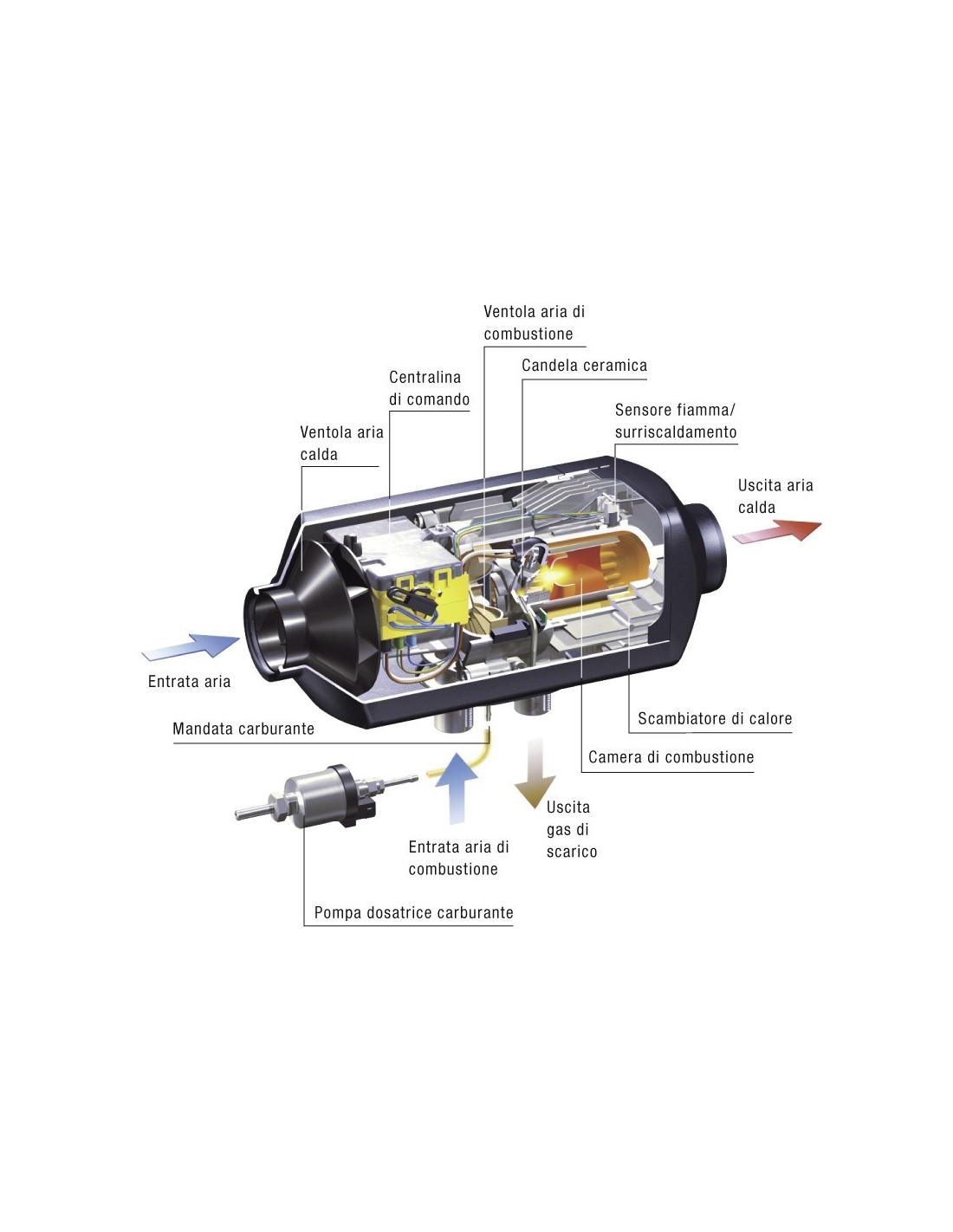

With combustion air filter, fuel pump, exhaust system, air intake and exhaust pipes, air ducts, air vents, diesel connections and control box.

Other features

• Height: 122 mm
• Length: 322 mm
• Model : AIR TOP 2000 STC STANDARD
• Net weight: 2.6 kg
• Depth: 130 mm
• Voltage : 12V
• Ventilation: 70 m³/h
