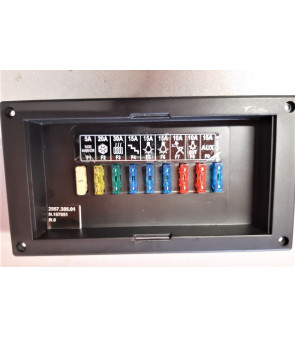

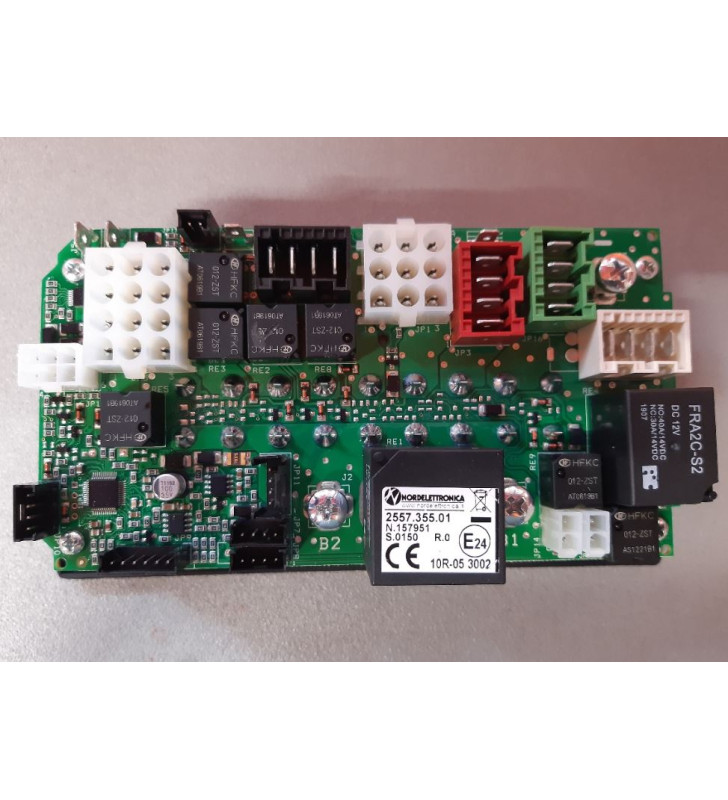

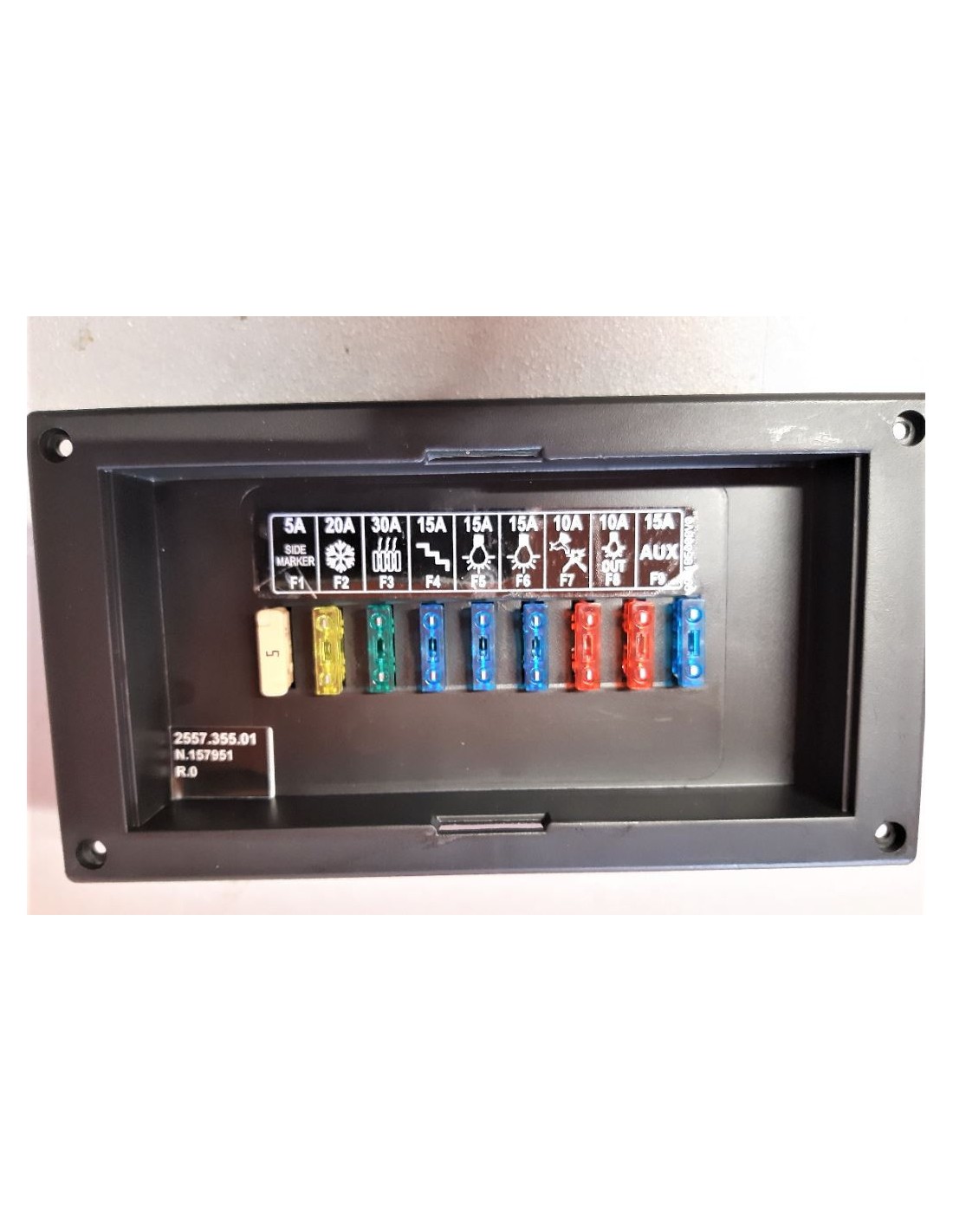

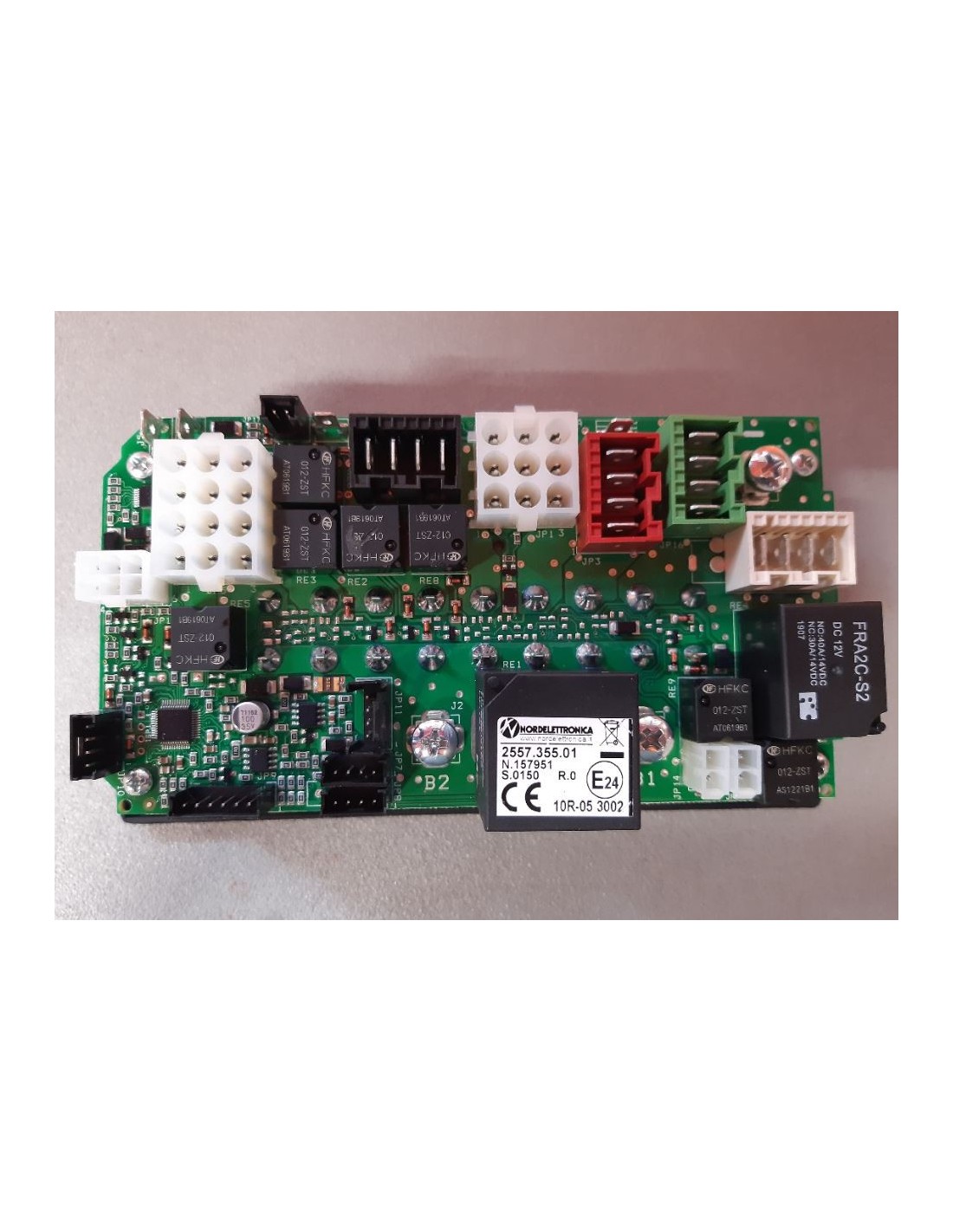

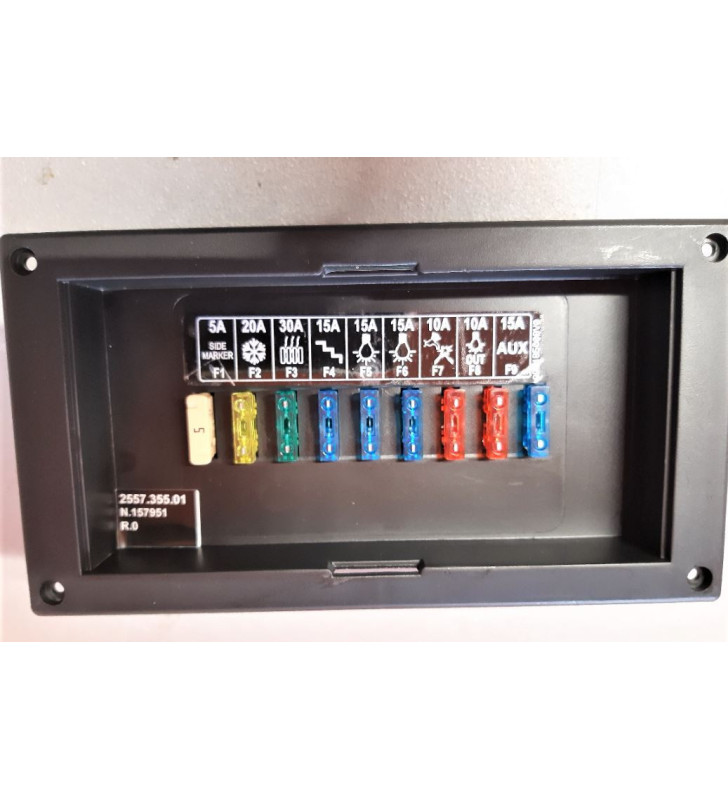

2557.355.01 - NE185 VS NE355 standard fuse holder shunt

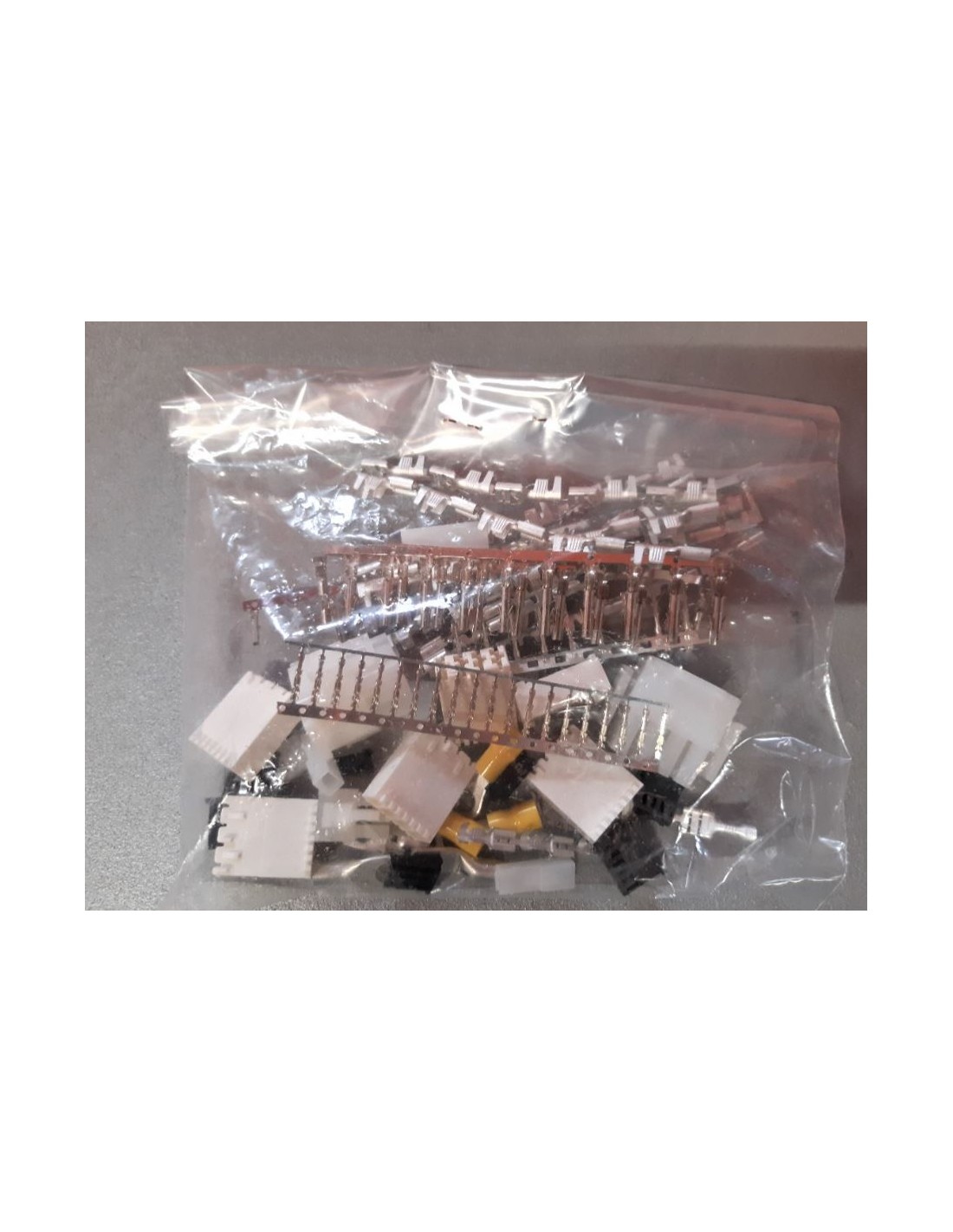

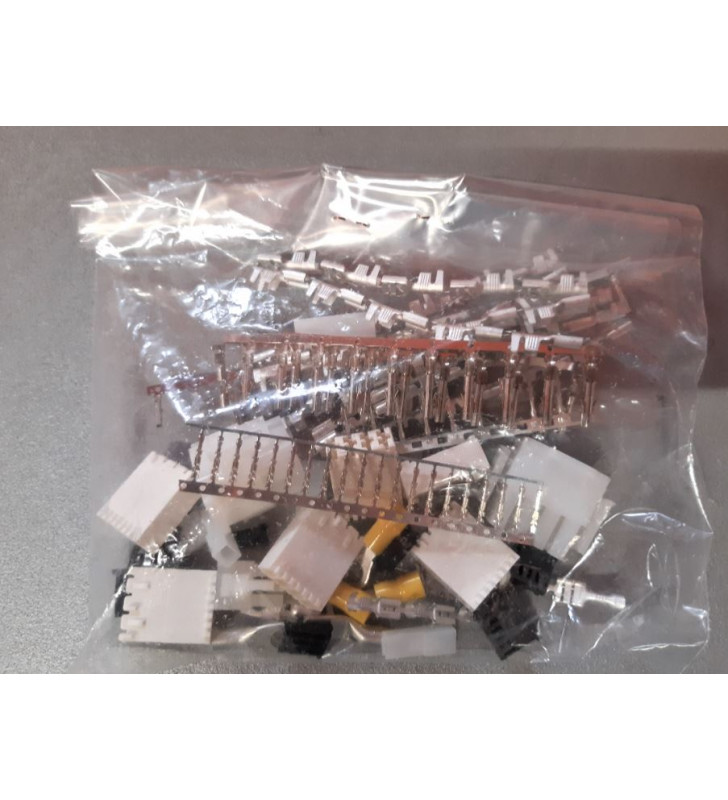

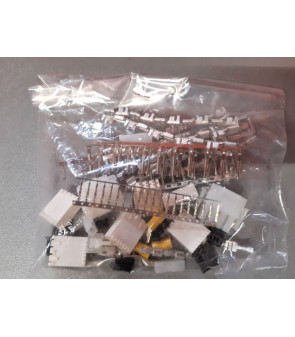

NORDELETTRONICA NE185 to NE355 STANDARD with relay in box with cover, connector kit, terminals - 2557.355.01

Can be combined with:

• NE274 panel our code 14399
• NE334 panel our code 14775
• NE266 panel our code 13175
• 8m wiring, our code 10712

The NE185 fuse holder has been replaced by the NE355 - 2557.355.01.

See note below for wiring.

1347.185.02 old version

2557.355.01 new version

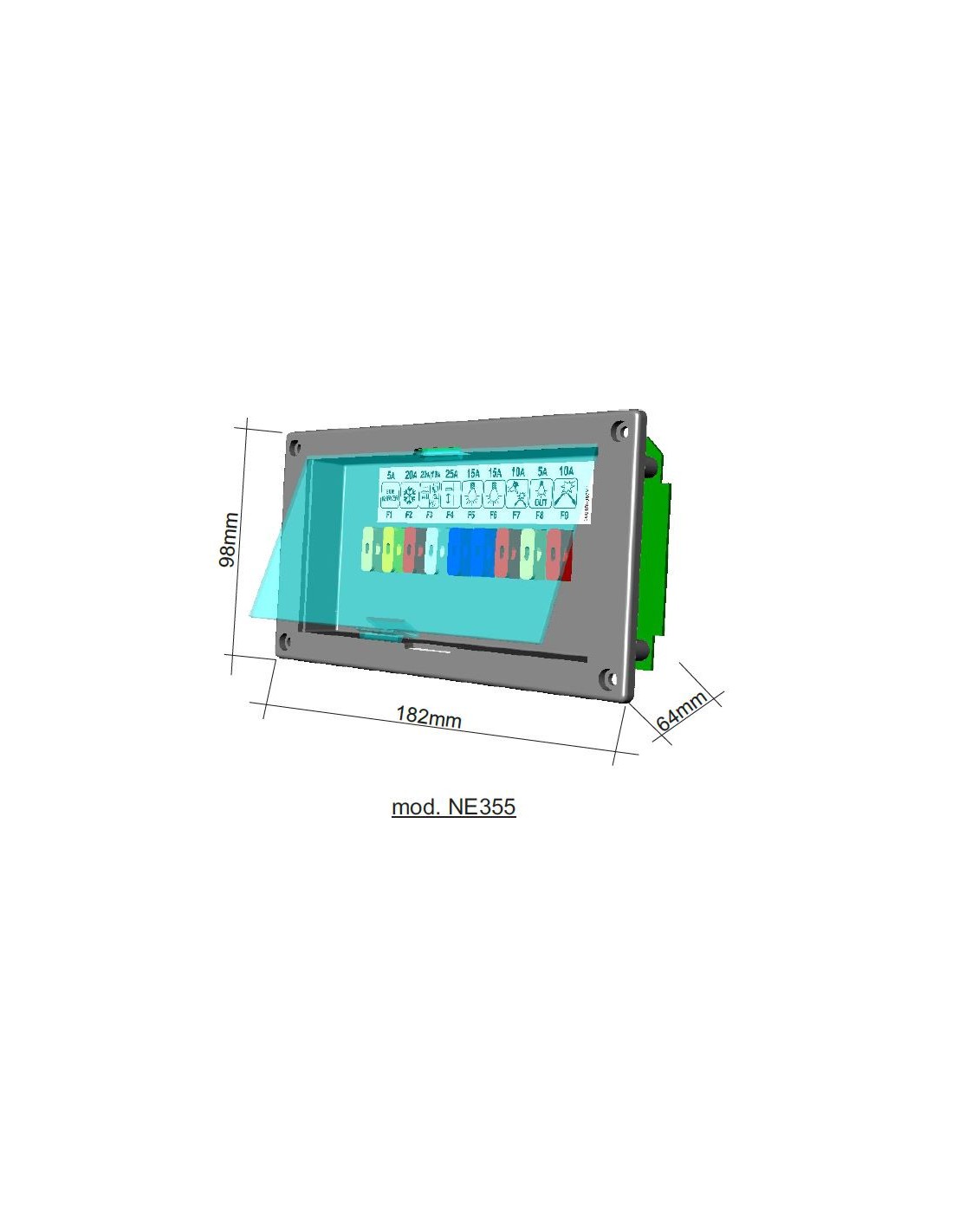

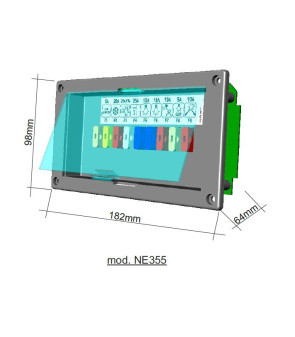

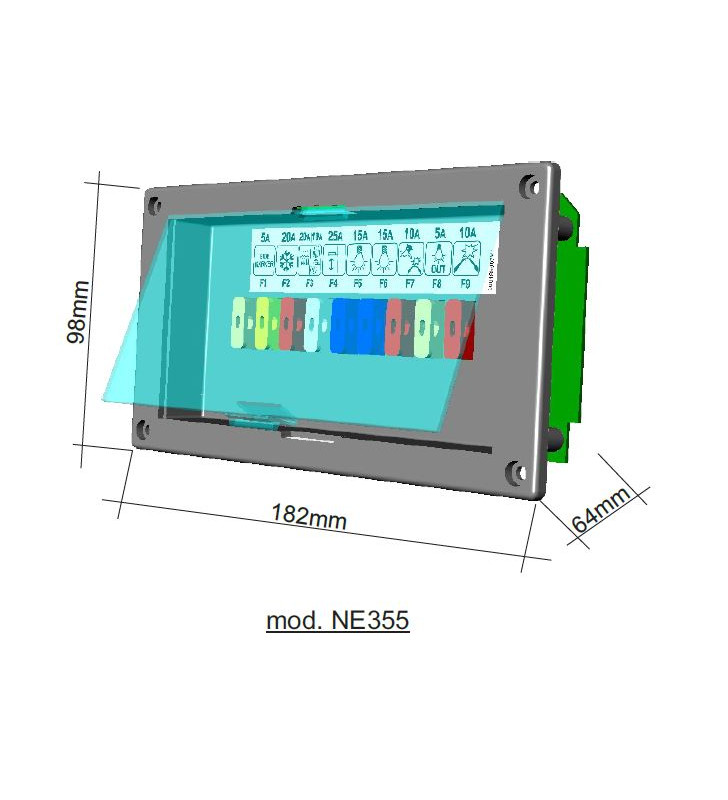

Shunt dimensions 182x98 mm

Box dimensions 215x102x186 mm

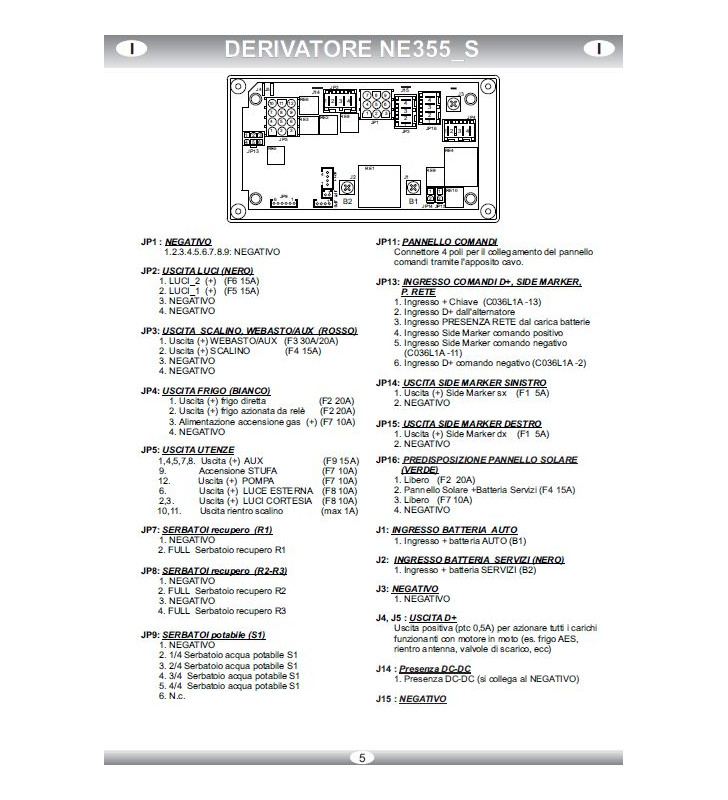

WIRING NOTE:

If the NE355 is used to replace an NE185, since the former has a single JP13 connector for the body computer and network presence signals, it is necessary to use the adapter wiring which is not supplied but must be purchased separately.

Enter our reference 17141 to purchase the NE185 to NE355 Adapter Harness - 000.403.90 separately.

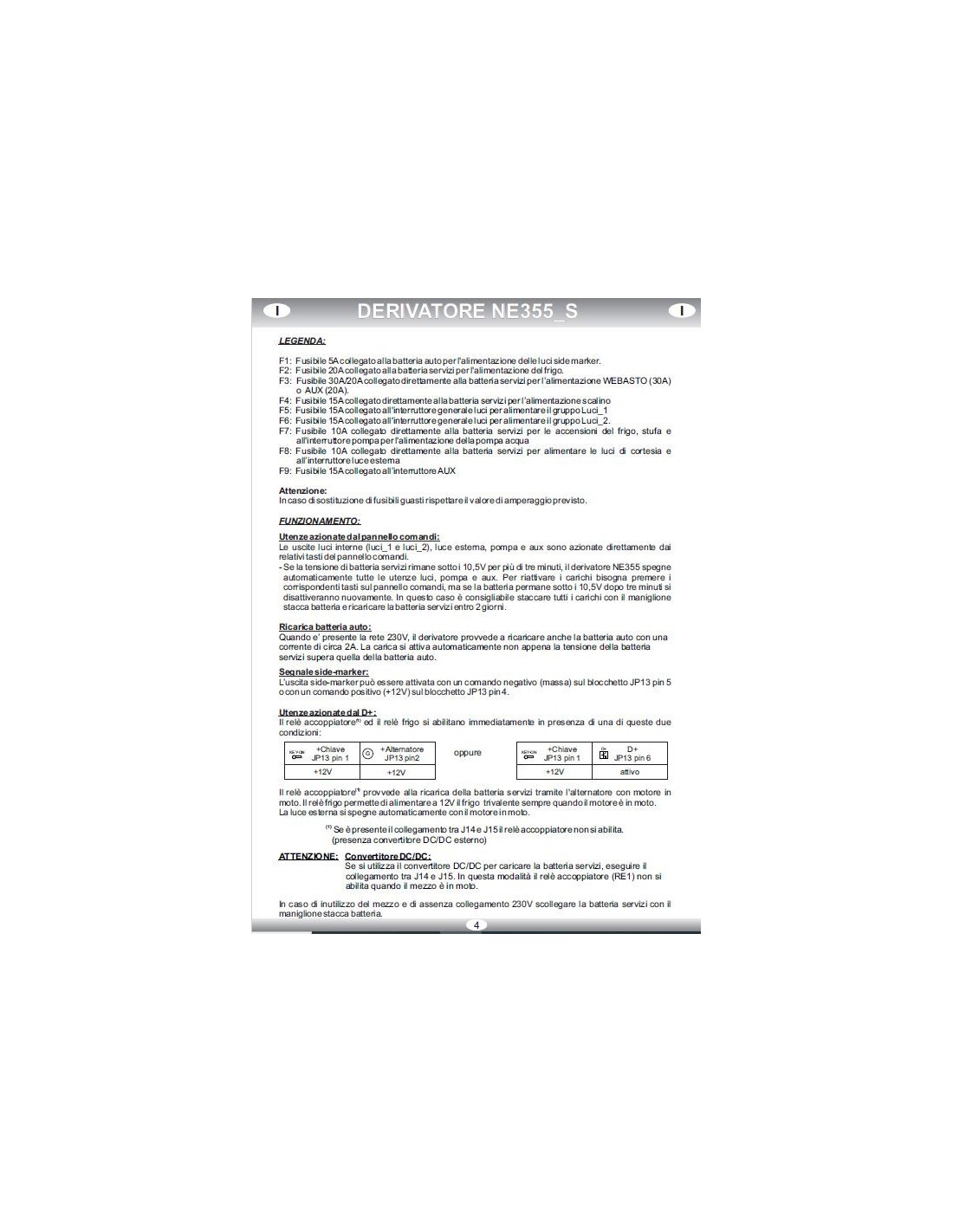

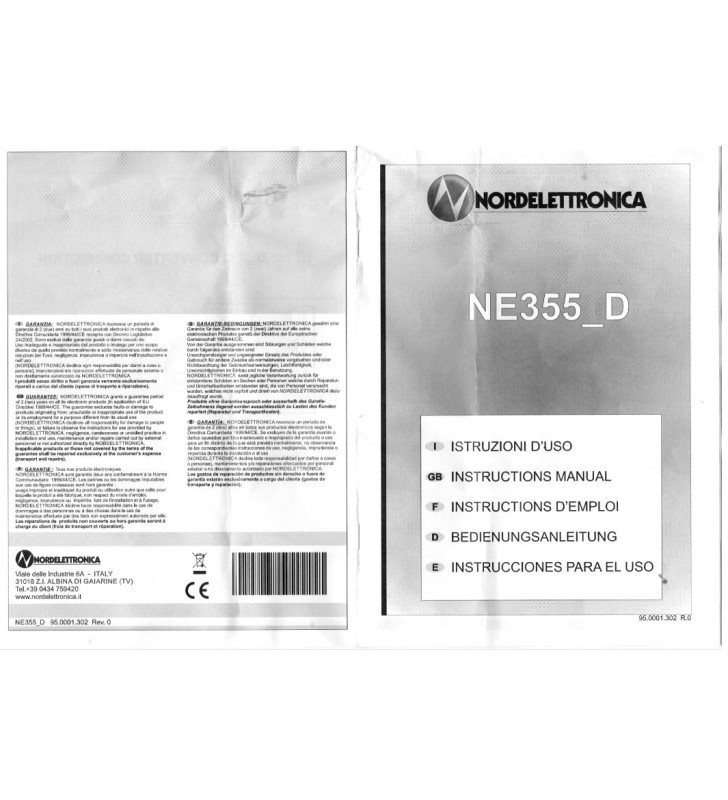

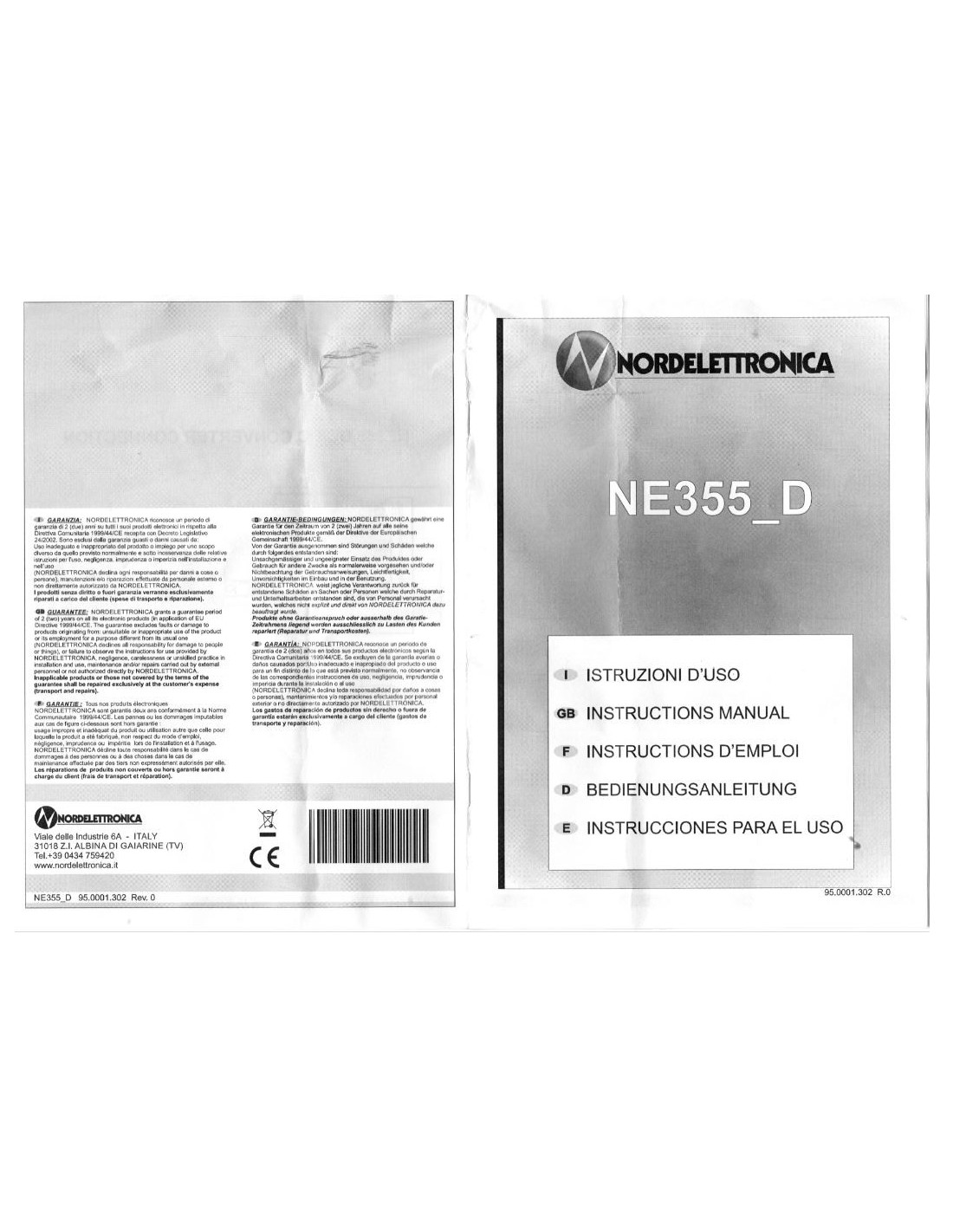

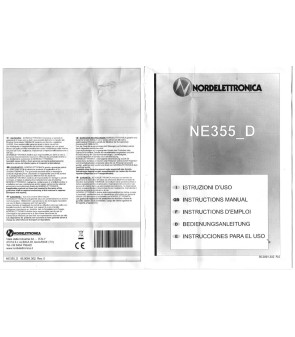

In "attached documents" the document for NE185/NE355 adaptation

The new NE355 and NE356 fuse boxes (together with the new NE325 DC/DC) are designed to meet the challenge of new Euro 6 engines and intelligent alternators.

Nordelettronica has decided to replace its workhorse NE185 and NE196 with new NE355 and NE356 fuse boxes, with updated mechanical bases, and capable of better interfacing with all body computer signals with intelligent alternators and start-stop technology.

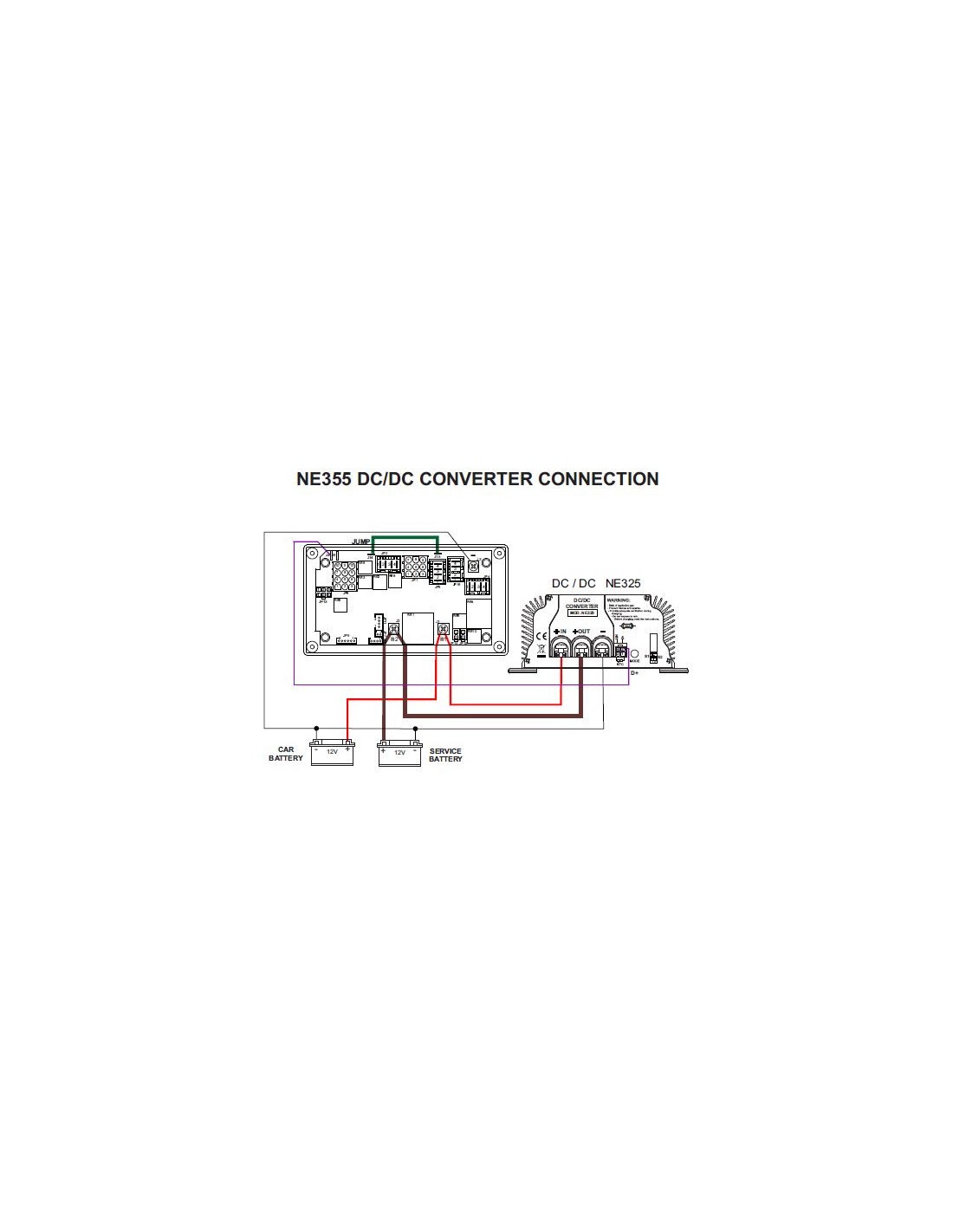

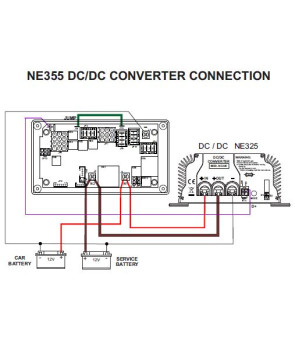

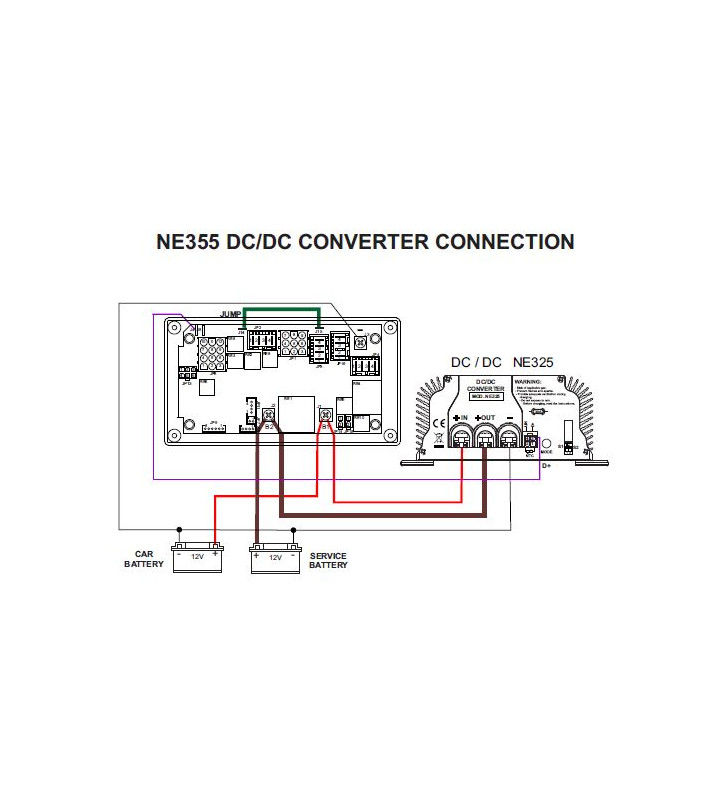

Also worth mentioning is the new NE325 DC/DC converter from Nordelettronica which is a key addition to the above, available in 25A and 40A power versions (the latter also recommended for powering the refrigerator), so as to allow connection to vehicles with smart alternators; the DC/DC also has the ability, like the NE287 charger, to control the output
