1551.355.01 TRIGANO - NE185 REPLACEMENT FUSE HOLDER WITH NE355_T

5 days of preparation excluding made to order items
€299.00
VAT included
299
5 days of preparation excluding made to order items

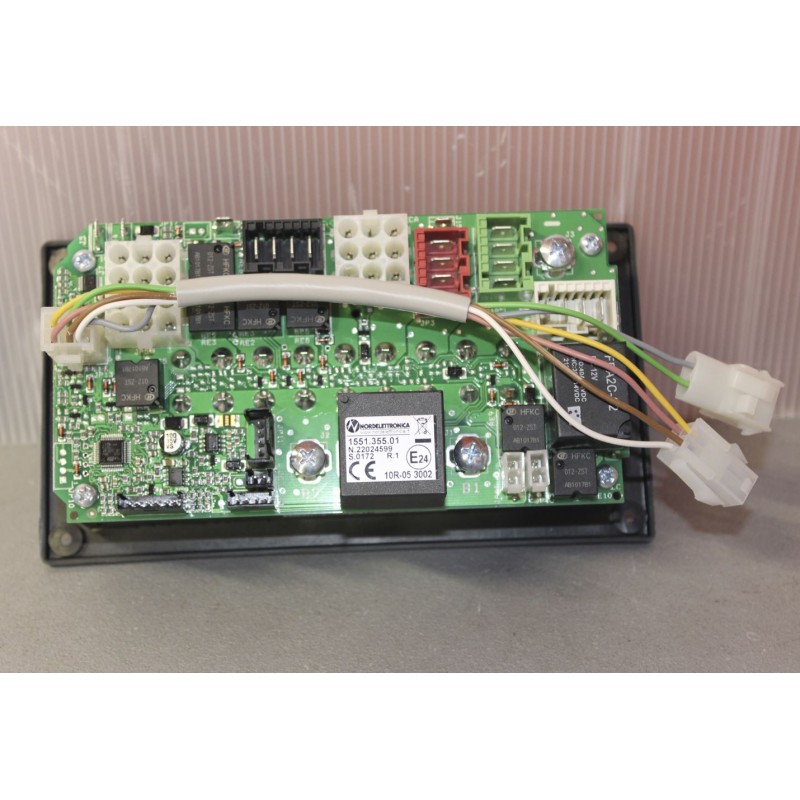

FUSE HOLDER SWITCH NE185 REPLACEMENT WITH NE355_T - 1551.355.01 TRIGANO with adapter wiring 000.433.90

REPLACES THE PREVIOUS:

FUSE HOLDER SWITCH NE185-11S CENTRAL V2011 SUPPLIED IN KIT - TRIGANO MCLOUIS KARAT 72 SEASON 2015/2016 - 1551.185.02

READ NORDELETTRONICA TECHNICAL NOTE BELOW:

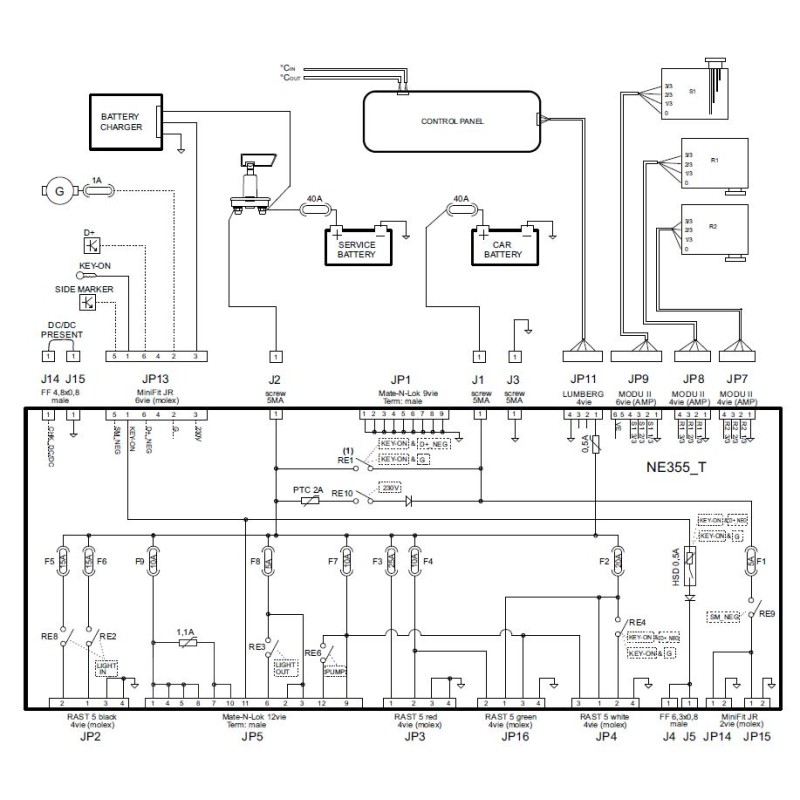

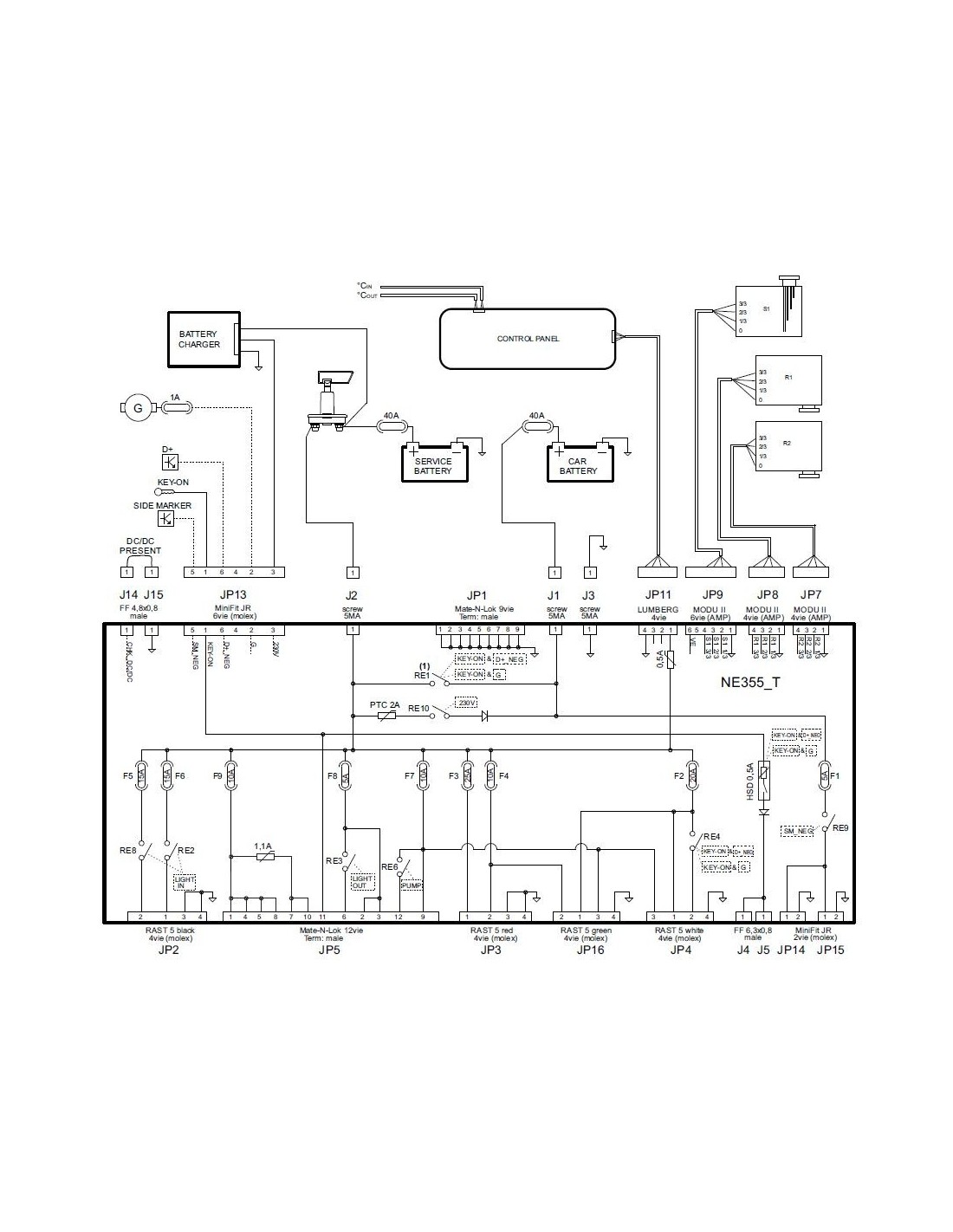

Pay attention to the fact that the activation of the coupling relay in the new shunt occurs with 2 simultaneous signals, the installer must read the manual supplied to redo the connections of the Jp13 connector.

In the attached documents you will find the use and installation manual.

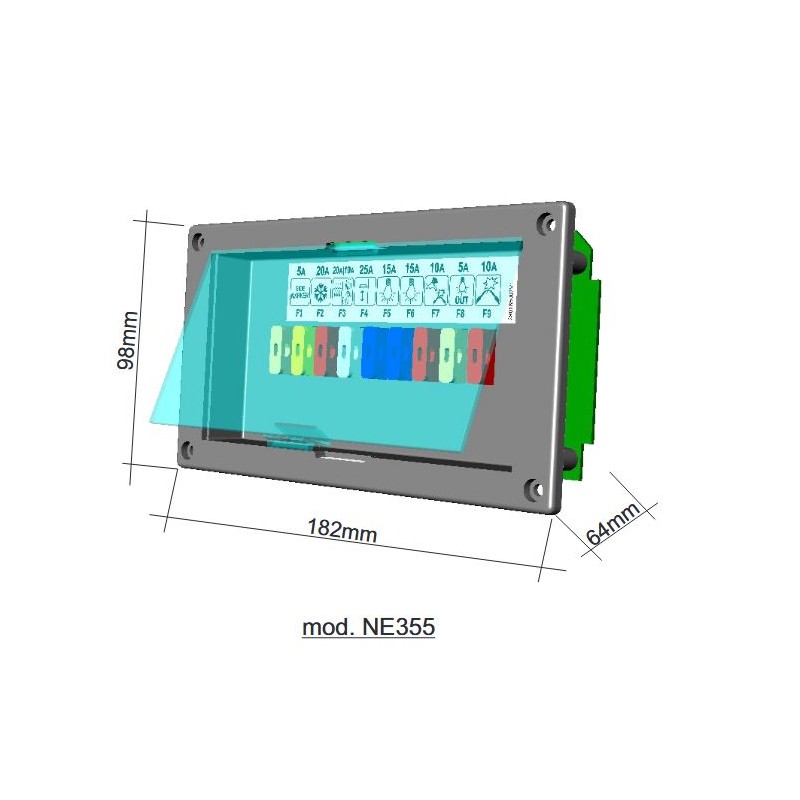

Users present on the fuse holder shunt:

  • F1: 5A fuse connected to the car battery to power the side marker lights.
  • F2: 20A fuse connected to the services battery to power the fridge.
  • F3: 25A fuse connected directly to the services battery for powering the folding bed.
  • F4: 20A/10A fuse connected directly to the services battery for WEBASTO (20A) or Combi (10A) power supply.
  • F5: 15A fuse connected to the main light switch to power the Light_1 unit
  • F6: 15A fuse connected to the main light switch to power the Luci_2 group.
  • F7: 10A fuse connected directly to the service battery for turning on the fridge, for the USB power supply and to the pump switch for powering the water pump.
  • F8: 5A fuse connected directly to the service battery to power the toilet, stove and external light switch.
  • F9: 10A fuse connected directly to the services battery to power various users
