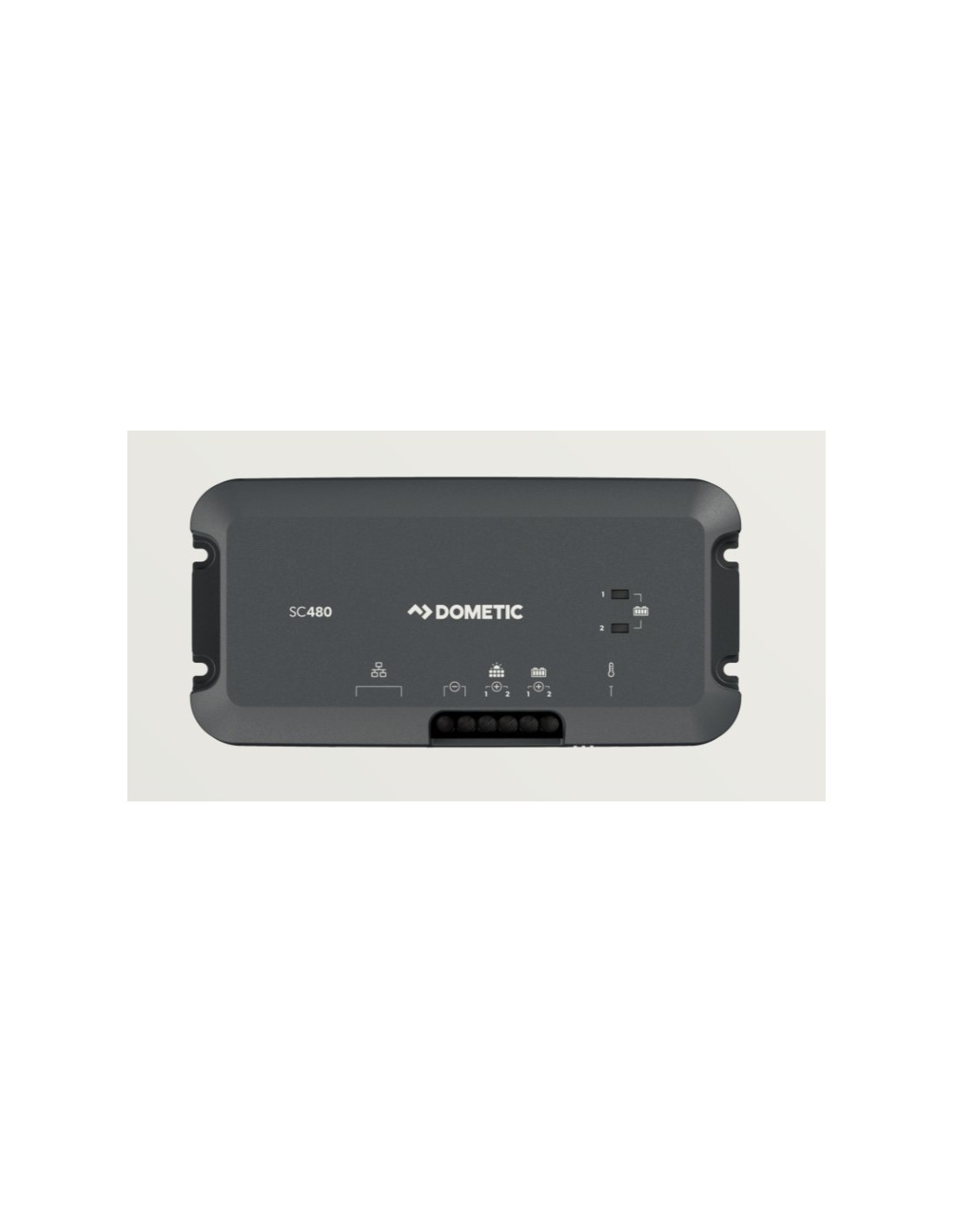

SC480 DOMETIC SUN CONTROL 12V-480W MPPT WITH N-BUS AND BLUETOOTH

SC480 DOMETIC SUN CONTROL 12V-480W MPPT WITH N-BUS AND BLUETOOTH

NEW 2026!

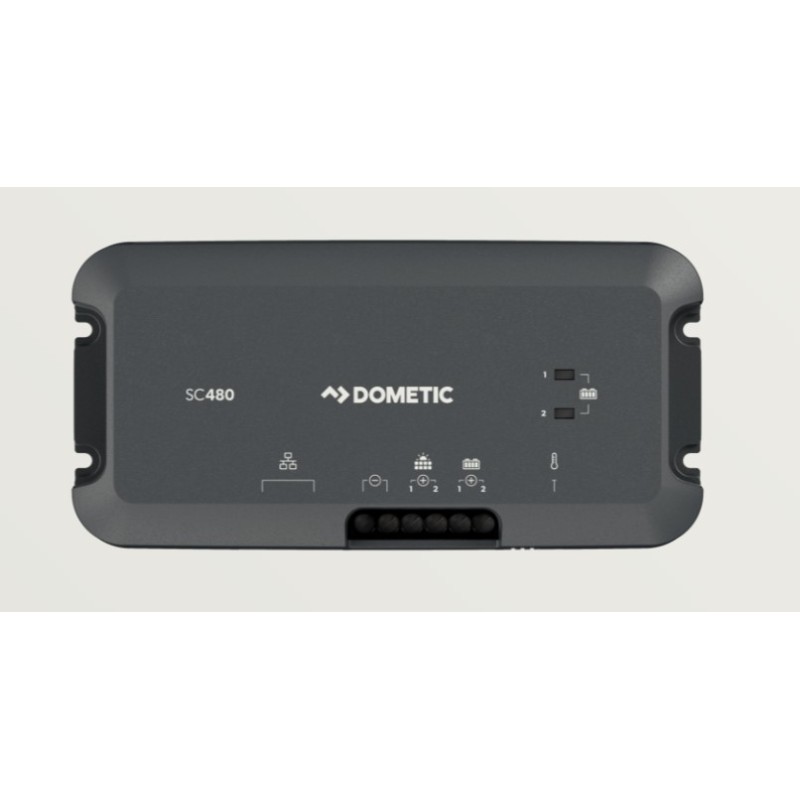

The SC480 is Dometic's latest and most innovative solar controller for solar modules, with separate inputs for two solar panels and two battery outputs.

State-of-the-art Maximum Power Point Track (MPPT) technology allows up to 30% more energy to be obtained from solar panels.

Thanks to the N-BUS plug & play network, the SC480 and all other N-BUS devices can be controlled via a single controller or the new Dometic mobile app.

Technical features:

01) More energy from the solar panel with Maximum Power Point Track (MPPT) technology

02) Performs the most modern charging curves, even for LiFePO4 batteries

03) Selector switch for LiFePO4, AGM, gel and wet lithium batteries

04) The OPTICHARGE algorithm allows charging according to the needs of the battery with its 6-stage charging curves

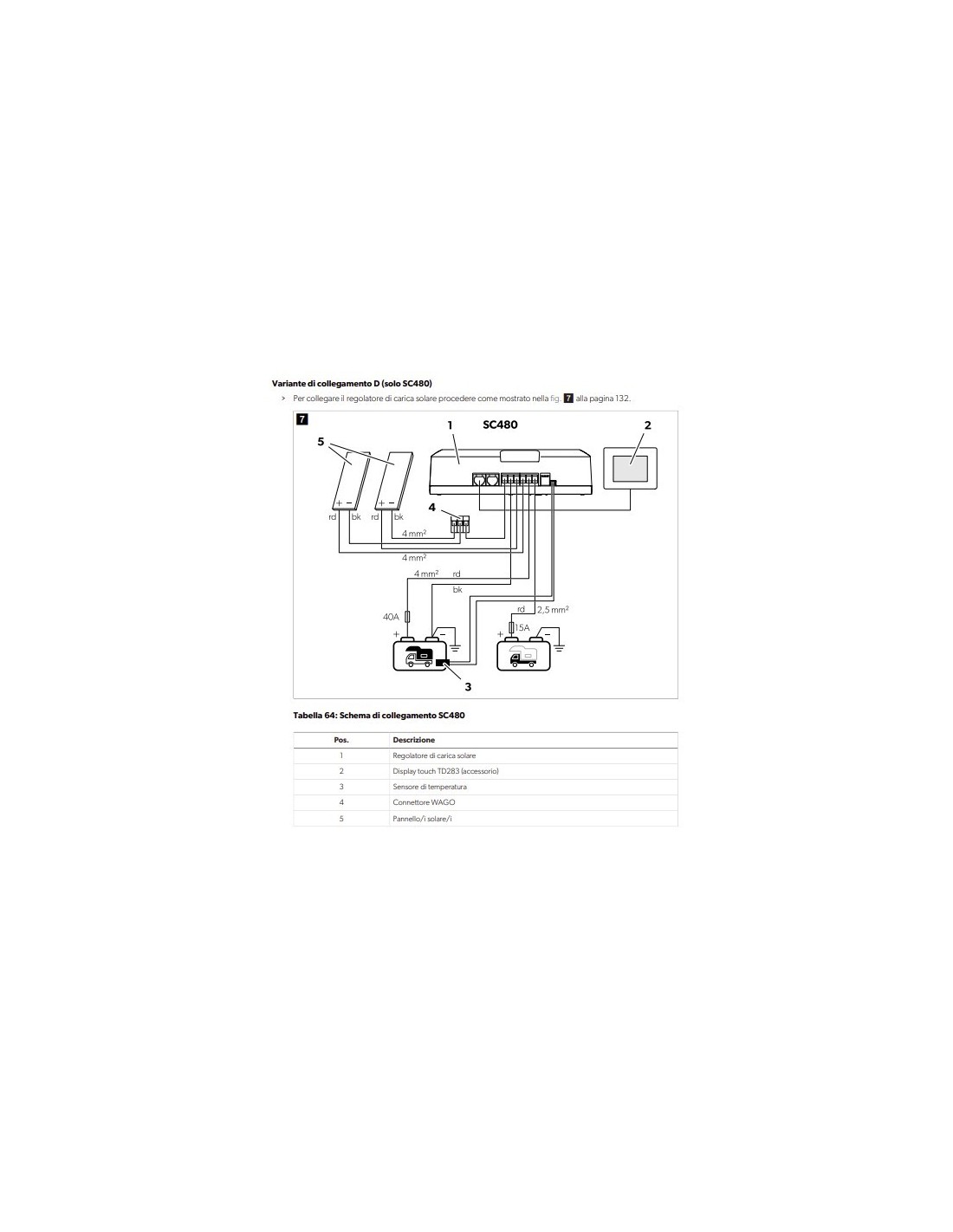

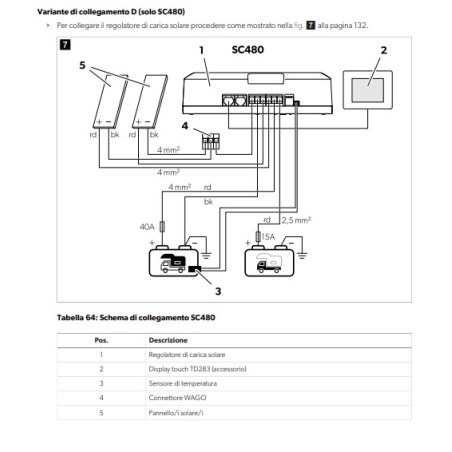

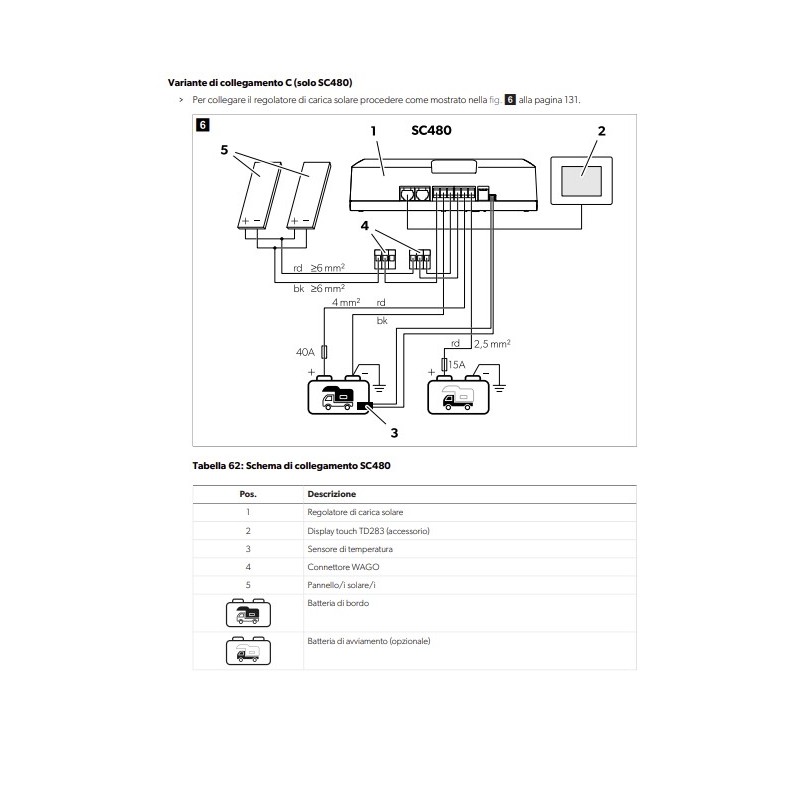

05) 2 separate inputs, also for different solar panels, e.g. BLACK LINE + POWER BLACK LINE

06) Separate charge output for optimized starter battery trickle charging

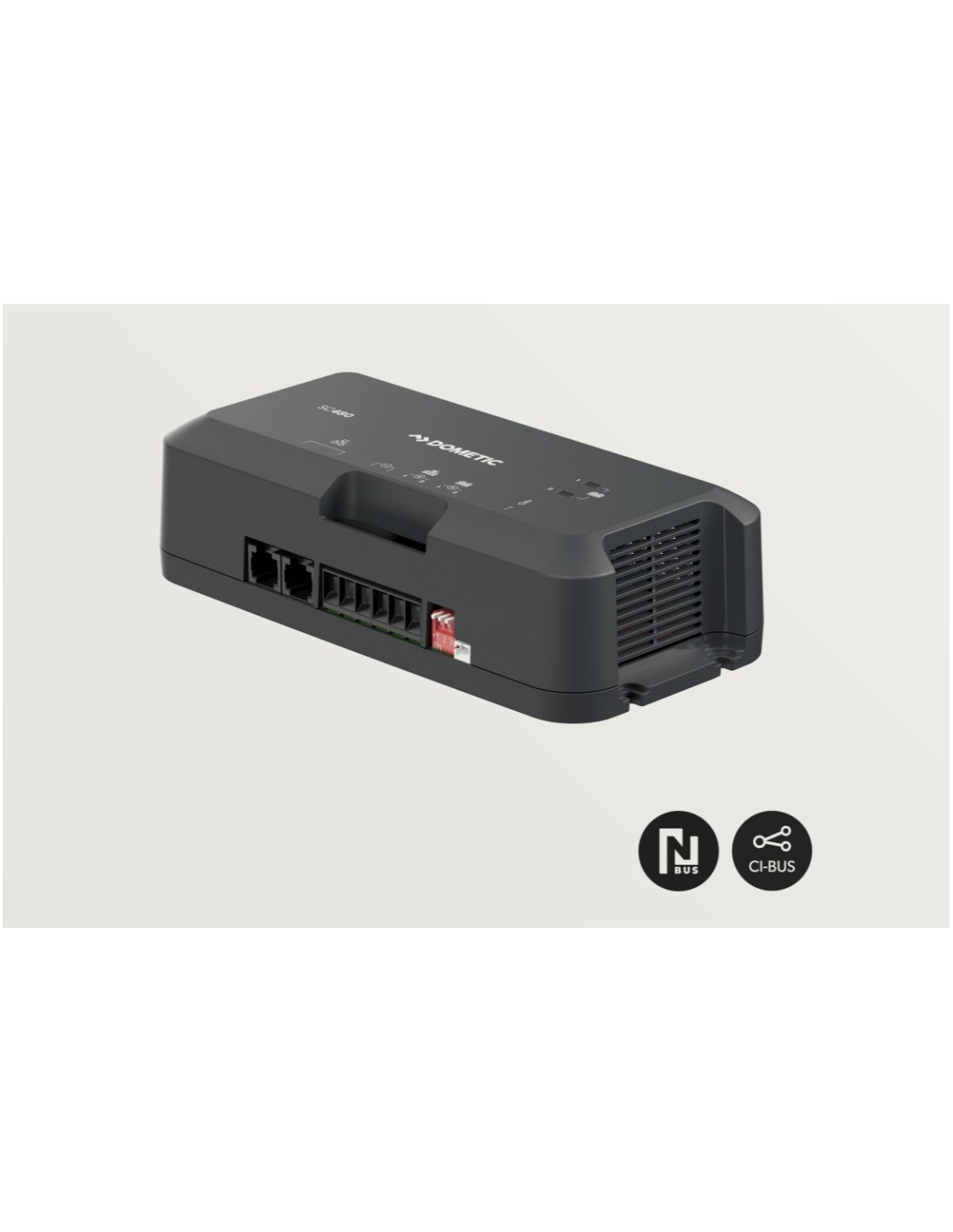

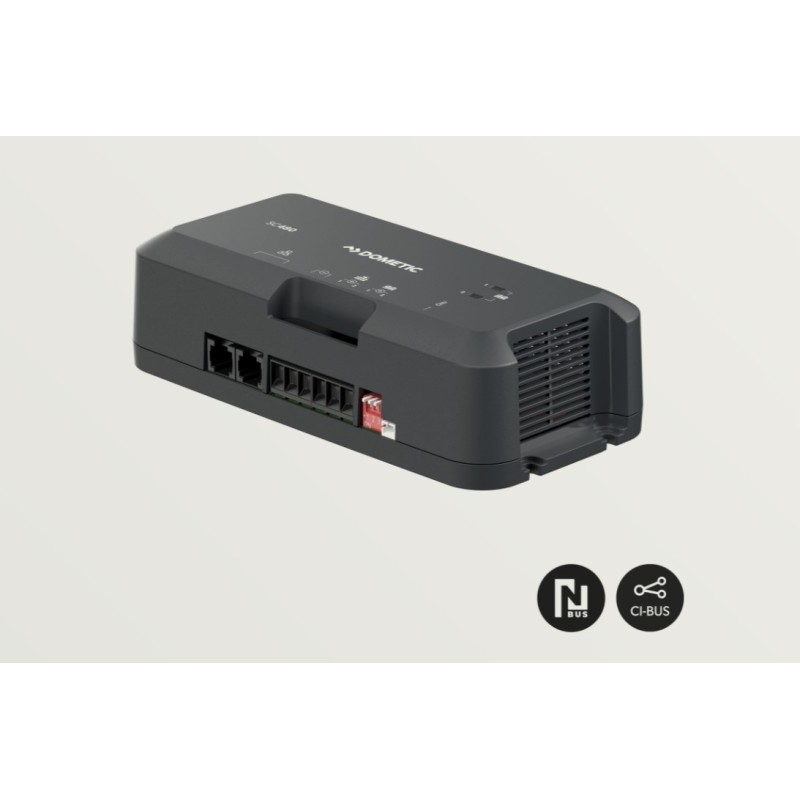

07) Monitoring, control and updating of all on-board devices from a single controller with N-BUS protocol (compatible with CI-BUS)

08) Bluetooth connectivity allows the use of the new Büttner Dometic app

09) Easy to hide in vehicle compartments due to its small size

10) Temperature sensor for charging all types of battery included

Additional technical data:

Bluetooth Yes

Dimensions (mm) 170x83x47

30A protection fuse

Input limit voltage 33V

Max charging current 30A

P.Max modules 480W

Rated voltage 12V
