5 days of preparation excluding made to order items
€69.00
VAT included
69
5 days of preparation excluding made to order items

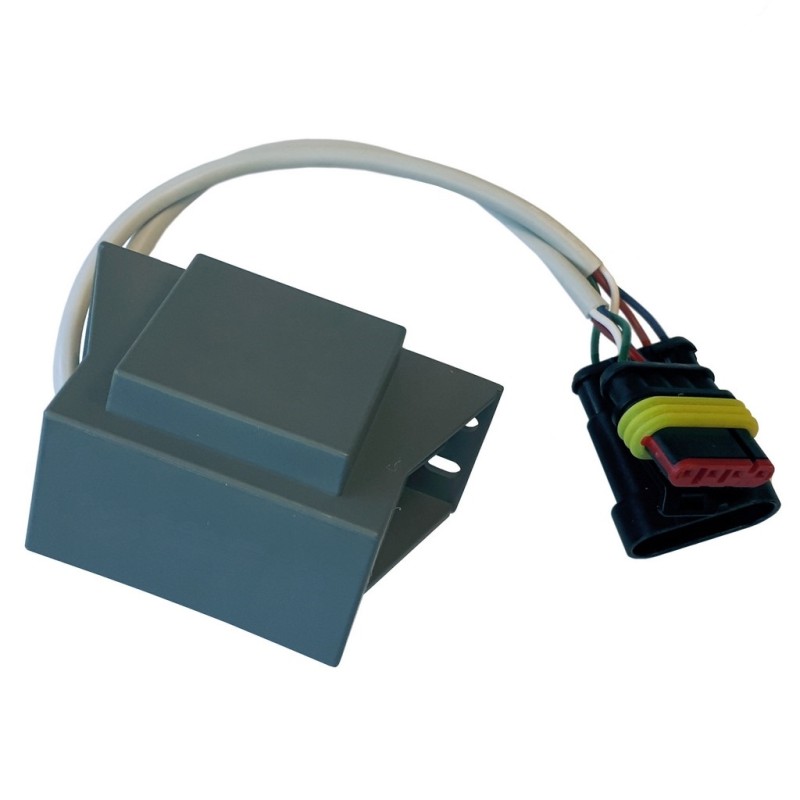

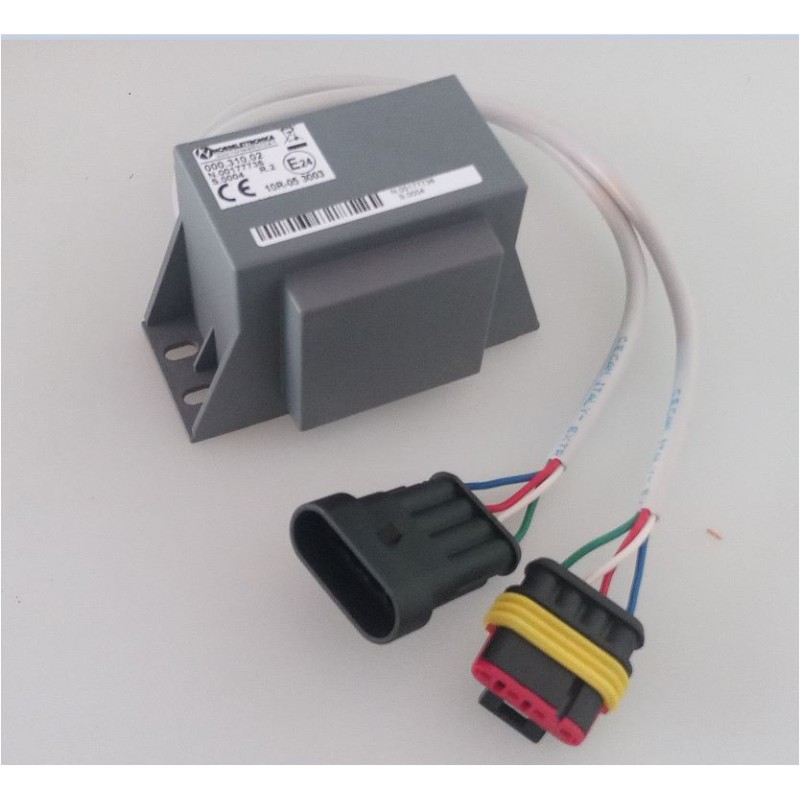

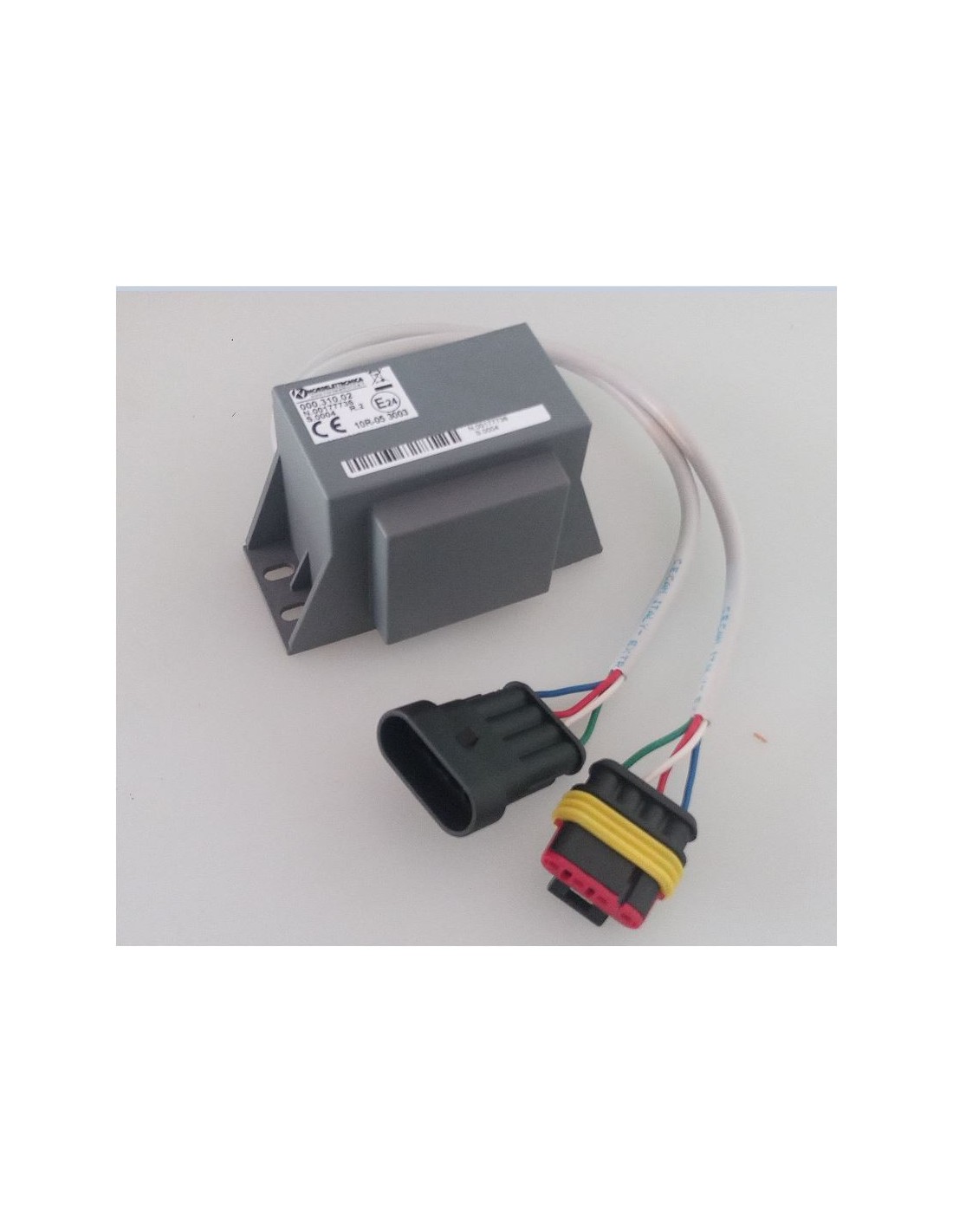

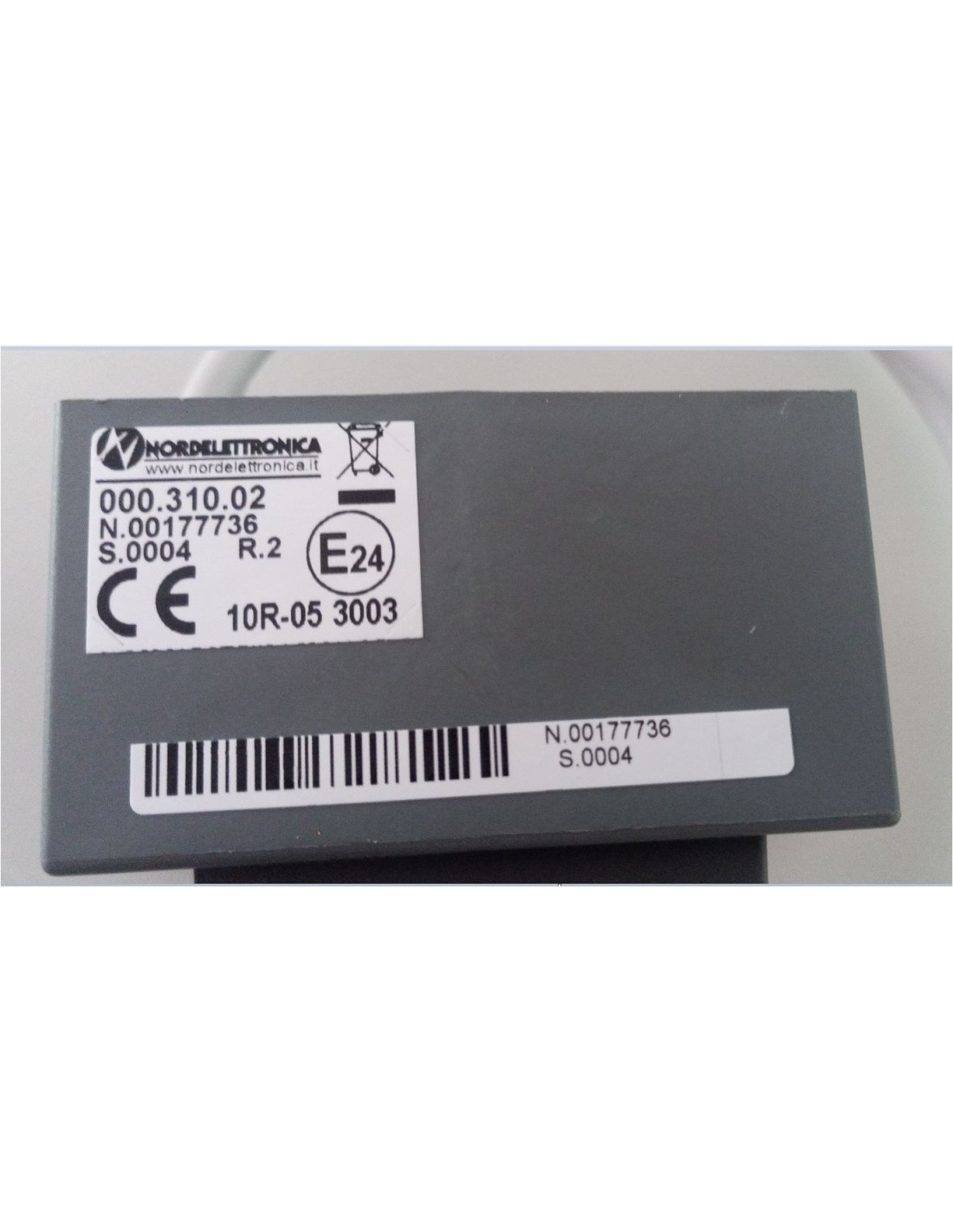

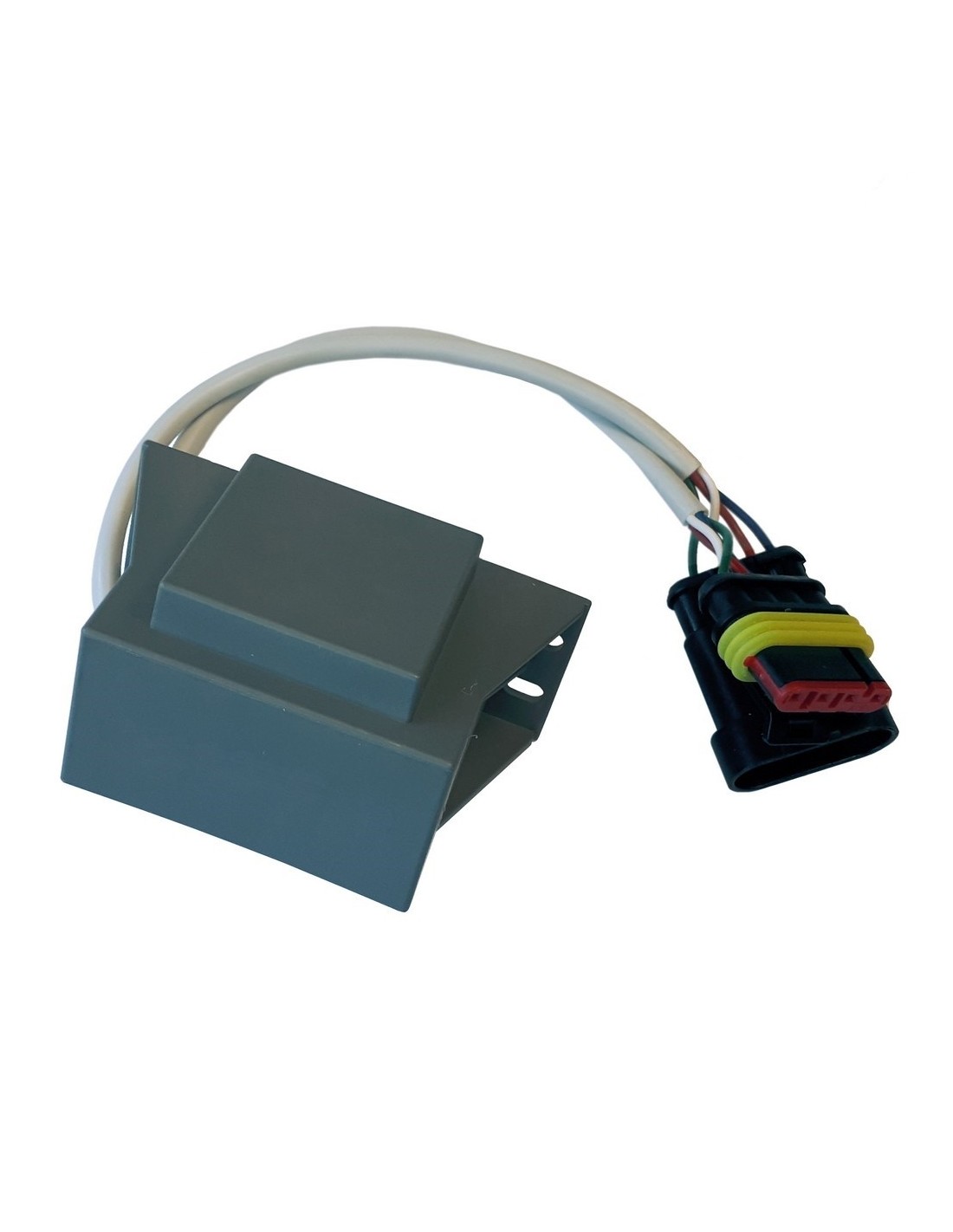

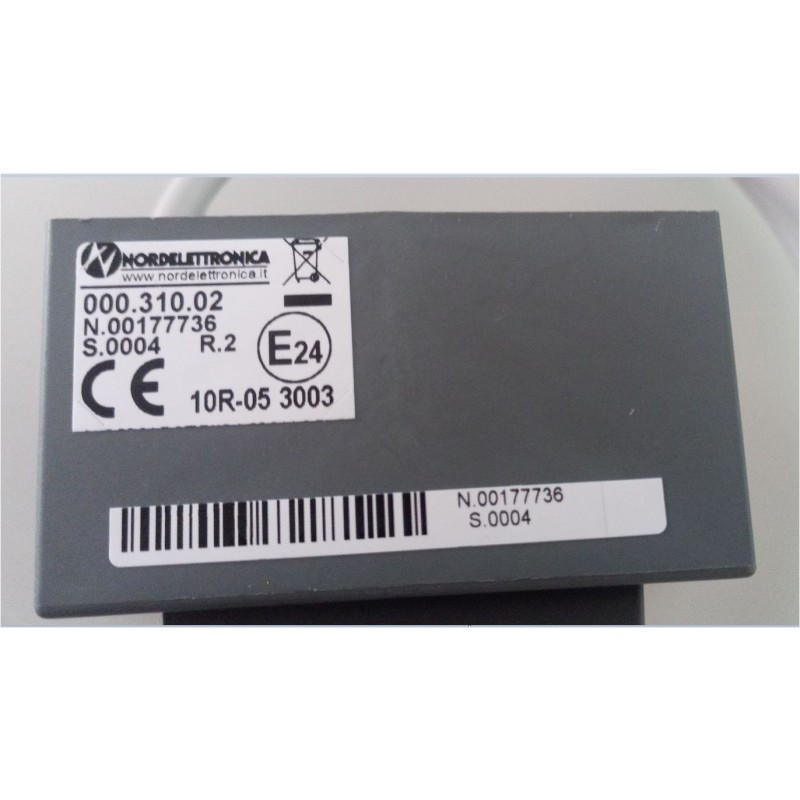

Nordelettronica device 000.310.02 LED indicator adapter.

Also mounted on ITINEO

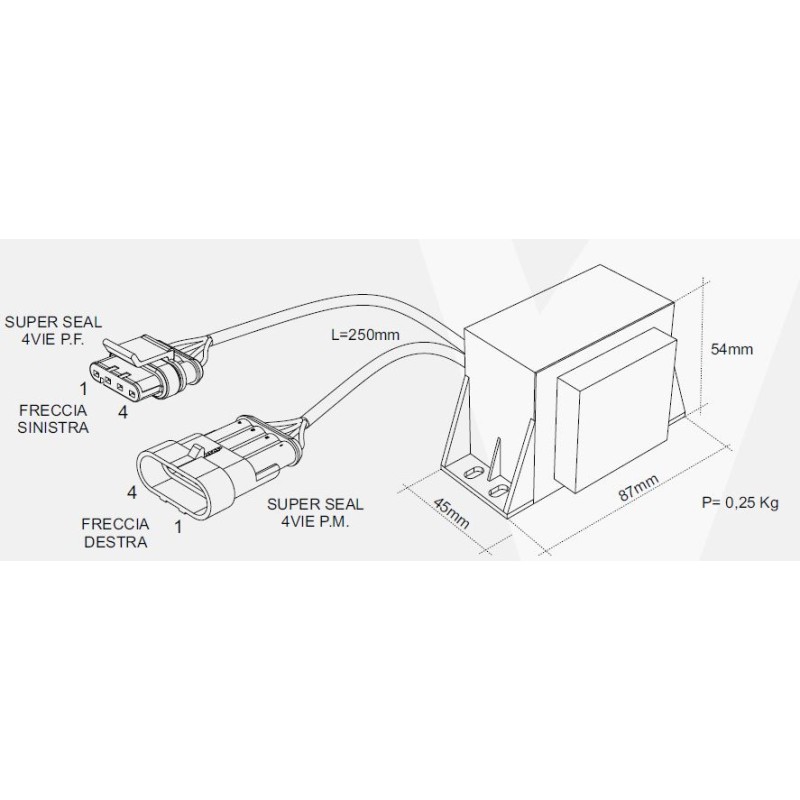

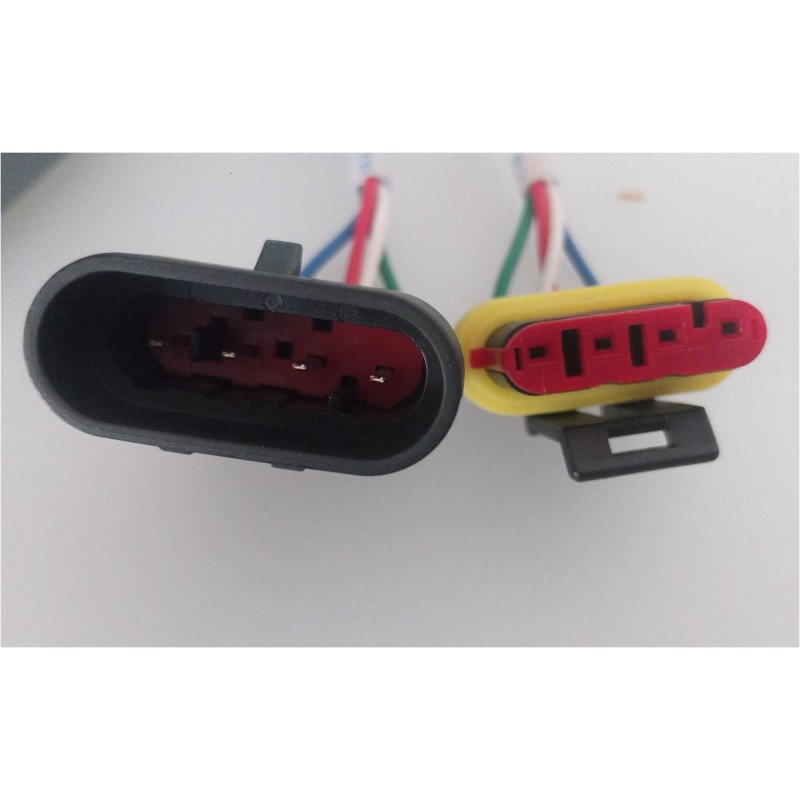

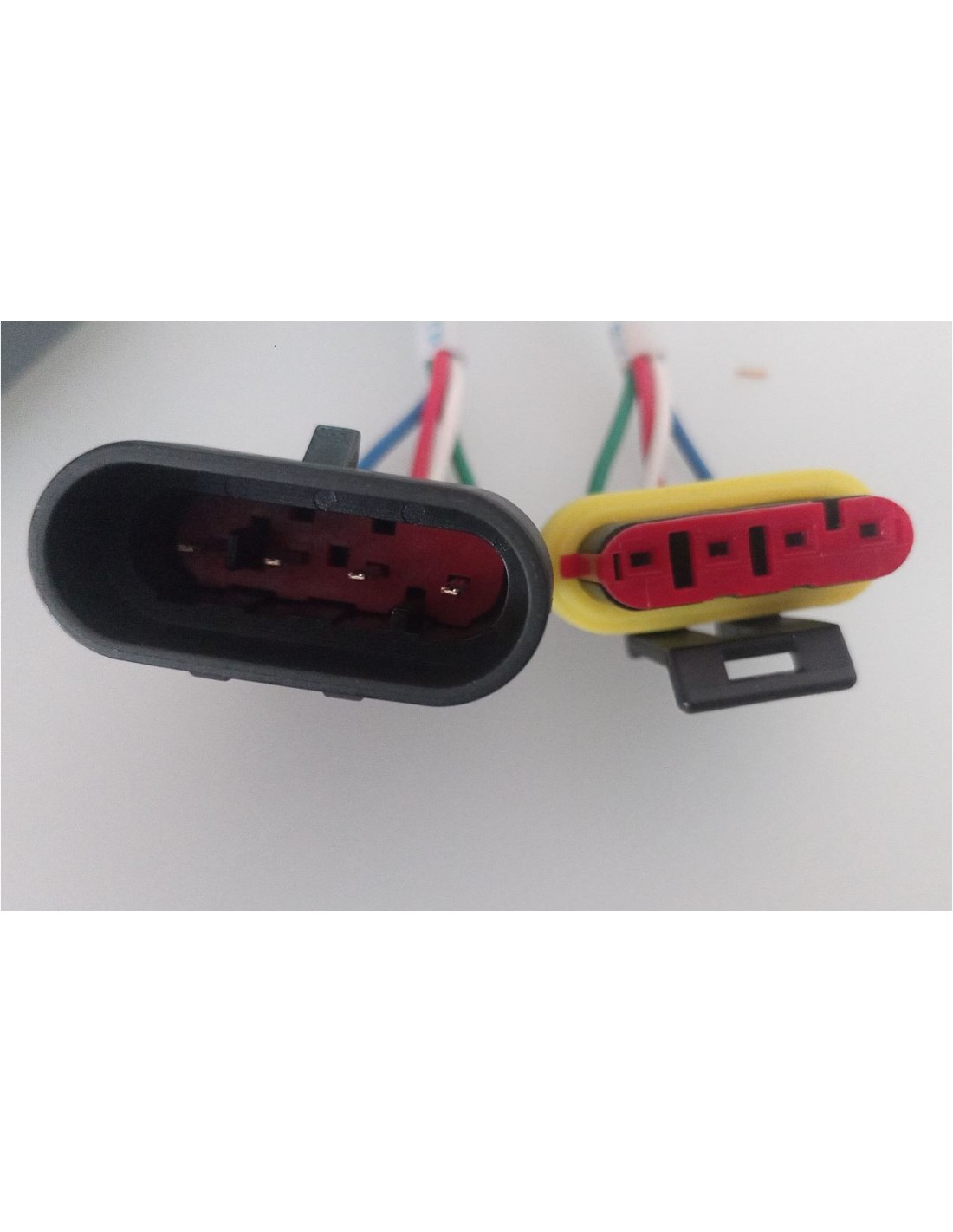

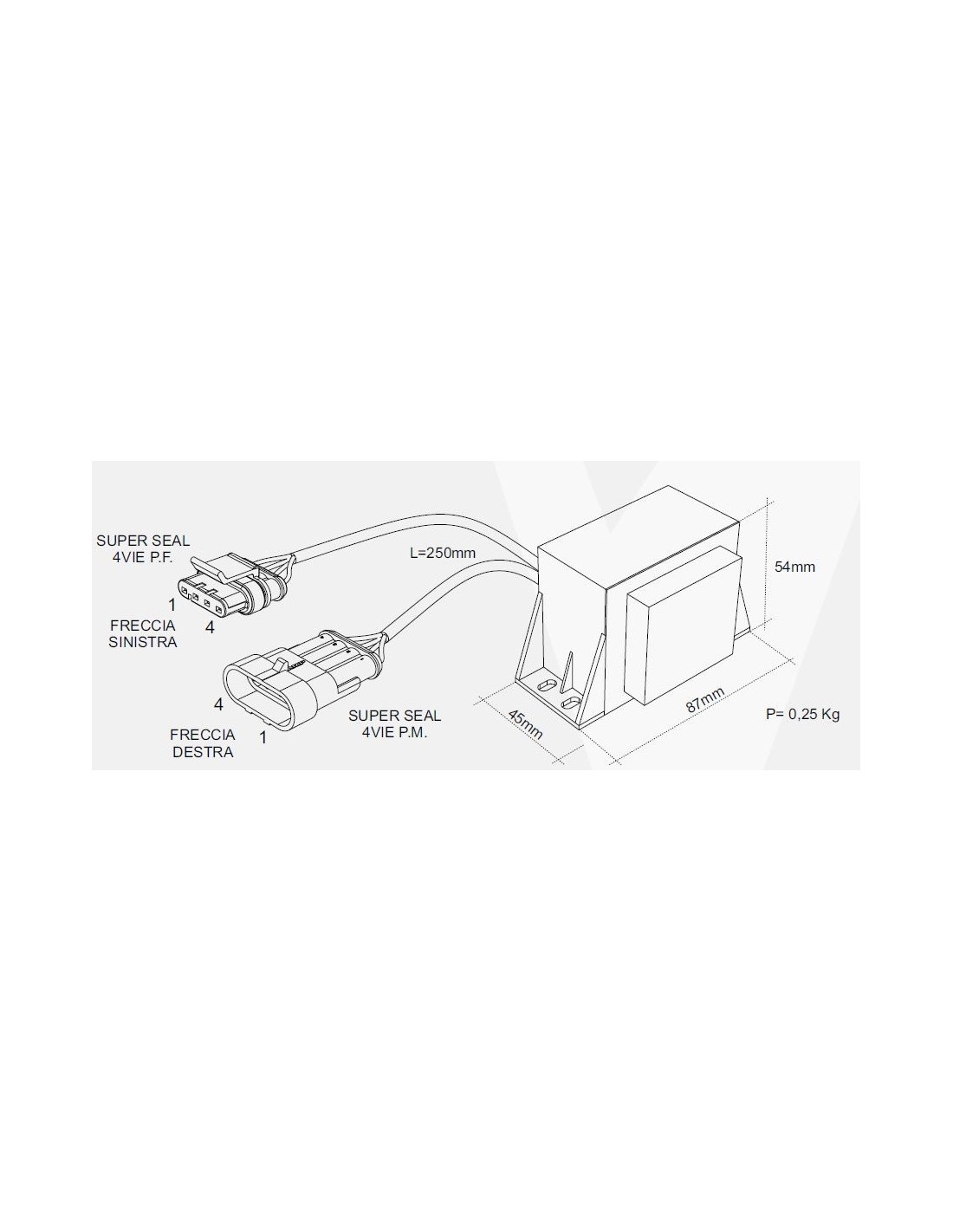

With Super-Seal connectors

Error suppression control unit for direction indicators

The NE310 is an adapter for direction indicators to be connected to the Y203L4A connector of a FIAT vehicle.

With this device you can connect lights with lower power than that required by the Body Computer so as not to signal the error on the turn signal light.

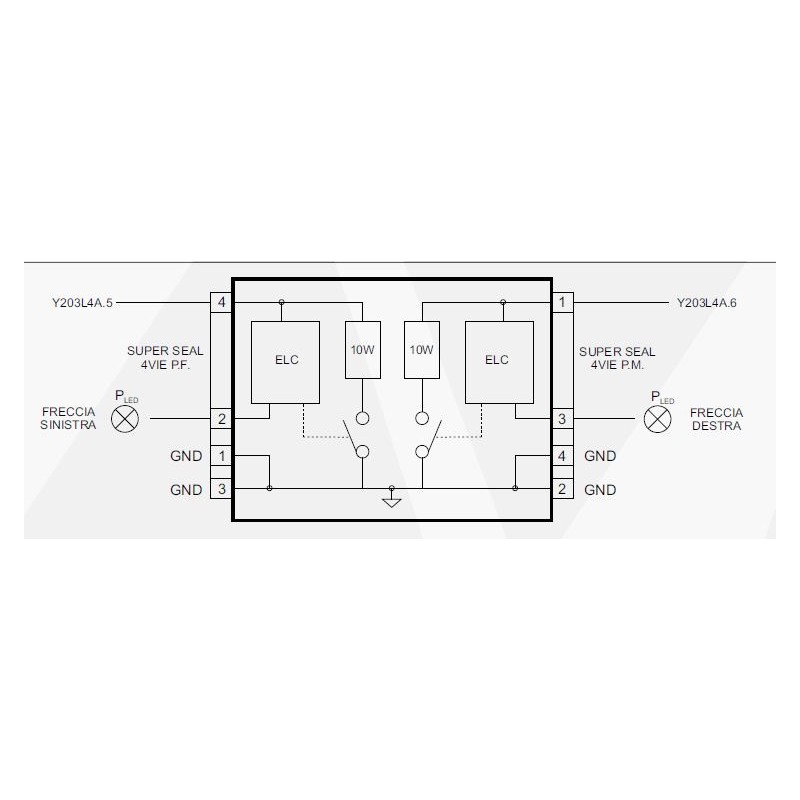

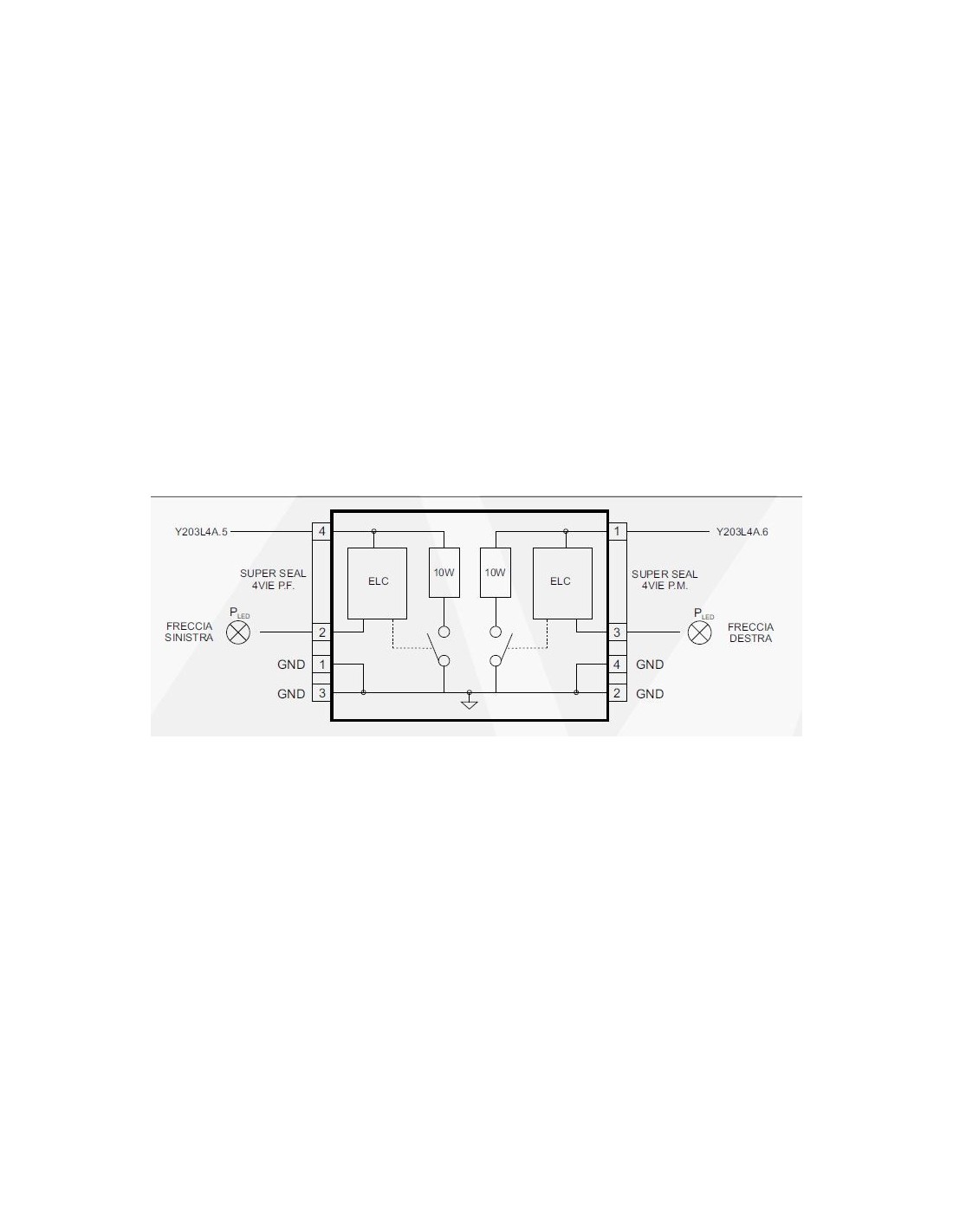

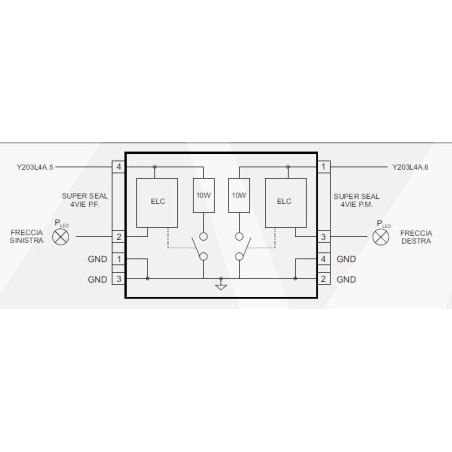

The adapter connects a 10W load in parallel to the LED lights (Pled) to compensate for the power. If a LED light fails or there are anomalies, the 10W load is disconnected and the Body Computer signals the error.

CHARACTERISTICS:

Left Arrow:

-Input: 12V signal FIAT Y203L4A.5

-Output: 12V P 0.35W ÷ 5W LED

Right Arrow:

-Input: 12V signal FIAT Y203L4A.6

-Output: 12V P 0.35W ÷ 5W LED

IP68 protection

SELF-RESETTING ELECTRICAL PROTECTIONS:

Reverse polarity, Short circuit, Overload, Over temperature.
