5 days of preparation excluding made to order items
€25.90
VAT included
25.9
5 days of preparation excluding made to order items

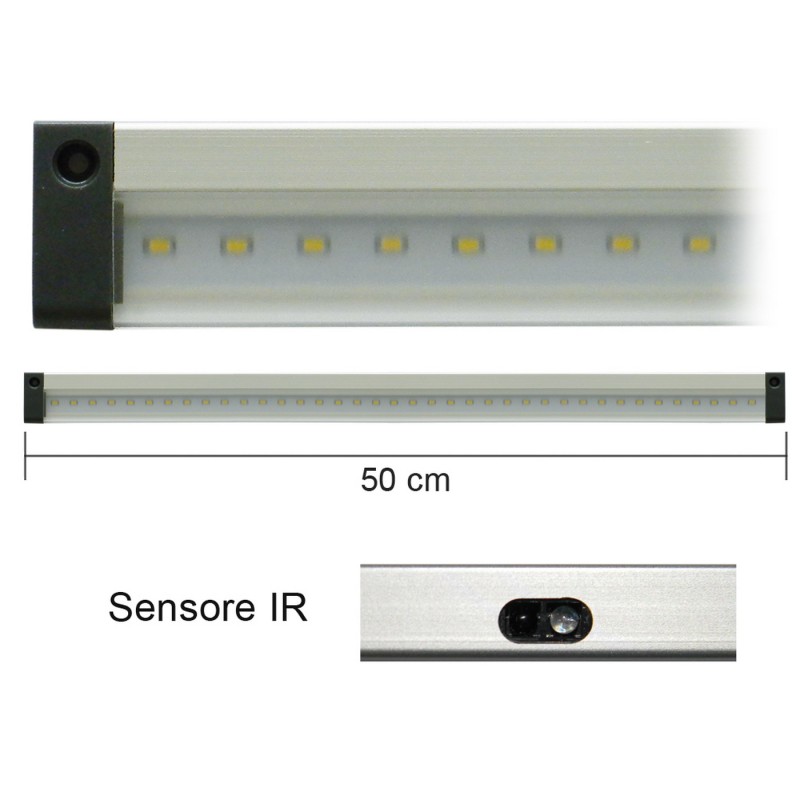

LED Bar with IR Sensor 12V 5W 430lm 4000K 50cm with Fixing Clip

Can be used as a closet light (automatically turns on and off) and as a room light (turns on and off by obscuring the IR sensor).

General characteristics

• Flat profile.

• IR sensor.

• Possibility of connecting multiple bars in series up to a maximum of 2 metres.

• Aluminum body and PMMA cover.

• Degree of protection: IP20.

• Dimensions: 500x28.6x9.6mm

• Weight: 136.5g.

Electrical characteristics

• Input: 10.5V to 15V DC.

• Power: 5W.

• Working temperature: -25°C to 45°C.

Lighting features

• Luminous flux: 430lm.

• Opening angle: 90°.

• Color temperature: 4000K.

• LED type: 3014 SMD.

• Number of LEDs: 45.

• Lifespan: 30000 hours.

PRELIMINARY OPERATIONS

Connect the power source to one of the two power inputs. The LED bar will now light up. If you place a flat object (such as a piece of cardboard) in front of the IR sensor, the LED bar will turn off. Now move the operating mode selector to the other side and walk in front of the IR sensor with a flat object. The LED bar will turn off. If you walk in front of the IR sensor with the flat object again, the LED bar will light up again.

CONNECTING MULTIPLE BARS IN SERIES

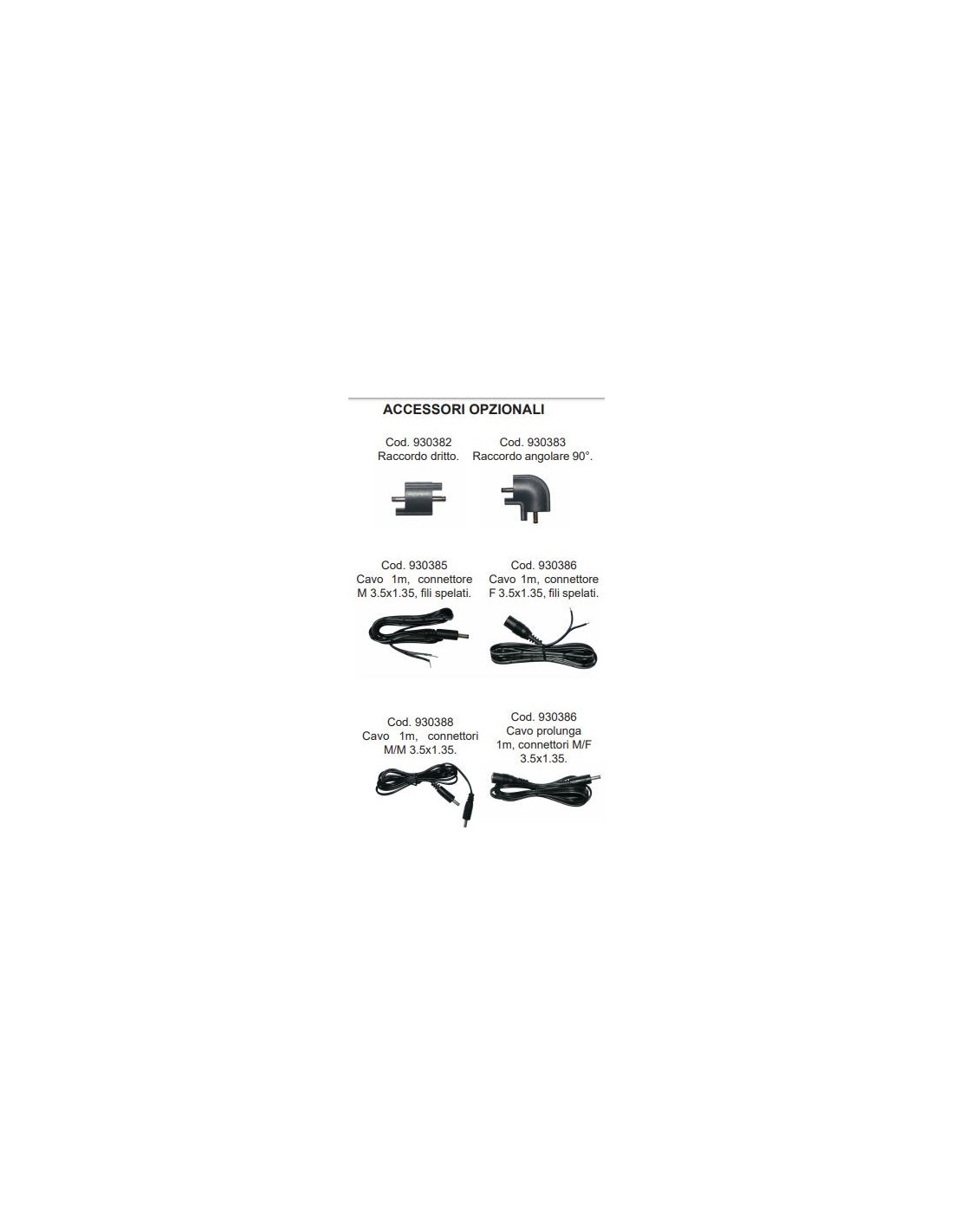

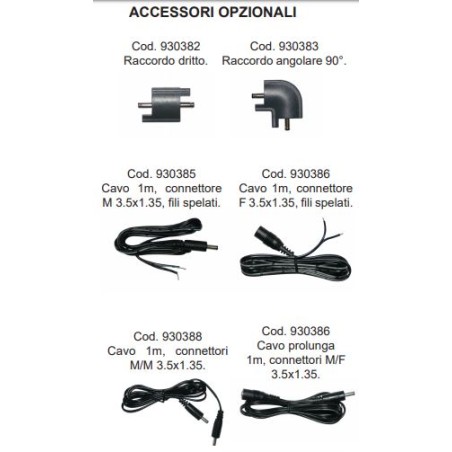

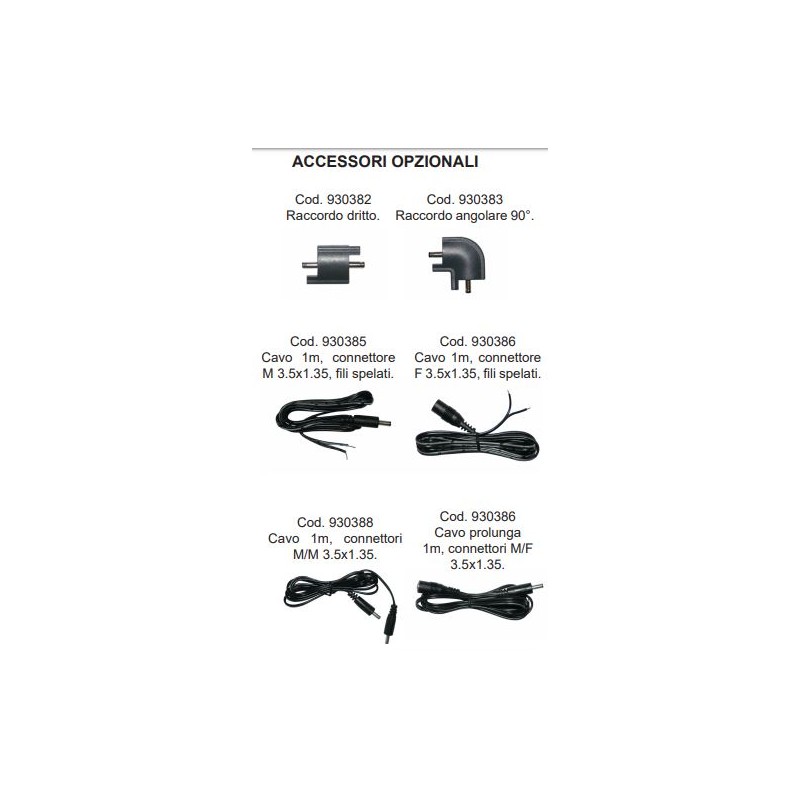

By using the optional fittings, it is possible to connect multiple bars in series.

You can create a LED bar up to 2 meters long.

Connecting multiple bars with the appropriate connectors allows you to power all the LED bars with a single power source. However, the sensor of each LED bar will determine whether the bar should be lit or turned off.

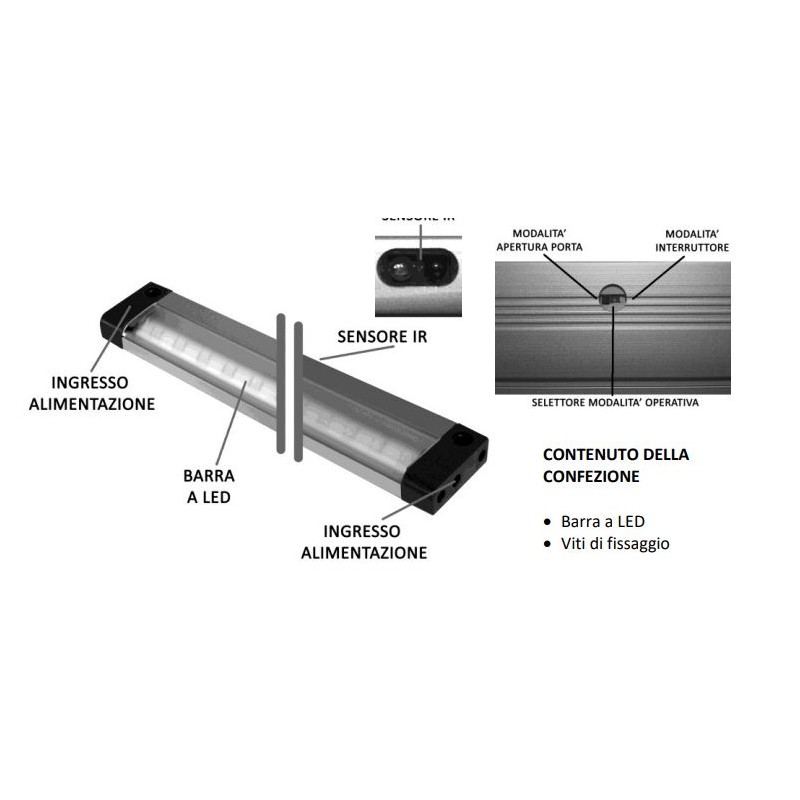

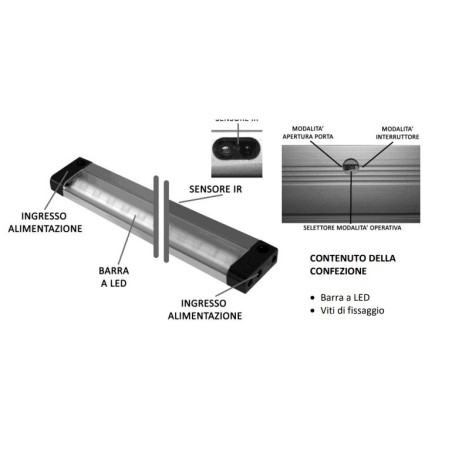

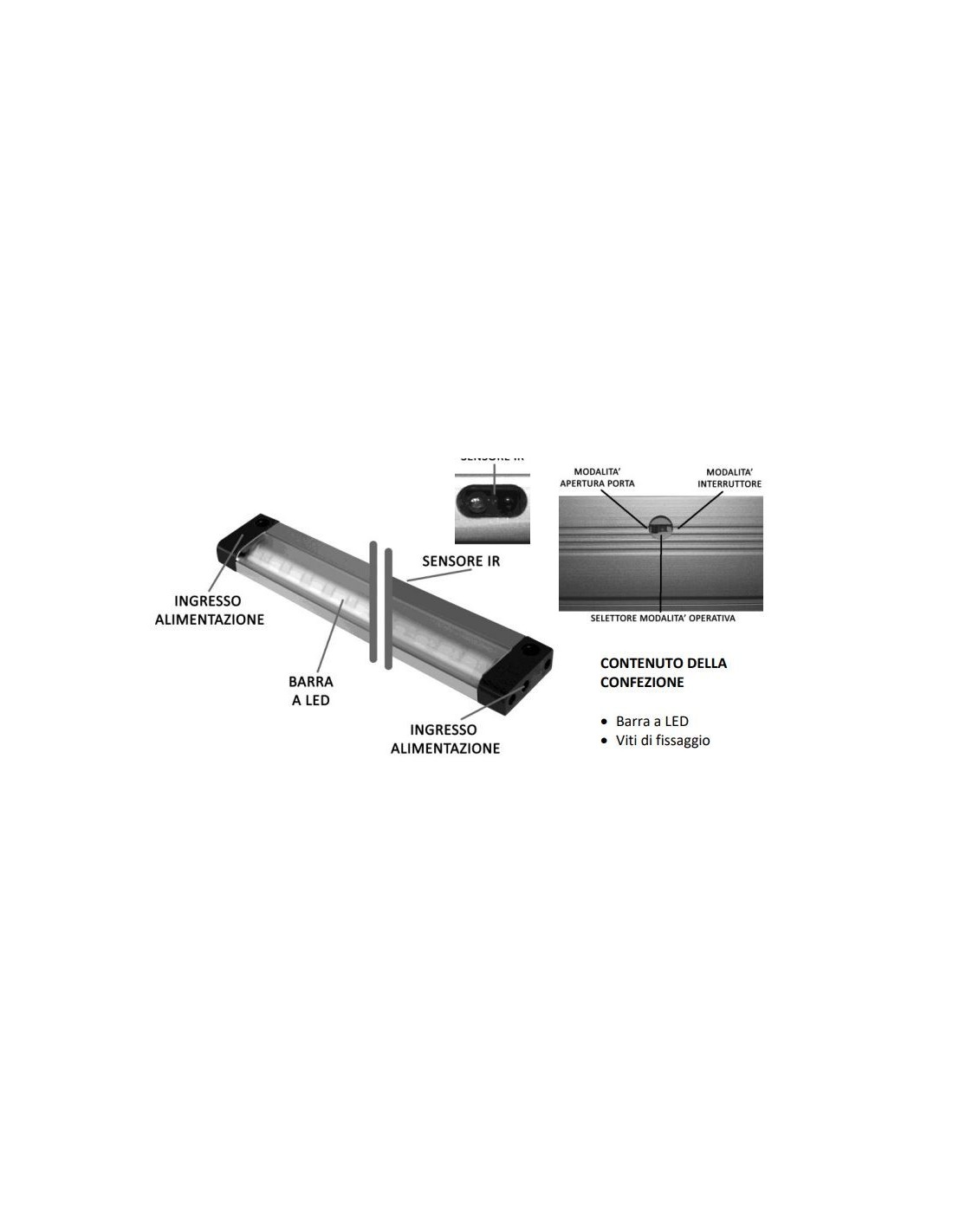

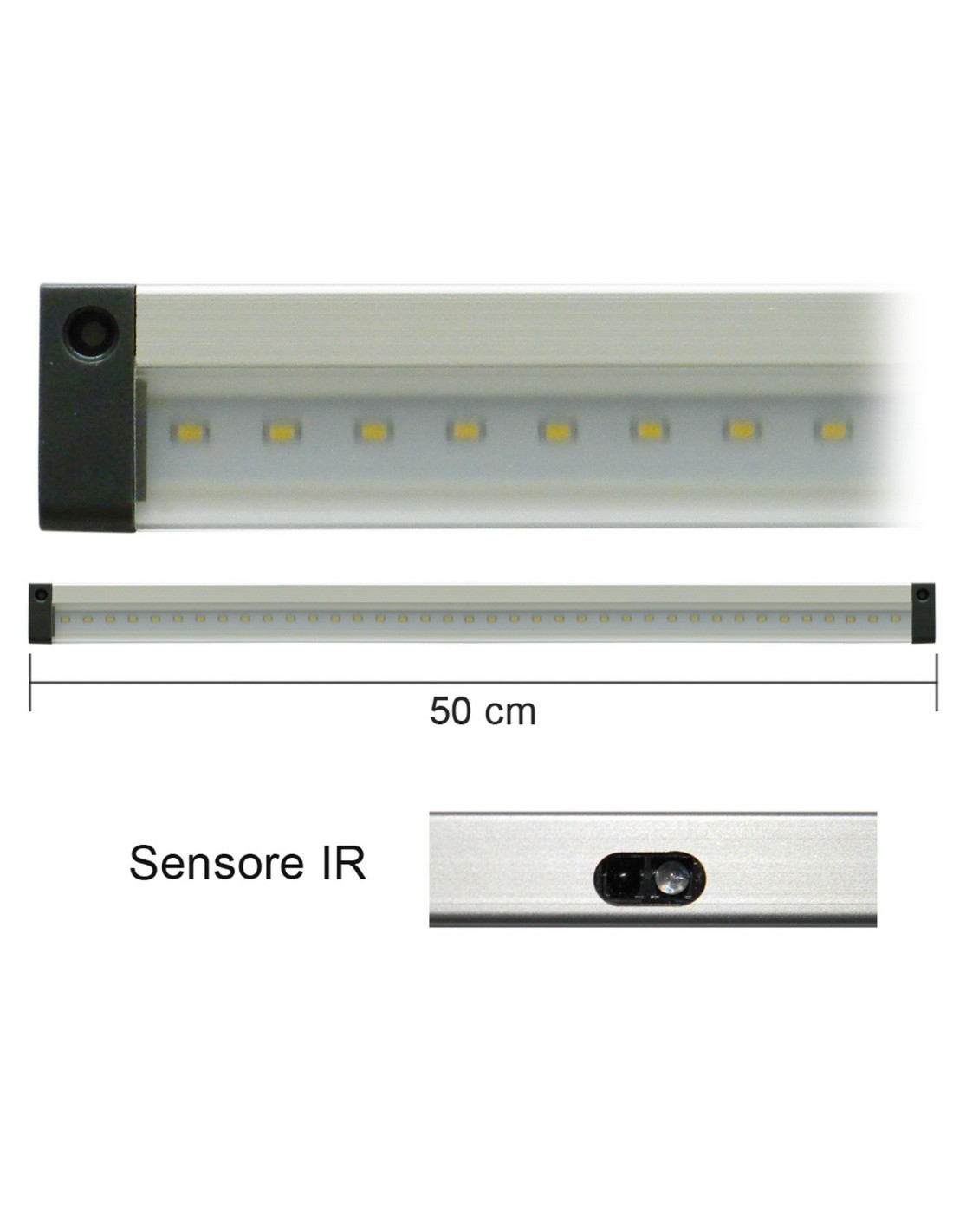

IR SENSOR FUNCTION

The IR (infrared) sensor allows AlcaPower LED bars to operate in two distinct modes:

DOOR OPENING MODE

This mode allows the LED bar to light up whenever the IR sensor is not obscured by an object.

For example, if the LED bar is installed behind a cabinet door, when this is

closed, the LED bar will be off; when the door is opened, the LED bar will be lit.

To select this mode, position the mode selector to the “MODE” side.

“DOOR OPENING”.

SWITCH MODE

This mode allows you to turn the AlcaPower LED bar on and off by simply temporarily darkening the sensor. This mode allows you to have a completely independent light point with the ability to turn it on and off at will. To select this mode, position the mode selector on the “SWITCH MODE” side.

Use 1 meter 14904 cable with male connector

Use connector 14905 to connect two bars in series
