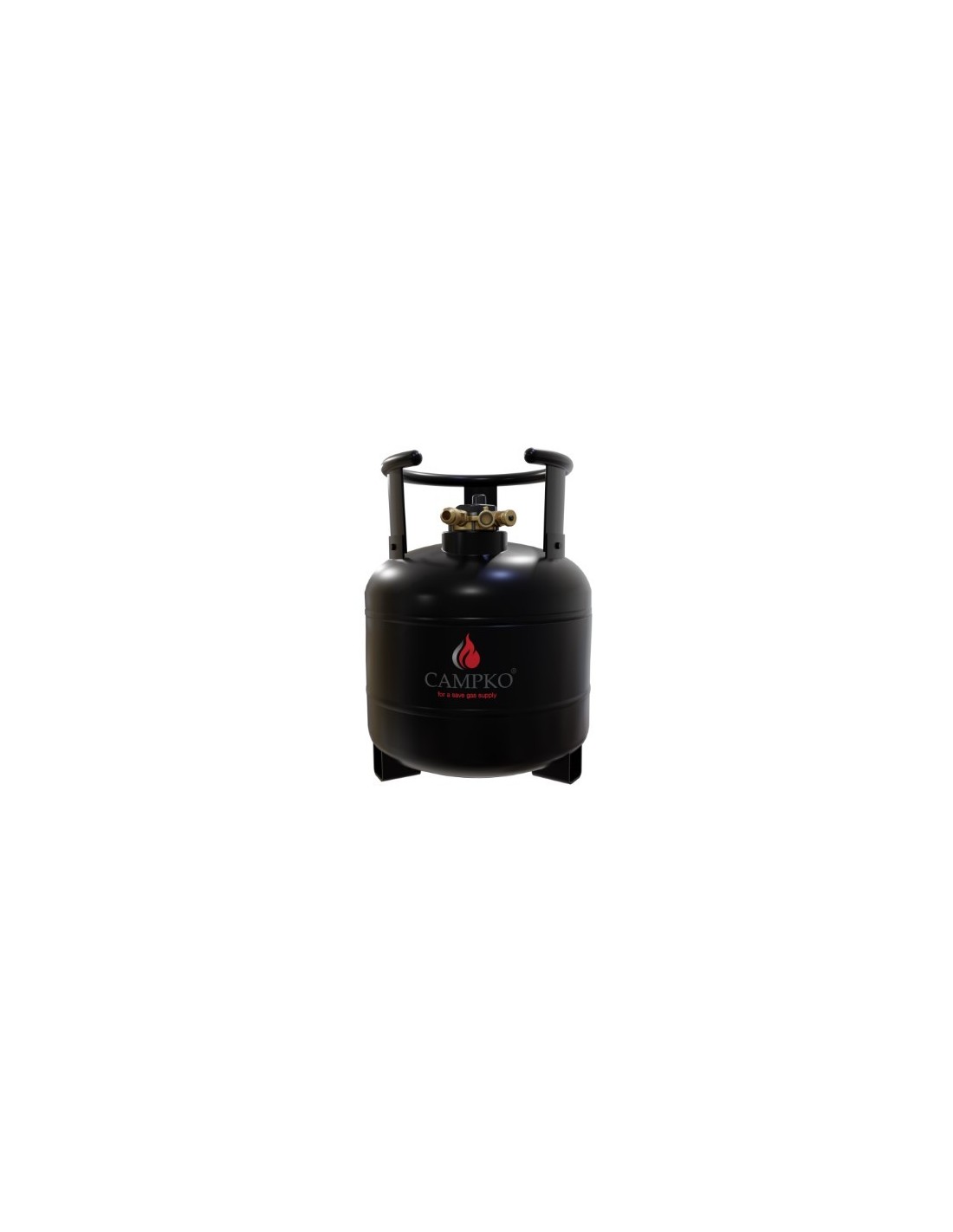

CAMPKO gas cylinder 67R01 steel 15 L - 385mm multivalve and pressure gauge (DE) 80% filling stop valve

15 L fillable 67R01 steel gas cylinder with multivalve 80% filling stop valve and pressure gauge.

The cylinder approved ECE 67R01 it can be filled safely at the fuel dispenser, thanks to the integrated multi-valve, equipped with automatic stop at 80% filling.

BULKY SHIPPING FOR THIS PRODUCT

• Water volume 15 litres

• Direct refueling: 80% automatic stop
• European approval: ECE 67 R

• Input: 3/4" UNF
• Output: Germany W 21.8x1/14" LH male connection


Only the cylinder supplied; Some optional accessories are also shown in the images.

See the instructions for use in "attached documents".

Fixed installation in campers or caravans is essential according to regulations; use the optional fixing support.

The cylinder is supplied with a German gas loading connection and can be equipped with an OPTIONAL Italy/Germany adapter for connection to the system of Italian vehicles.

Strengths of the cylinder:

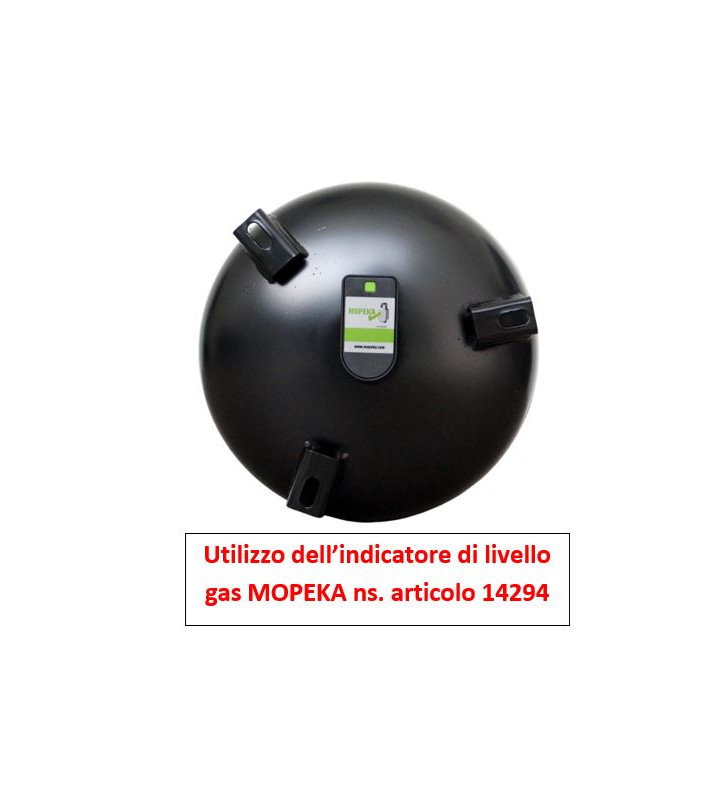

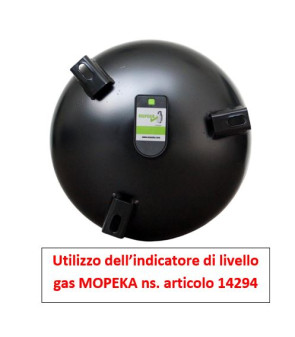

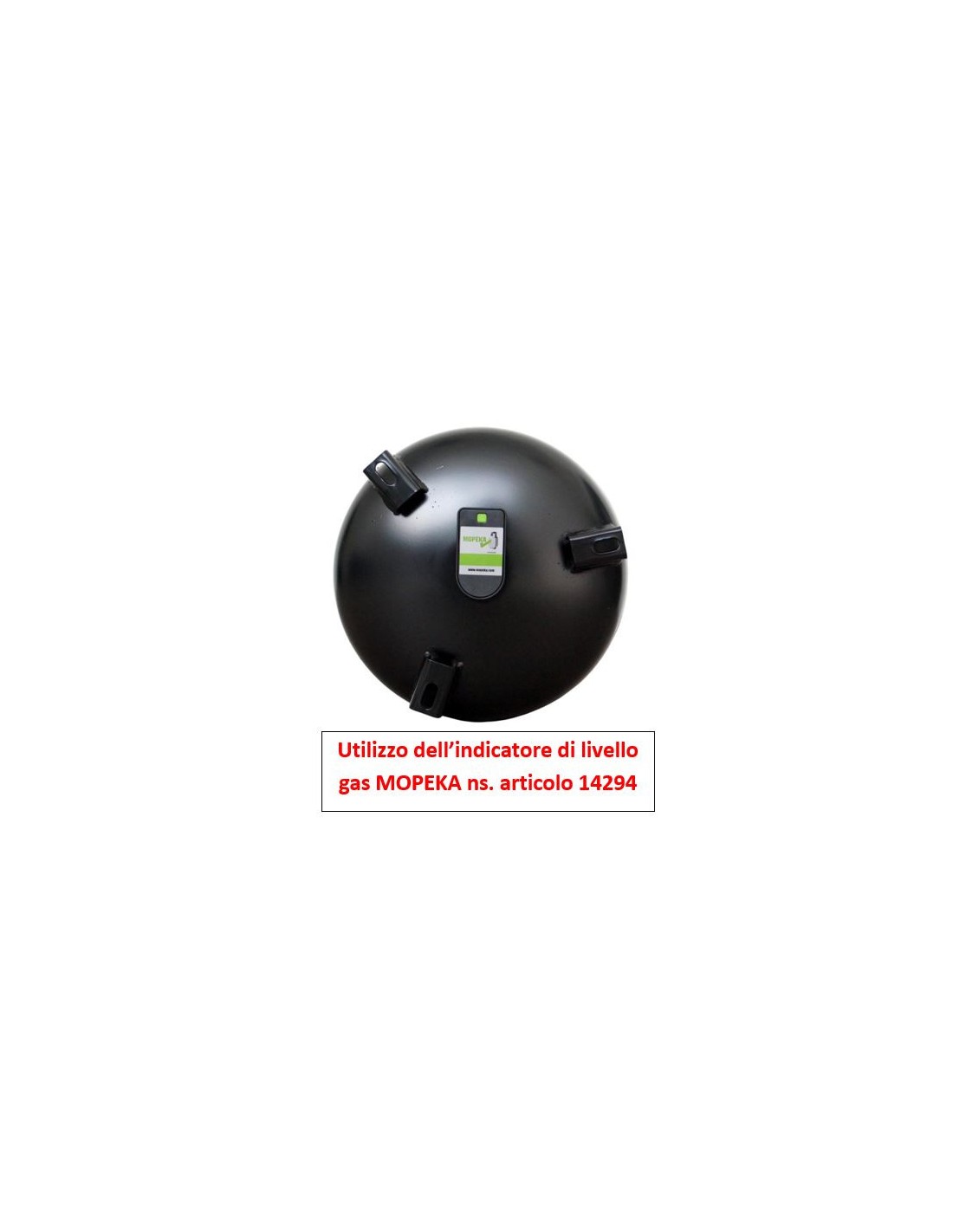

1. it is equipped with a pressure gauge for indicative reading of the gas content (for the gas level use MOPEKA or similar).
2. the pre-assembled collar can be unscrewed to save space.
3. It is supplied with a certificate of conformity and approval (sticker and welded plate).
4. it is safe as it has a valve with float that allows the pump to stop filling when it reaches 80% of the content.
5. it is valid for use for 10 years from the date of construction (month/year) and can subsequently be retested by the manufacturer.
6. the cost of refueling at the distributor is approximately half that of traditional cylinders. Use a gas filter when recharging.
7. it can be recharged anywhere (Italy and Europe) without problems of deposit or search for a deposit.

See below, in the extended description, for further information

PRODUCT DESCRIPTION

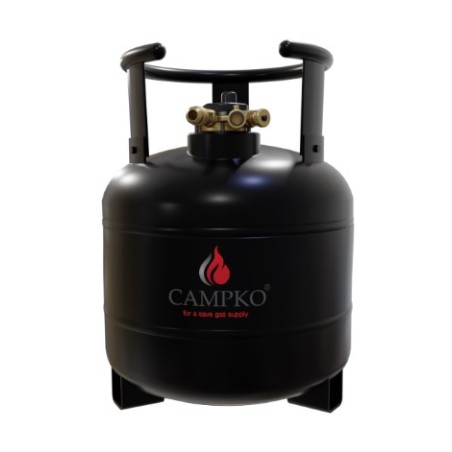

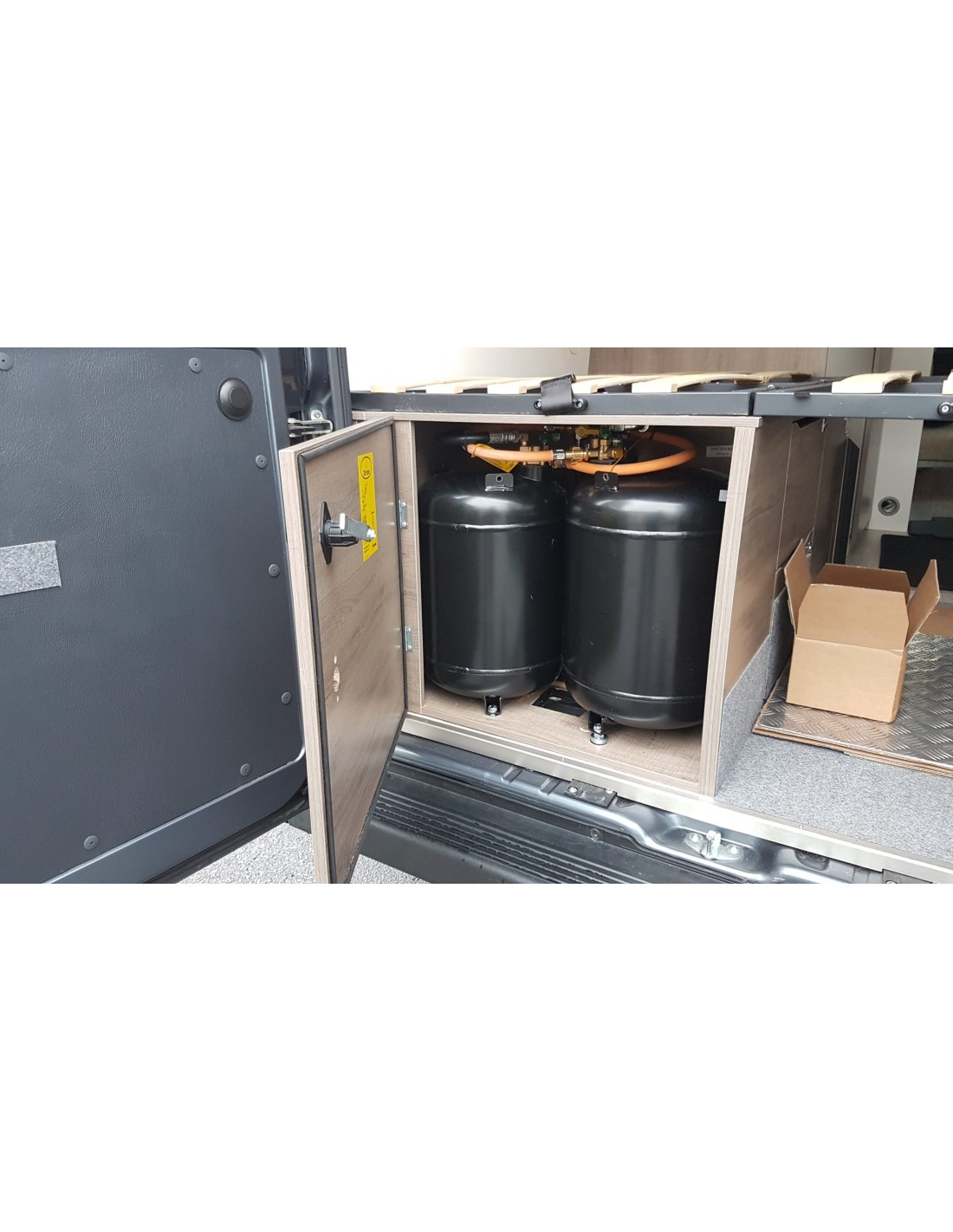

The CAMPKO cylinder made of solid steel was developed for permanent installation in campers, vans or caravans.

It has a high safety standard and is certified in accordance with the ECE 67R-01 standard. The CAMPKO cylinder is installed in the gas locker and therefore serves as a refillable tank for the camper's gas.

Thanks to the ECE 67R-01 approval, it is not subject to the 10-year TÜV test period.

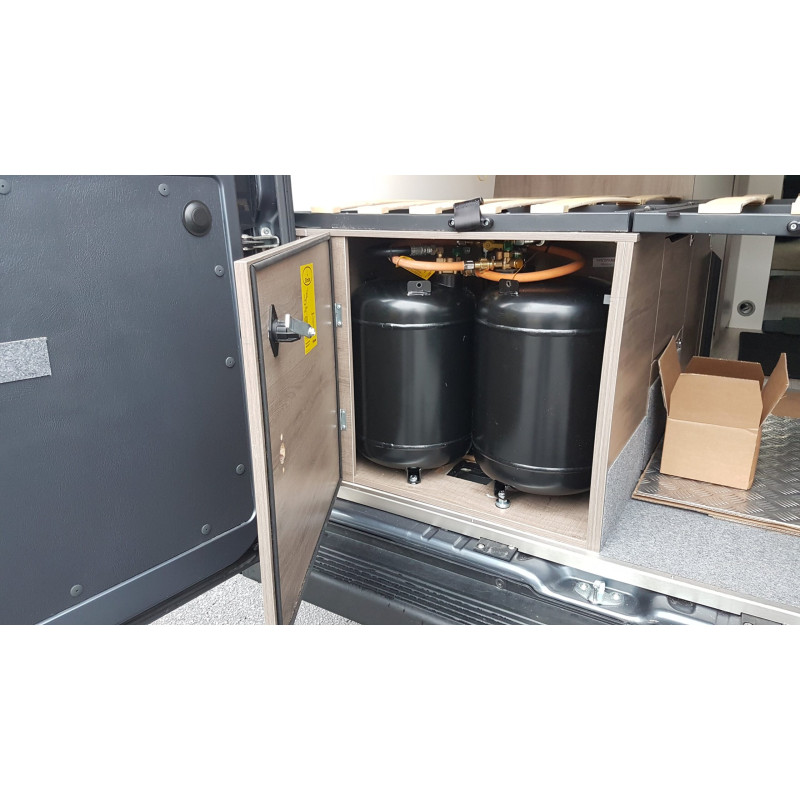

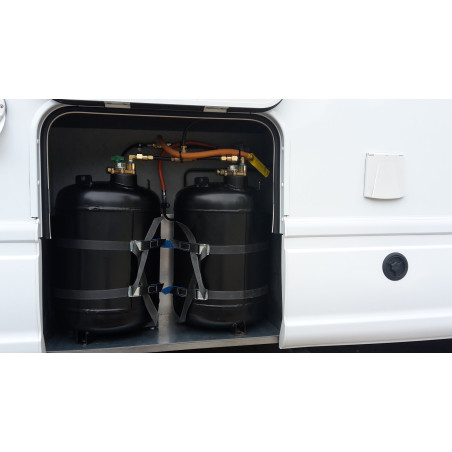

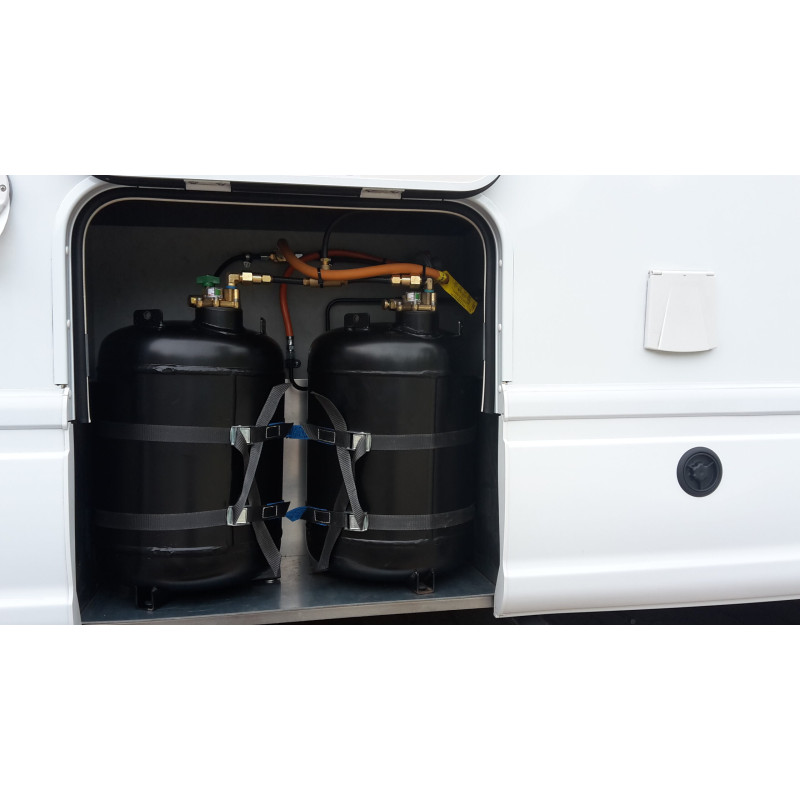

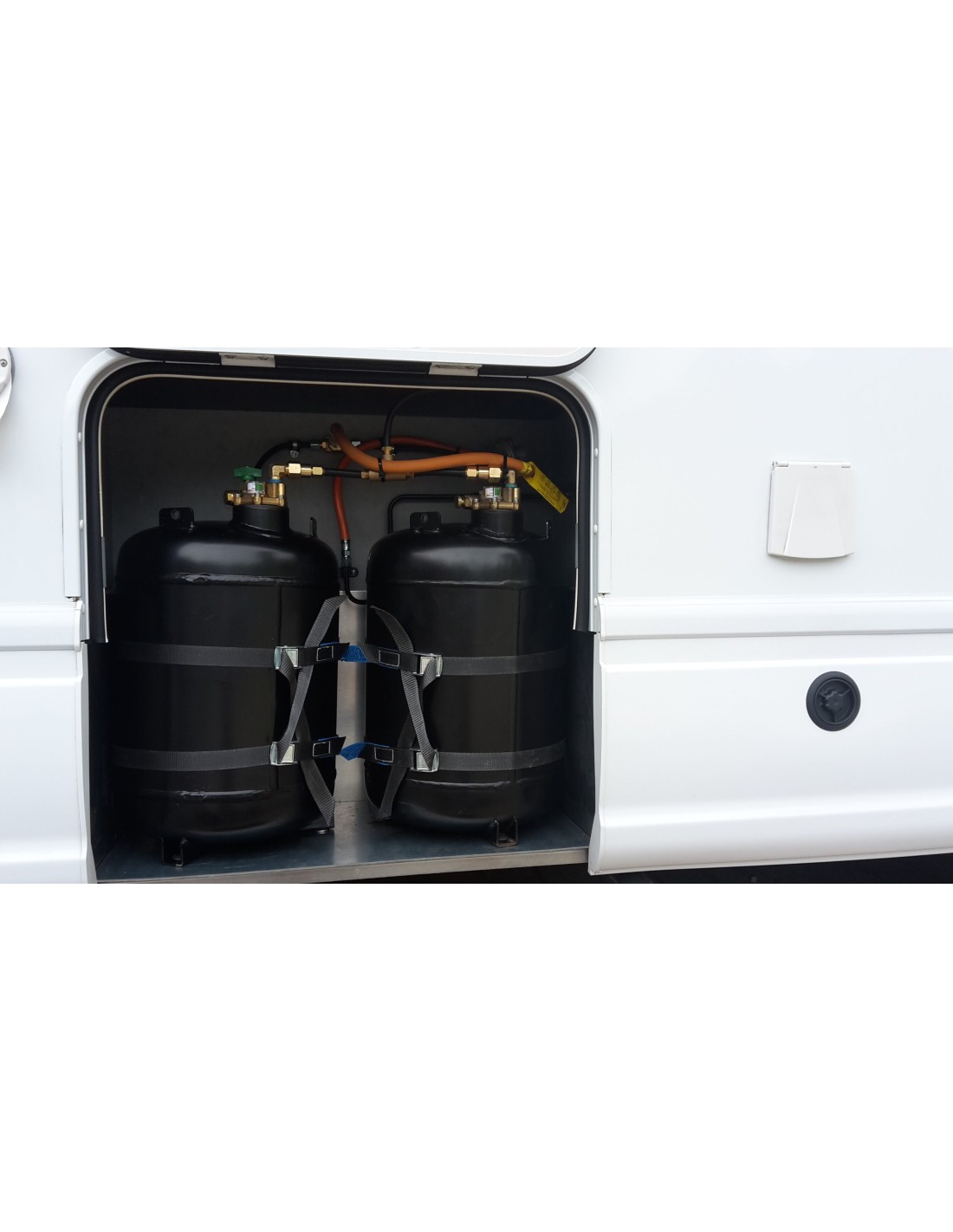

It can be installed individually or as a multi-cylinder system.

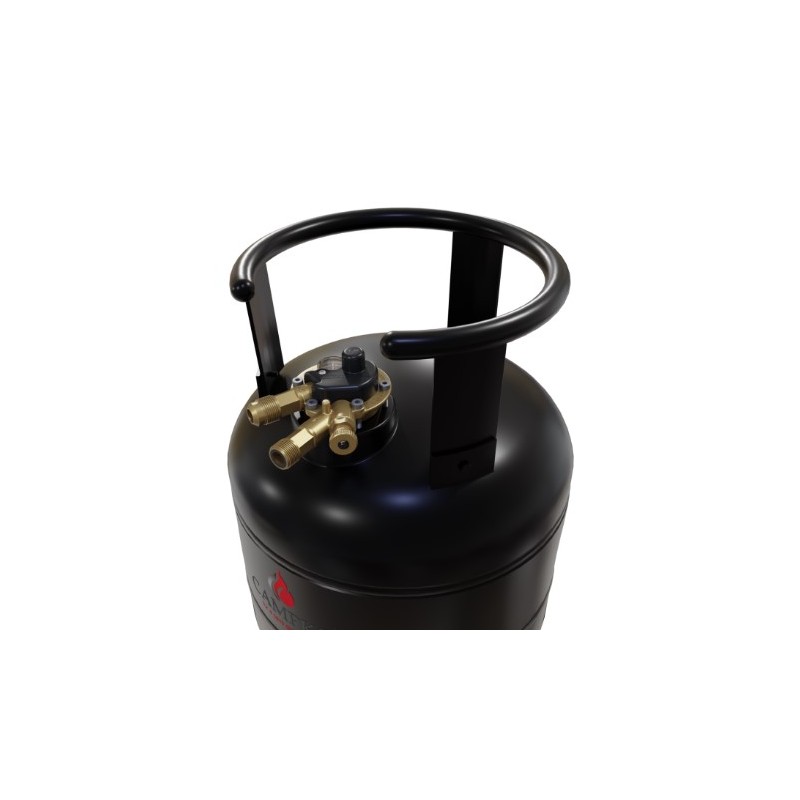

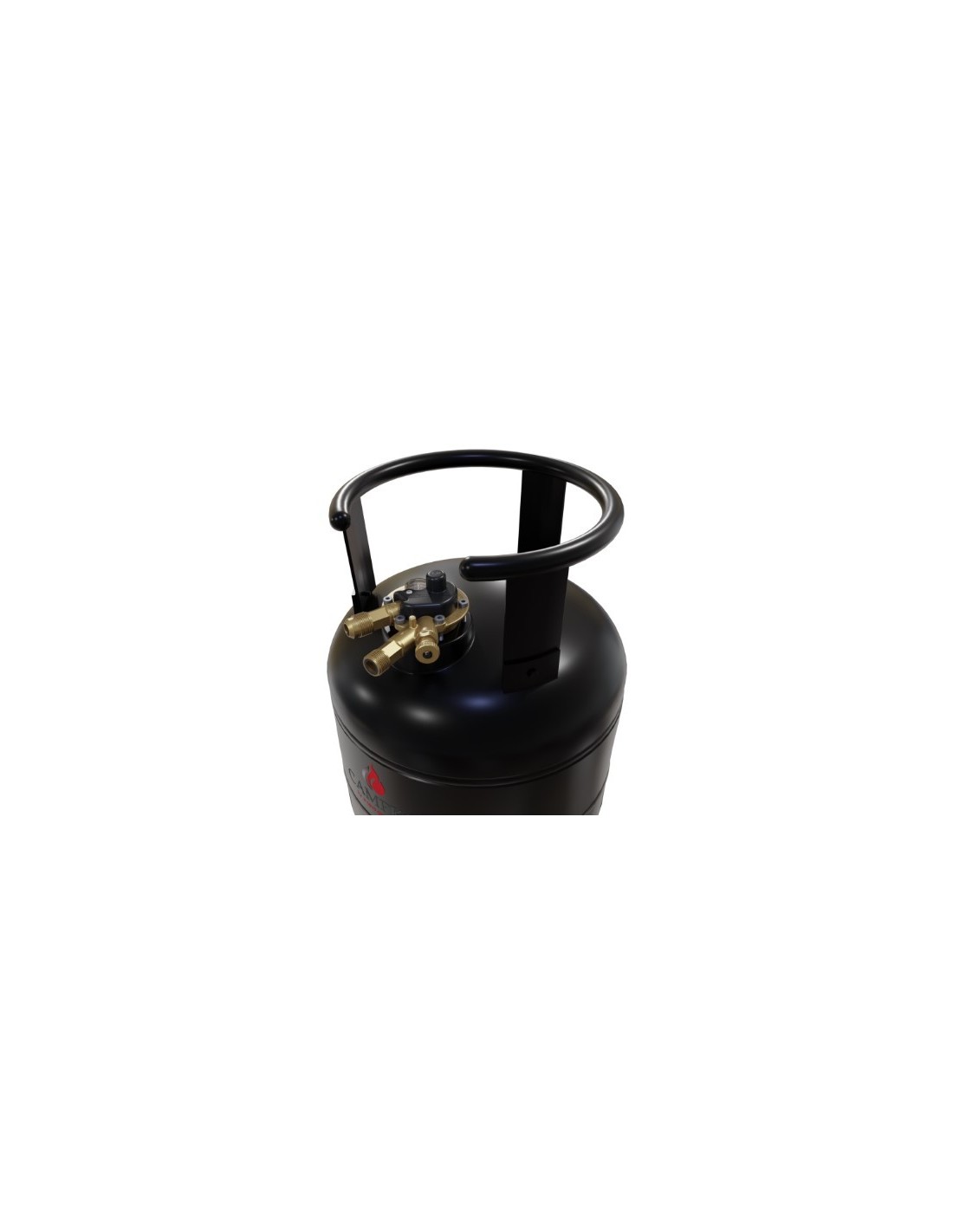

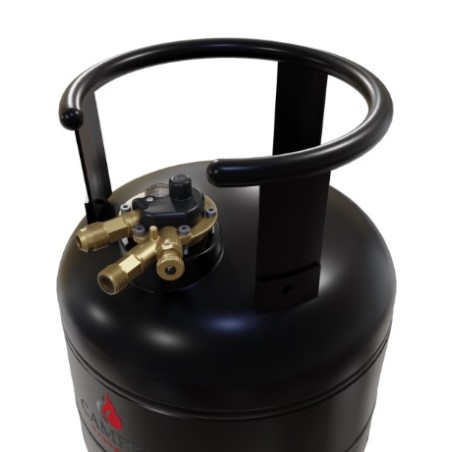

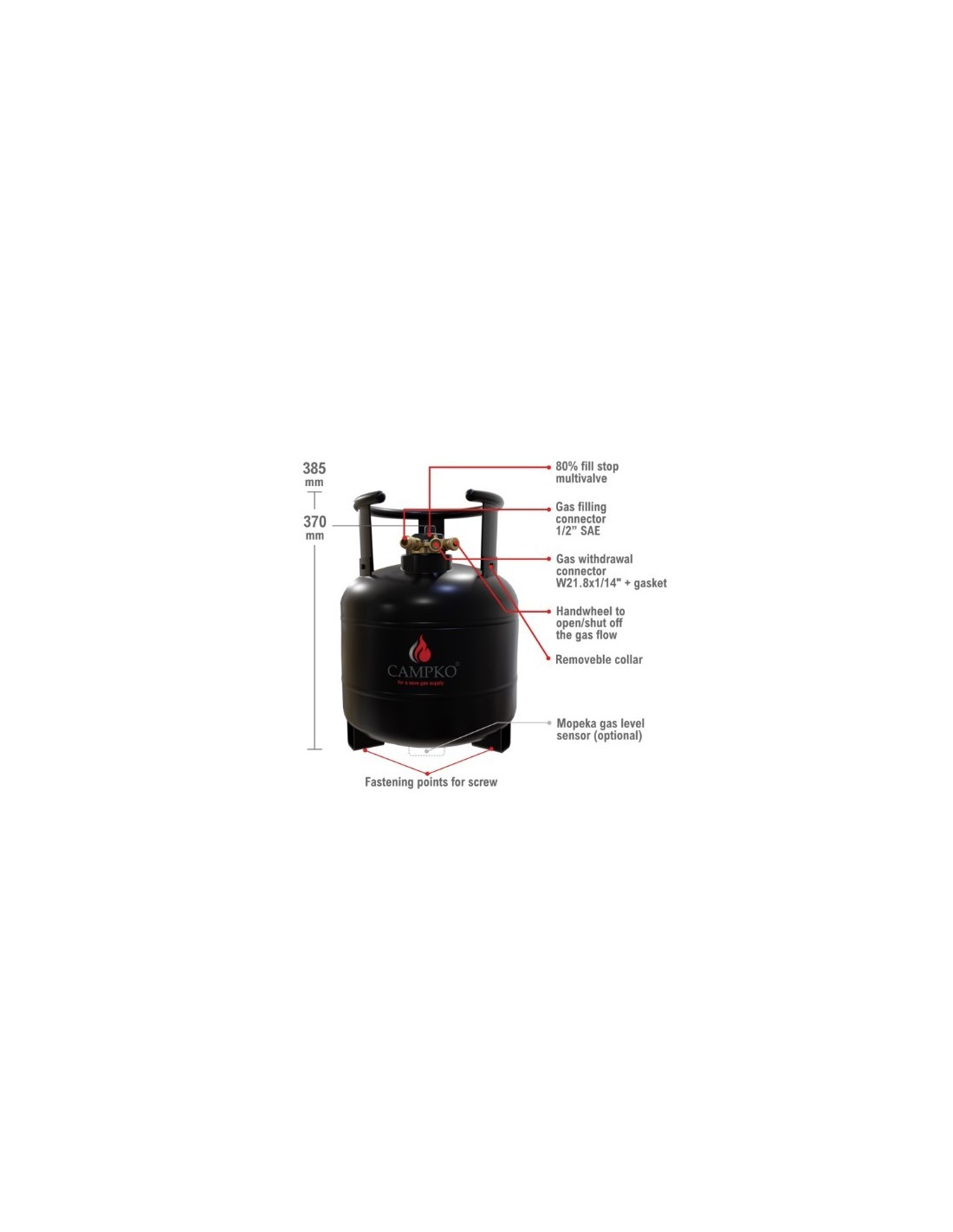

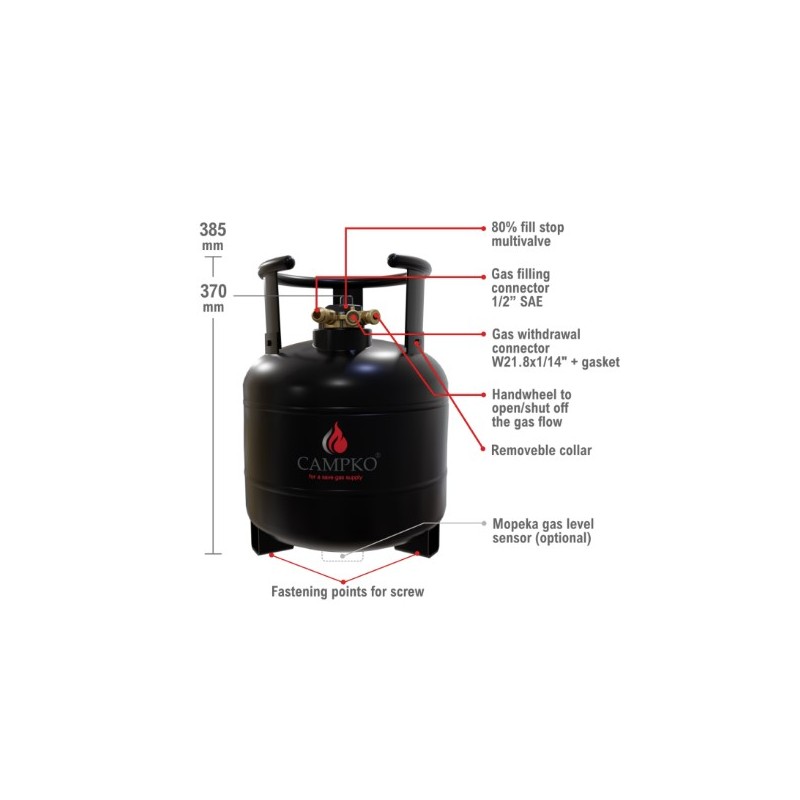

The cylinder collar is removable, but in most cases the open design of the cylinder collar provides enough space to mount a gas pressure regulator or gas filter directly to the cylinder.

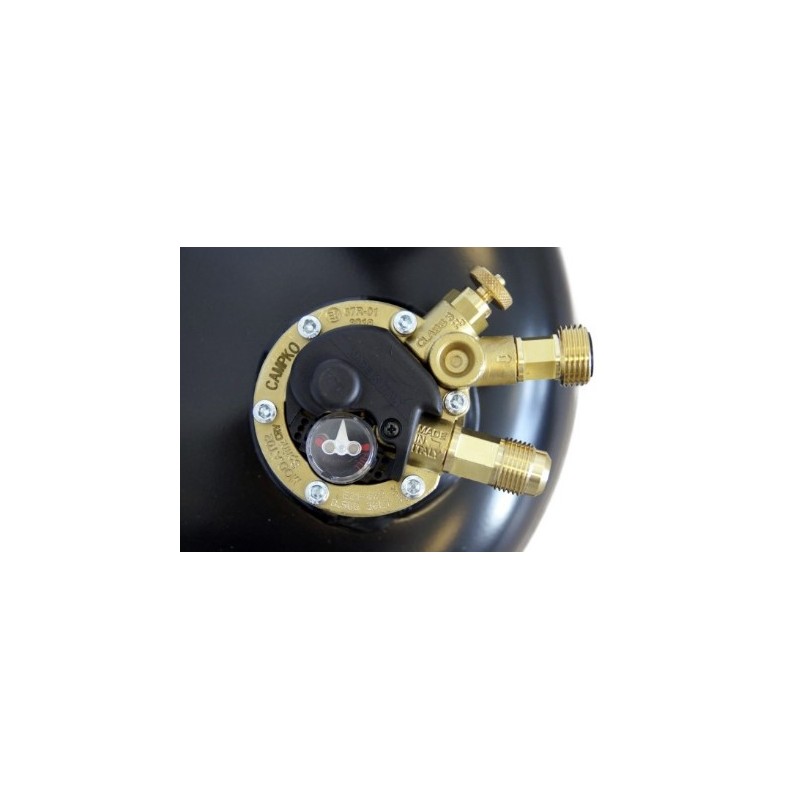

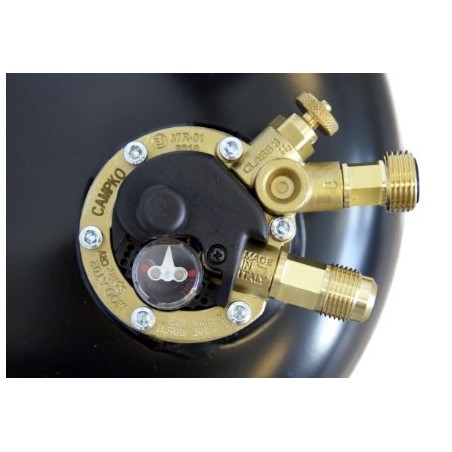

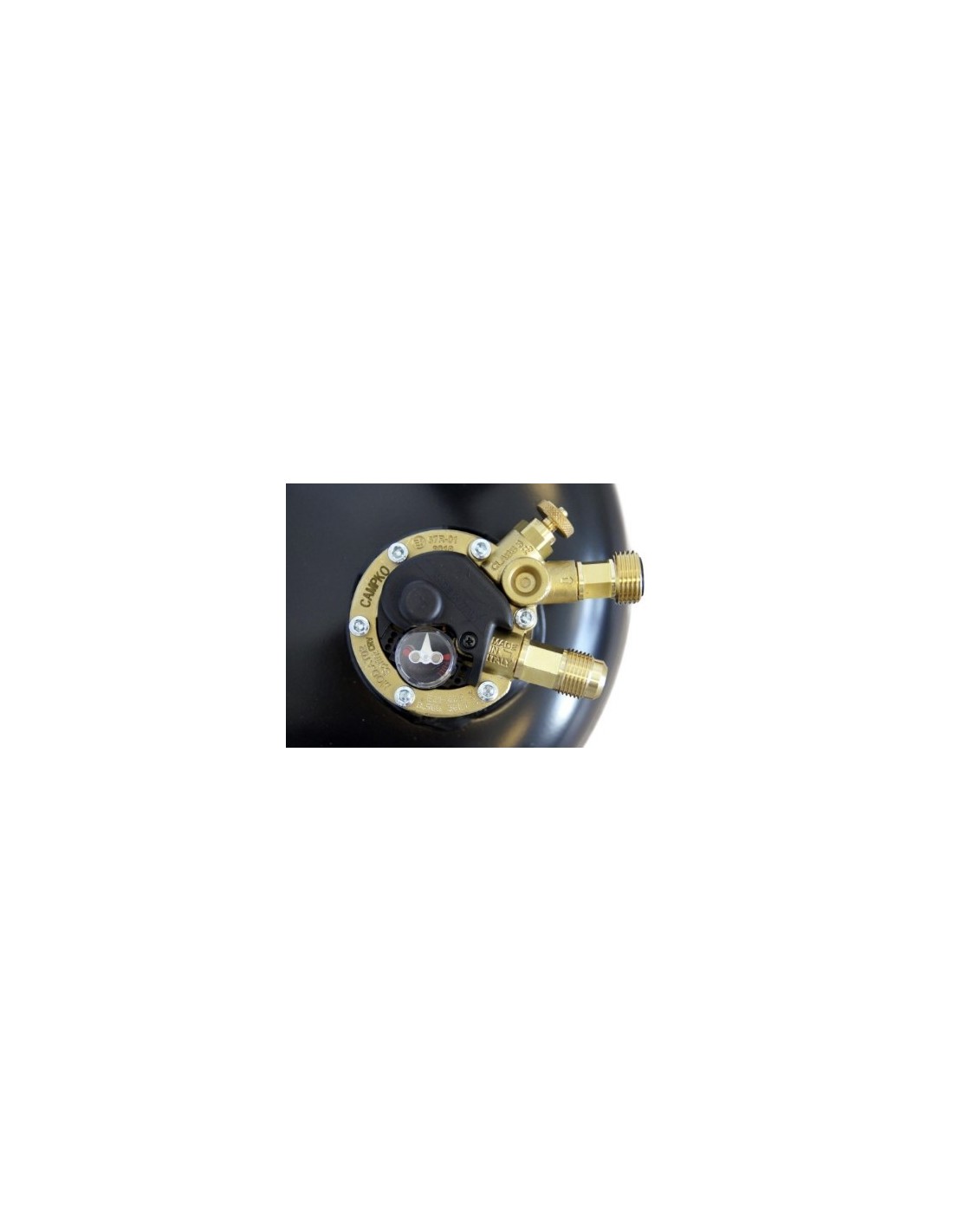

The CAMPKO cylinder is equipped with a multiple valve with 80% filling stop and overpressure safety valve.

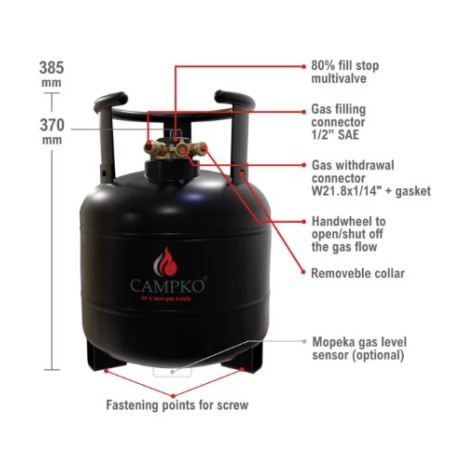

Connections available

INLET SIDE OR FILLING FITTING

3/4" UNF thread for connecting an LPG filling hose.

M12 internal thread for compression mounting on copper or steel pipes

EXIT SIDE WITHDRAWAL FITTING

W21.8x1/14" LH - G.12 connection (also known as small cylinder connection in Germany)

M12 internal thread for compression mounting on copper or steel pipes
