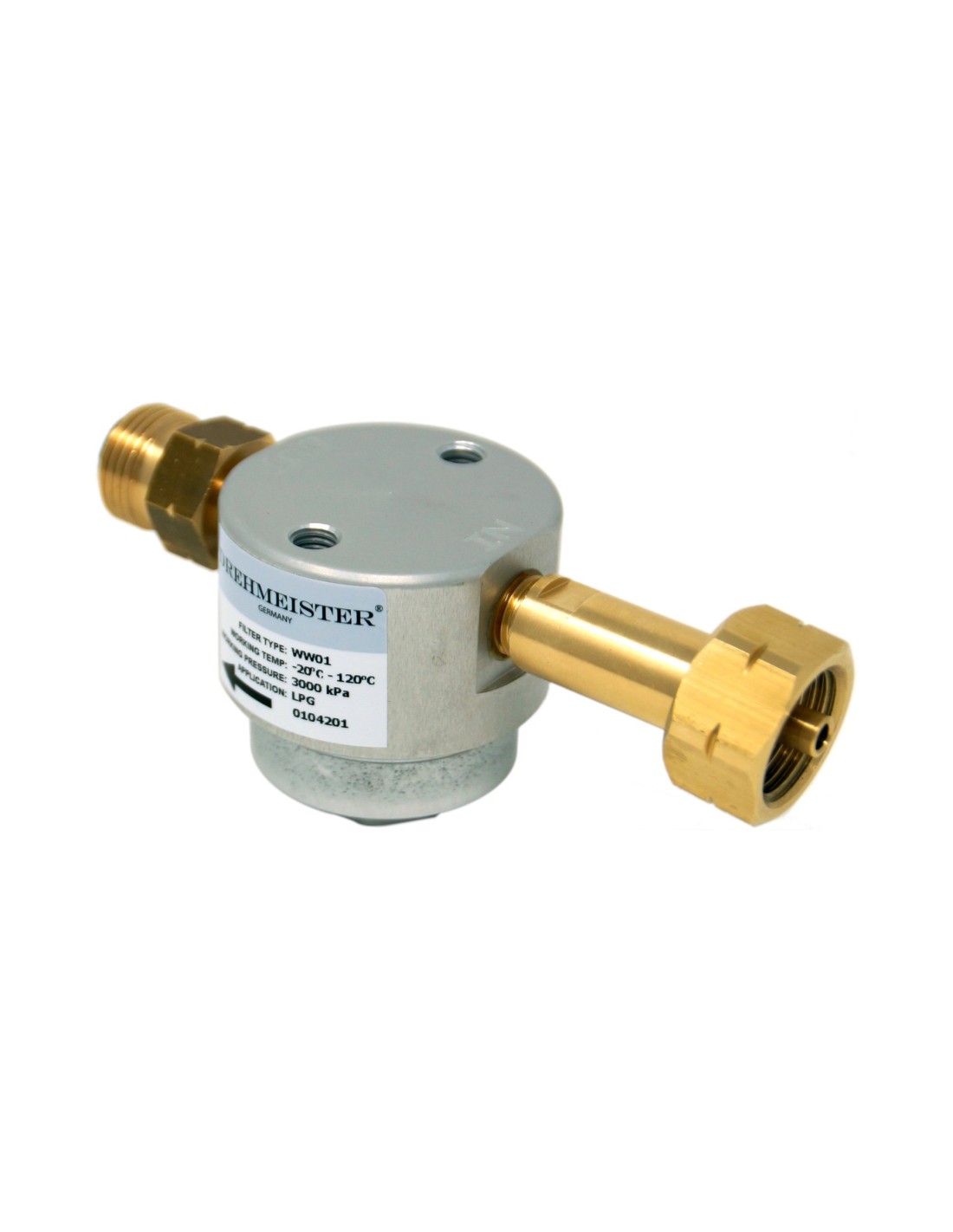

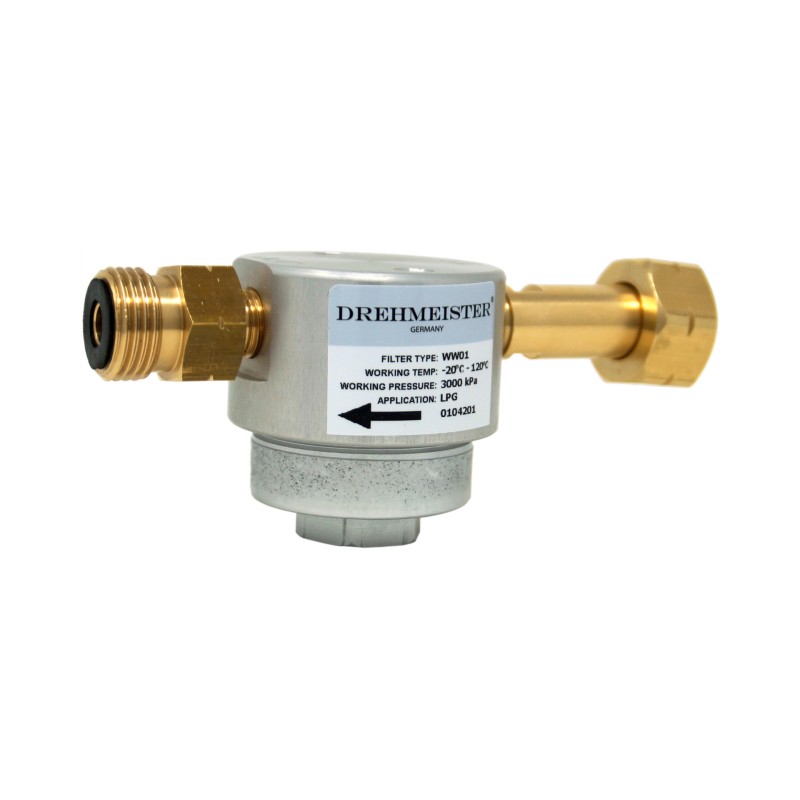

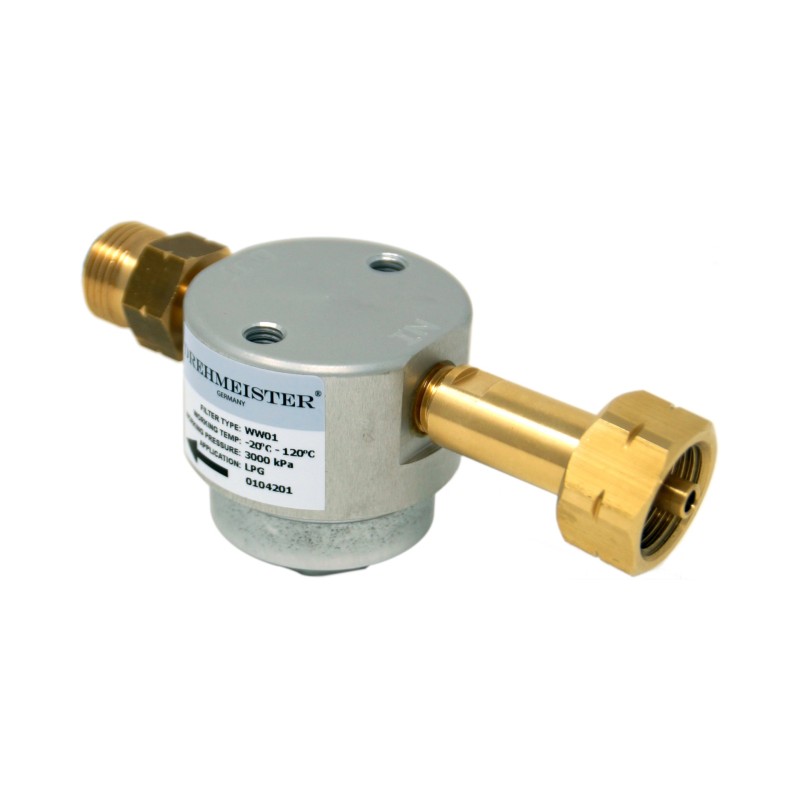

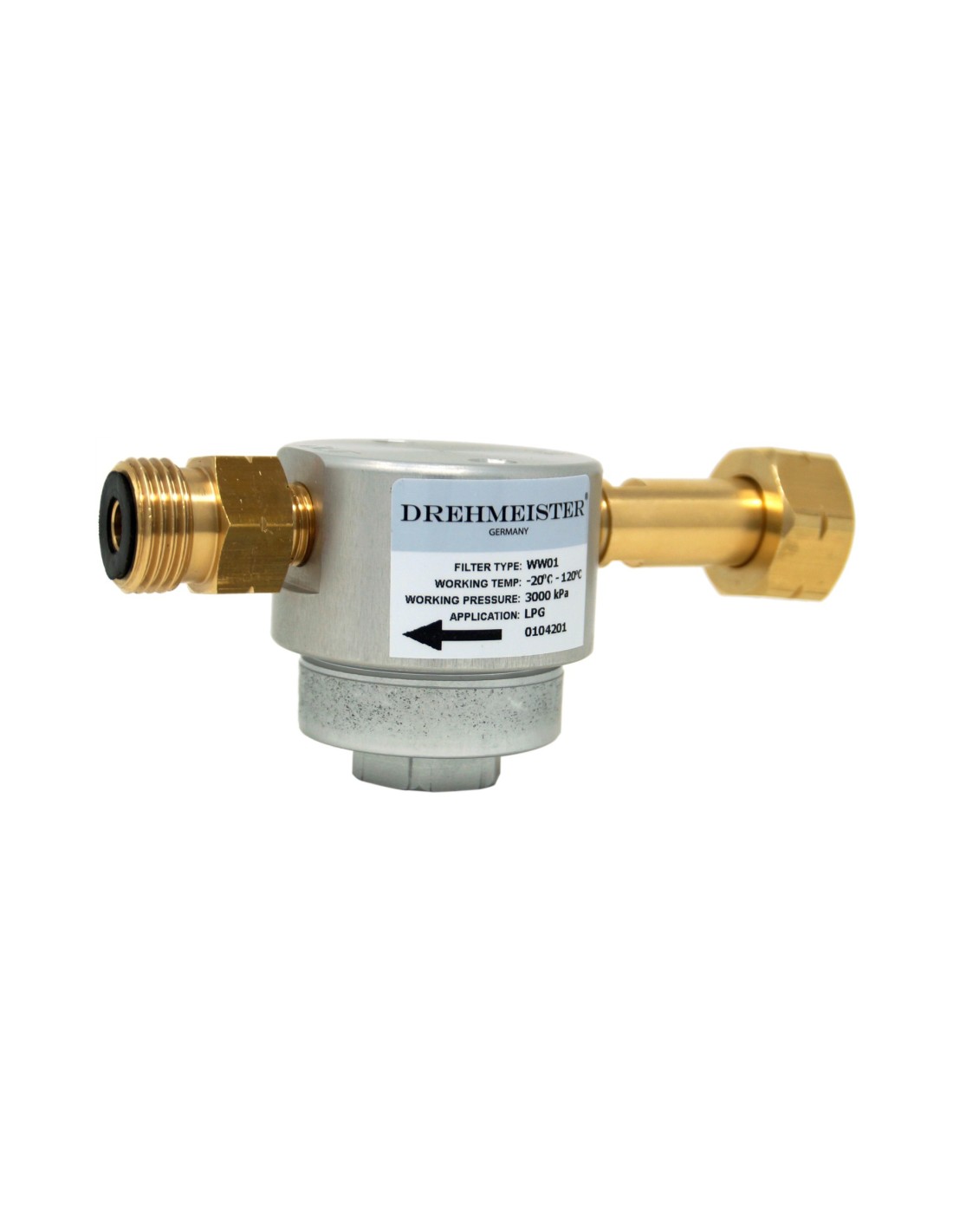

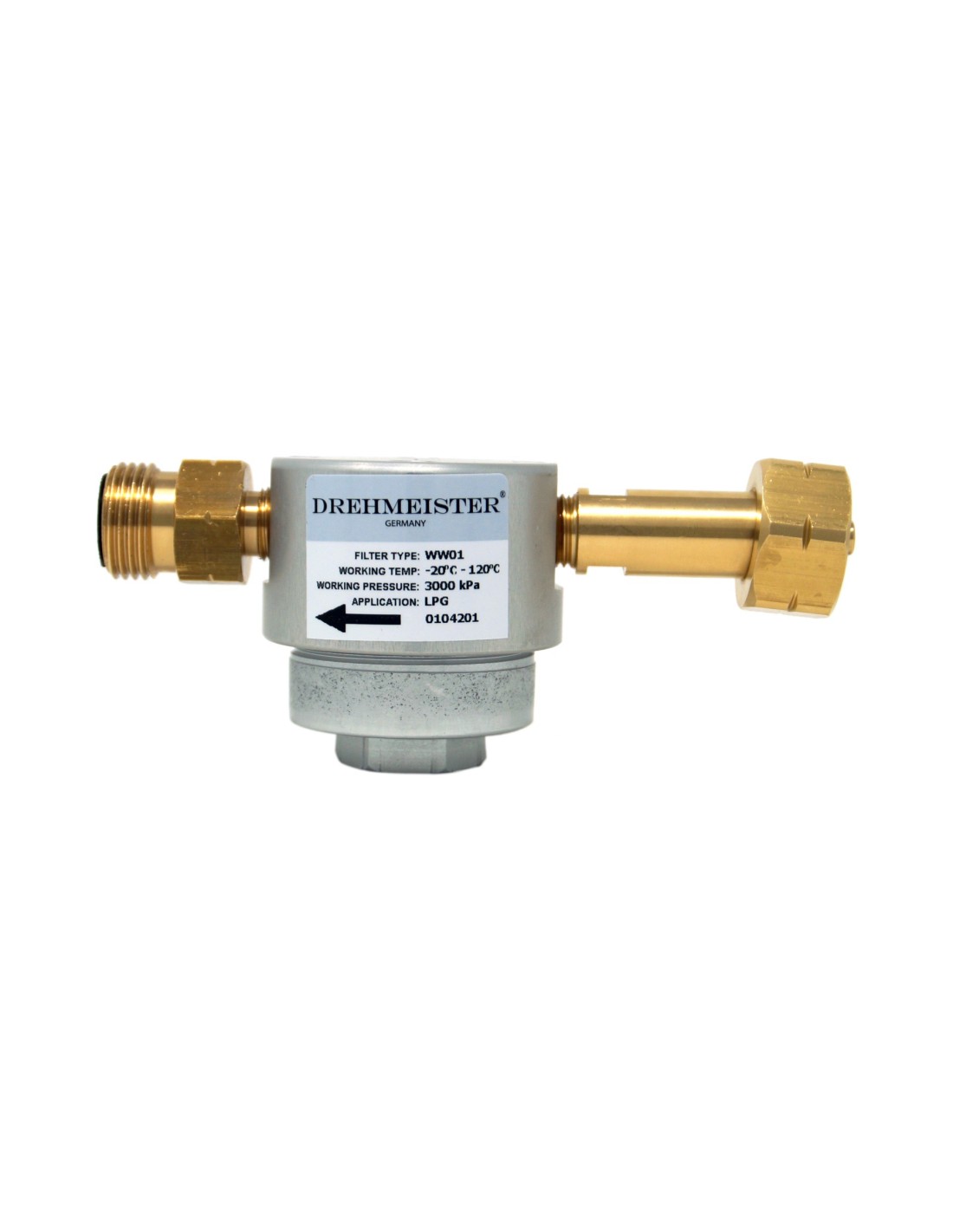

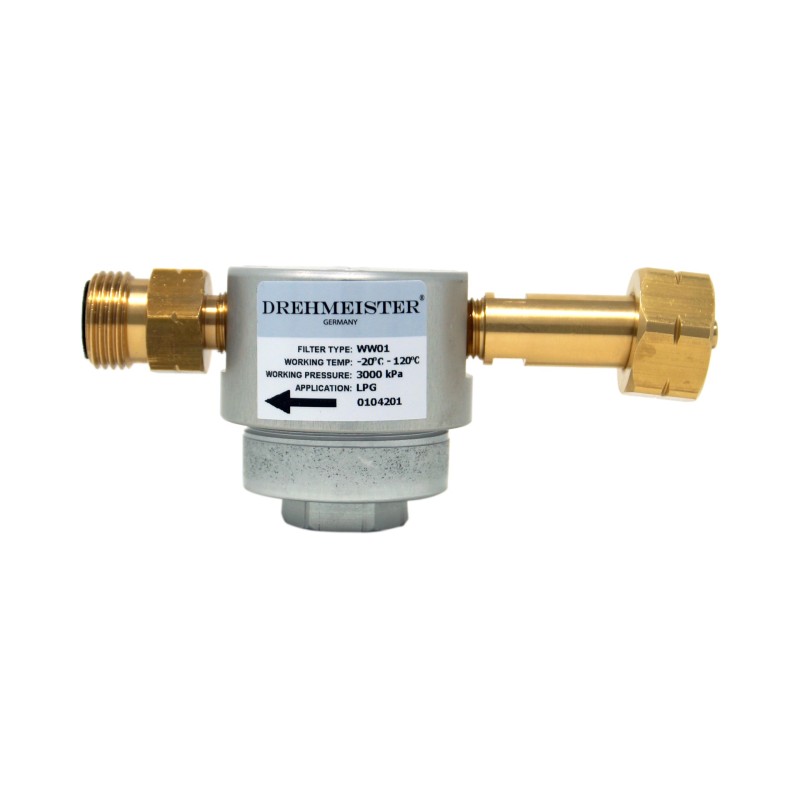

DREHMEISTER SMART LPG Cylinder Filter W21.8 x 1/14 LH - Long Version

DREHMEISTER SMART LPG Cylinder Filter W21.8 x 1/14 LH - Long Version

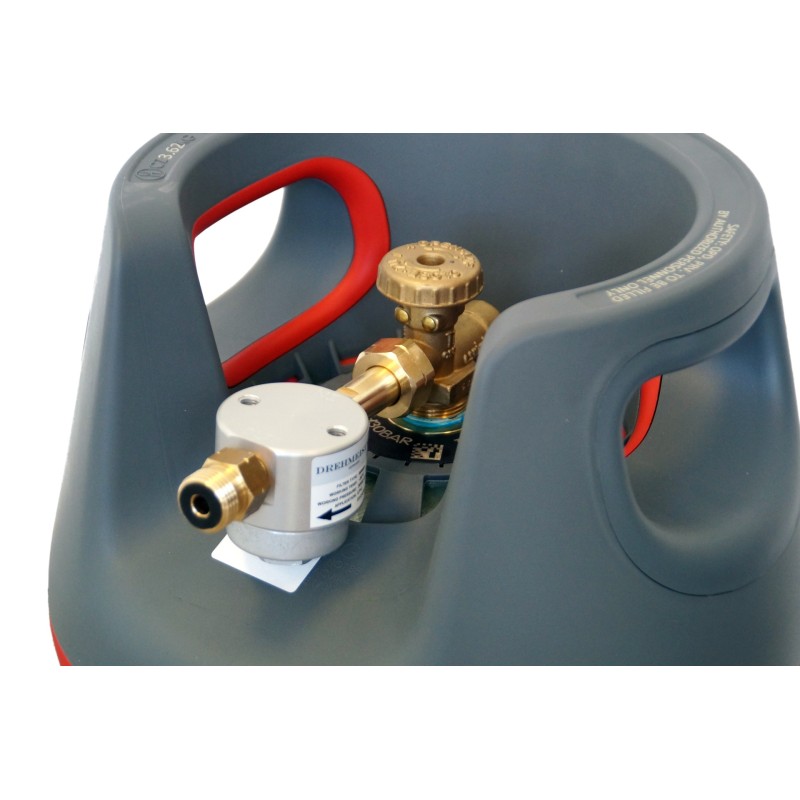

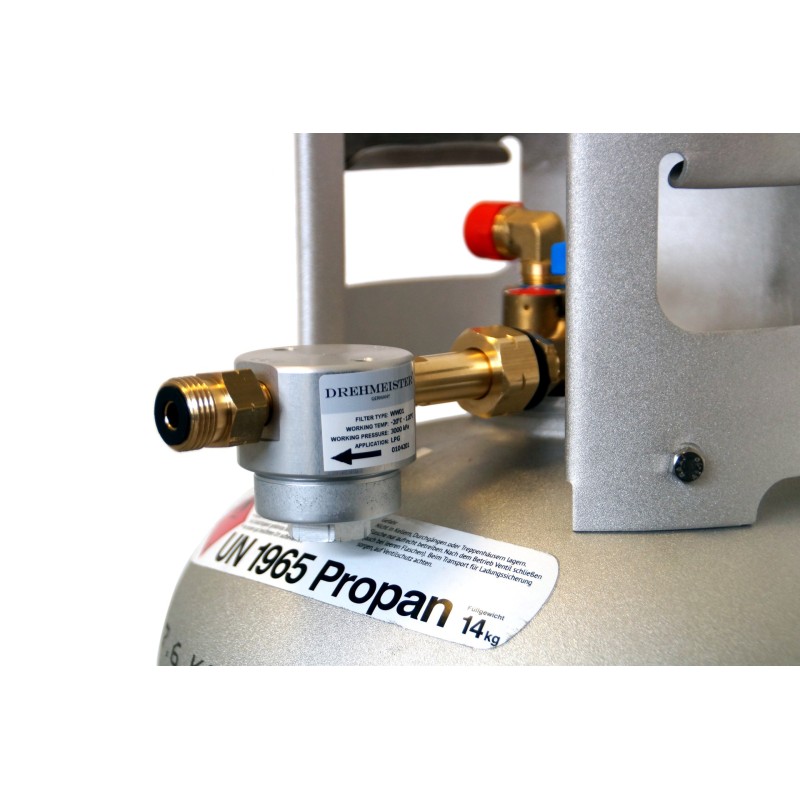

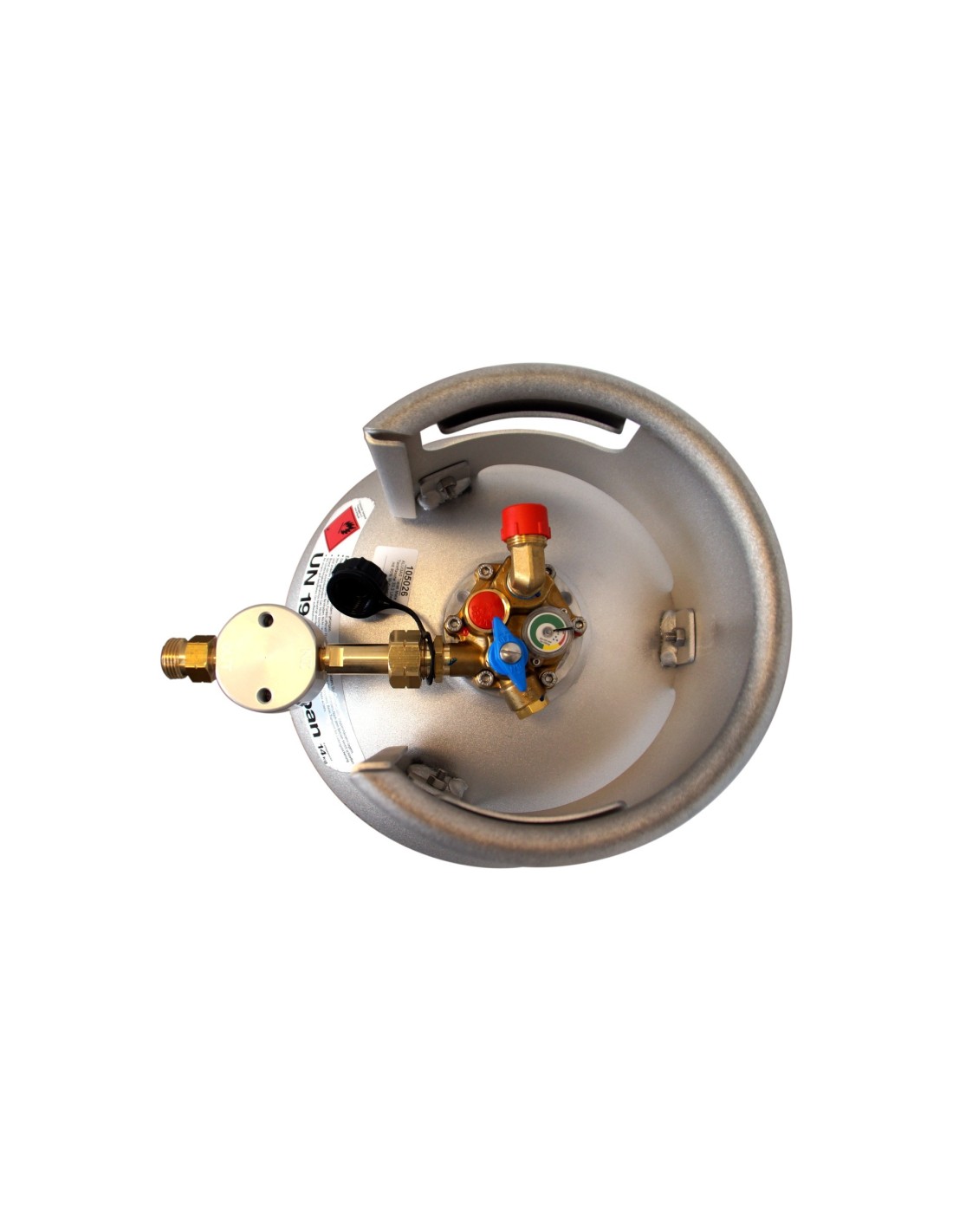

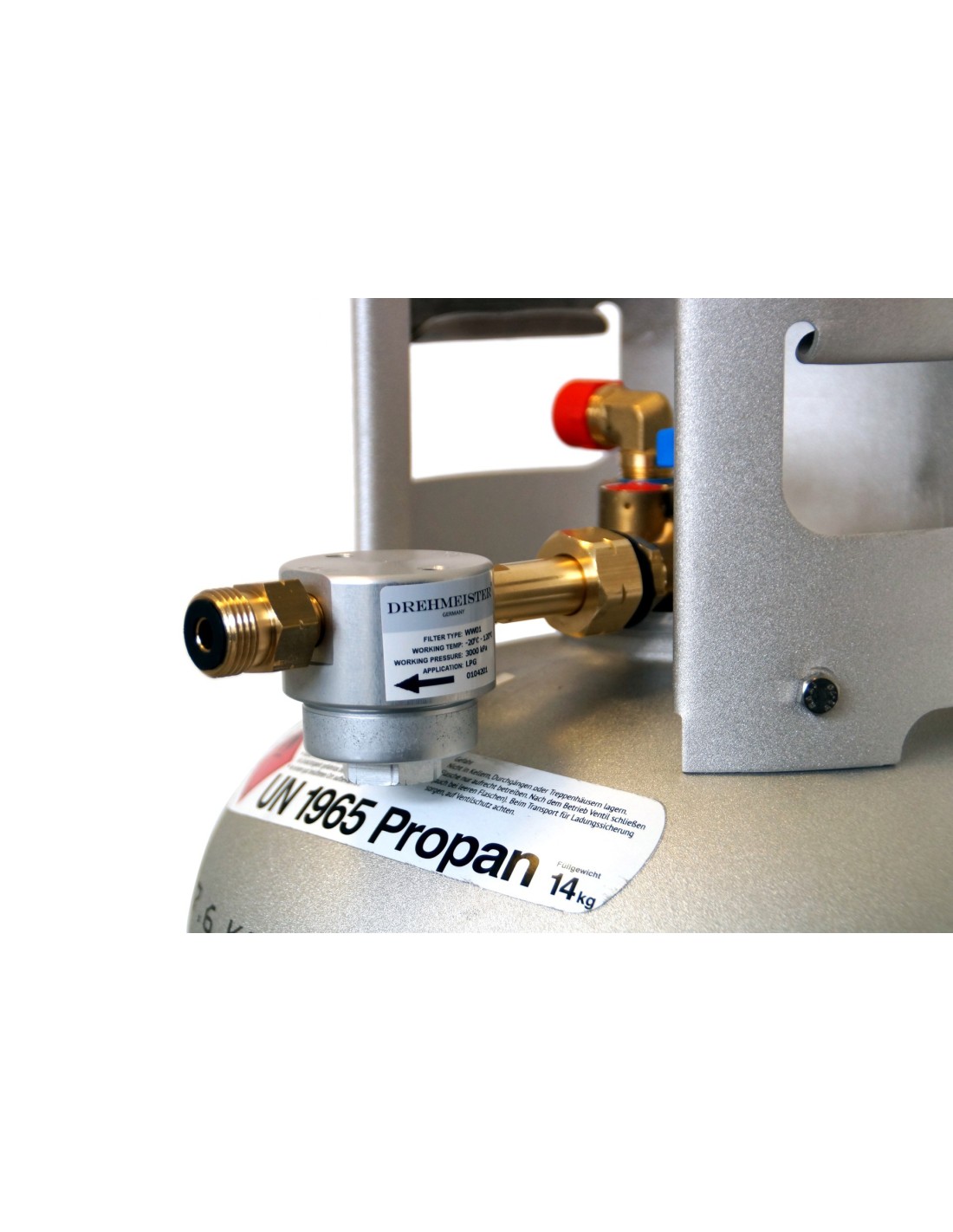

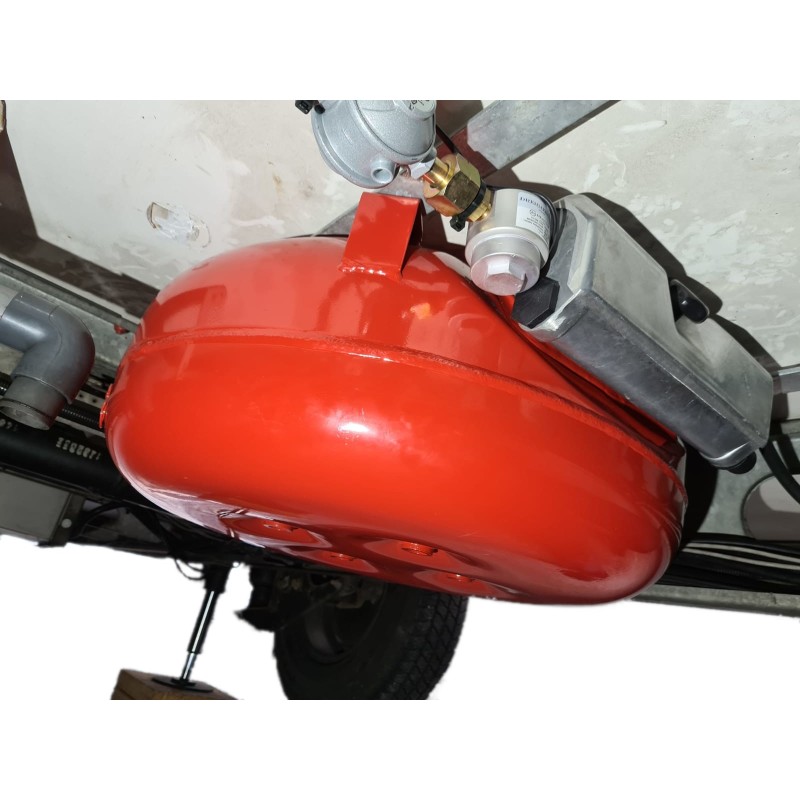

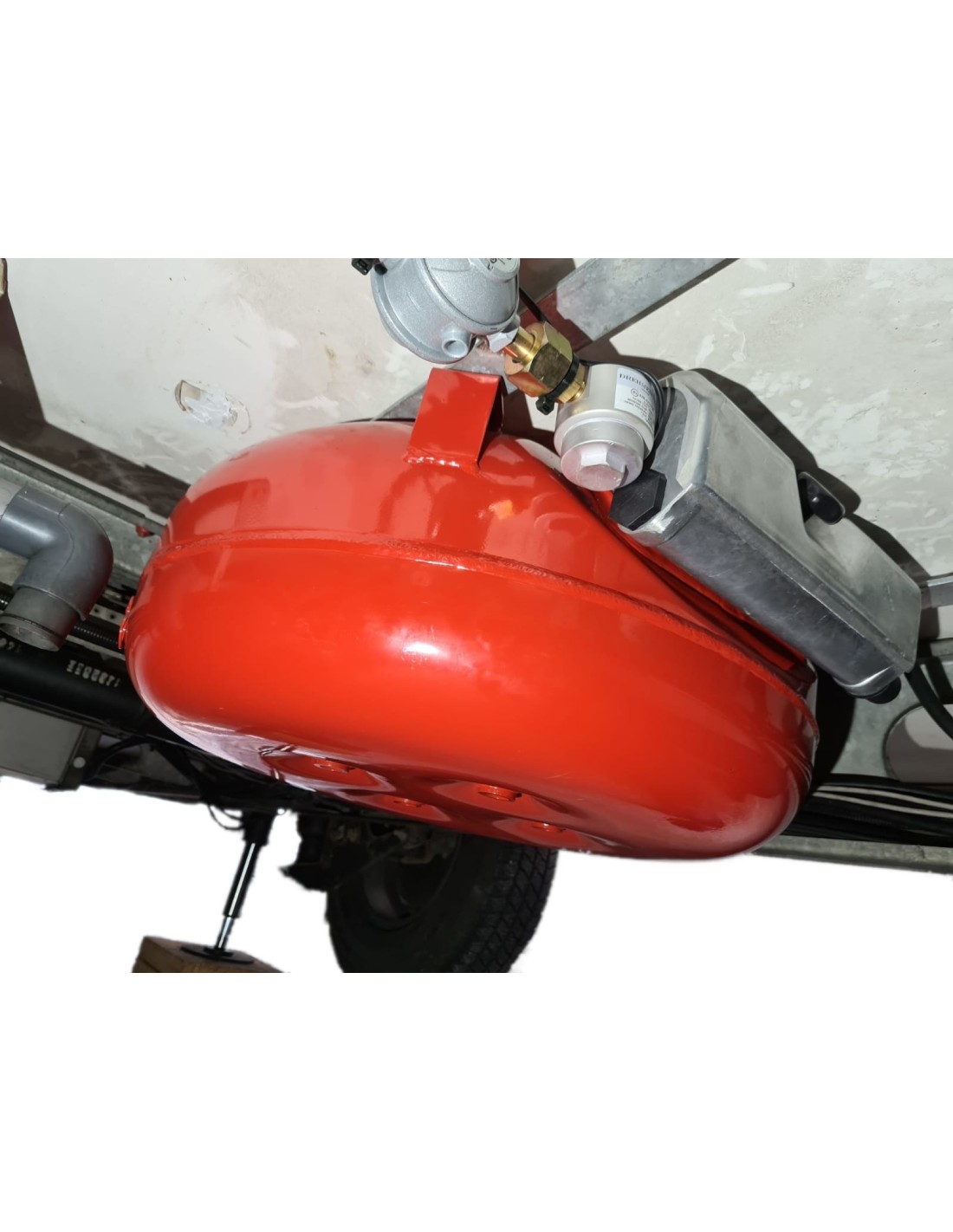

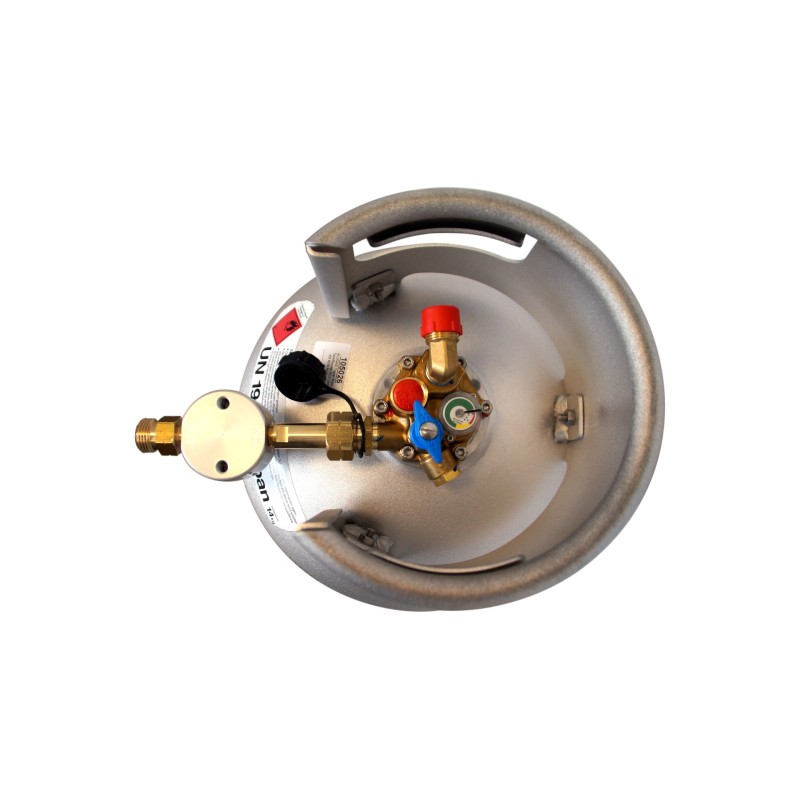

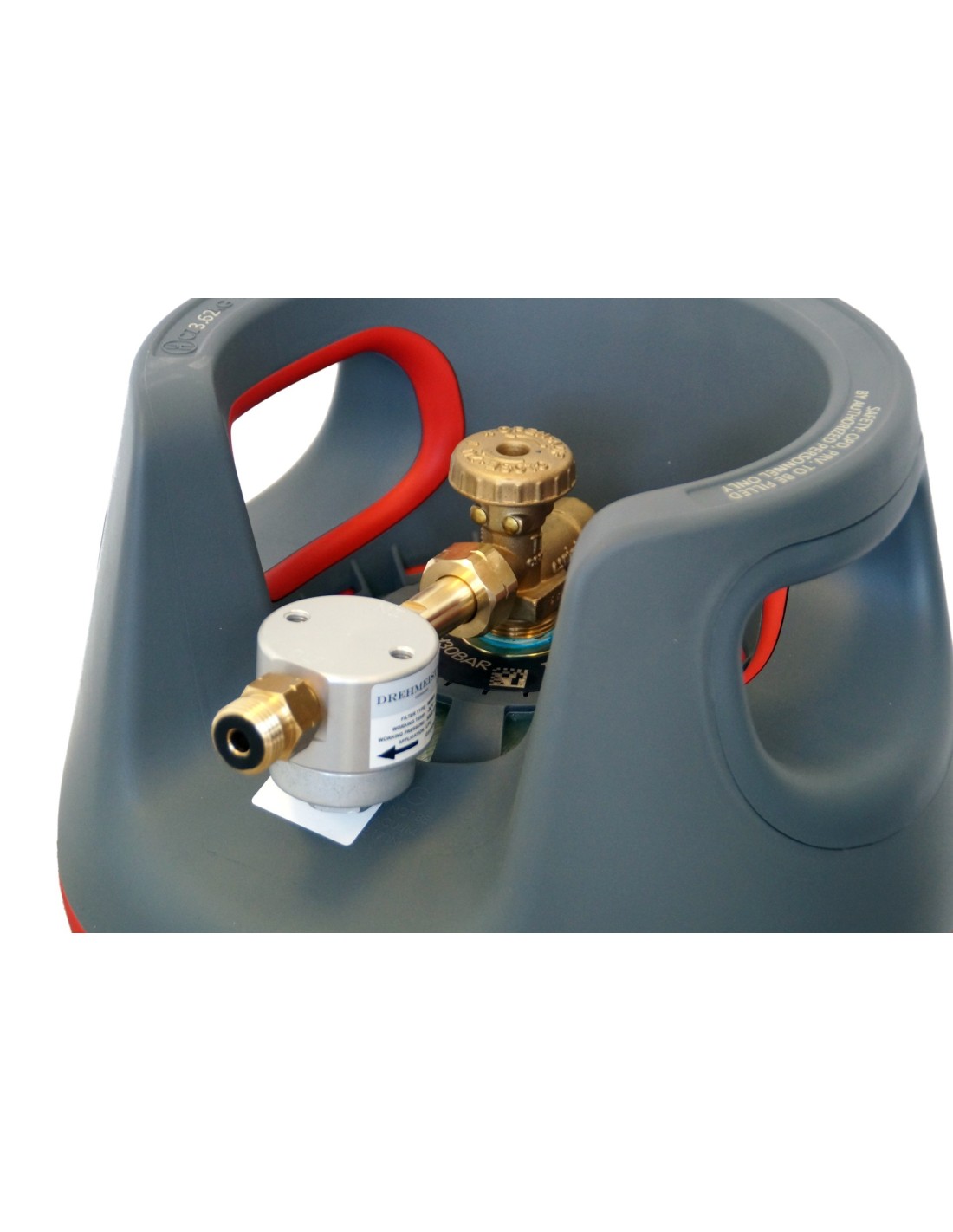

DREHMEISTER gas filter for direct installation on the outlet valve of the gas cylinder or tank or for installation in the gas box. The replaceable filter insert is made of glass fibre.

Extra-long version (136 mm)

Filter inlet: G.12 = W21.8 x 1/14 LH (for other connections, use a corresponding adapter such as 107275 for adaptation) Filter outlet: G. 12 small cylinder connection

Gas type: LPG (propane/butane)

Operating pressure: up to 30.4 bar

Operating temperature: -20° to 125°

Dimensions: 14 x 5.5 x 5.2 cm (L x W x H)

Weight: 407g

Total length: 136 mm

Total height: 56 mm

Maintenance:

Cleaning: Clean the filter regularly at least once a year and replace the insert if necessary.

Safety information and warnings:

Use: The filter is intended for use exclusively with LPG gas cylinders and tanks.

Installation: must be performed by qualified personnel only.

Leak Test: Check for leaks after installation.

Maintenance: The filter should be checked and cleaned regularly.

Replacement: Replace the filter immediately if there is visible damage or malfunction.

Storage: Store in a dry, clean place.

Installation:

Preparation: Make sure all gas valves are closed.

Installation: Screw the filter between the gas cylinder and the pressure regulator. Make sure the connections are correctly aligned.

Leak test: Slowly open the gas valve and check all connections for leaks, for example with a leak detection spray.
