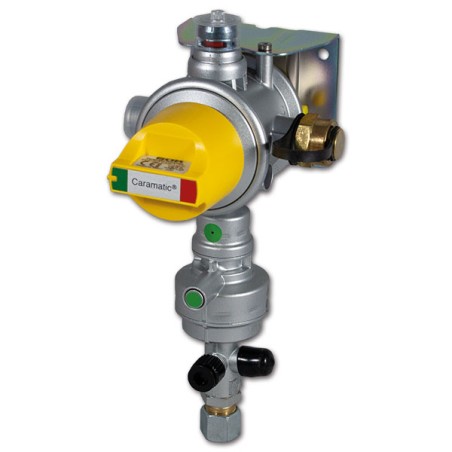

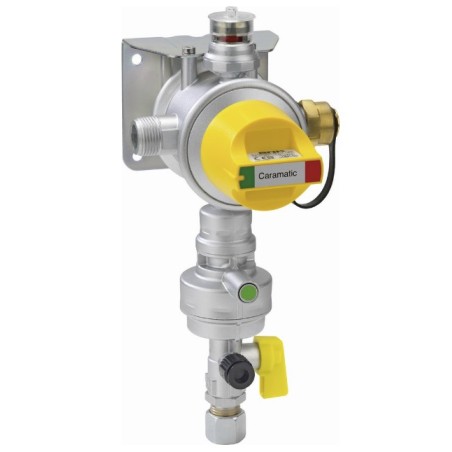

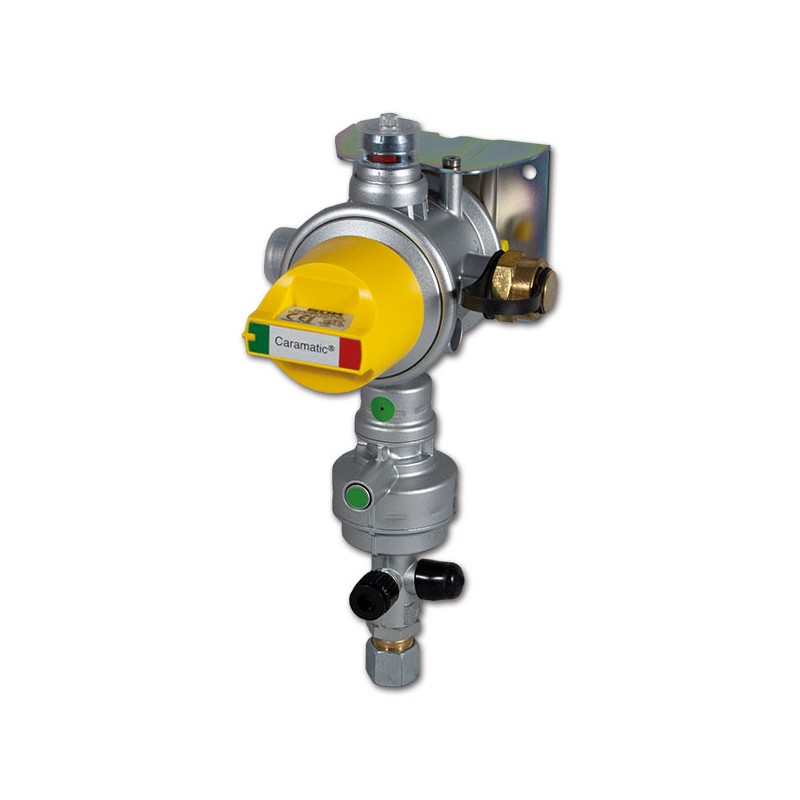

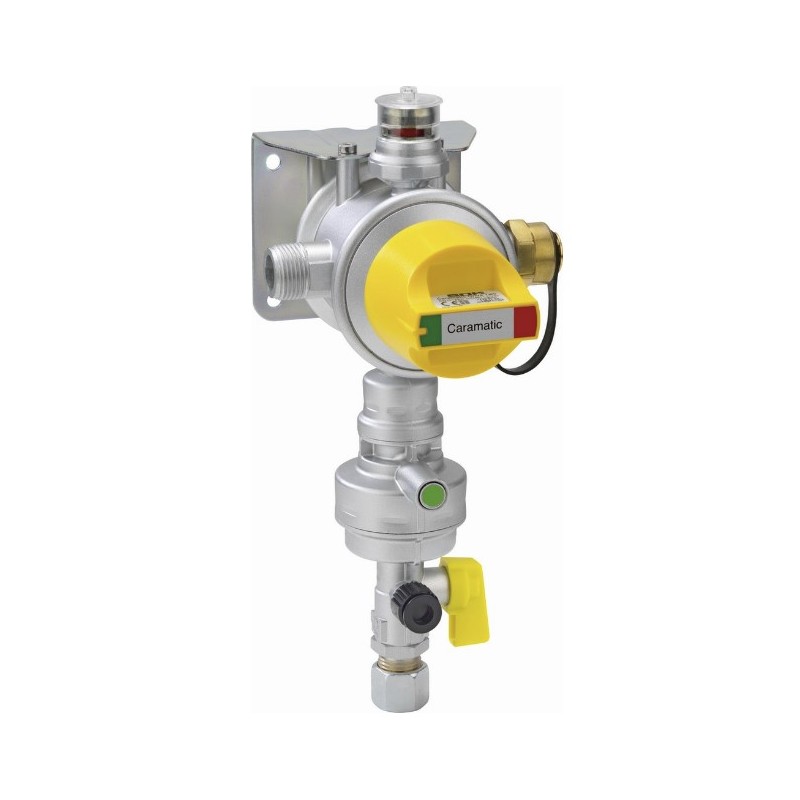

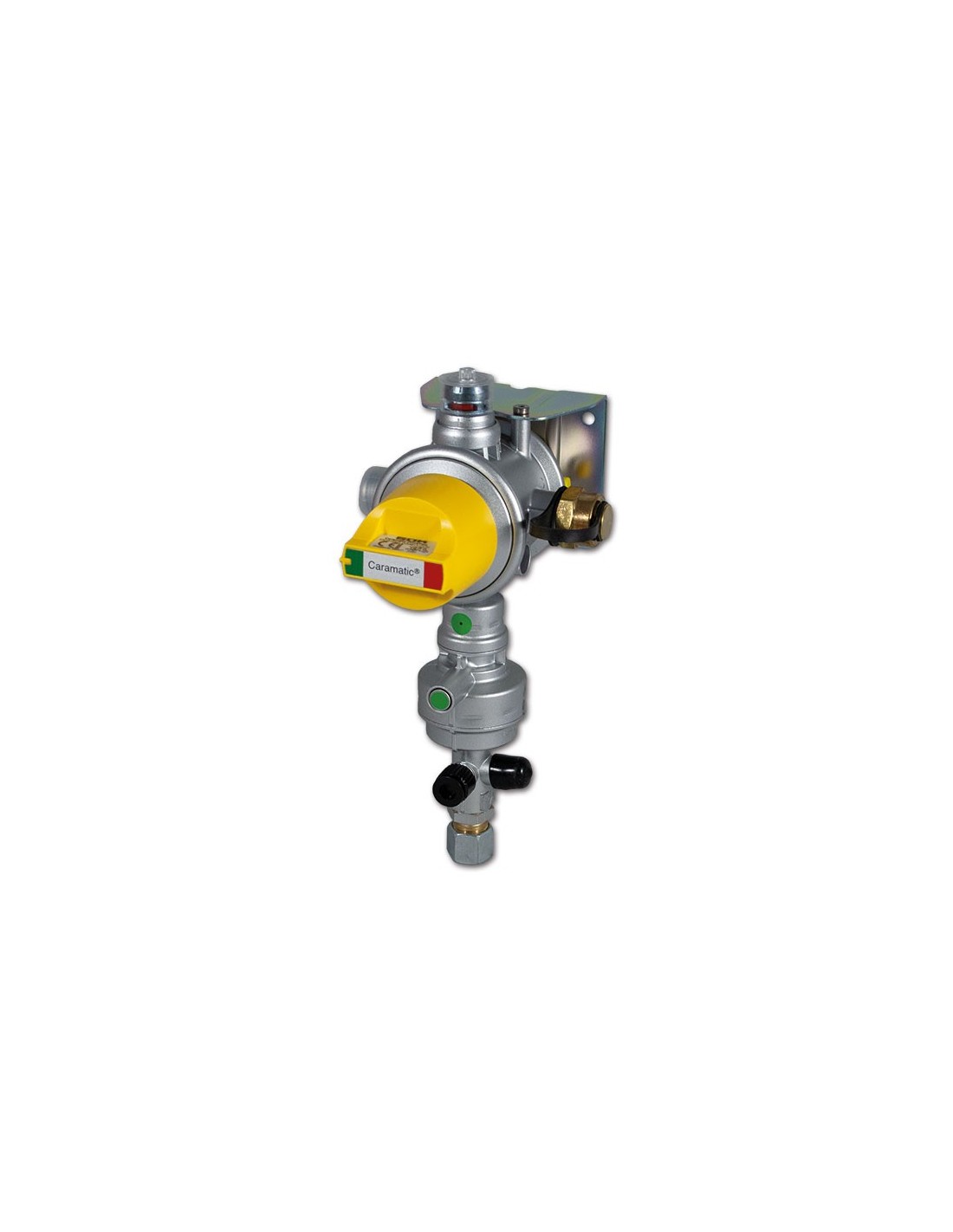

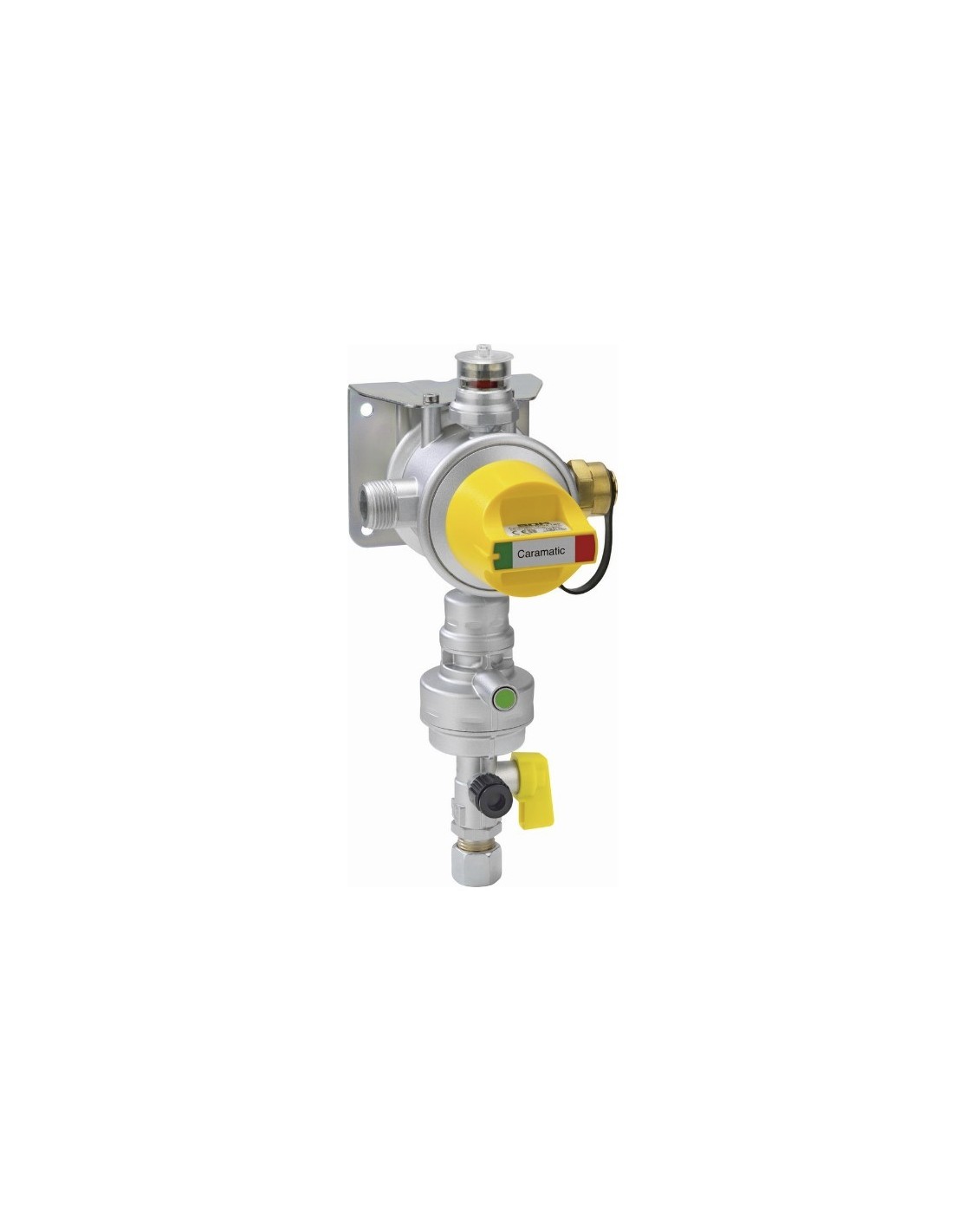

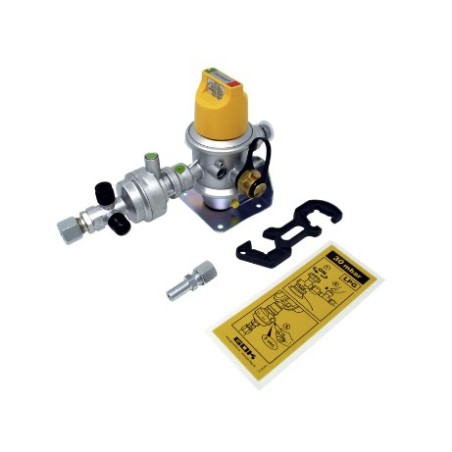

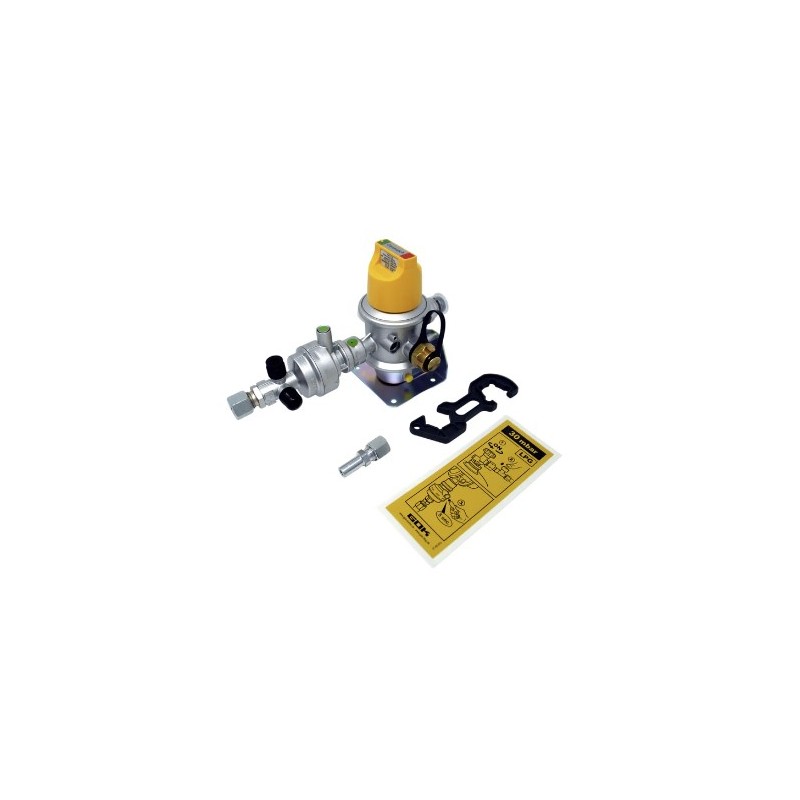

GOK CARAMATIC DRIVETWO CS VERTICAL REGULATOR FOR 2 CYLINDERS WITH CRASH SENSOR

CARAMATIC DRIVETWO CS VERTICAL REGULATOR FOR 2 CYLINDERS WITH CRASH SENSOR

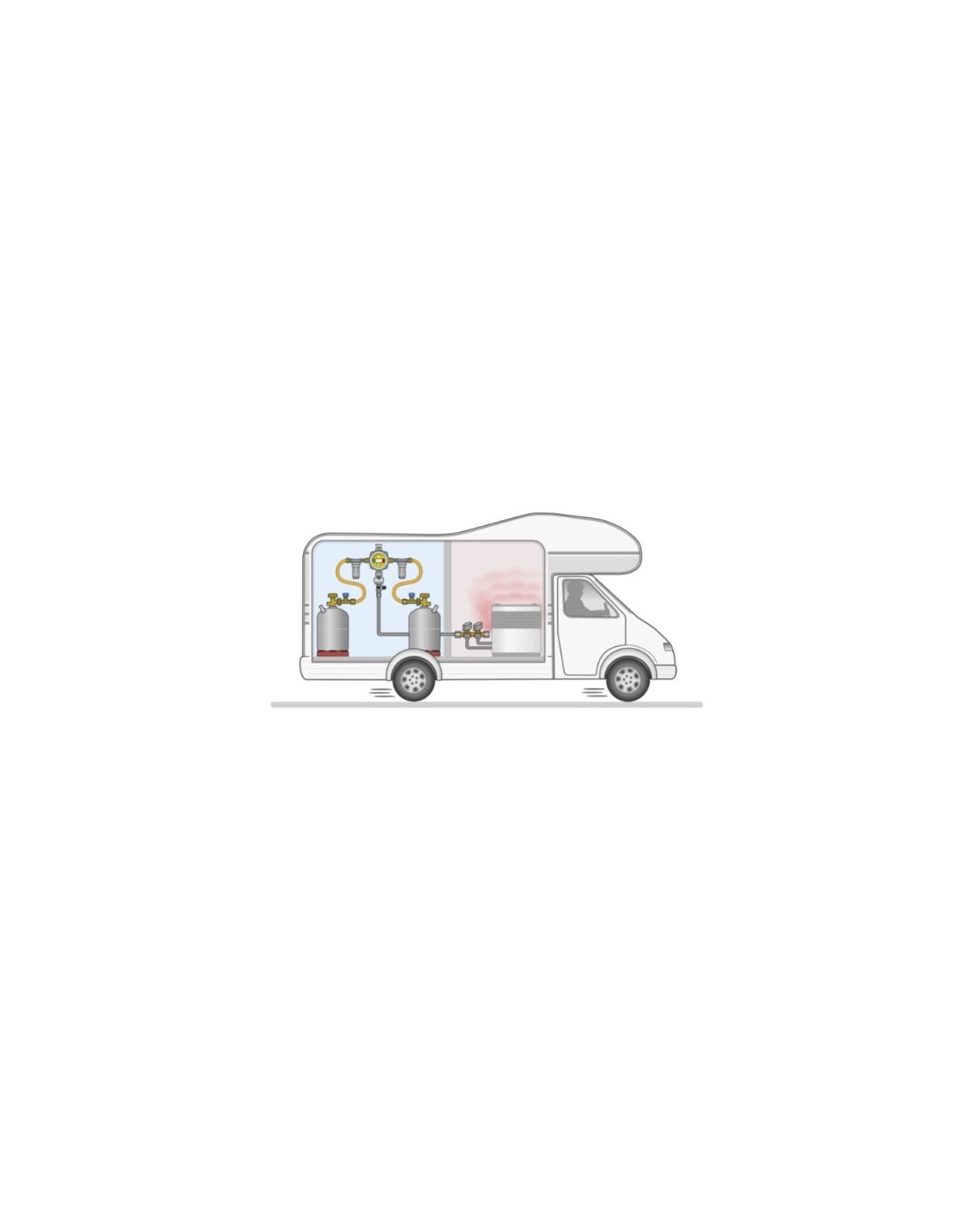

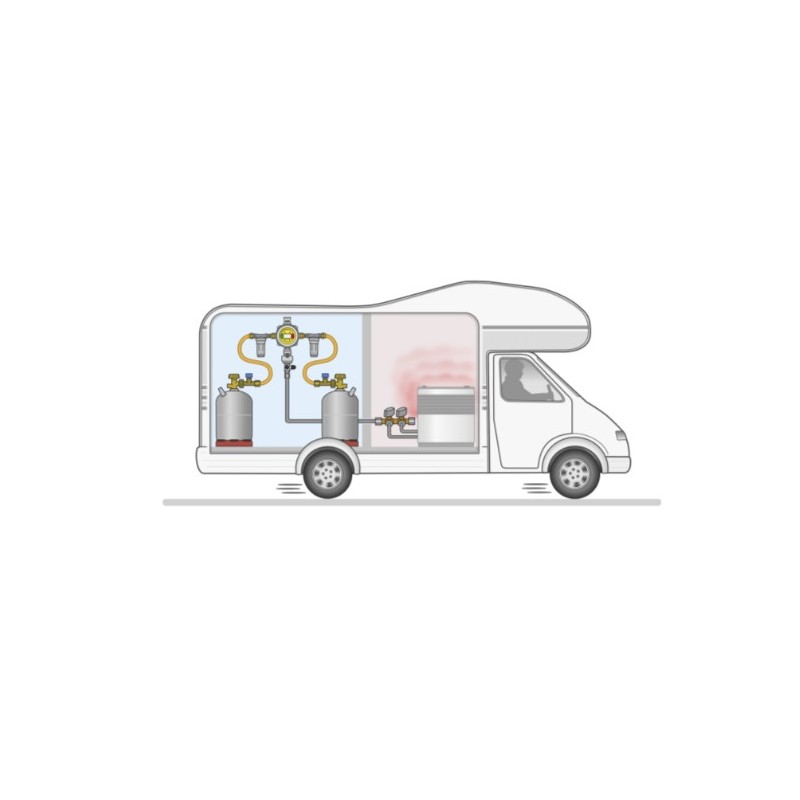

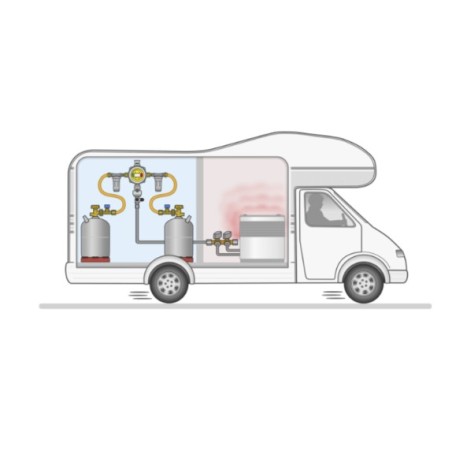

Gas pressure control safety system with automatic switching valve for the operation of double-cylinder systems in caravans and motorhomes while driving, for connection to gas cylinders via flexible high-pressure hose, for pressure control at the nominal pressure of the gas appliance.

Technical Description:

Input: 2 x AG M20 x 1.5

Exit: RVS 8mm

Outlet pressure: 30 mbar

Flow rate: 1.5 kg/h

Installation position in the gas box: vertical

Wall mount: included

Crash-Sensor for using gas while driving: included

Max. permissible pressure: PS 16 bar

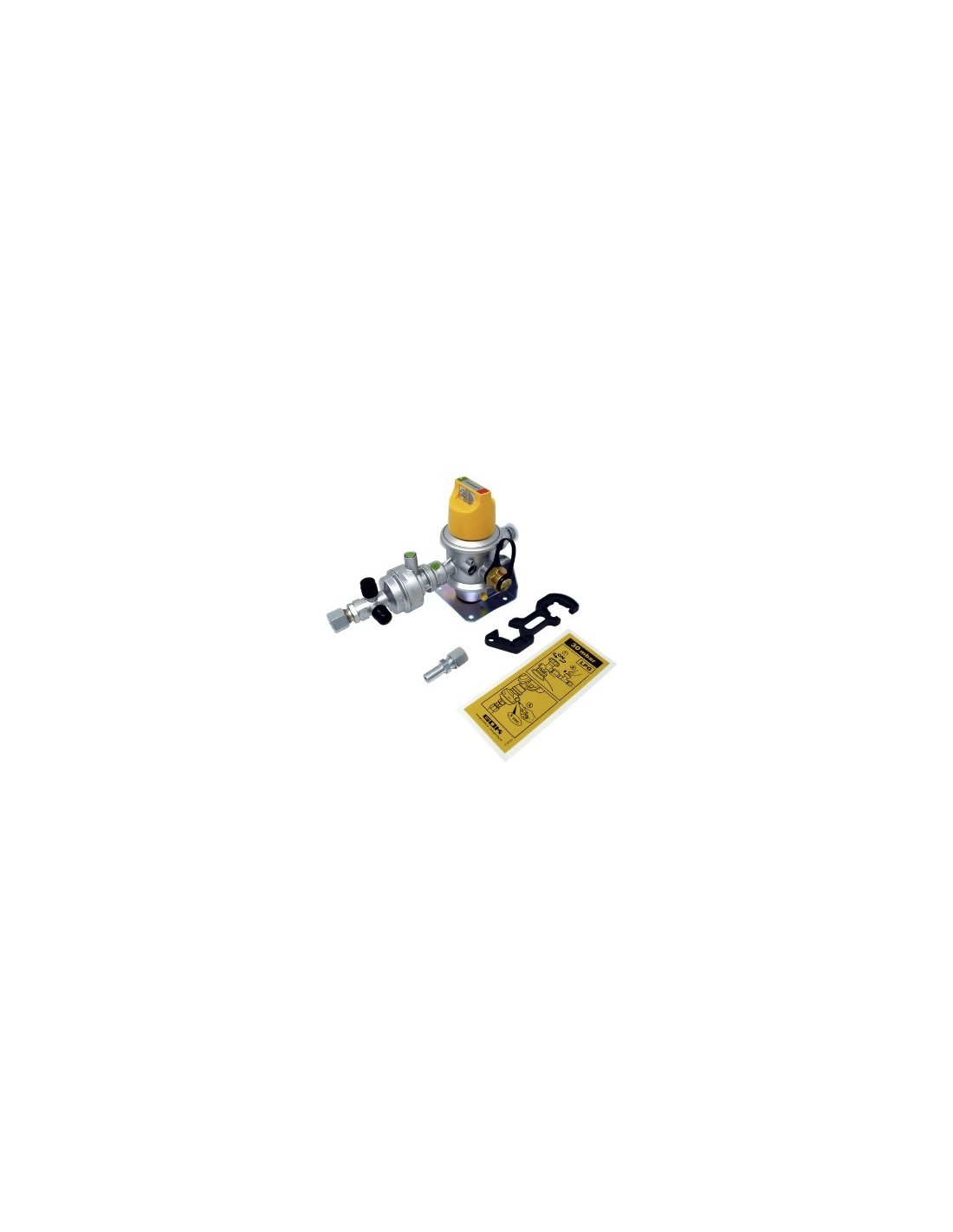

Composed of:

• Automatic switching valve

• Low pressure regulator with safety valve PRV

• Mechanical crash sensor, control knob

• Operation and reserve display

• Gas backflow protection

• Control tool

• Wall fixing

Advantages:

• Heating while driving with the integrated mechanical Crash-Sensor, which blocks the passage of gas in the event of an accident corresponding to an impact speed of approximately 15-20 km/h with a medium-weight vehicle, at a deceleration acting directly on the release element of 3.5 g ± 0.5 g against a fixed obstacle
• Automatic switching to the reserve gas cylinder as soon as the gas cylinder in use is empty
• Changing the cylinder is possible without having to interrupt its operation
• Gas backflow protection: A gas flow leak during cylinder changes is prevented
• Uniform gas supply thanks to optimal use of the gas cylinder contents
• Display, which indicates which gas cylinder is in use
• Use throughout Europe with country-specific high-pressure hose distribution – Caramatic ConnectDrive (not included in scope of delivery)
• Liquid gas system leakage testing device without disassembling the pressure control device
• Suitable for connection with Eis-Ex anti-icing resistor
• Version with outlet connection RVS 10 / 8 is equipped as standard with a transition piece for connection to 8 mm pipes
