5 days of preparation excluding made to order items
€45.00
VAT included
45
5 days of preparation excluding made to order items

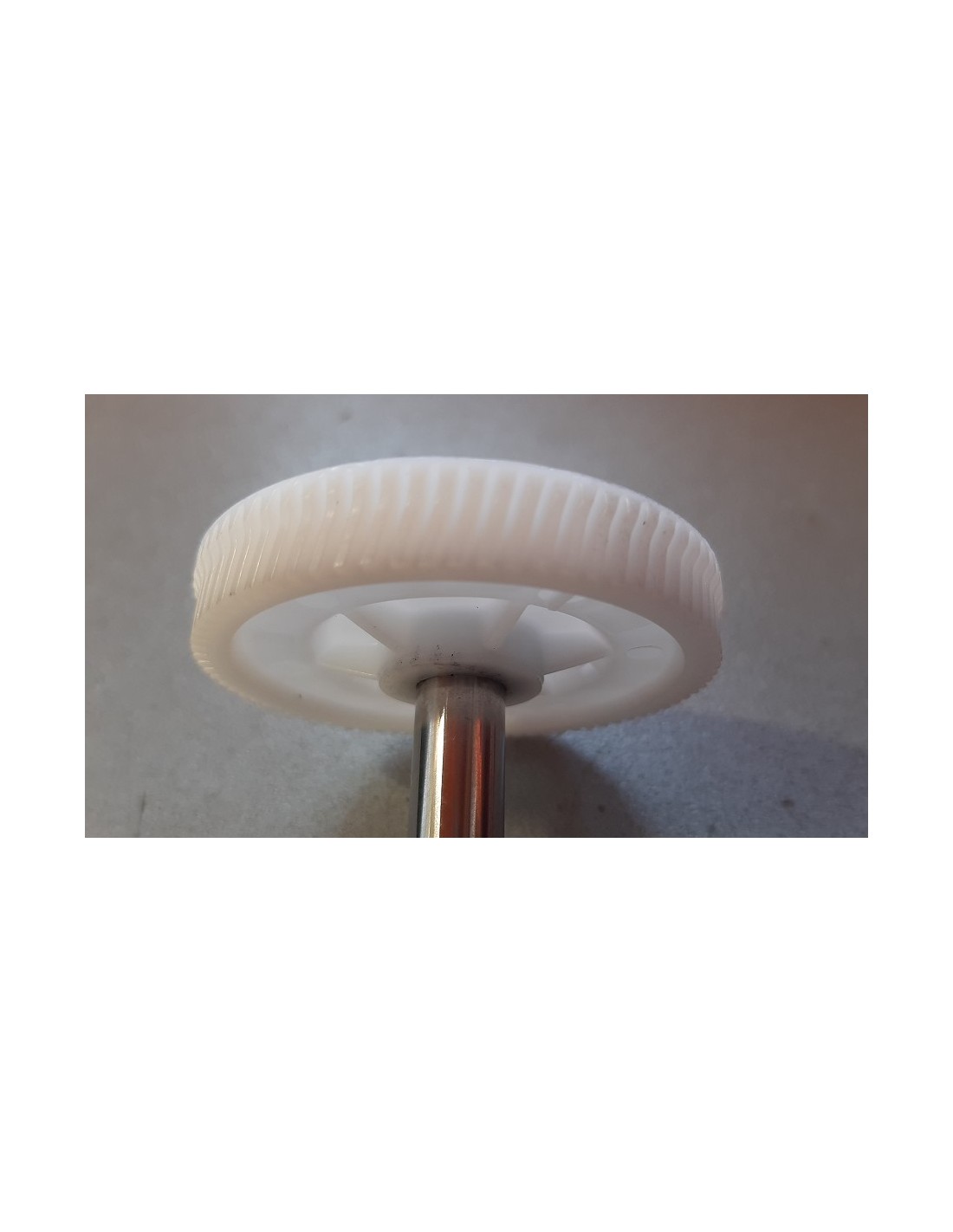

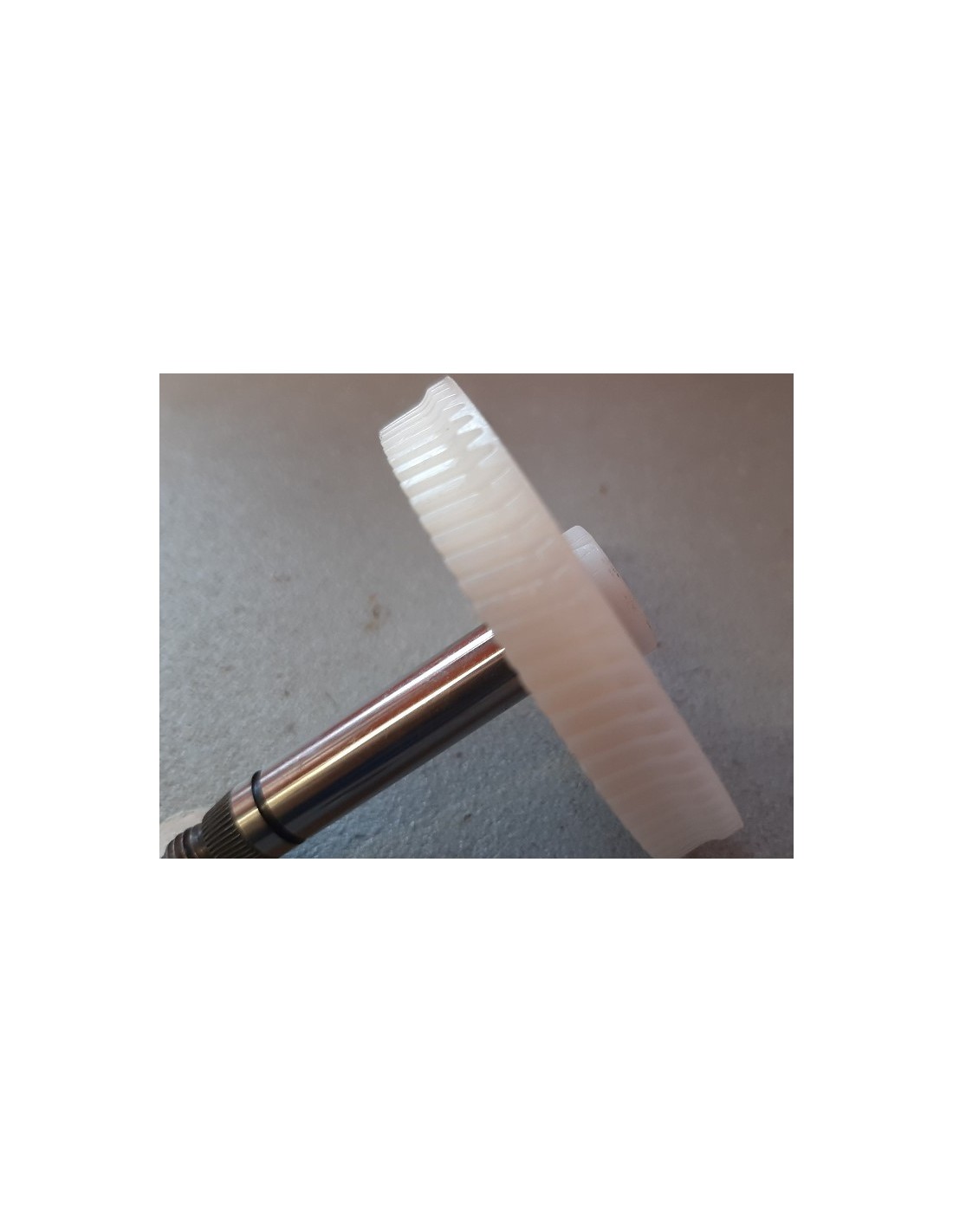

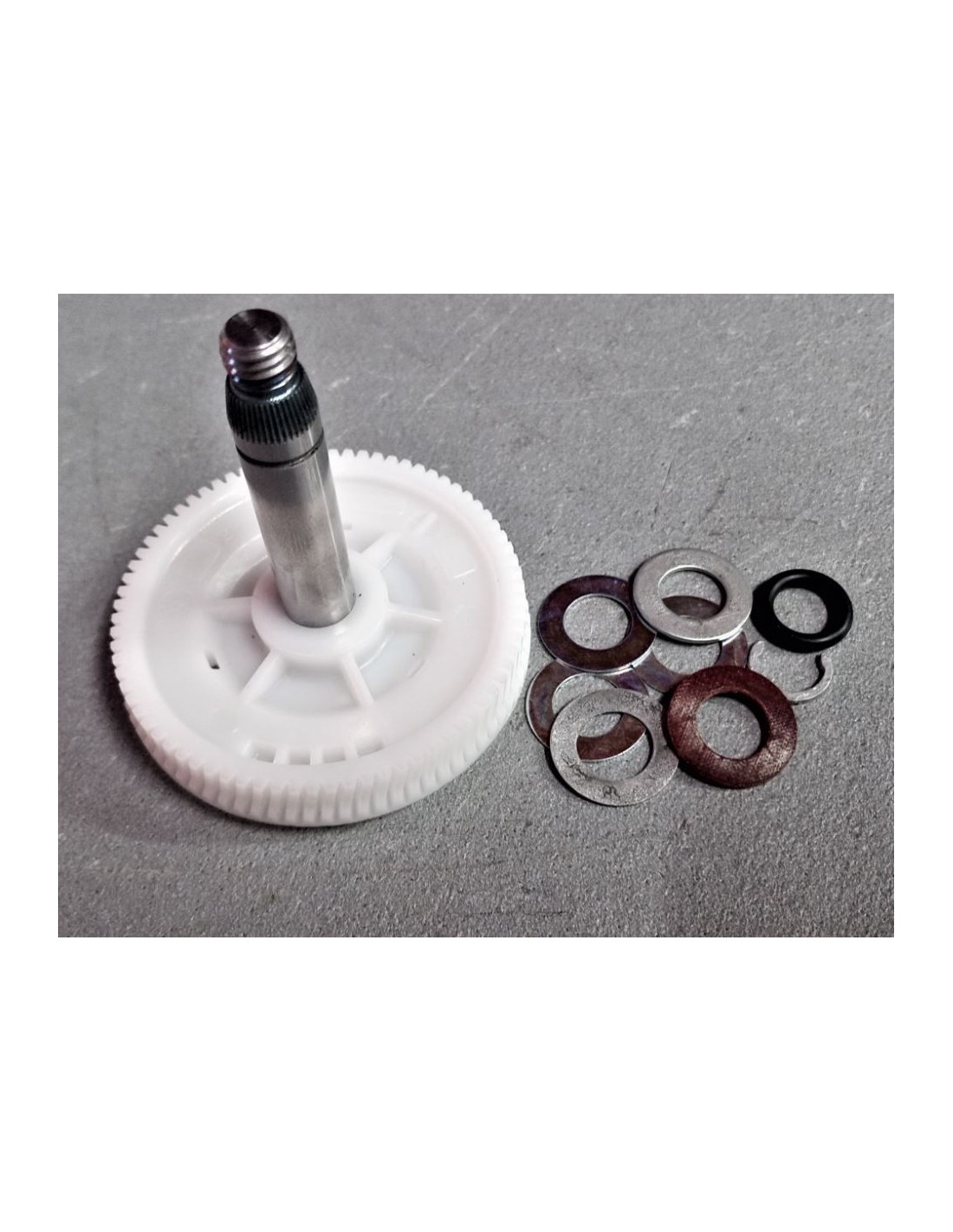

Plastic gear for motor 424719 (ex 424710) step 10750/10751 PROJECT 2000

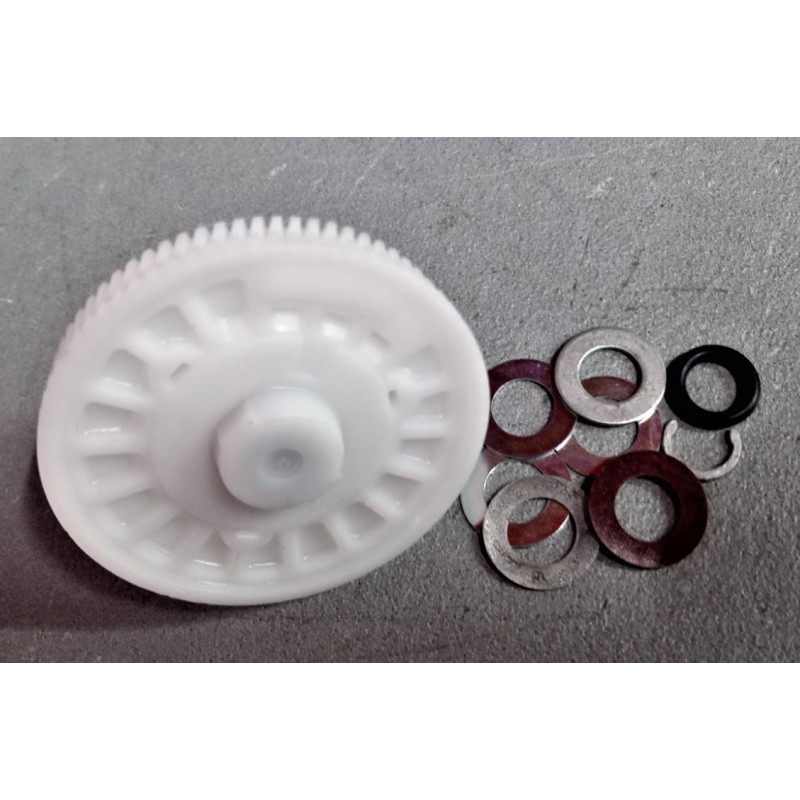

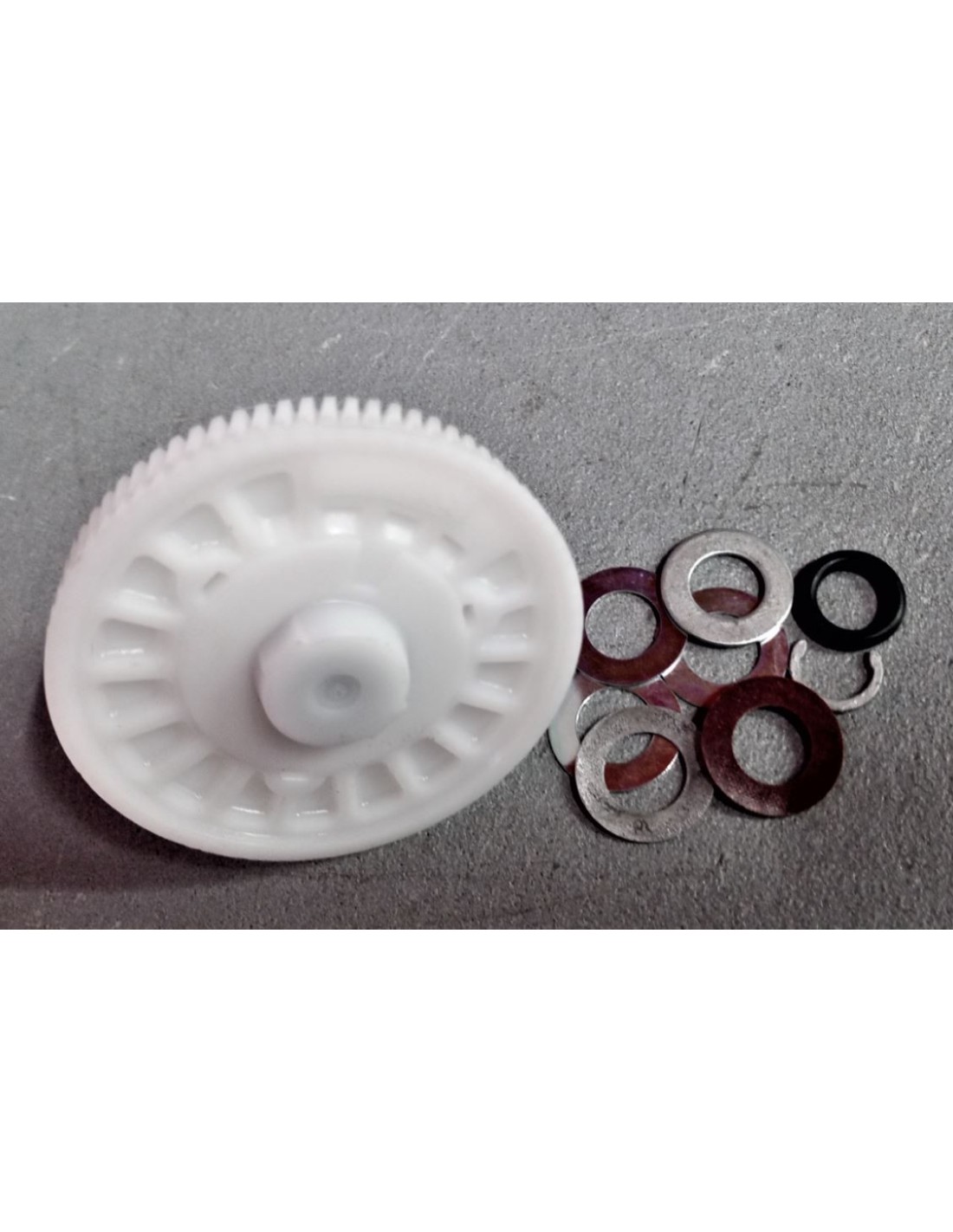

  • Complete with mounting washers as standard.
  • External diameter of teeth approx. 58 mm

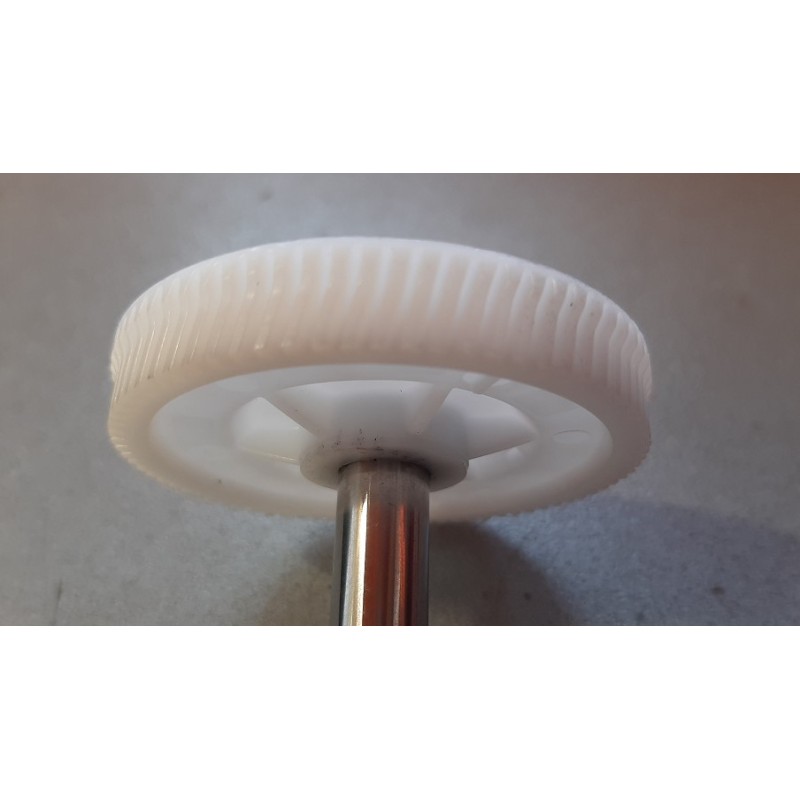

  • Shaft outer diameter approx. 10 mm
  • Total height of the spare part approximately 63 mm

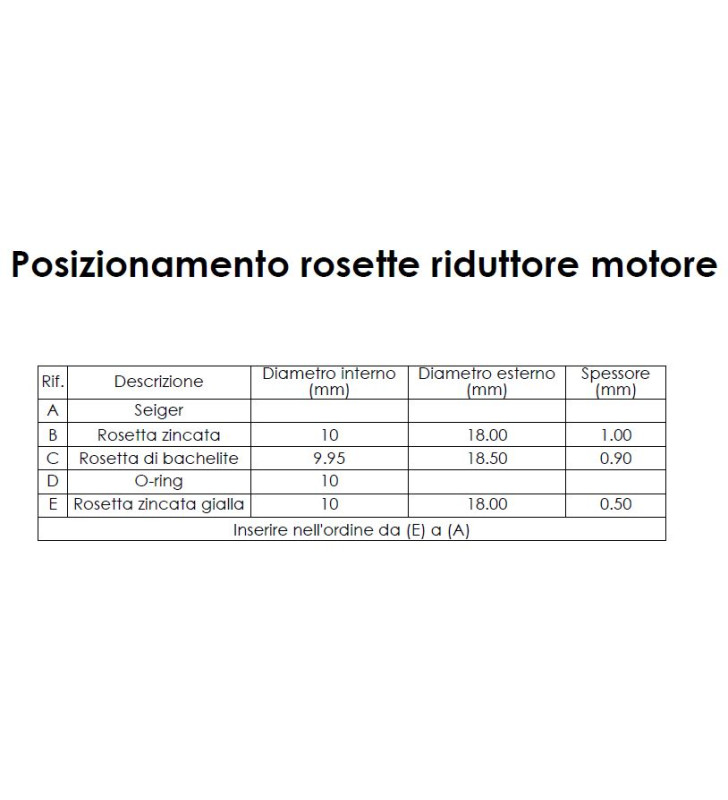

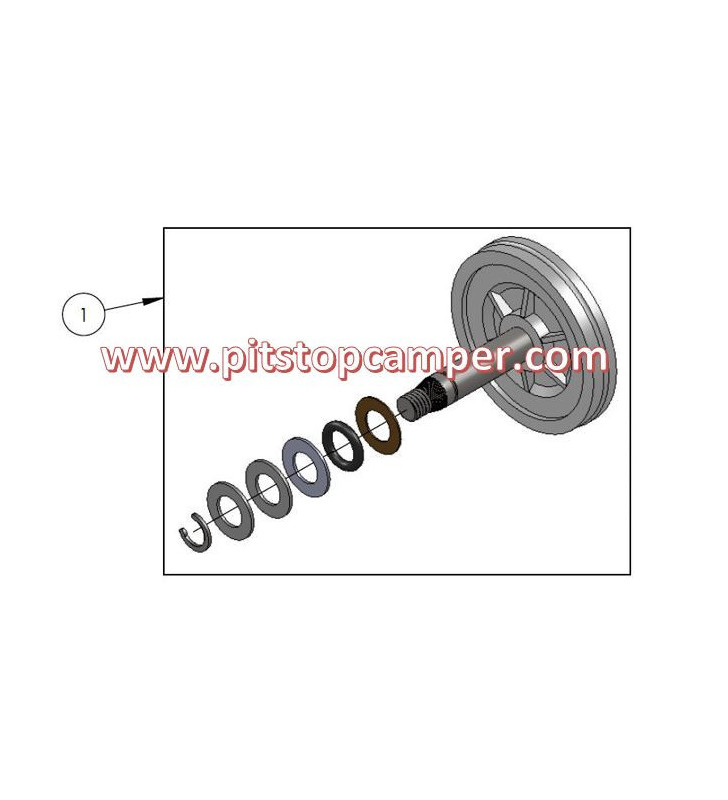

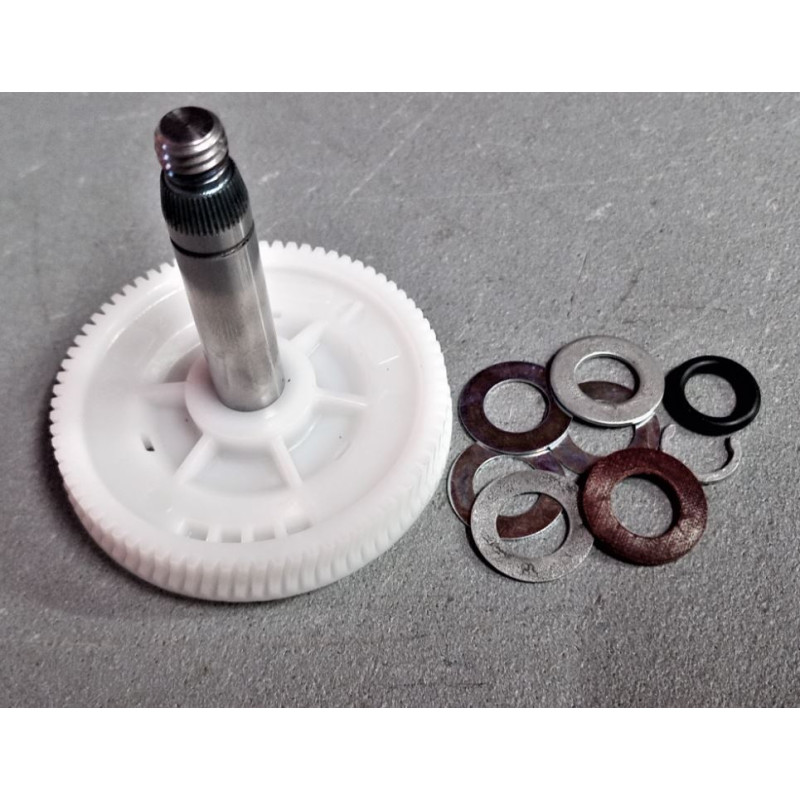

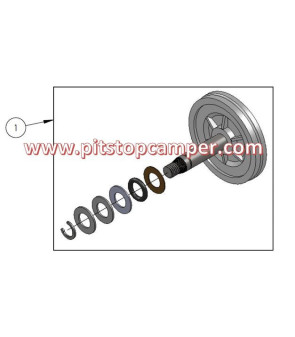

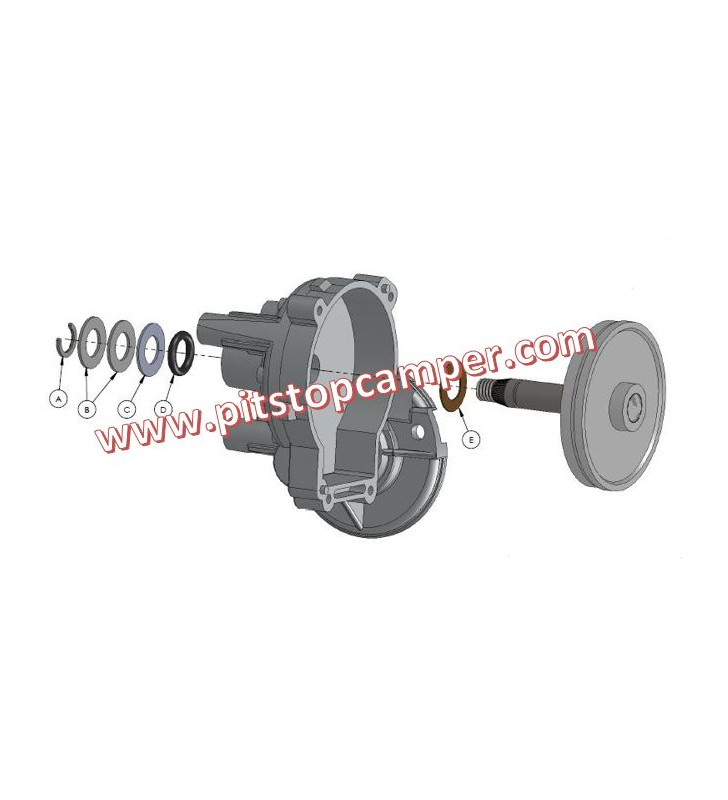

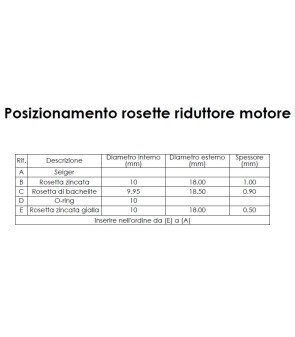

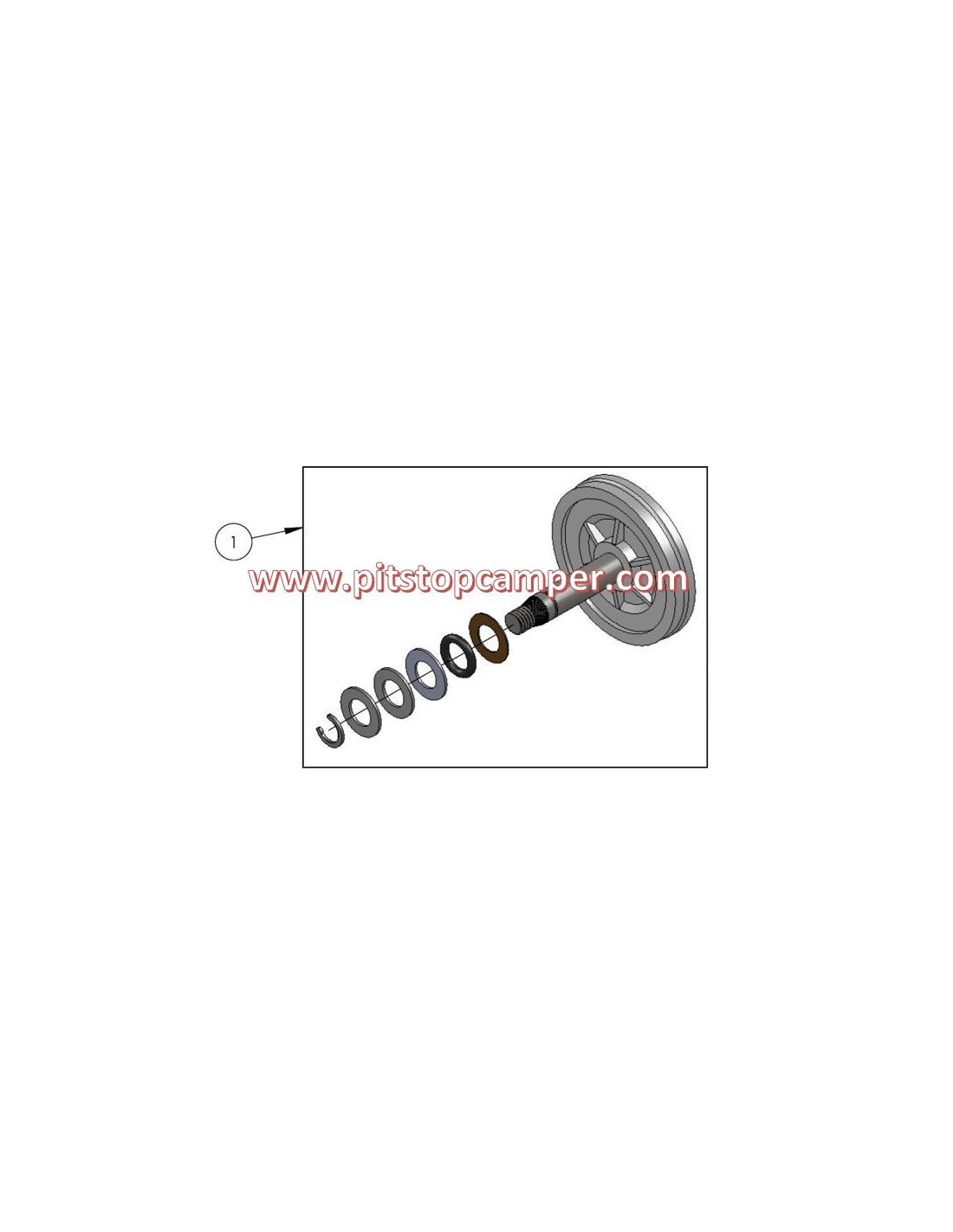

Plastic gear with shaft and washer/shim kit to be assembled as per instructions.

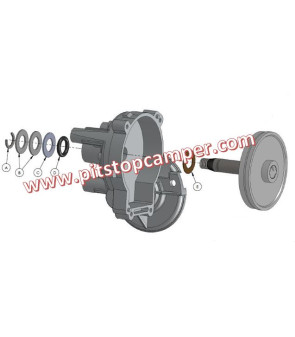

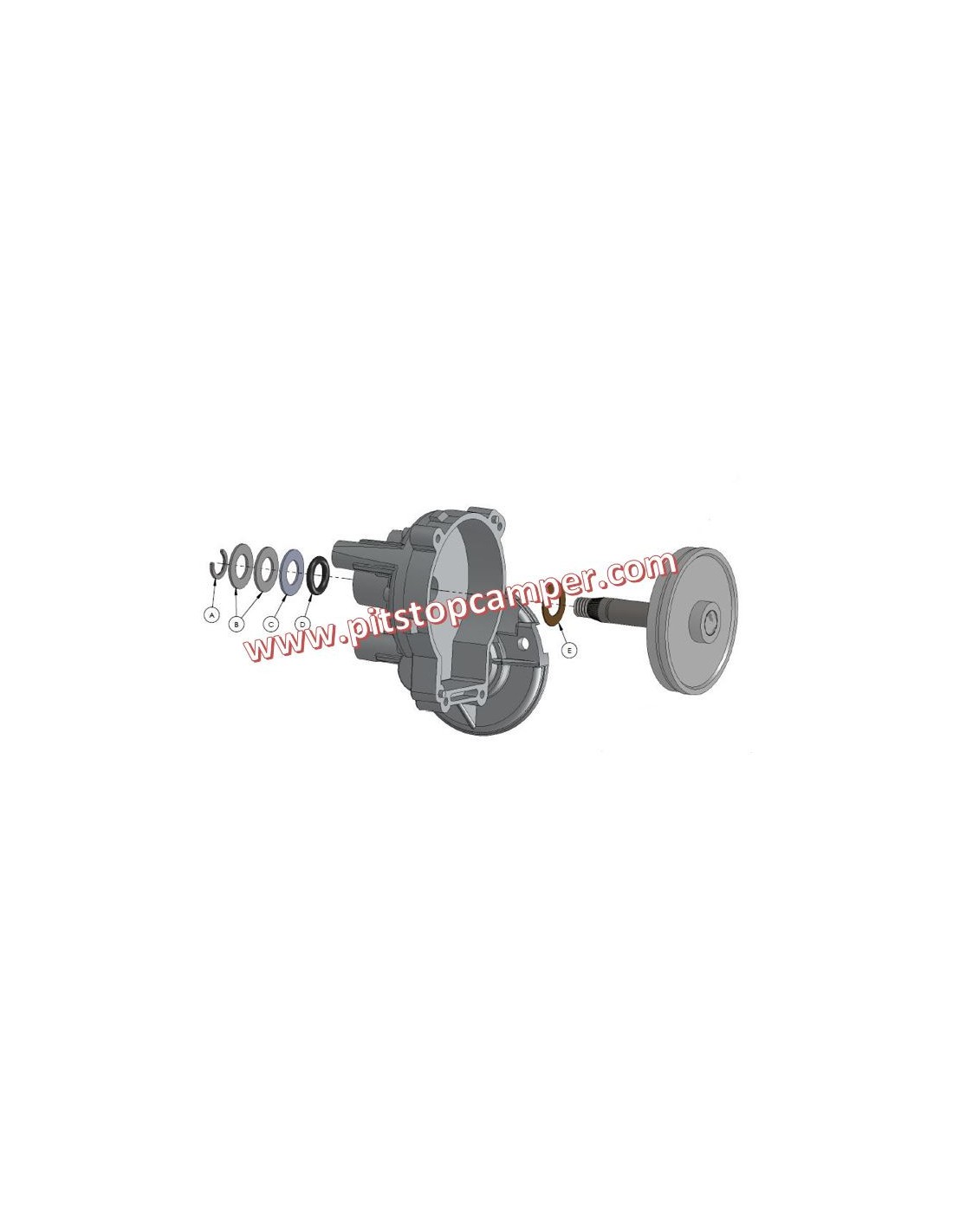

The image also shows our engine item 12345 (424719 - ex 424710) on which the gear is mounted.

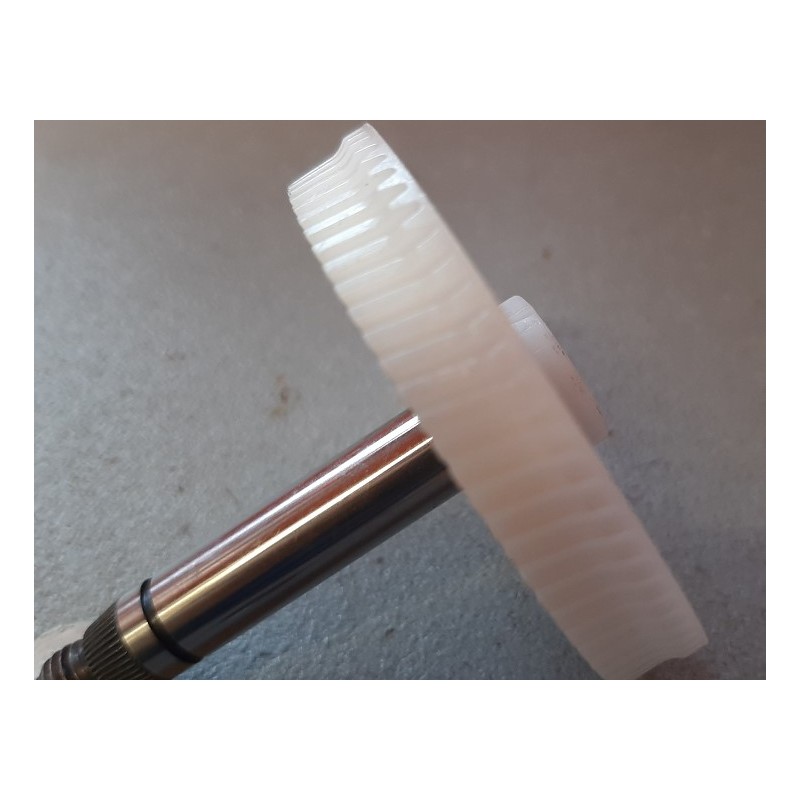

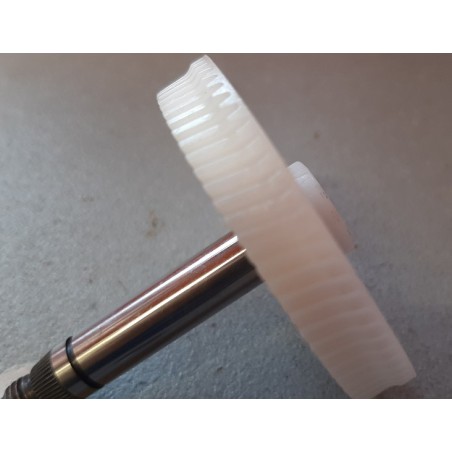

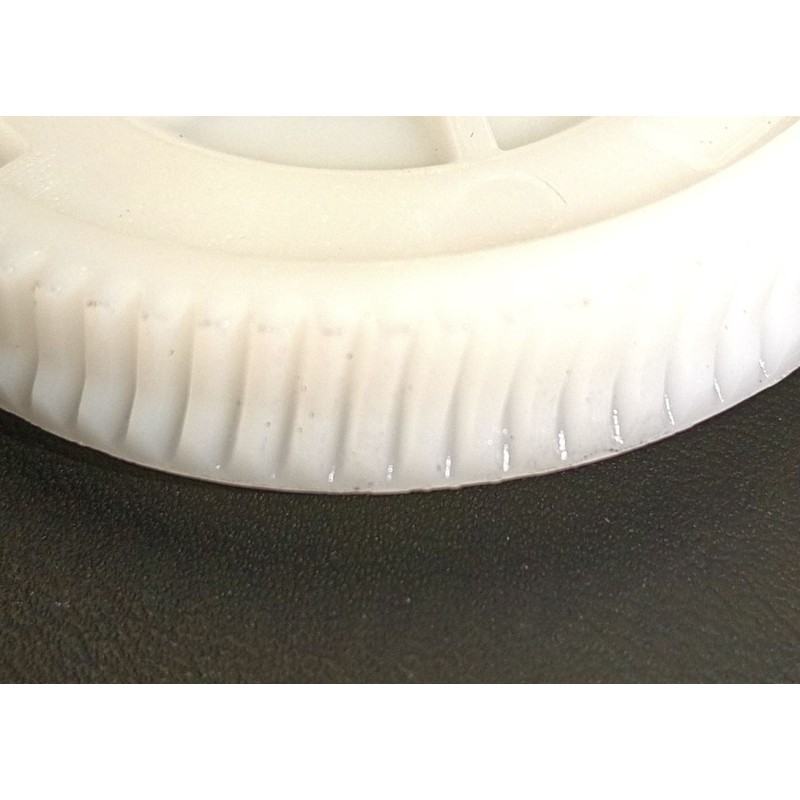

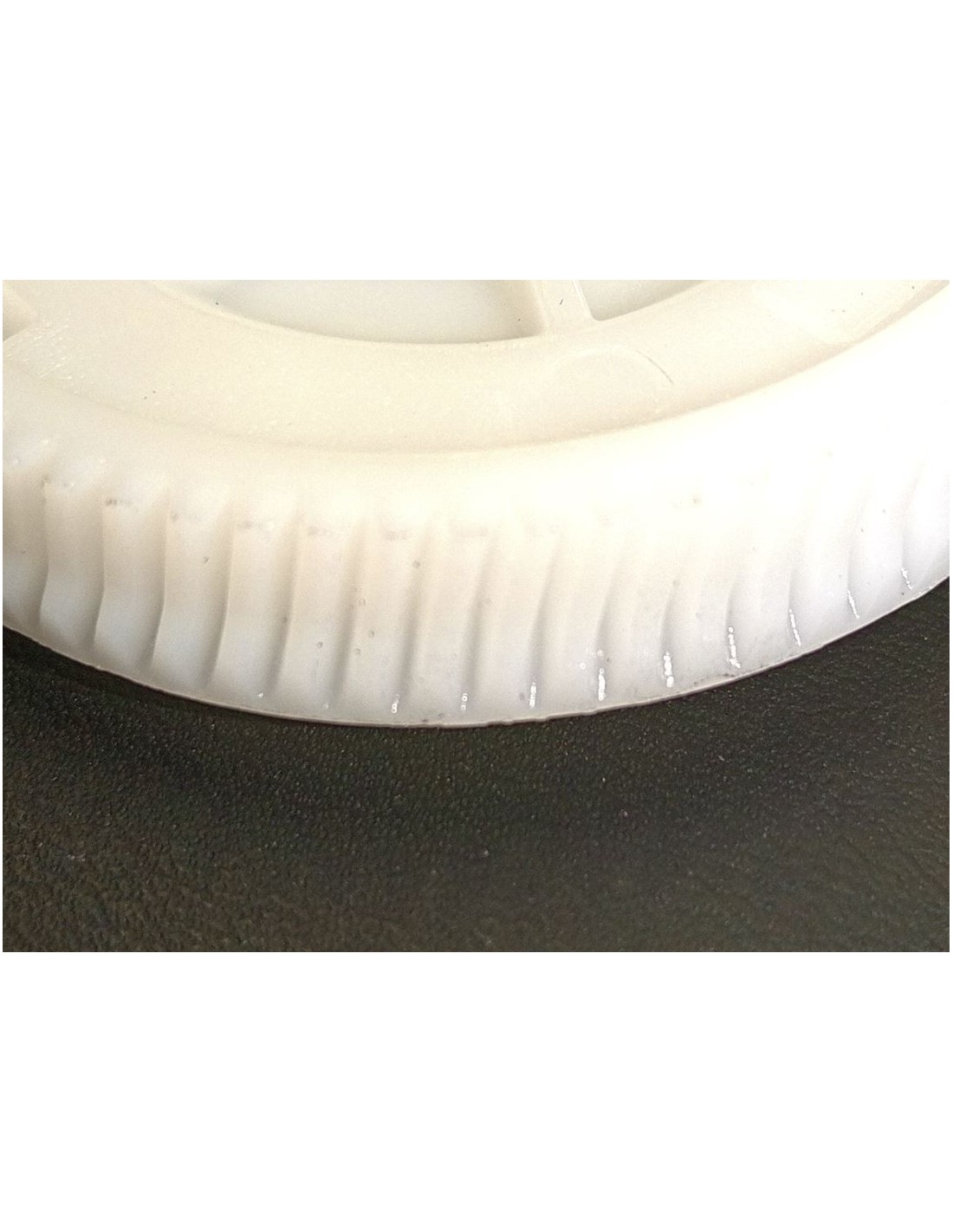

Since a gear with a different pitch toothing was mounted on old steps, check the correspondence from the images.
