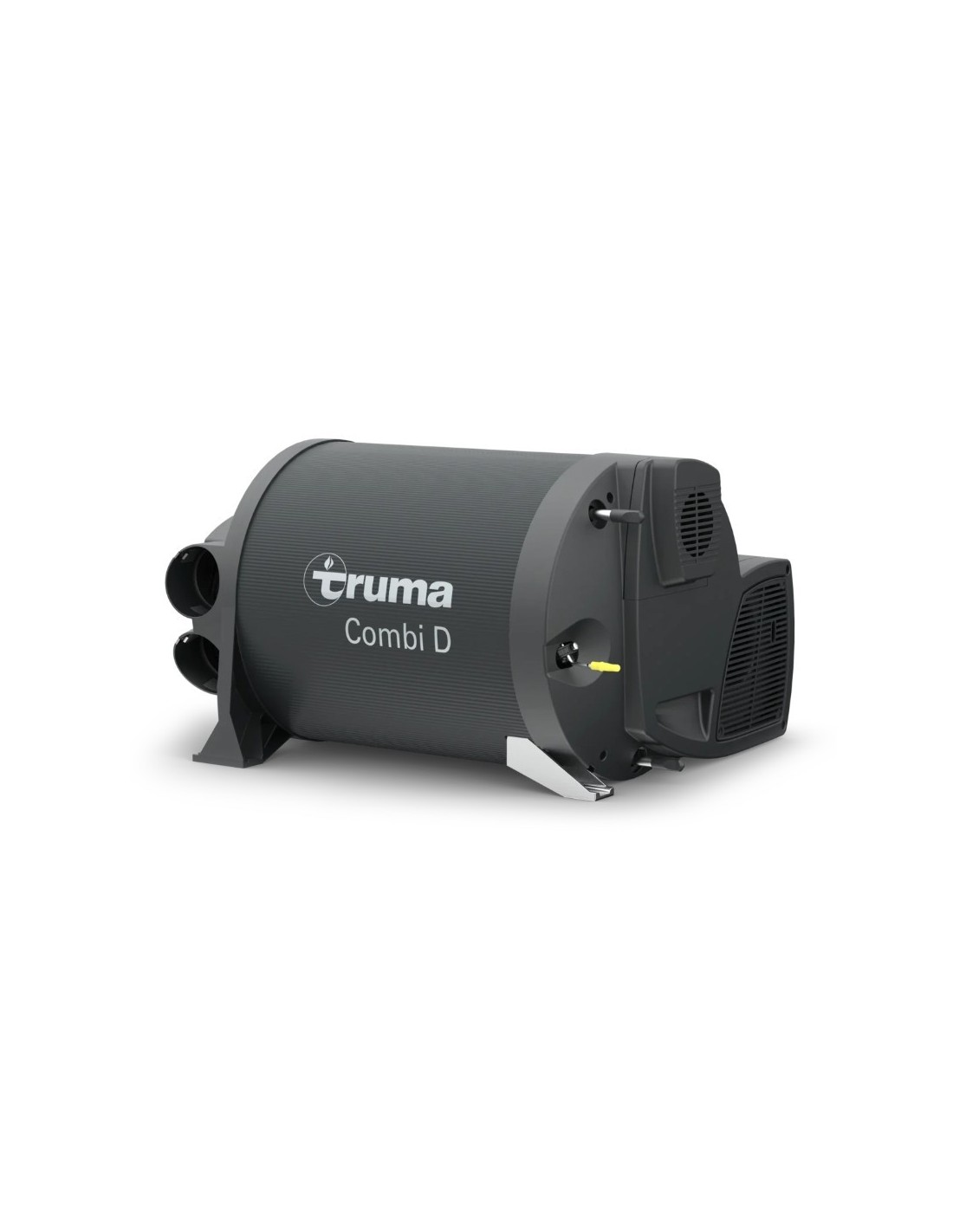

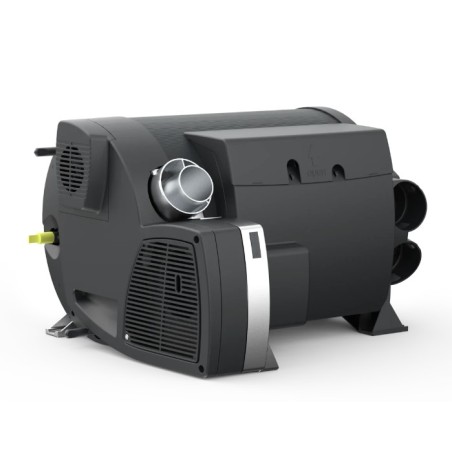

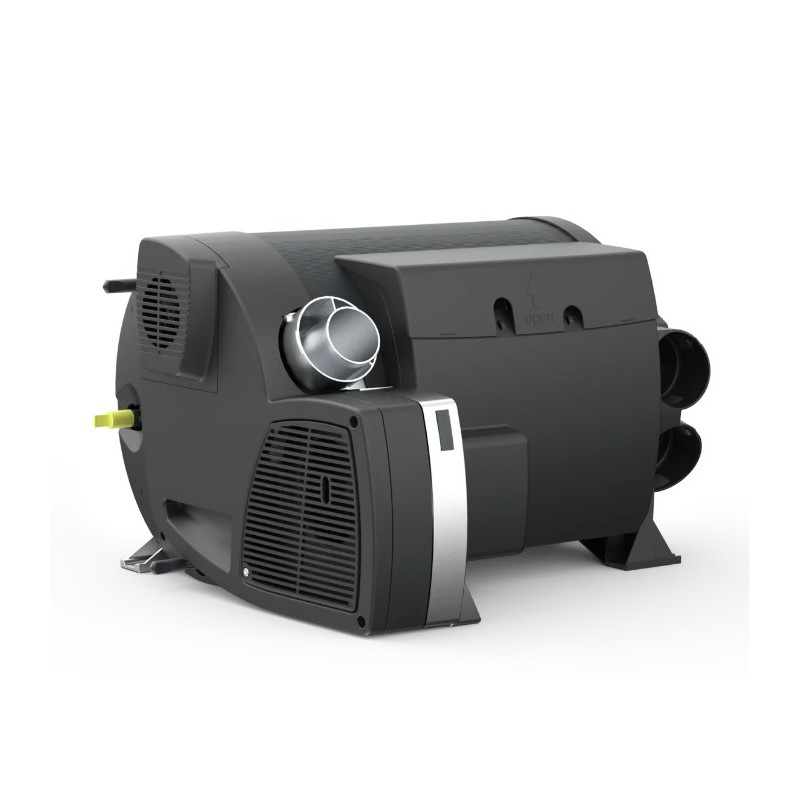

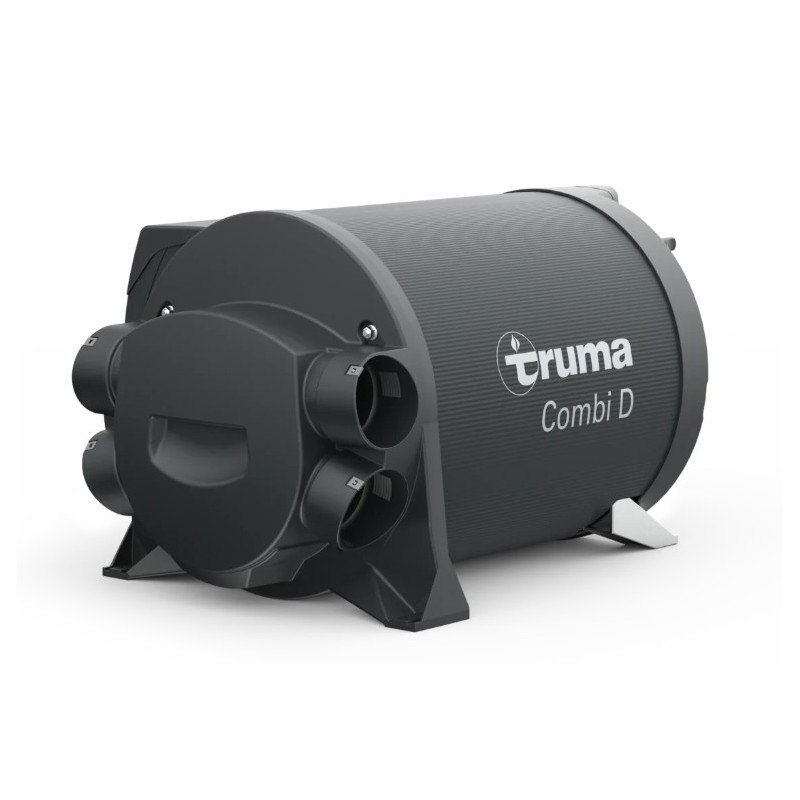

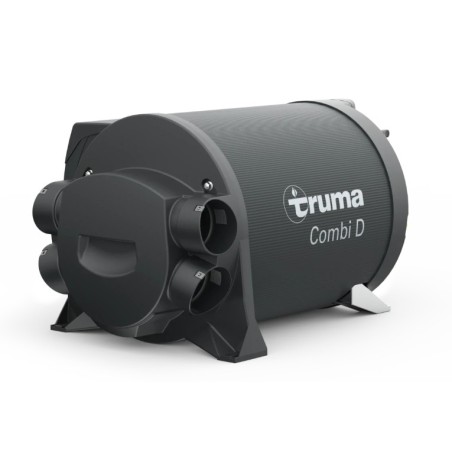

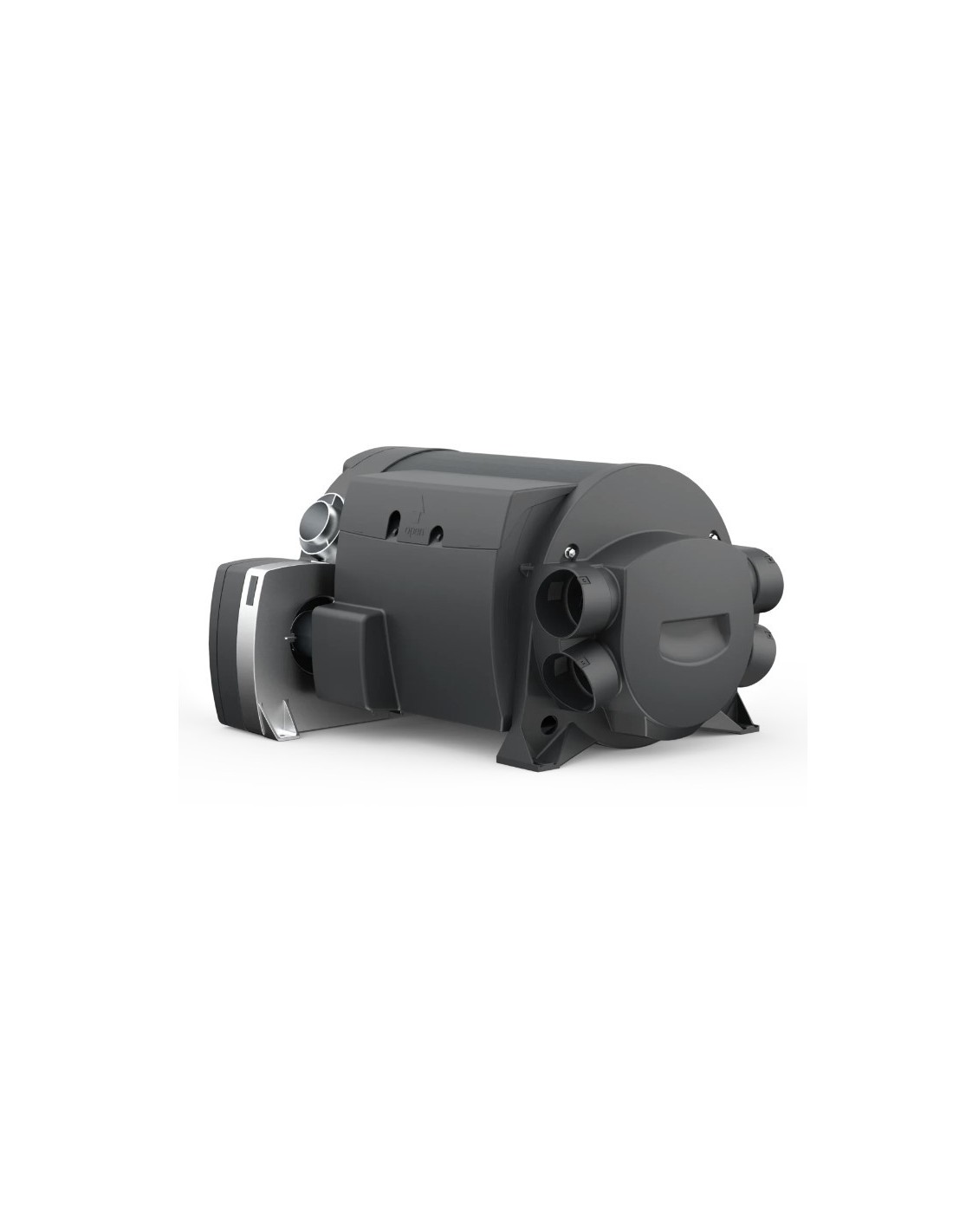

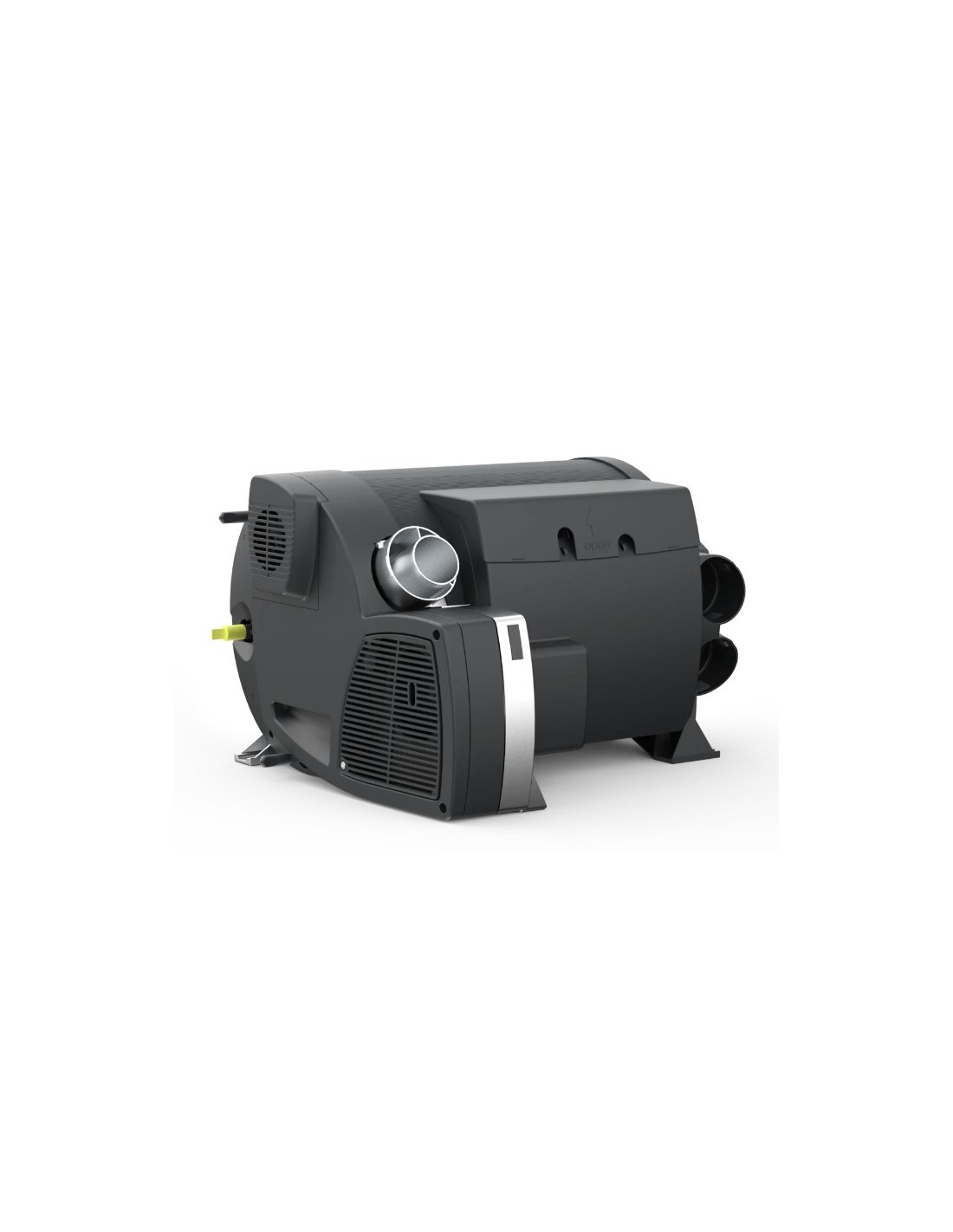

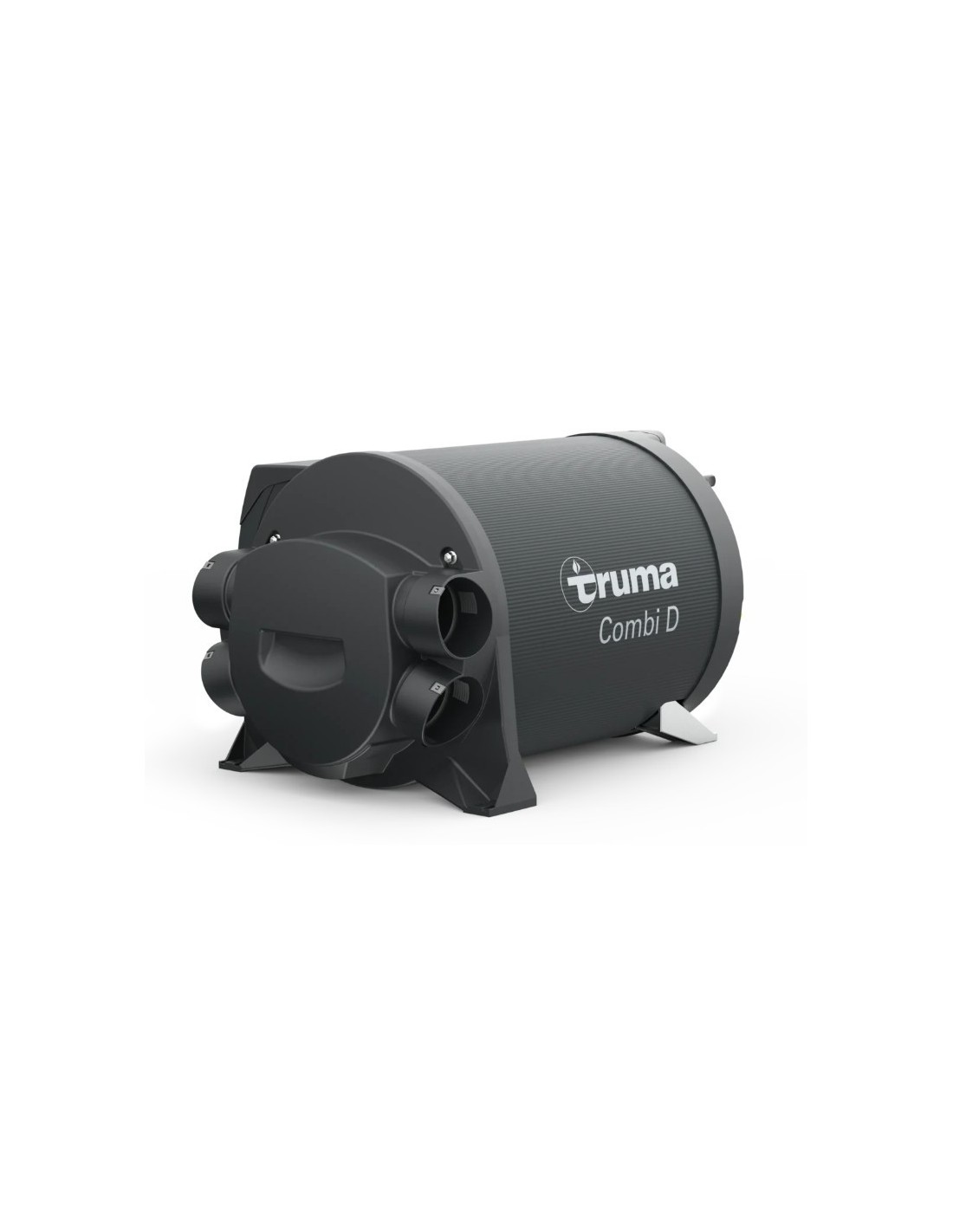

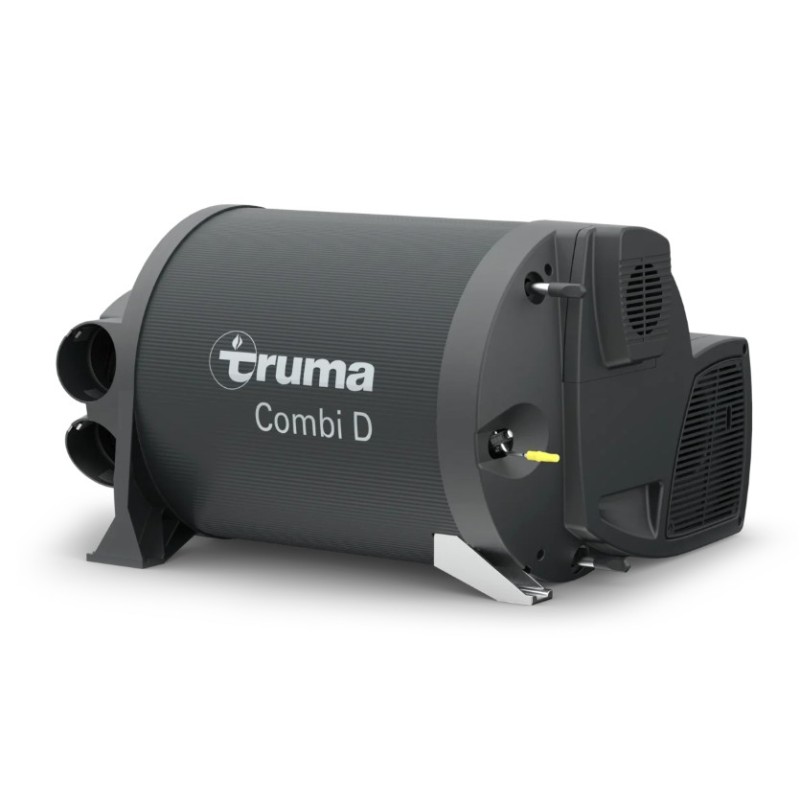

COMBI HEATER D4 E (New Generation) 4000W – powerful heating and hot water with electric heating element (2 x 900 W) - 33416-20
Individual, energy-efficient, self-sufficient: the Combi D 4 E
The design of the Combi D 4 E is similar to that of the Combi D 4 and differs only in the integrated electrical resistances.
The oil-fired version is equipped with a high-quality burner and heats reliably even while on the road.
When camping, simply set the operation electrically and the heating will run on 230 V without burdening the on-board battery.
Depending on the power requirement, you can choose between diesel, electric or mixed operation: in the intermediate seasons, electric operation is sufficient, while on cold days it is advisable to choose diesel operation; And when it's really cold you can set the mixed operation (diesel + electric).

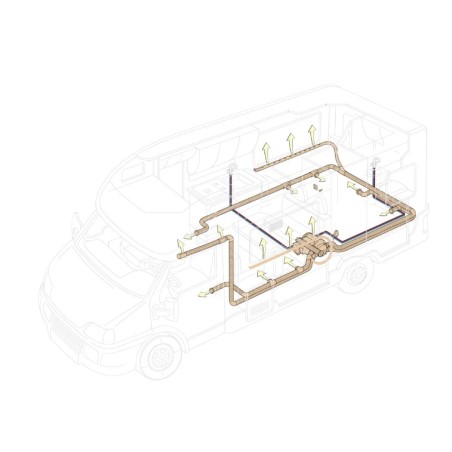

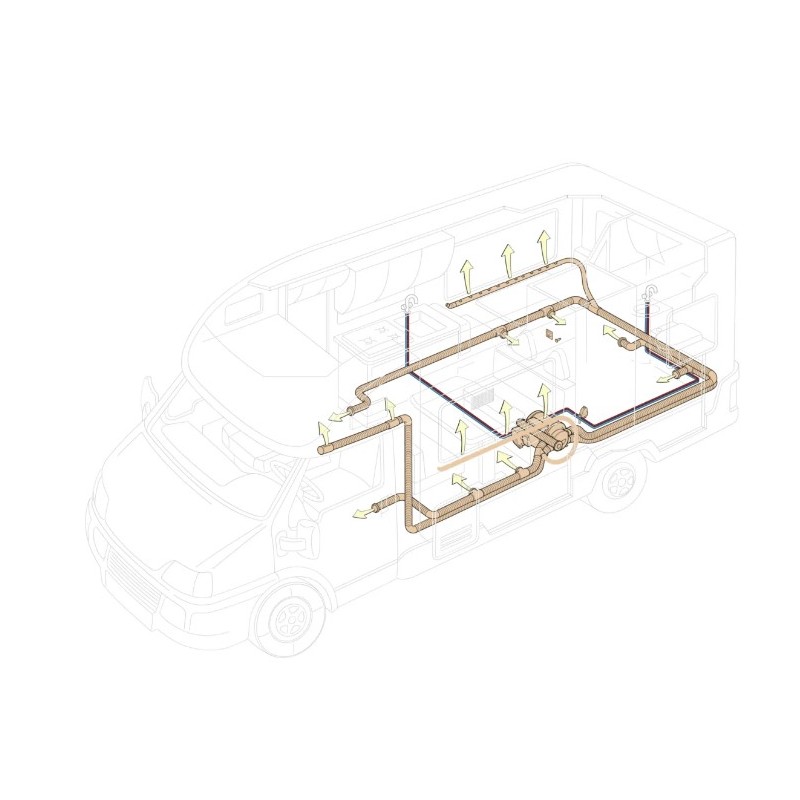

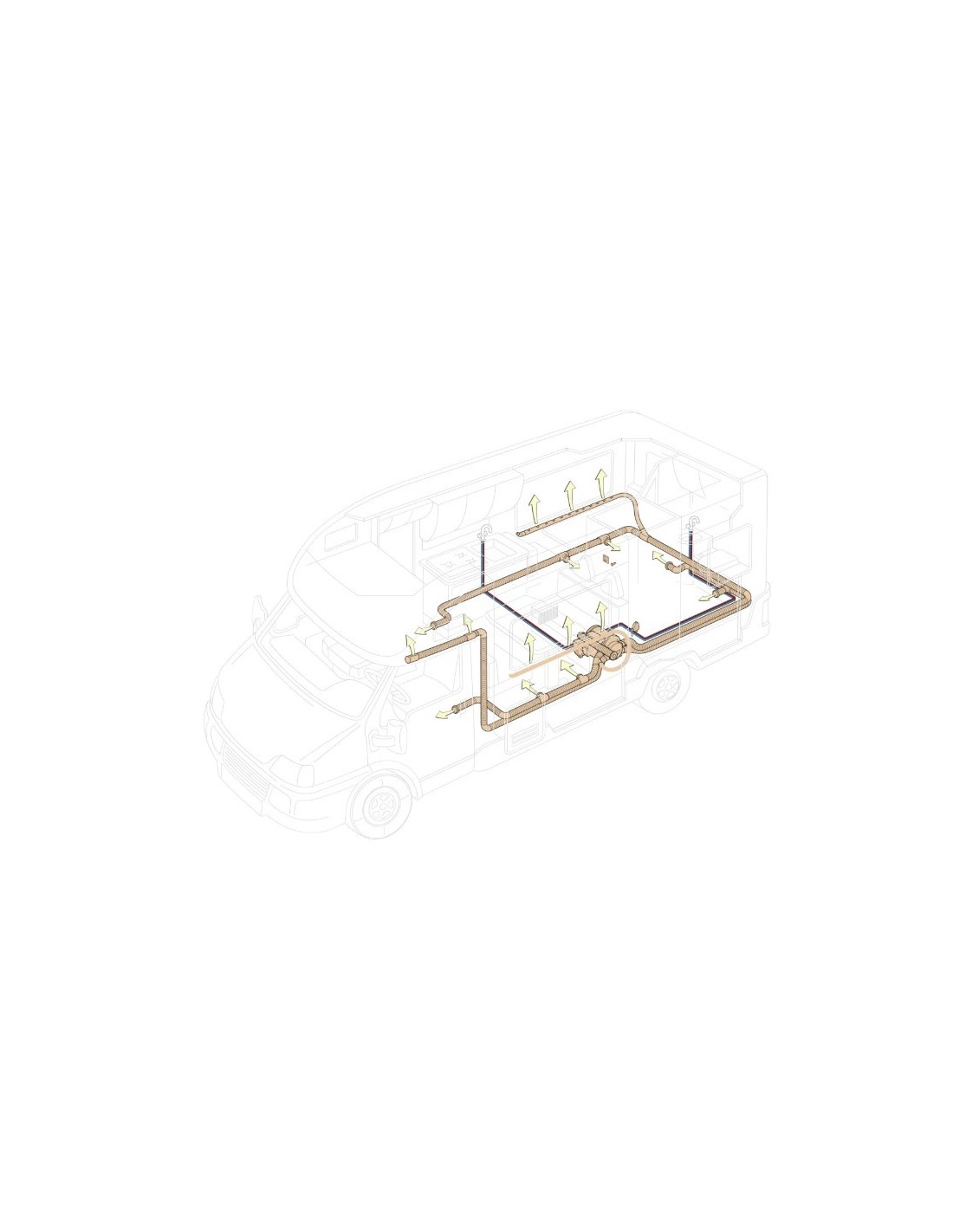

Four outlets ensure the best possible distribution of warm air inside the vehicle.
The powerful Combi D 4 E heats up small and medium-sized vehicles in a short time.
The appliance also has an integrated ten-litre water tank that can be heated if necessary.
No additional boilers are required, thus saving weight and space.

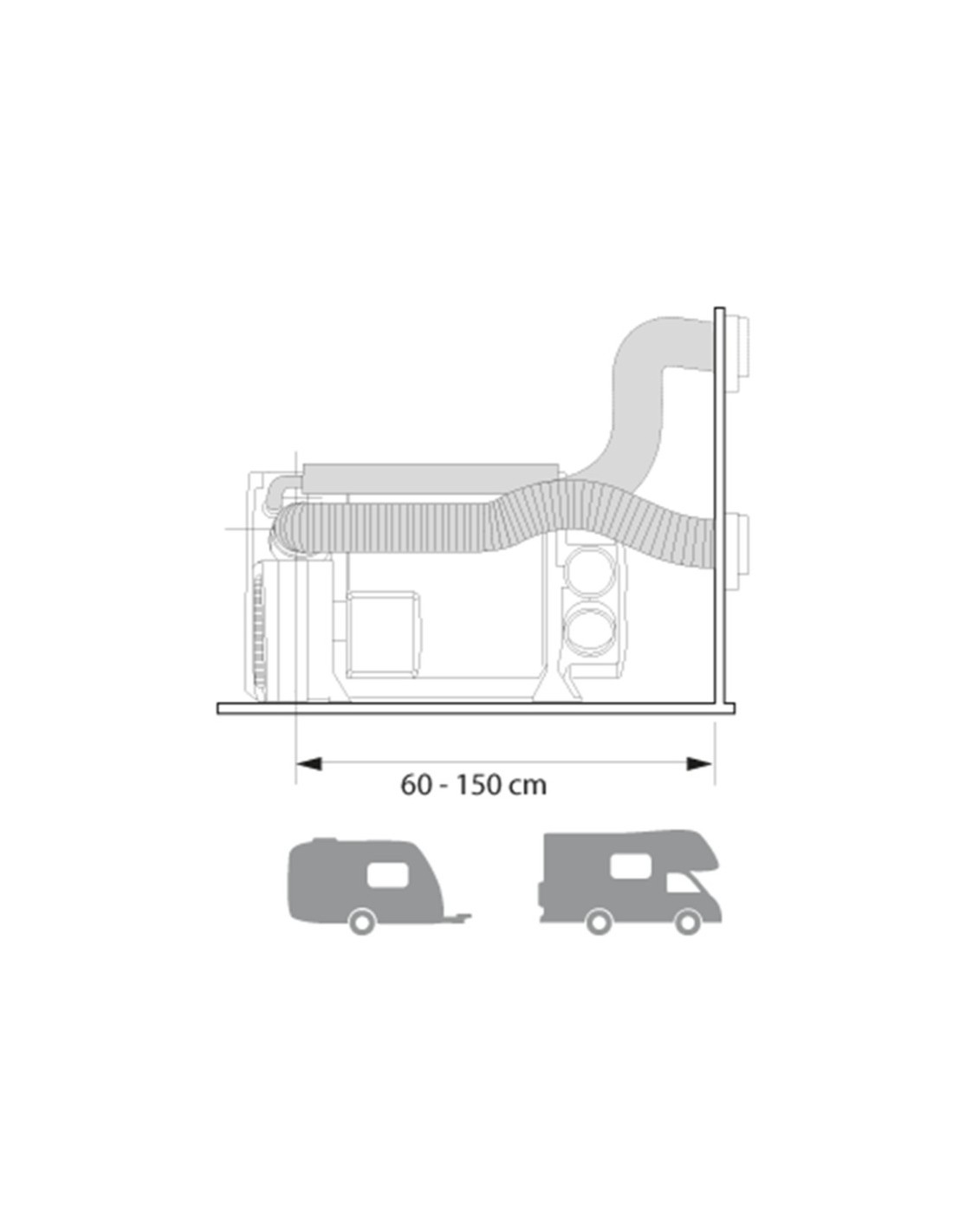

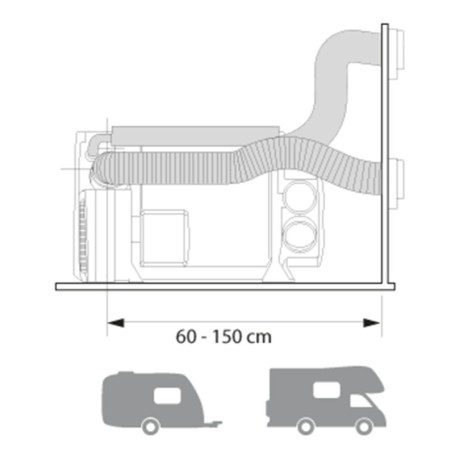

The Truma Combi heater is also extremely compact and can therefore be installed in the vehicle with great flexibility.
The Combi D 4 E can be controlled and monitored with the Truma CP plus digital control unit (iNet ready) or via the iNet X System.
Can also be used with an empty water tank
Easy to operate with the Truma CP plus digital control unit (iNet ready) or via the iNet X System
Optimum warm air distribution thanks to four outlets
10 l stainless steel water tank

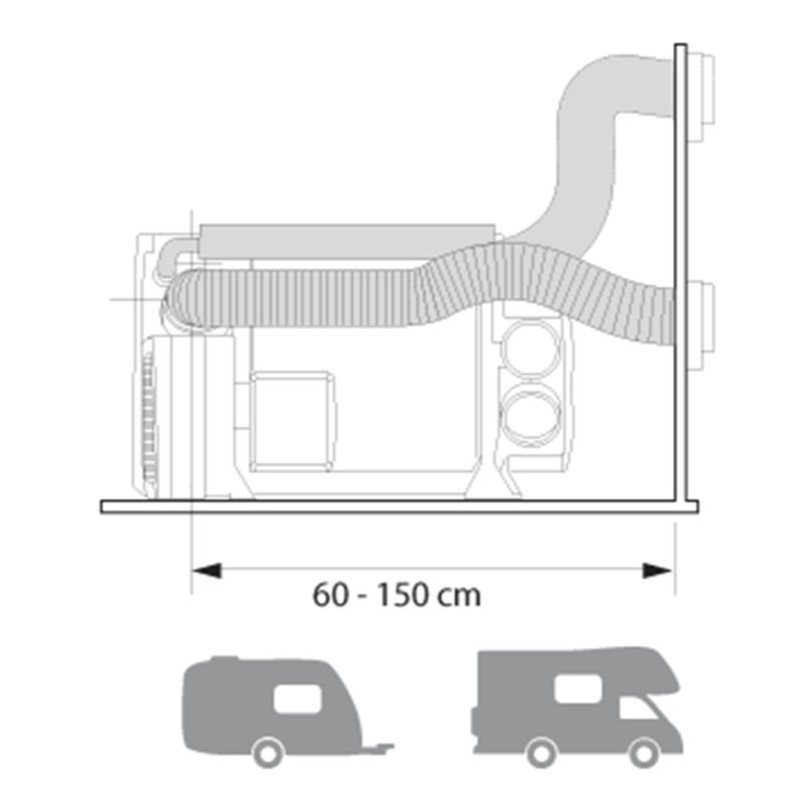

Compact and space-saving, flexible installation possible
Heats both the vehicle and the water very quickly
Consumes little power
Integrated compressed air sensor automatically regulates the combustion air supply
Long service life thanks to efficient combustion control
Automatic air conditioning available in conjunction with a Truma air conditioner

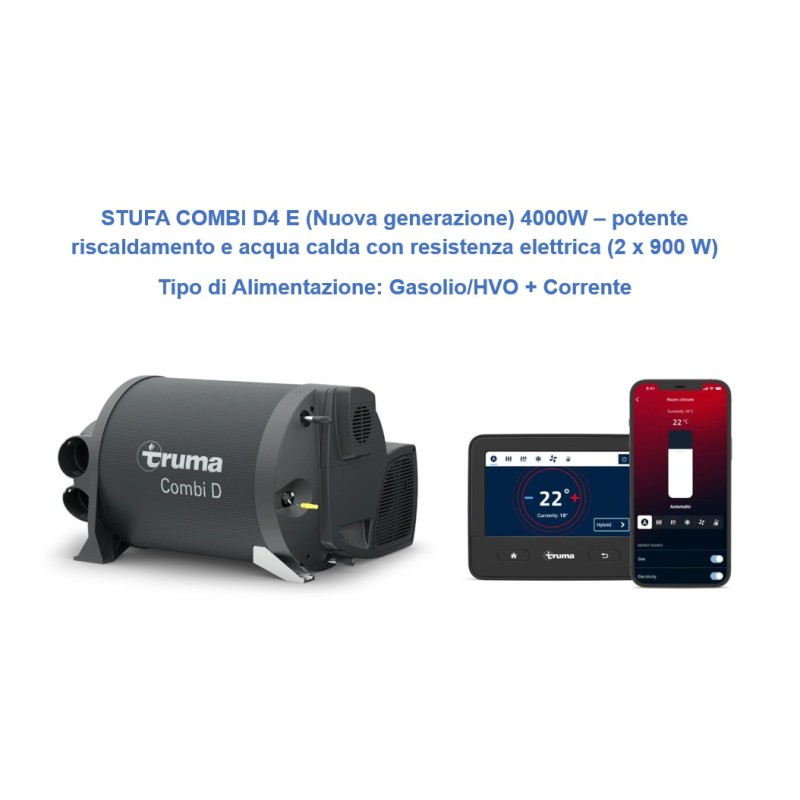

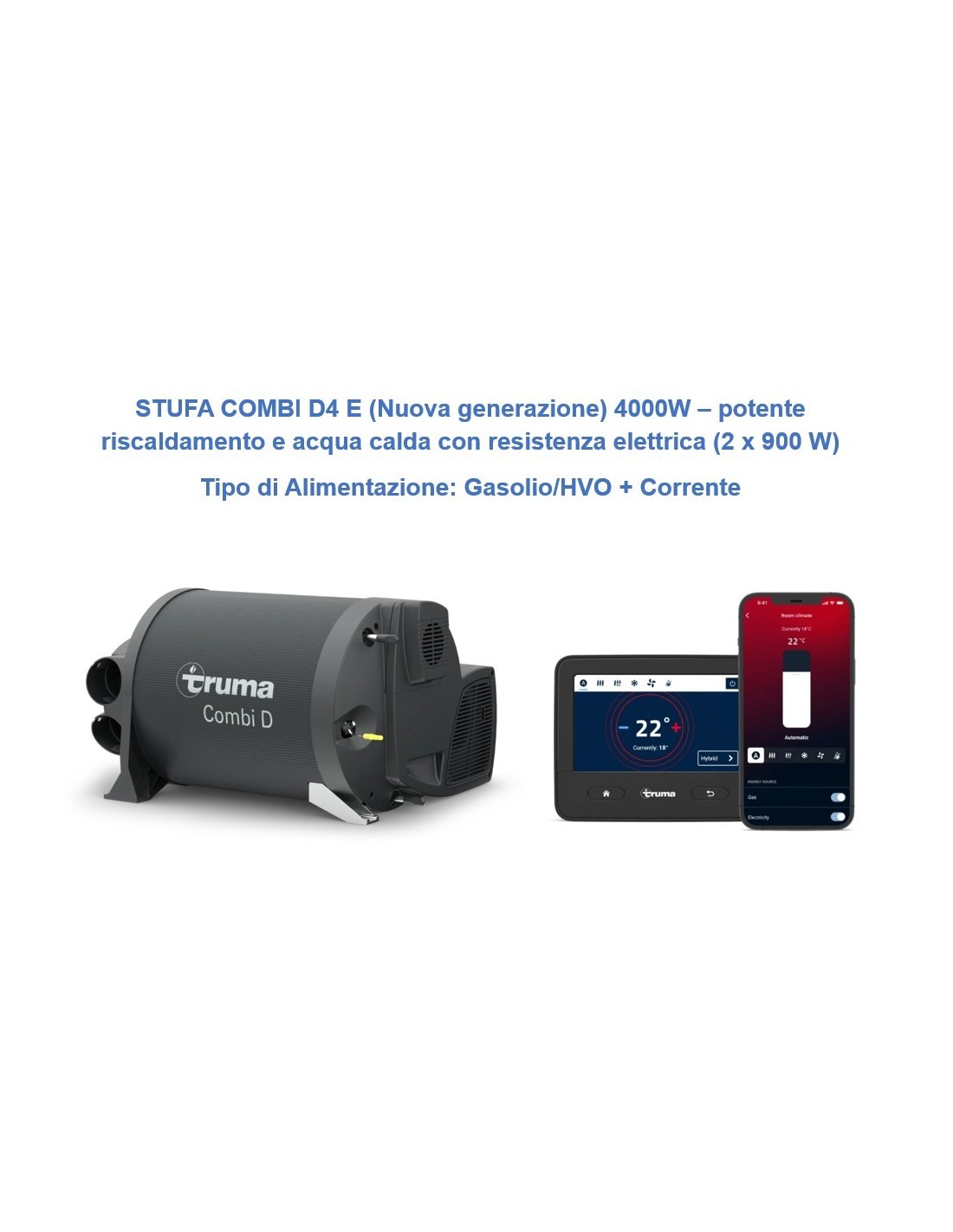

It contains:
1 truma combi 4 Diesel stove.
1 Truma inetx control unit and its 6-metre control cable
Room temperature sensor and its cable
Technical details
Type of fuel Diesel fuel in accordance with EN 590, HVO (DIN EN 15940)
Nominal heating capacity diesel operation 1000 W / 2000 W / 3000 W / 4000 W
Nominal heat output electrical operation 900 W/1800 W
Nominal heat output mixed operation max. 3800 W
Fuel consumption 0.1 – 0.4 l/h
Current consumption (at 12 V): heating and water tank operation 0.4 – 8.1 A
Current consumption (at 230 V) 3.9 A/7.8 A
Capacity 10 liters
Heating time (approx. 15 °C to approx. 60 °C): Water tank approx. 24 min
Heating time (approx. 15 °C to approx. 60 °C): Heating and water tank according to EN 15033 approx. 80 min
Weight (without peripherals) 15.6 kg
Dimensions (L x W x H) 510 x 450 x 300 mm
Dimensions (minimum dimensions: depending on the installation situation, additional space must be provided for the gas connection, water connection and drain valve) (L x W x H) 540 x 500 x 350 mm
Current consumption (at 12 V): water tank heating 0.5 A
Air flow rate (free exhaust) max. 287 m³/h
Quiescent current approx. 1 mA
Absorption of the current at rest CP plus (optional) 3 mA
Heating element for FrostControl (optional) max. 0.4 A
Pump pressure max. 2.8 bar
System pressure max. 4.5 bar
