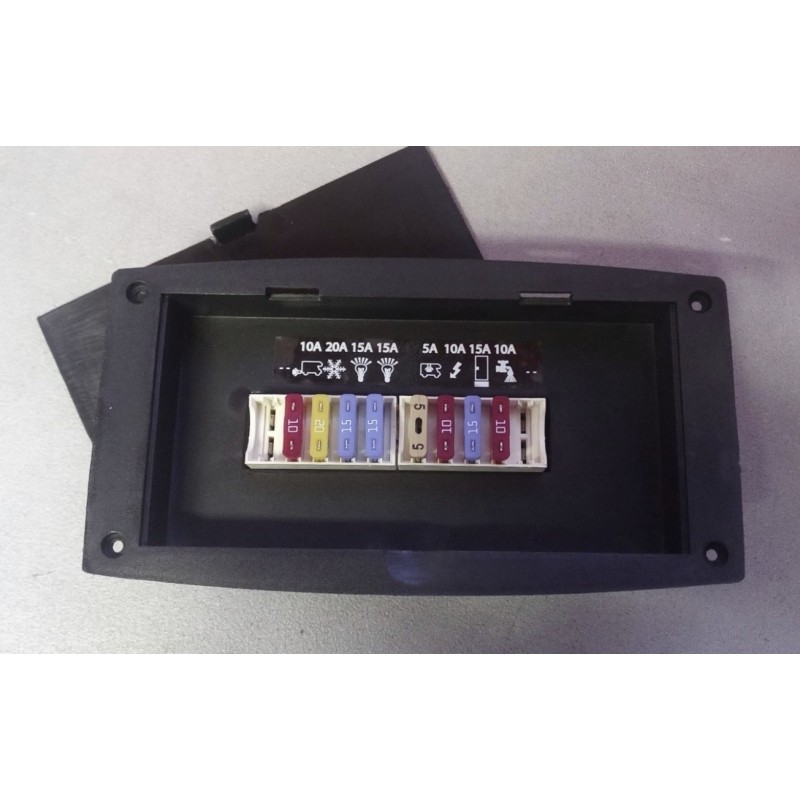

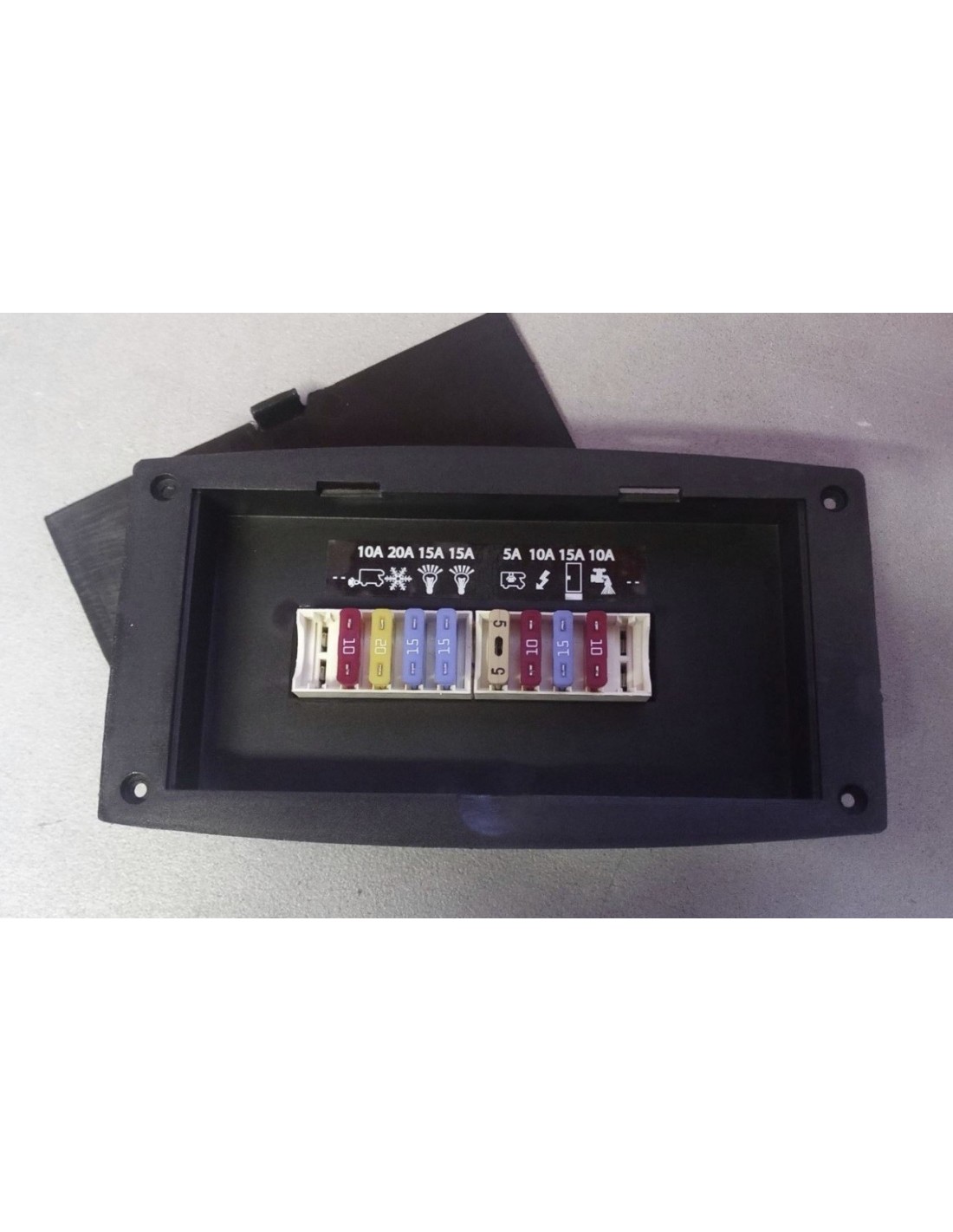

ARSILICII XA00400005 - TRIGANO Power fuse panel

ARSILICII XA00400005 V07 - TRIGANO FUSE HOLDER PANEL N G ECON ST. 07 – RAST 5 – WITH 4-WAY R5 FLYING CONNECTORS TRIGANO CODE 1IRH001AE0013.

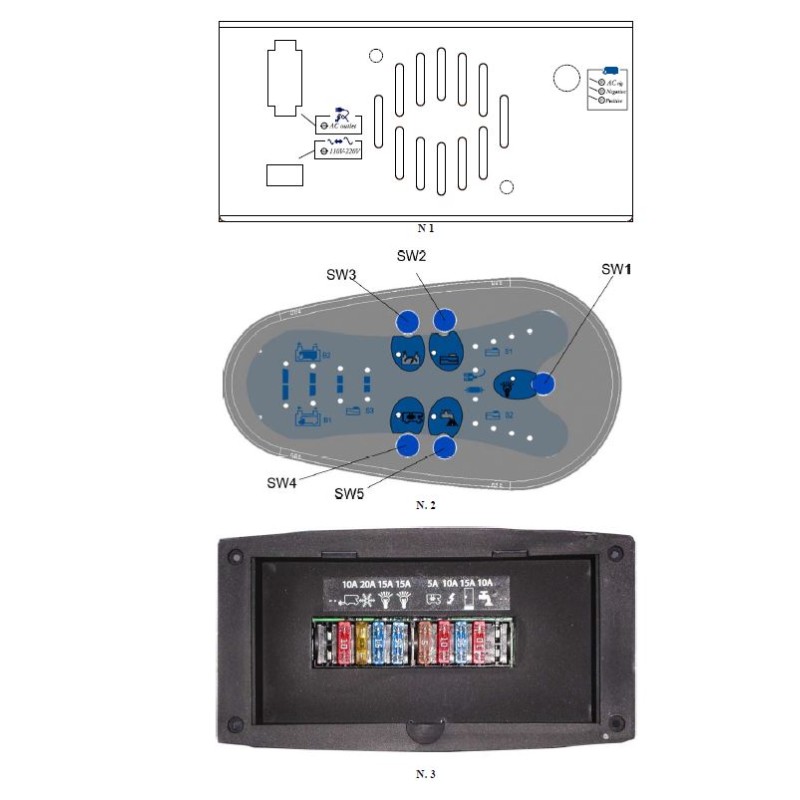

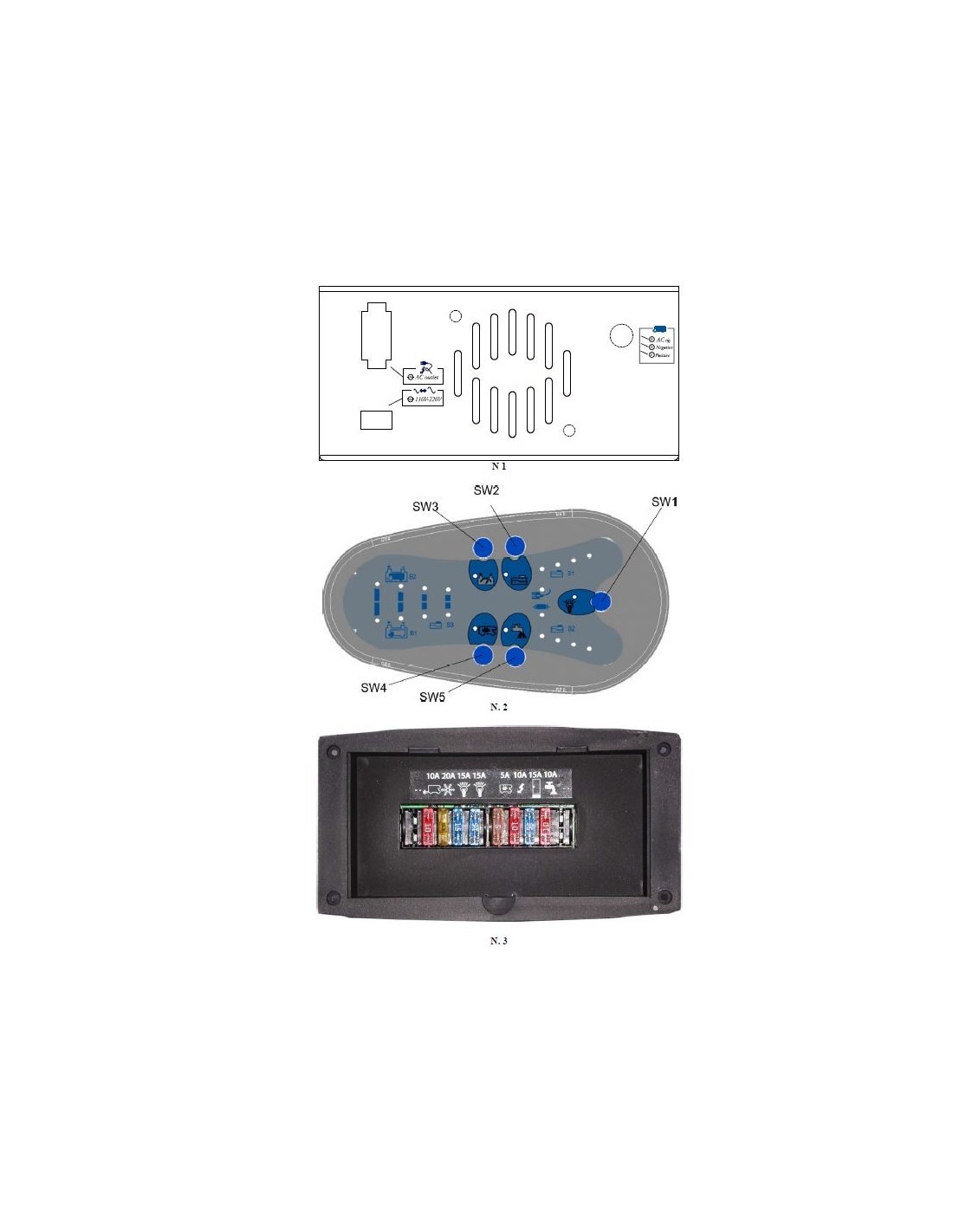

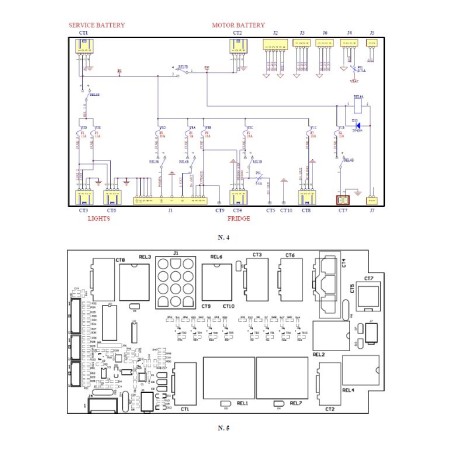

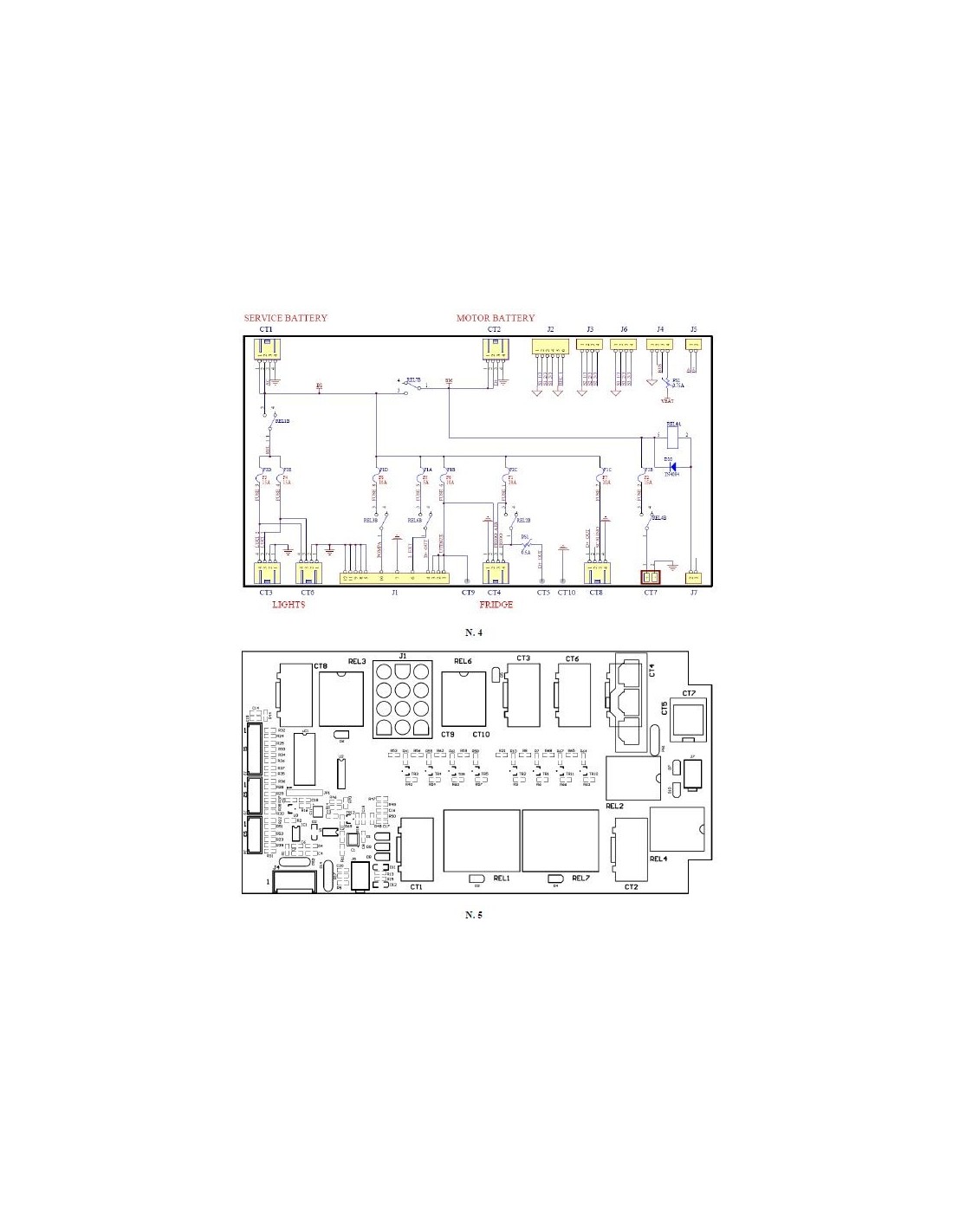

Normally installed by TRIGANO together with the control panel reference 2 of the attached drawing and the 216W AL-C20 charger reference 1.

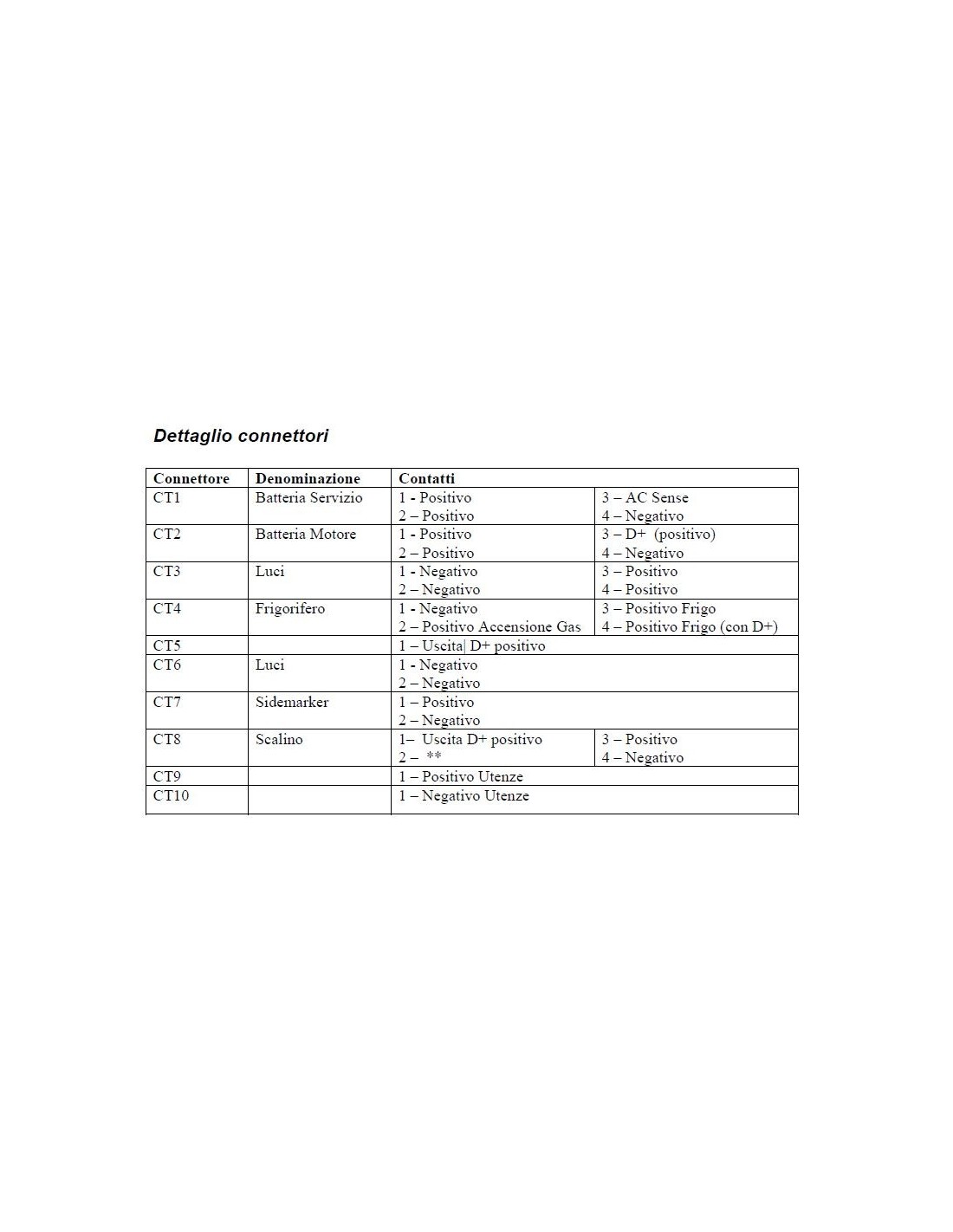

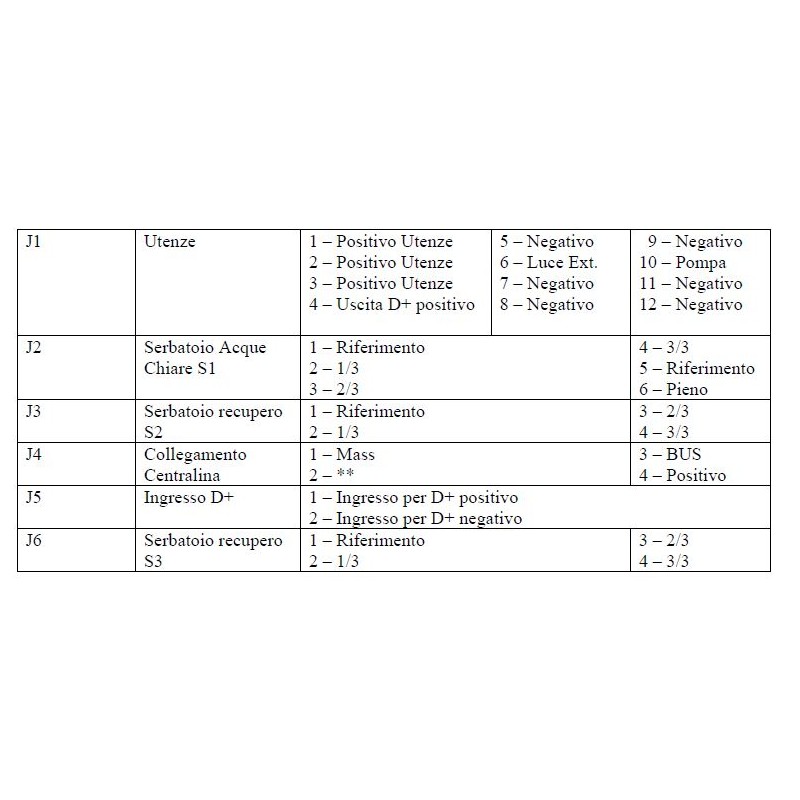

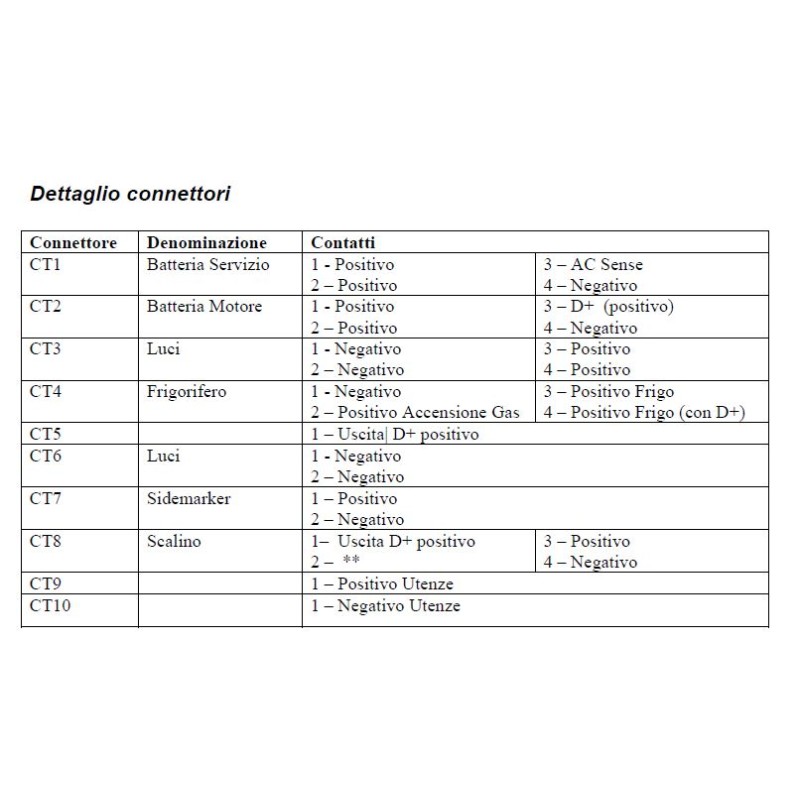

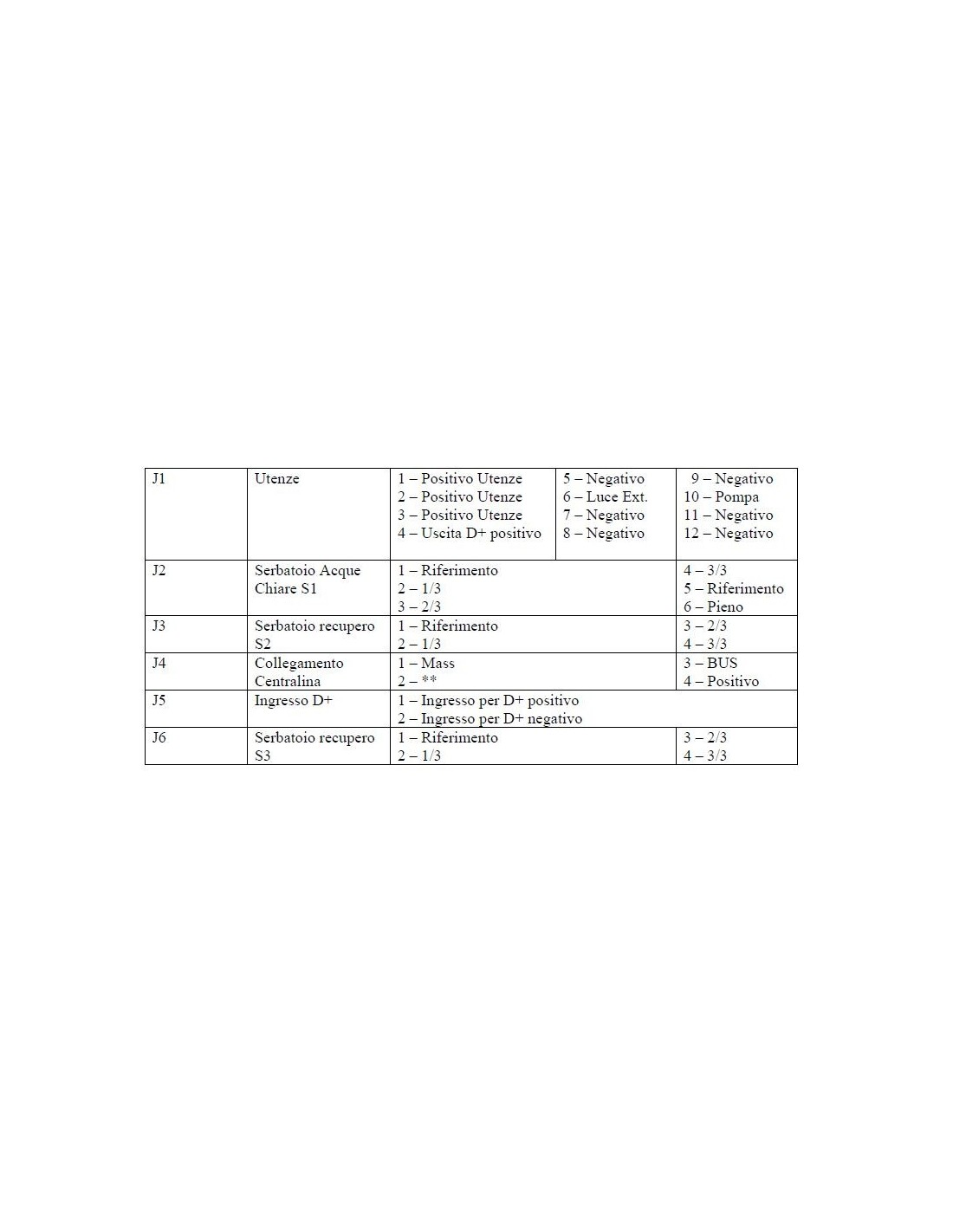

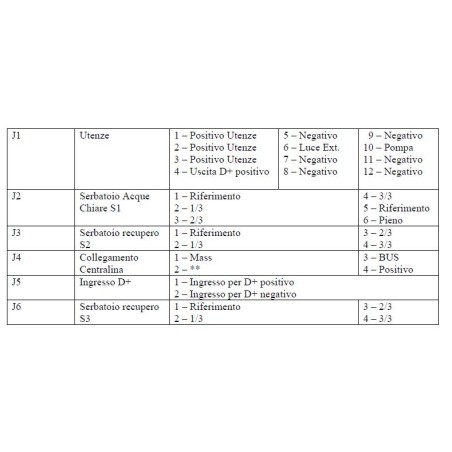

Complete with connectors:

• QA01008010 RAST5 CONNECTOR 4 VUIE FLYING MASCXHIO NUMBER 2
• QA01008011 RAST5 4-WAY CONNECTOR BLACK MALE NUMBER 3 STEERING WHEEL
• QA01008013 RAST5 4-WAY VOLKANTE CONNECTOR RED MALE NUMBER 1
• QC05000070 TIMER CONTACT 2.5-4,00 MMQ FEMALE 927824-2-TE for rast5) NUMBER 24

Installed on ROLLER TEAM.

D.02832.R1.2

SHUNT 0735

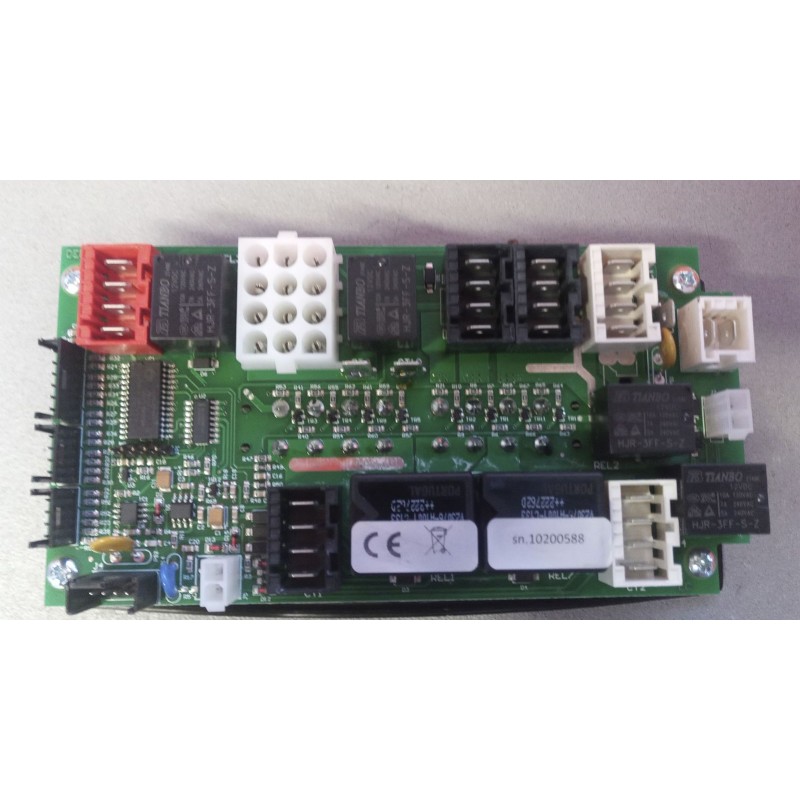

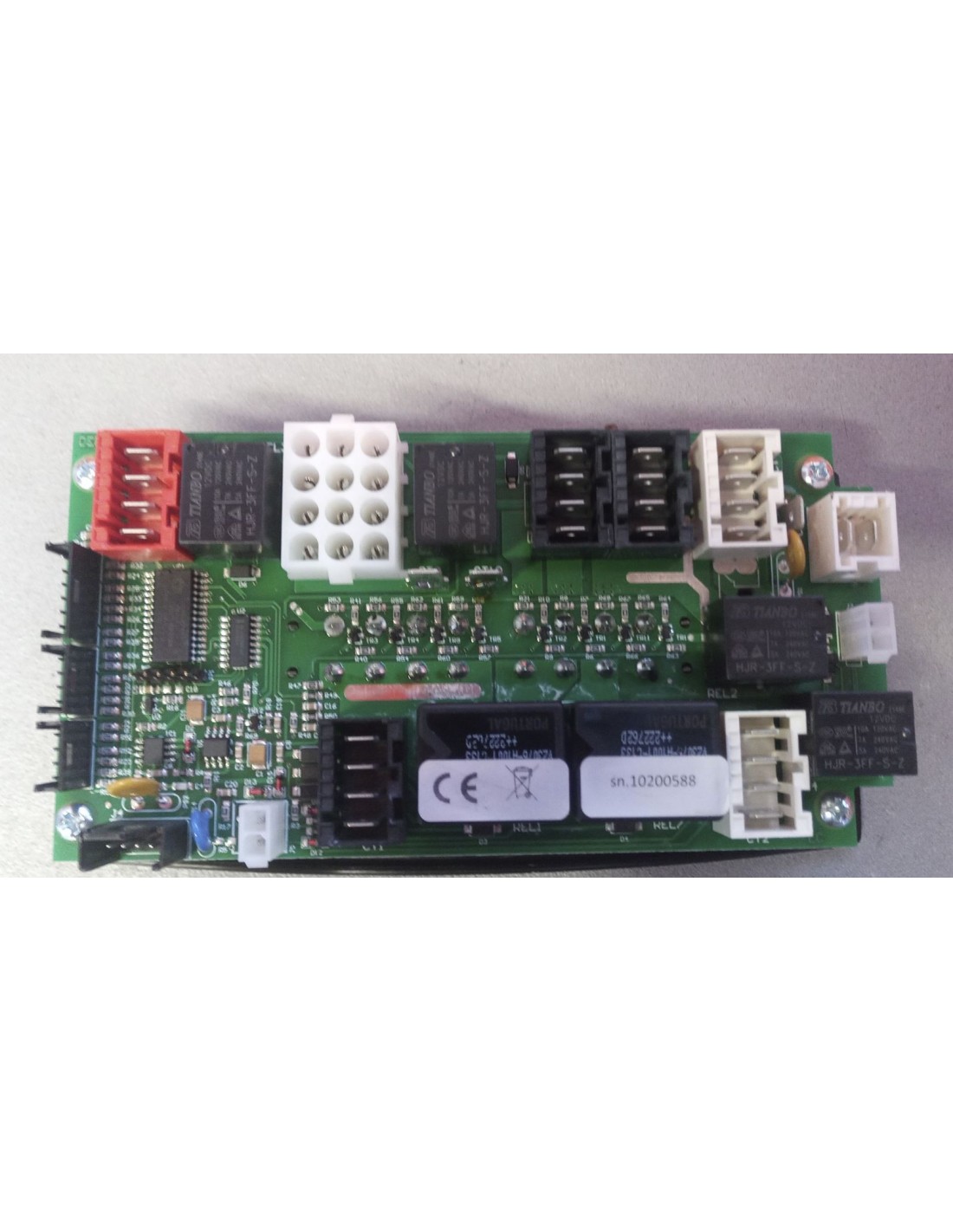

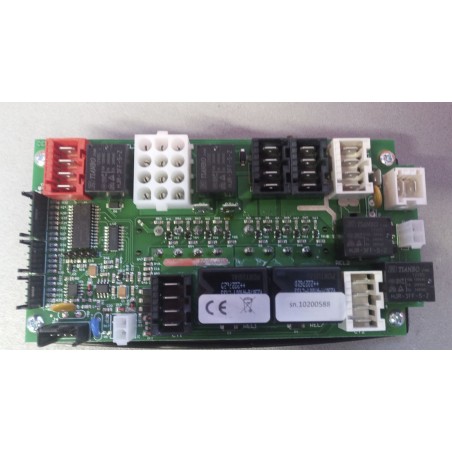

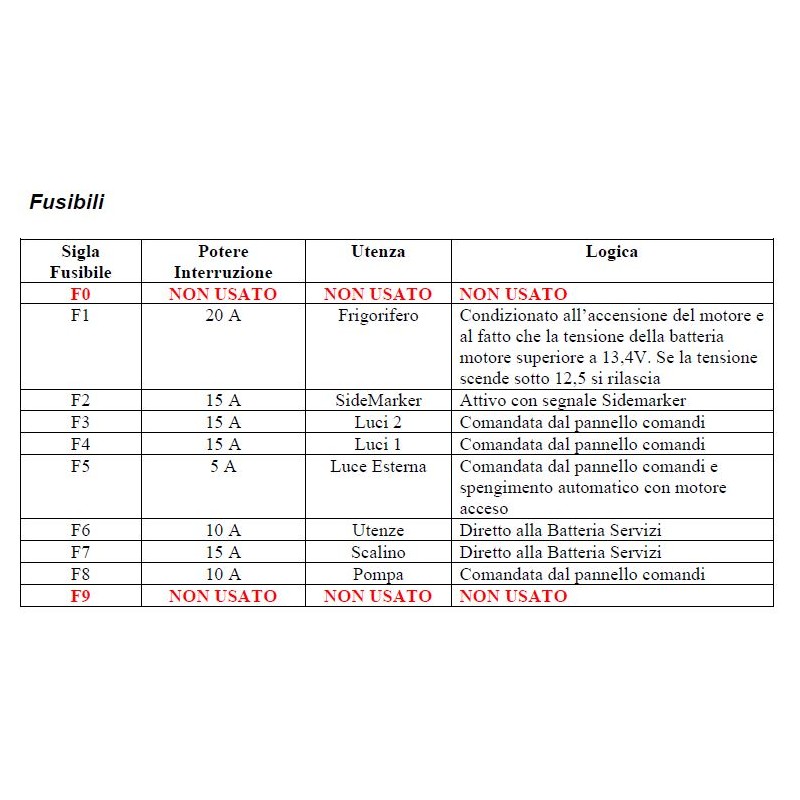

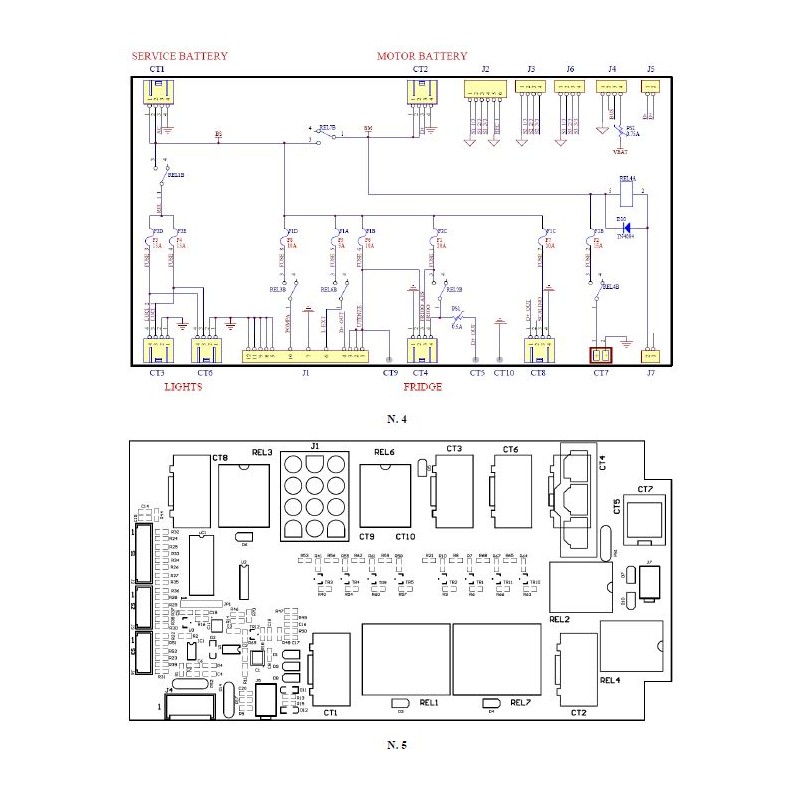

The power distributor is the device that distributes and protects the very low voltage (12 VDC) lines of the caravan, such as the light lines, the pump, etc. It has a connection with a control panel with which the status of the outputs and inputs of the following device is displayed.

Automatisms

• Parallel Batteries

Activated when the engine is turned on and the battery voltage Motor is greater than 13.4V.

Disabled when the motor shuts off or the motor battery voltage is less than 12.4V.

• Fridge

As soon as the engine is turned on, it activates for 10 sec. After that it follows the same rules as the parallel Batteries.

• Positive D+

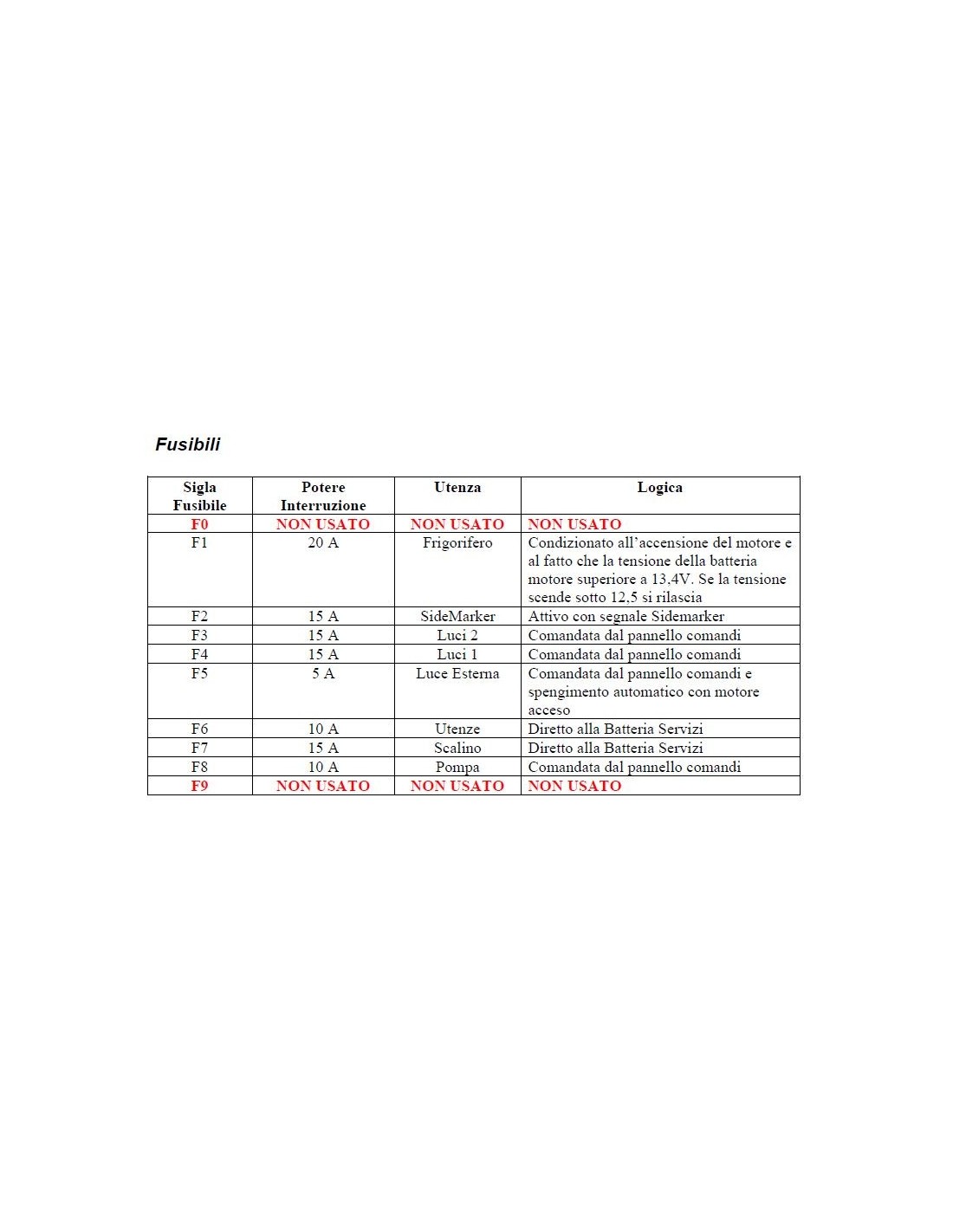

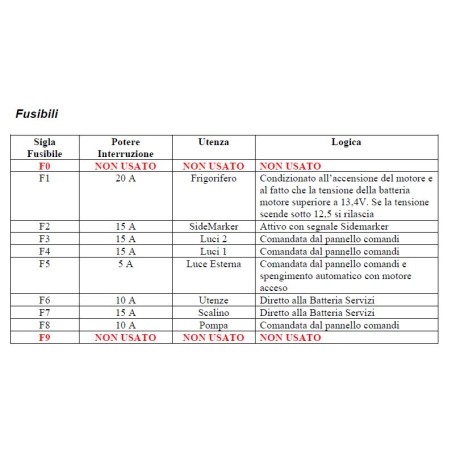

The positive D+ output signal is connected to the fridge relay and is under F1 fuse.

• Battery protection services

When the battery voltage drops below 10V and remains there for more than 10 seconds.

all utilities connected to the lighting system and the pump are turned off.

Size and Weight

Dimensions (LxWxH) 18x10x6 cm Weight approx. 260 gr/pcs
