Automatic battery selector also Lithium CBE BDS-200 DUO SYSTEM 402182 BlueTooth

DUO SYSTEM automatic service battery selector also Lithium CBE BDS-200 - 402182 - BlueTooth

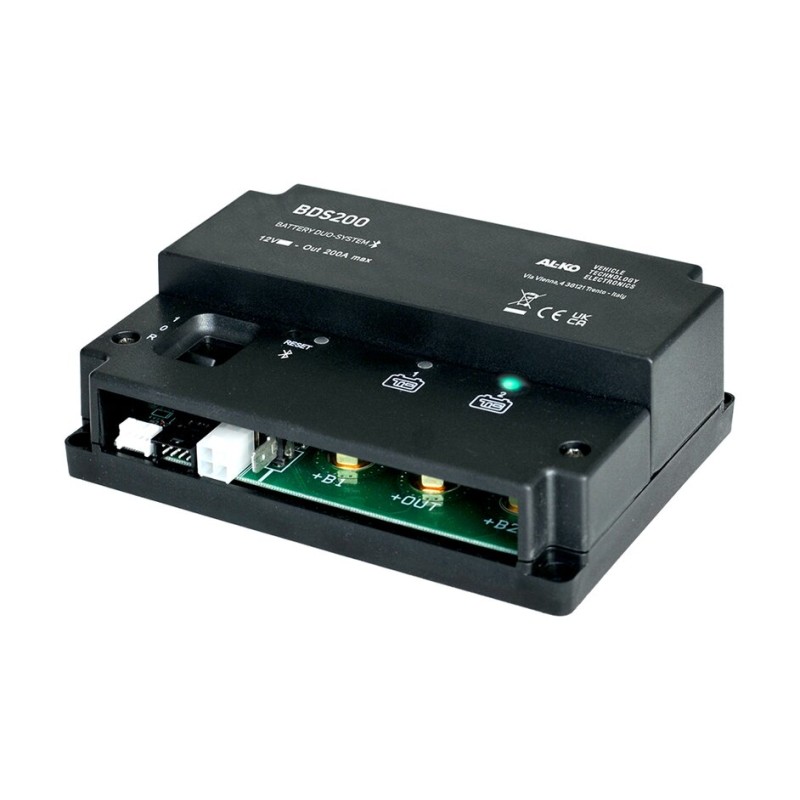

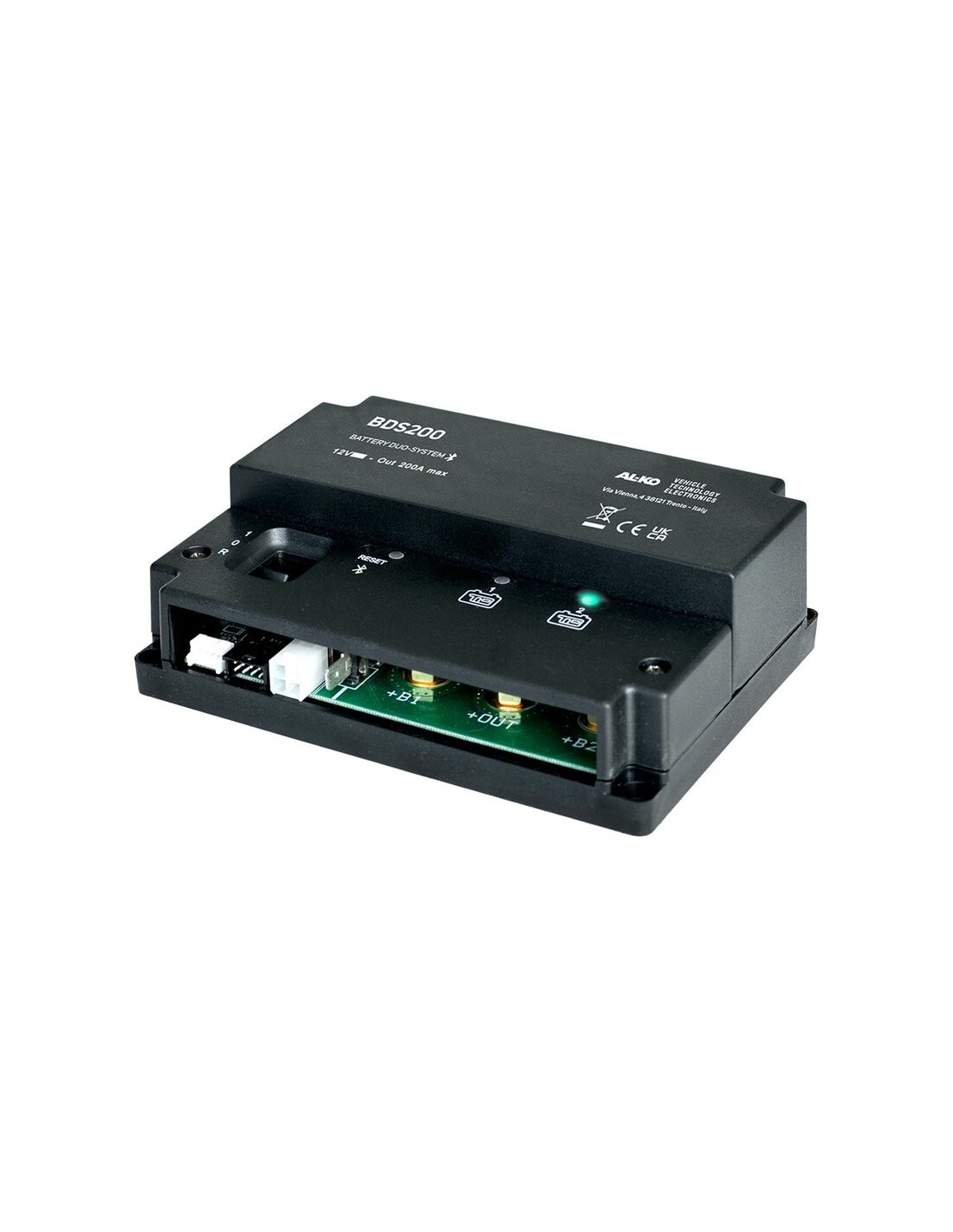

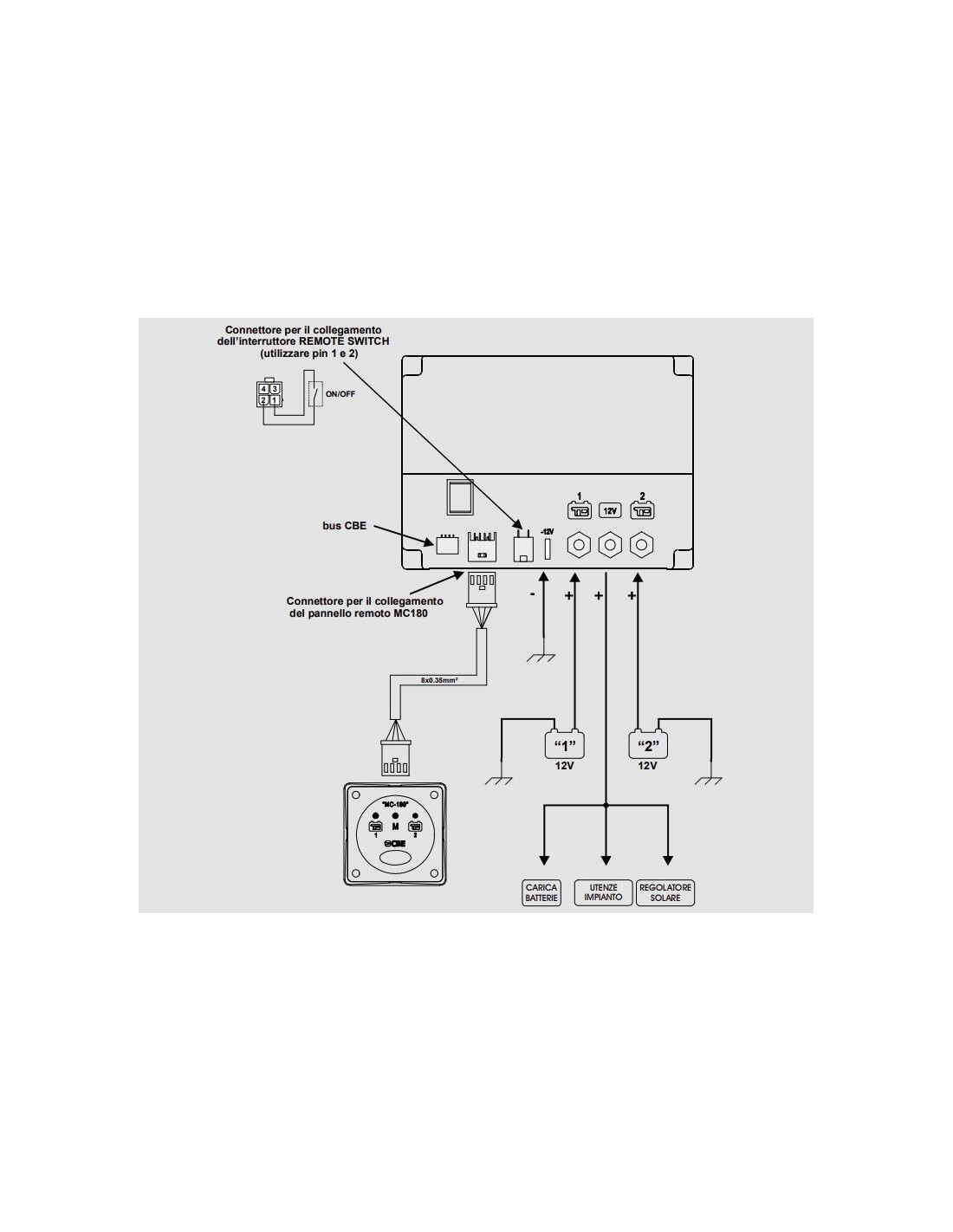

It is an electronic device with built-in microprocessor that can intelligently manage two 12 V service batteries, lead, gel, AGM and lithium, both in charging (with alternator, battery charger and PV modules) and in discharging.

TWO 12 V BATTERIES CAN BE CONNECTED TO THE DEVICE, WHICH MUST BE OF THE SAME TECHNOLOGY, BUT CAN BE OF DIFFERENT CAPACITIES AND AGES

There are many advantages to using the BDS-200:

• management of the charging and discharging of the batteries separately and alternately
• control of the functionality of each individual battery and, in case of a failed battery, isolation of the battery with a light signal (yellow LED on the BDS-200)
• "battery saver" function, which disconnects the batteries when a safety voltage is reached to prevent irreversible damage to them
• possibility of electrically disconnecting both service batteries (in case of prolonged periods of inactivity) using the switch located on the device or via a remote switch
• management of high currents (charging and discharging) up to a maximum of 100A with 120A spikes for each battery
• possibility of connecting consumers with consumption up to a maximum of 200A

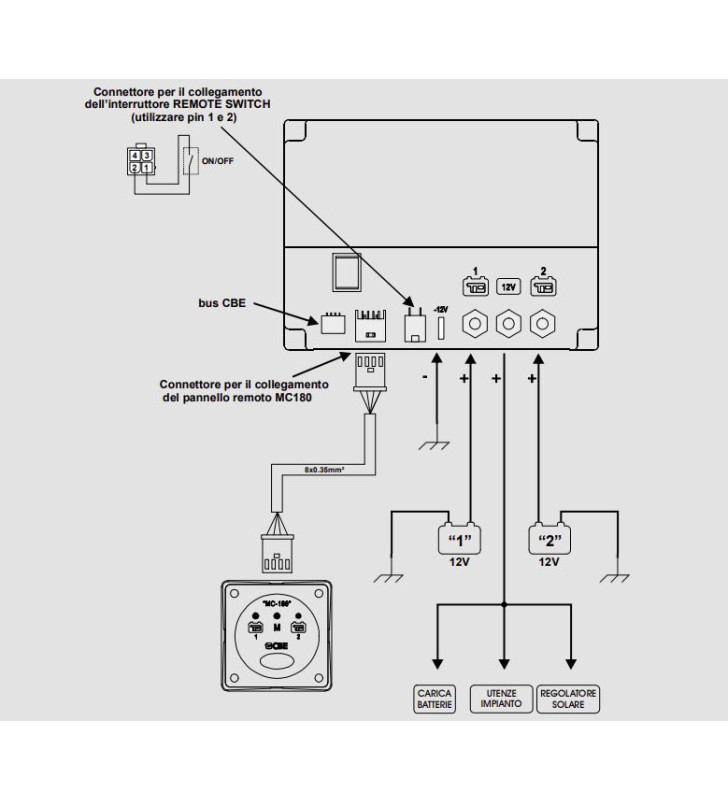

• possibility of connecting a control panel (MC-200) for selection of equipment operation mode (automatic/manual)

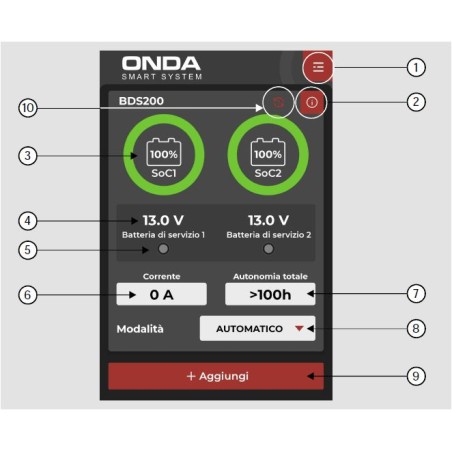

• possibility of connection to mobile devices via the APP "ONDA AMART SYSTEM"

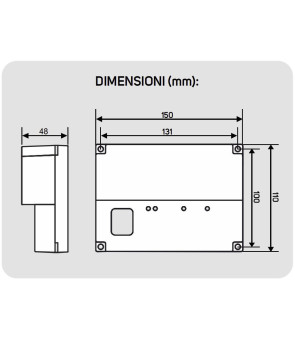

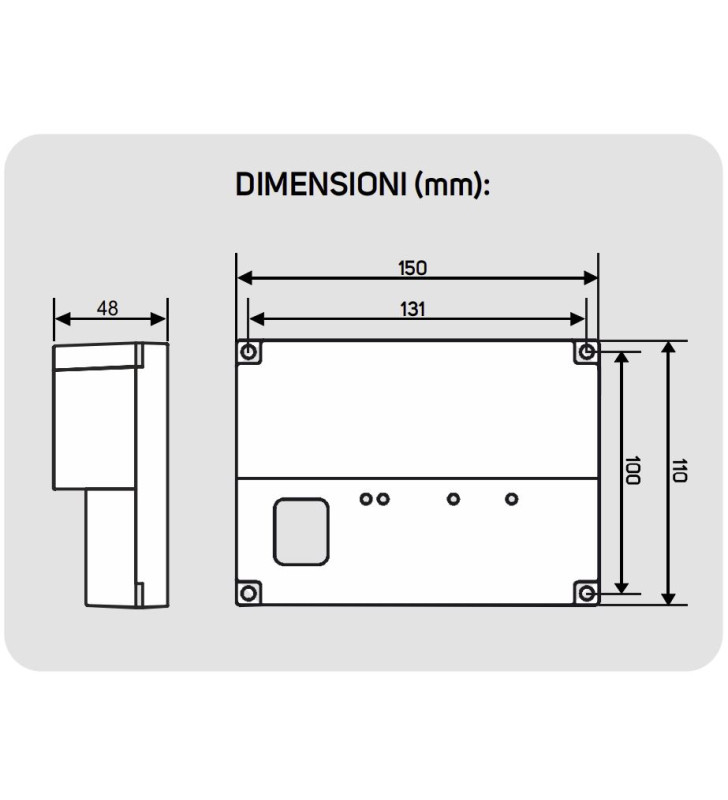

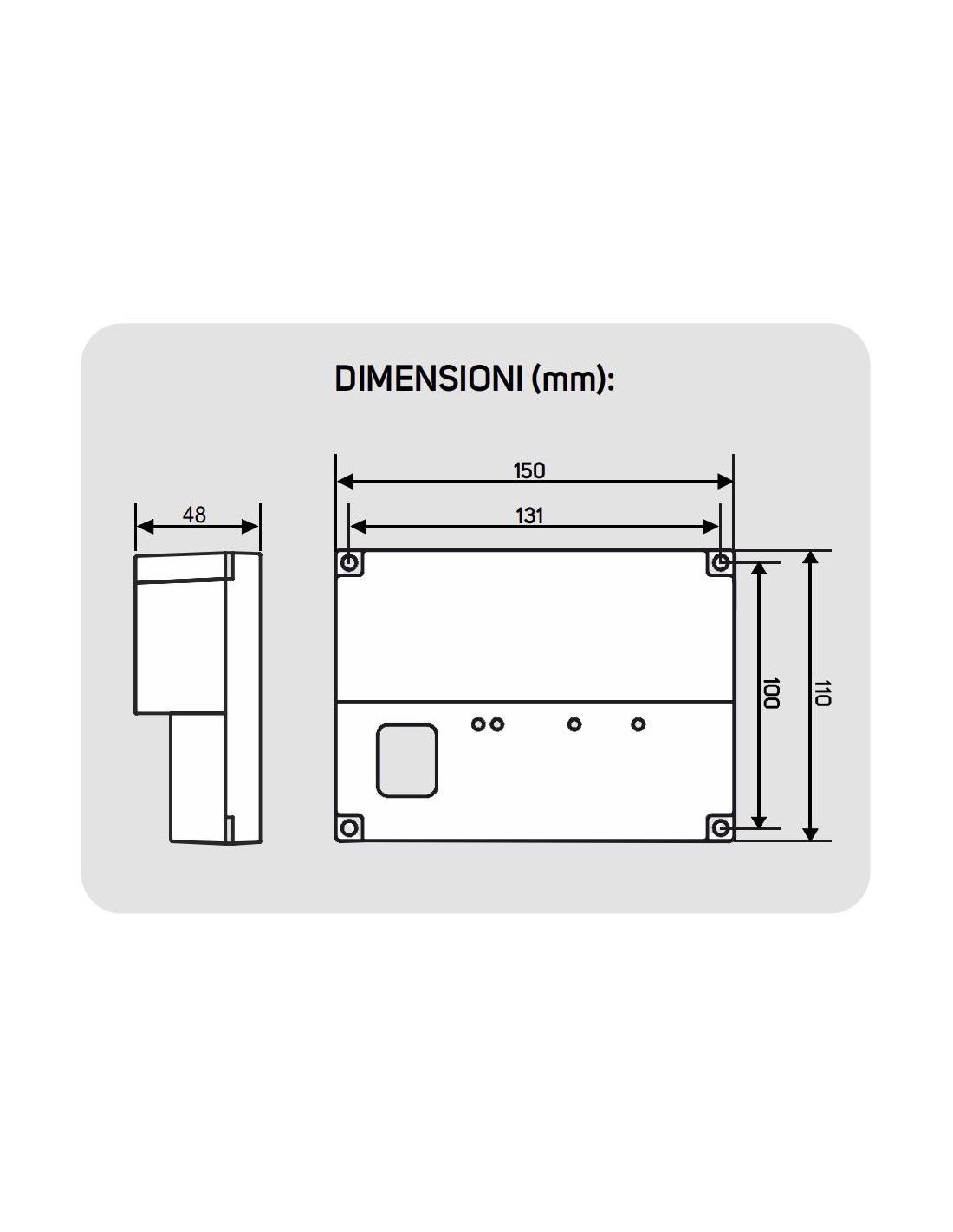

Dimensions (mm): 150 x 110 h48

Color: black

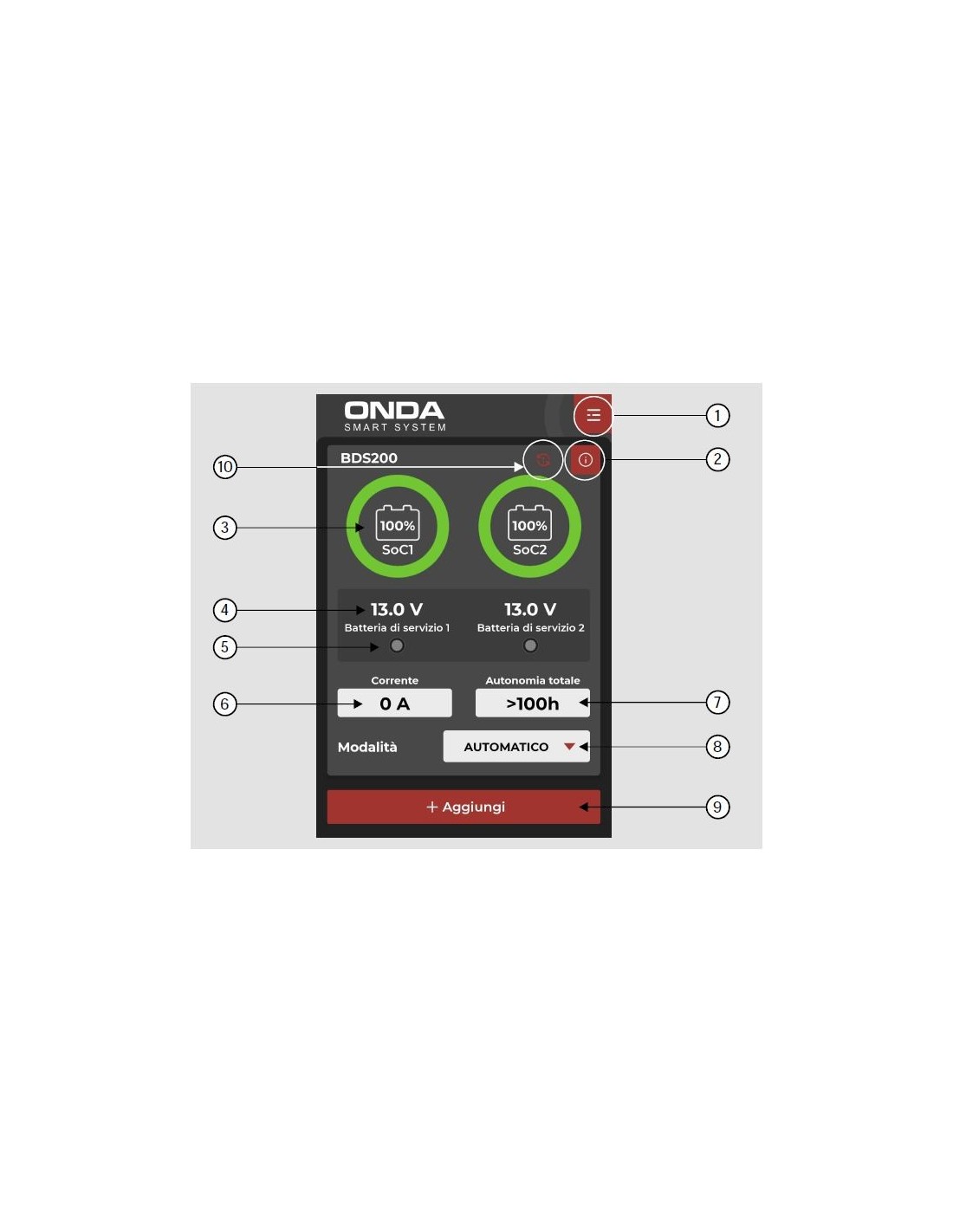

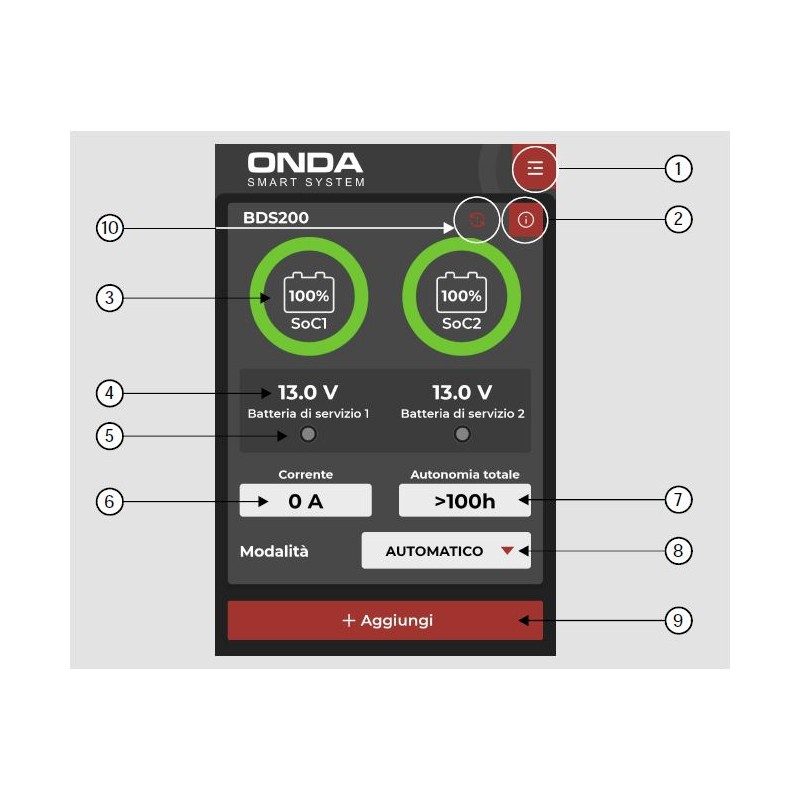

Complete with APP - ONDA SMART SYSTEM FOR BDS-200

See in the extended description
