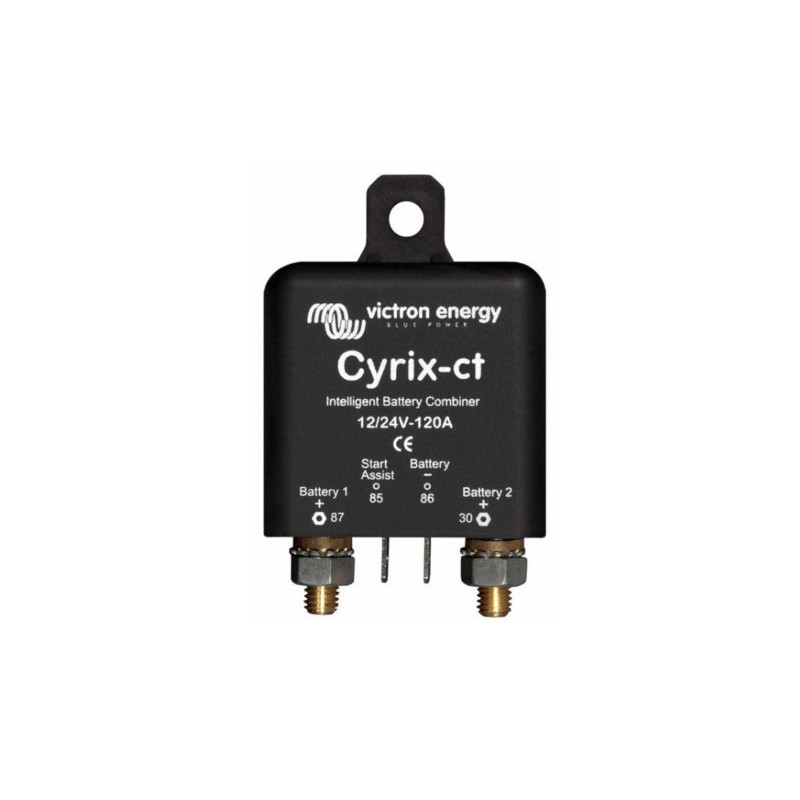

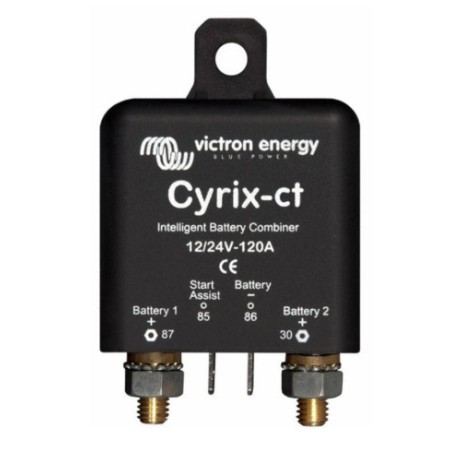

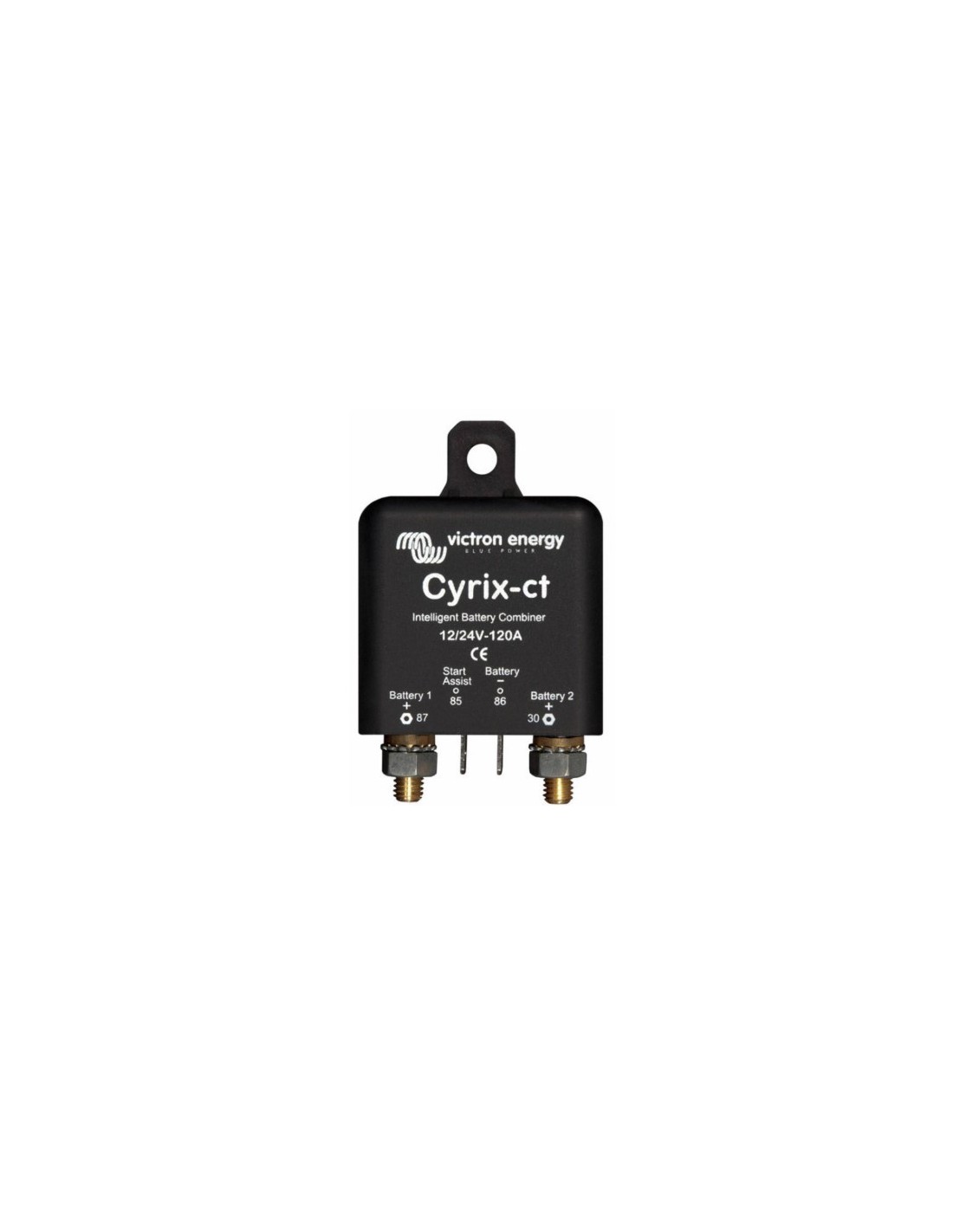

Cyrix-Ct 12/24V 120A Intelligent Battery Coupler Victron Energy - CYR010120011R

Cyrix-Ct 12/24V 120A Victron Energy Intelligent Battery Coupler - CYR010120011R

Improper installation can be dangerous, consult a licensed professional and follow all applicable electrical codes during installation

Create your own fast charging line and take advantage of auxiliary batteries!

The Victron Energy Cyrix-ct consists of a microprocessor-controlled relay that automatically disconnects the batteries when the voltage drops below a certain value, and reconnects them when the voltage of either battery rises above a pre-set value.

The Cyrix-CT coupler fits conveniently between the starter battery and the lithium cell battery (diode to be added) or for the parallel installation of two lead-acid, AGM or Gel batteries.

Allows charging during operation up to 50 Ah.

For Euro 5 and earlier vehicles.

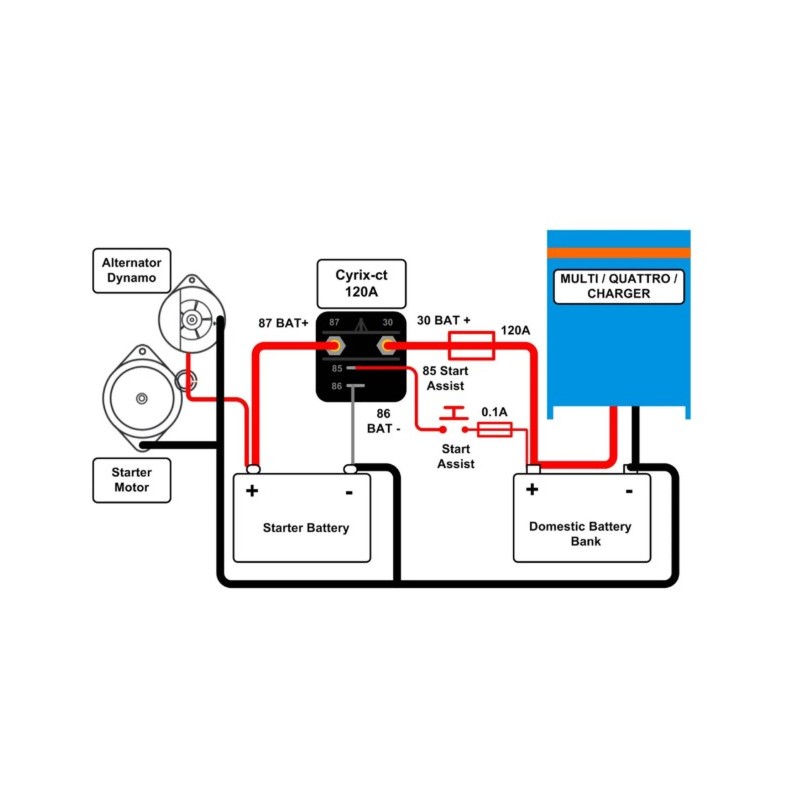

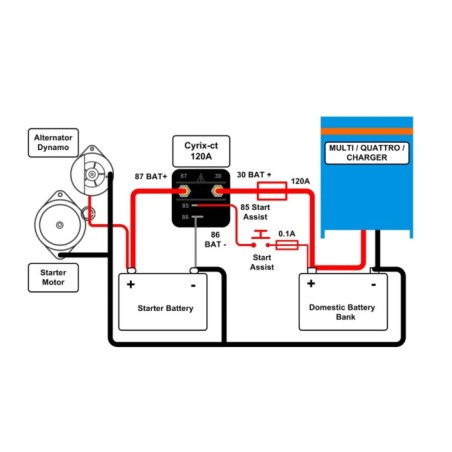

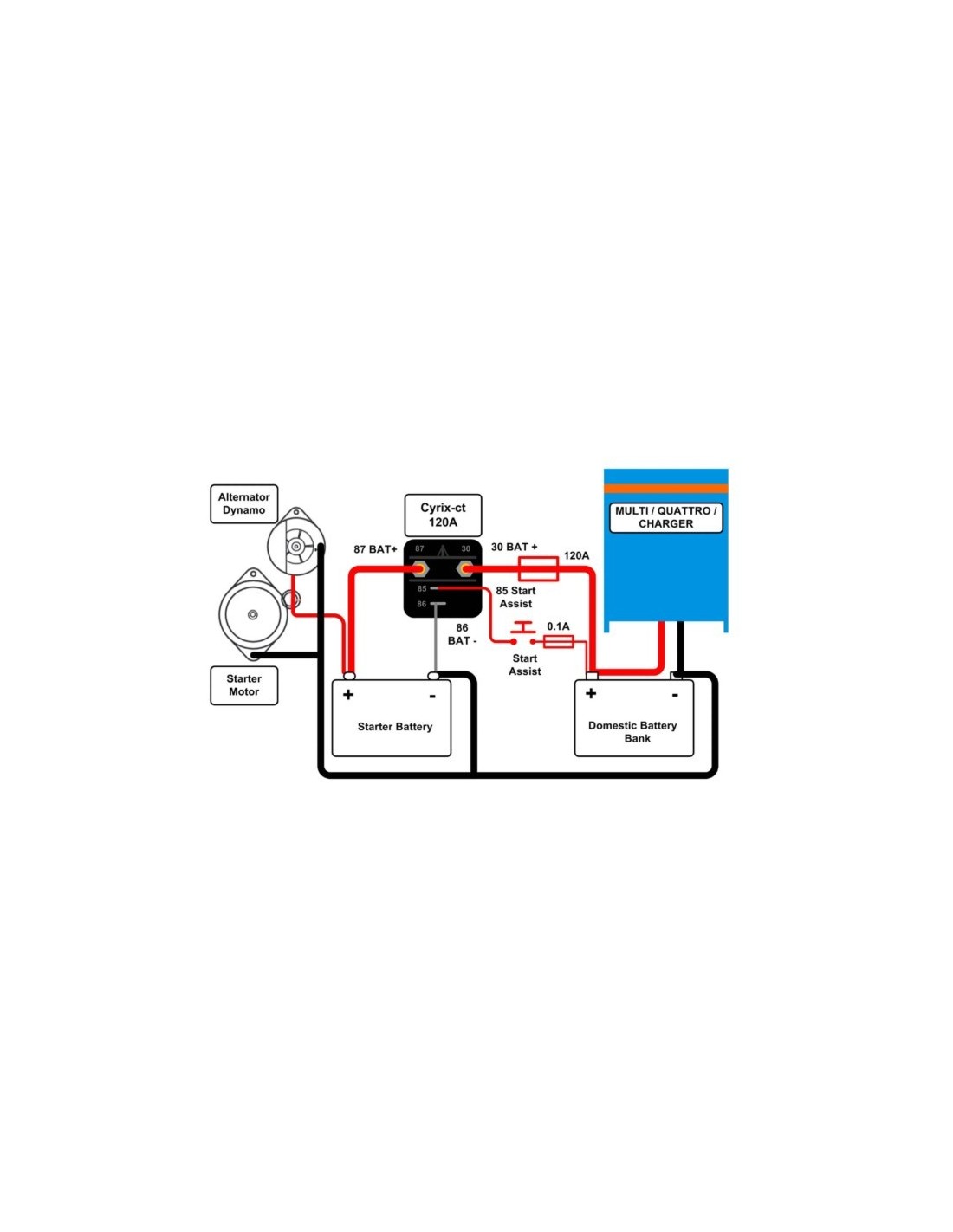

Starter battery priority function:

In a typical installation, the alternator is directly connected to the starter battery.

The service battery, or other consumers, are all connected to the starter battery via Cyrix battery combiners.

When a Cyrix detects that the starter battery has reached the connection voltage, it activates to allow the other batteries to be charged in parallel.

Technical Features:

Product Type: Relay

Connection voltage: 13.0V

Disconnect voltage: 12.8V

Automatic detection of system voltage (12 or 24 V)

Maximum power: 120 A with continuous use / 180 A (5 seconds)

Weight: 0.11 kg

Net weight: 0.13 kg

Version: For acid, AGM or Gel batteries

Protection type: IP54

Connection bolts and connection cables: 13mm (M6)

Self-consumption: 12V= 220mA 24V= 120mA

Dimensions (WxHxD): 46 x 80 x 46 mm
