PROJECT 2000 step tension spring 12473, 10750, 10751, 10576

5 days of preparation excluding made to order items
€6.00
VAT included
6
5 days of preparation excluding made to order items

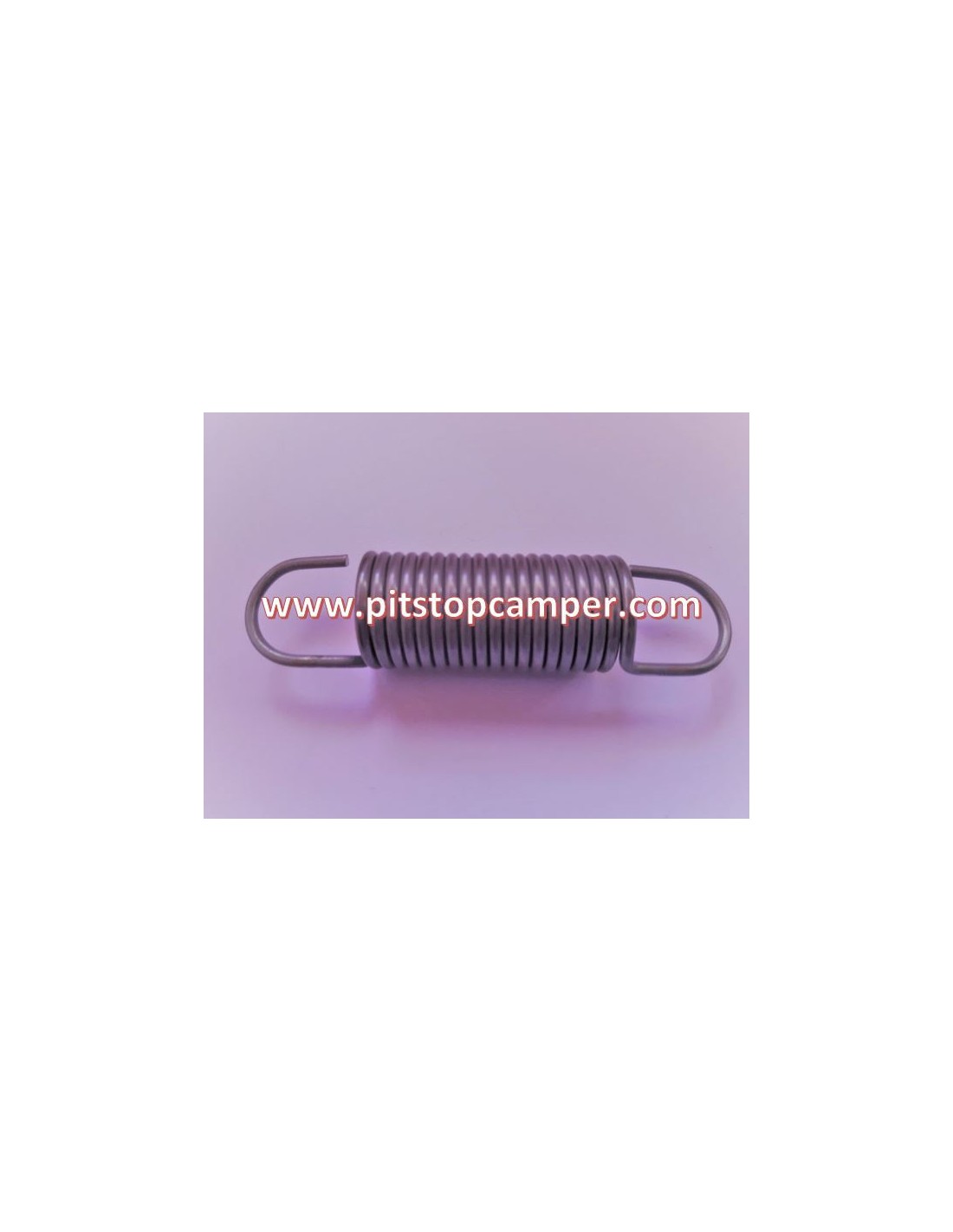

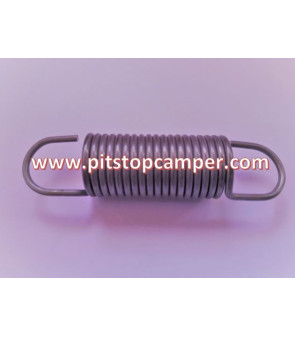

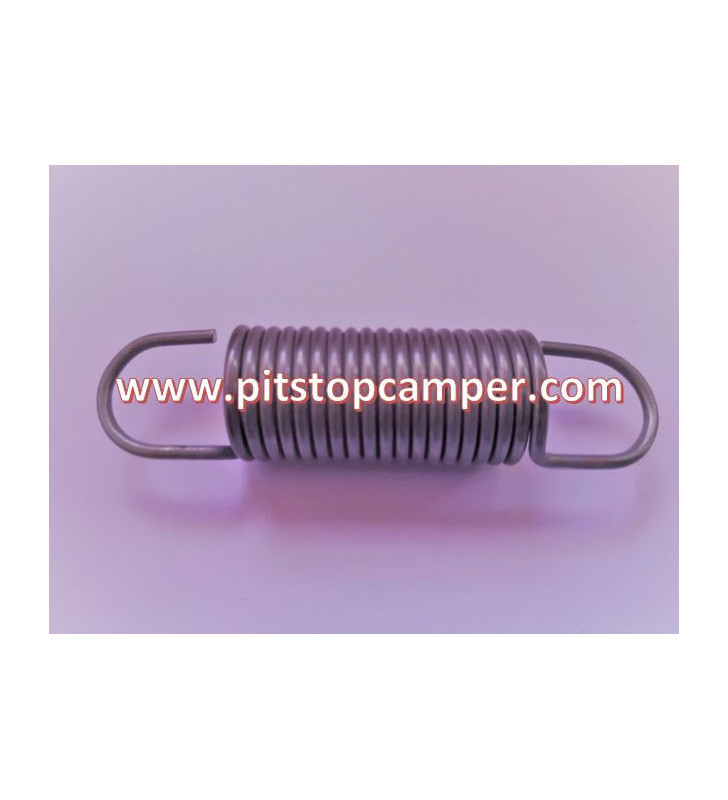

Tension spring for PROJECT 2000 step mod. 12473, 10750, 10751, 10576

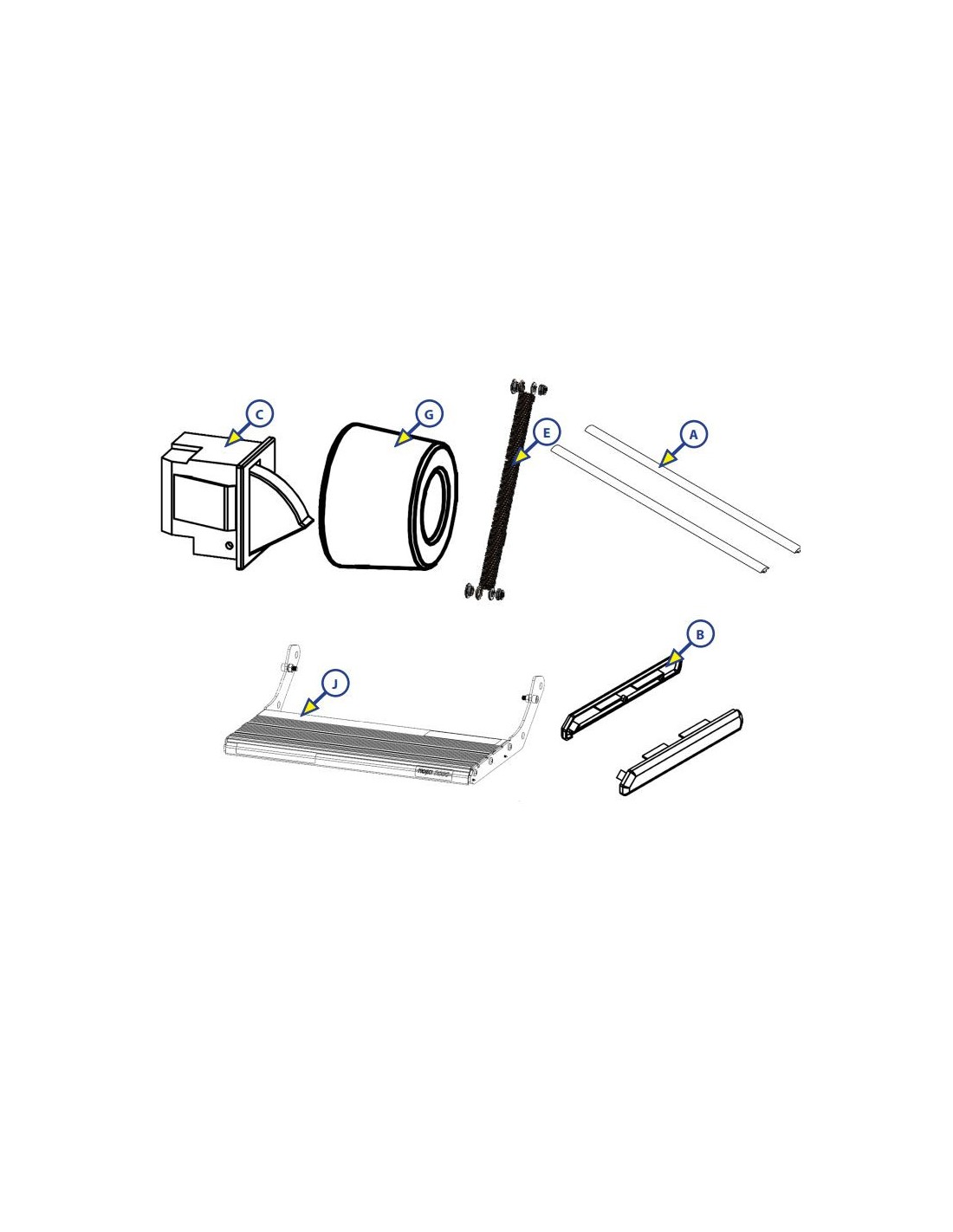

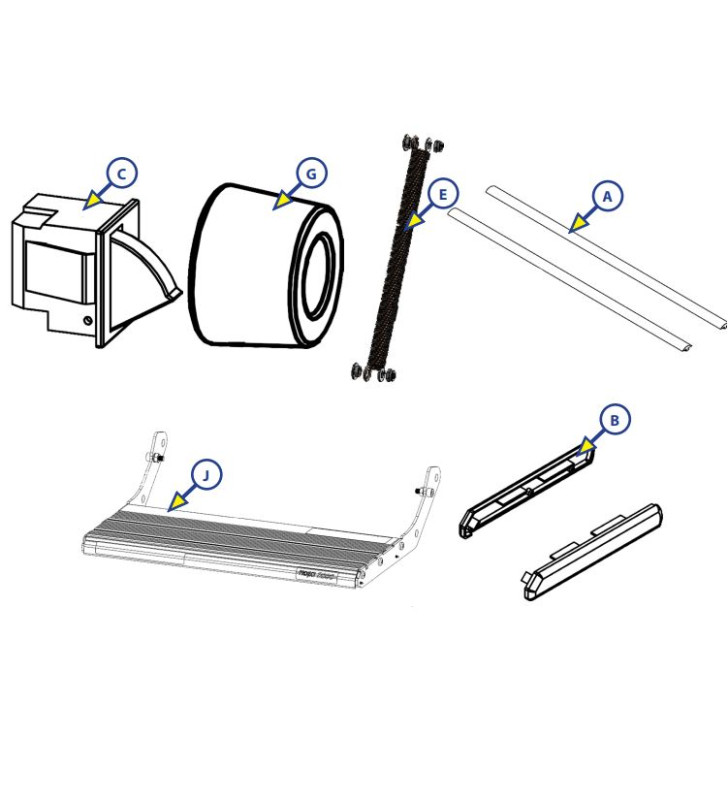

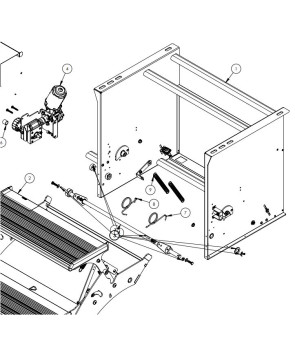

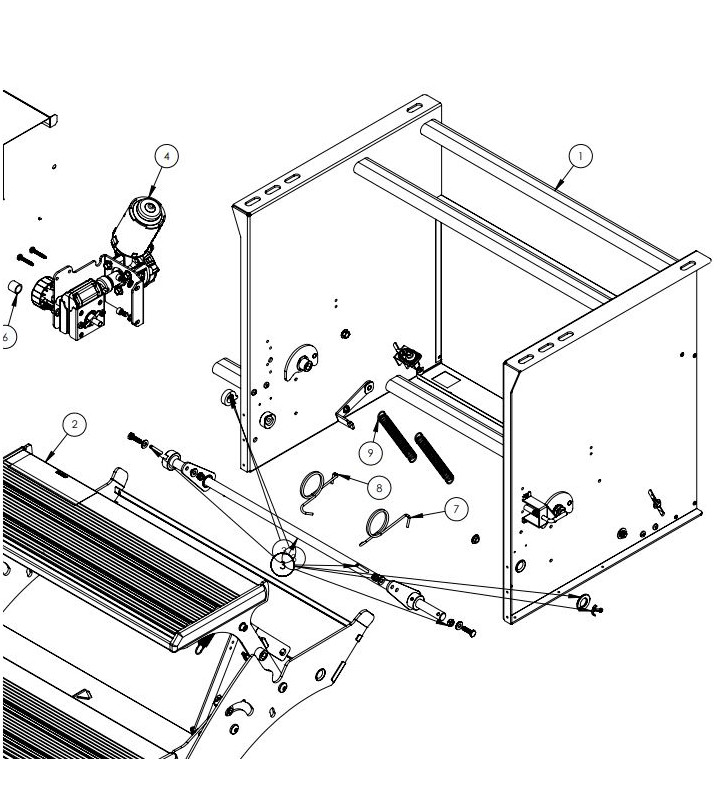

- 12473 - Point E of the exploded view.

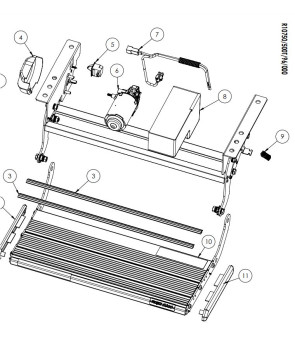

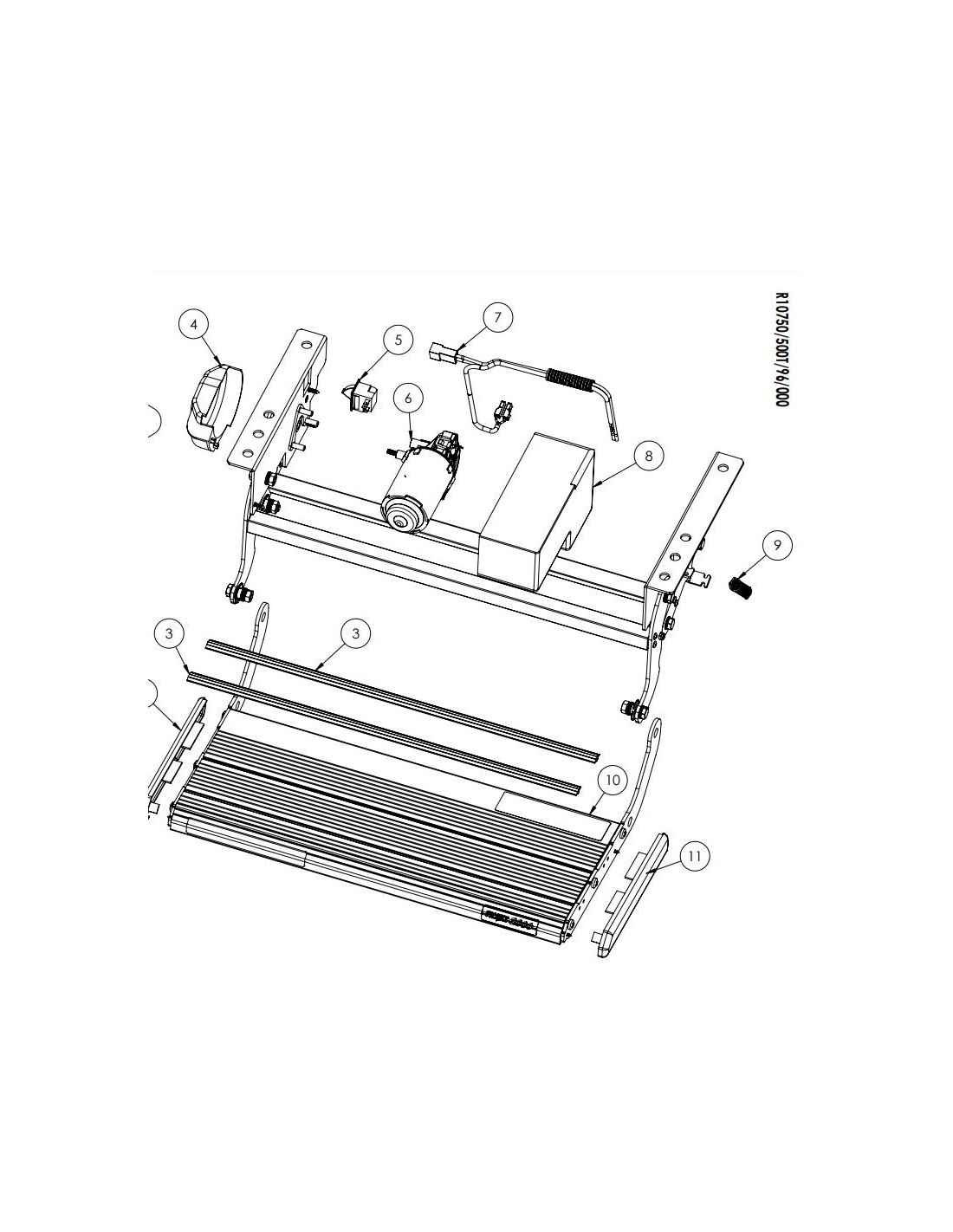

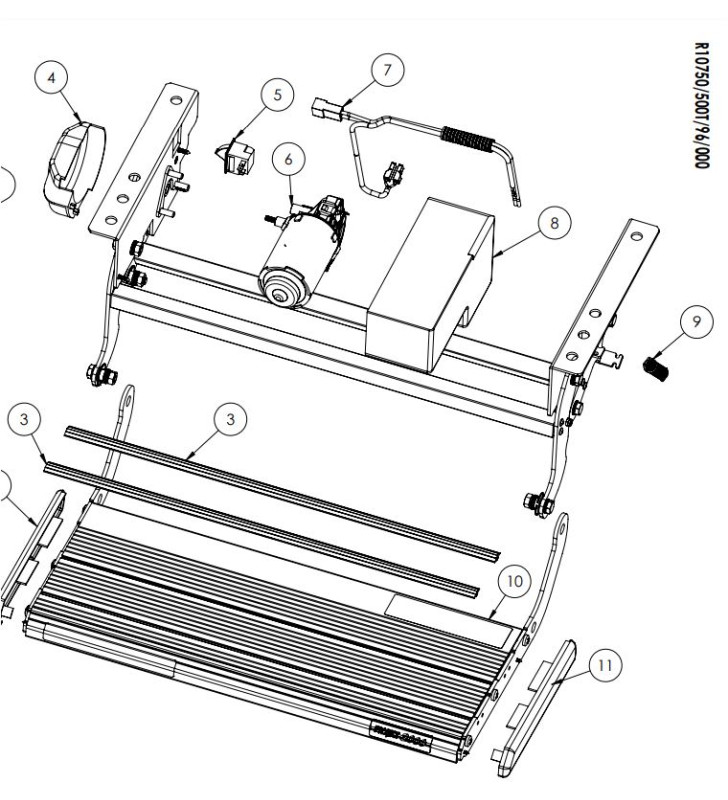

- 10750 - Point 9 of the exploded view

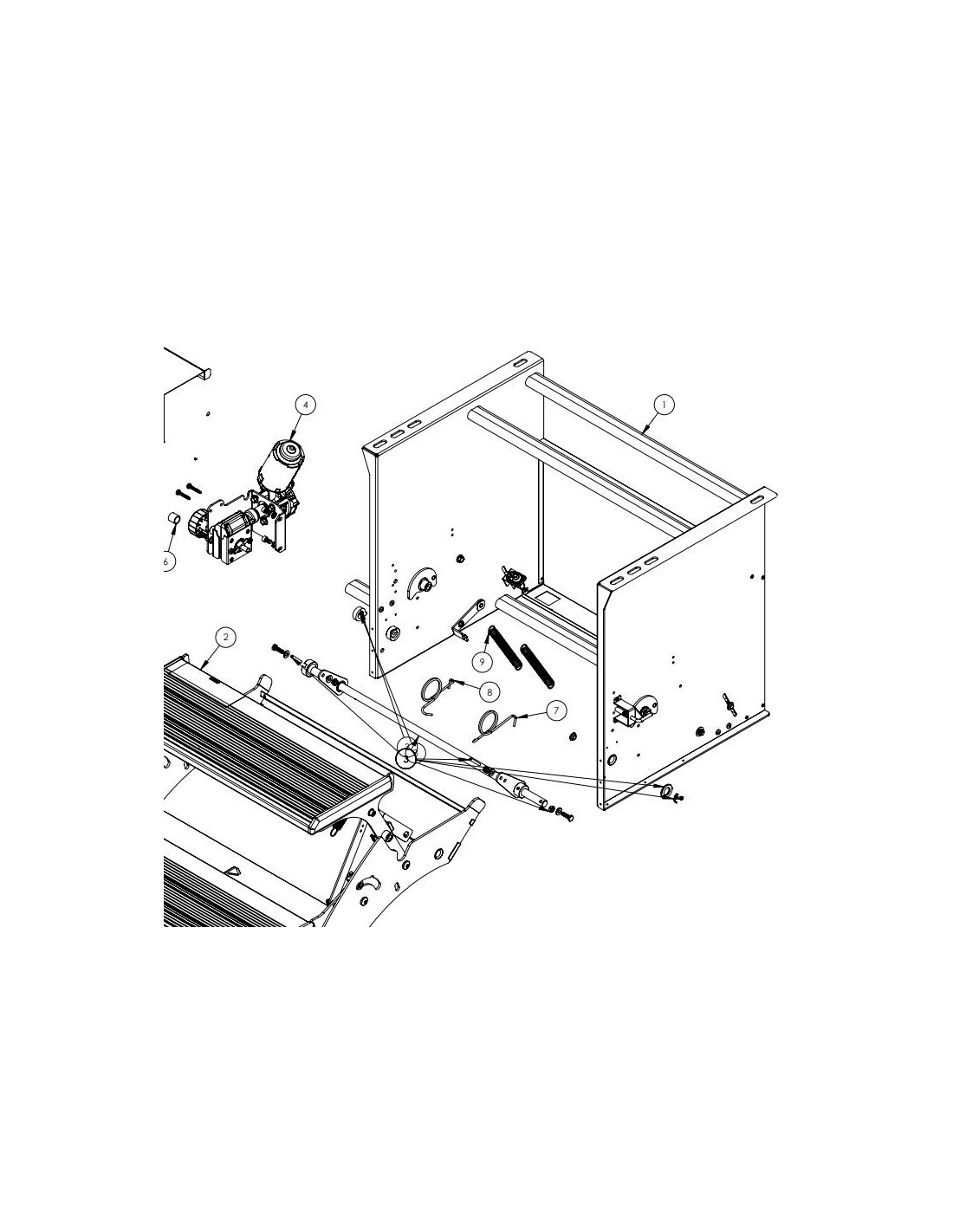

- 10576 with 3 steps - Point 9 of the exploded view

Distance between hooks approx. 60 mm

Wire diameter approx. 1.7 mm

External diameter approx. 15 mm
