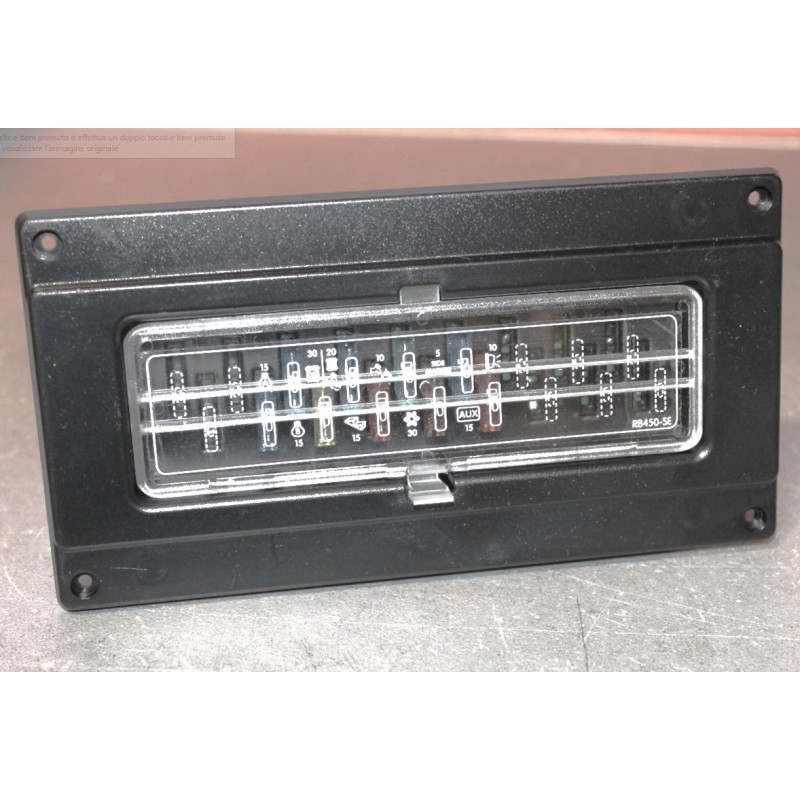

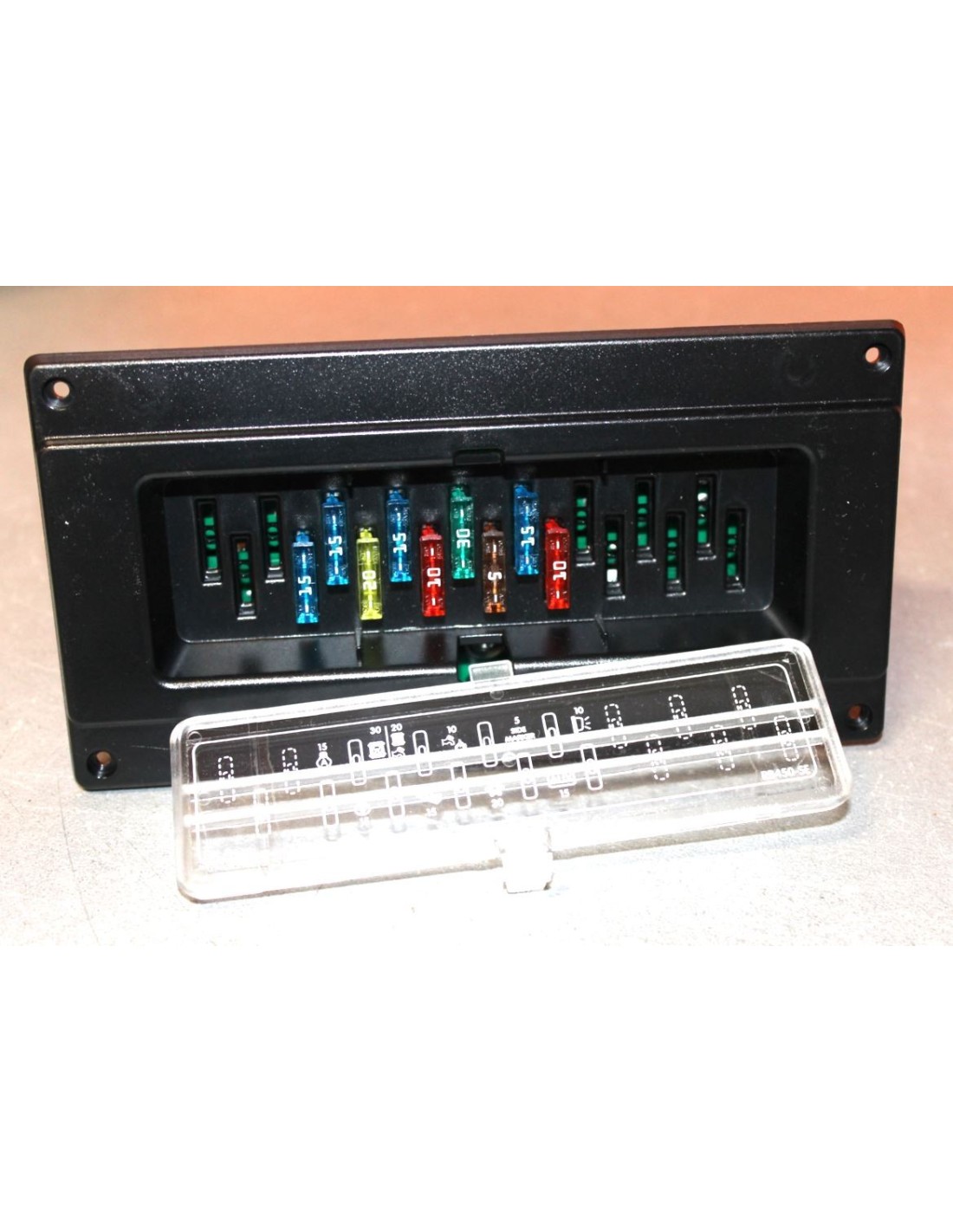

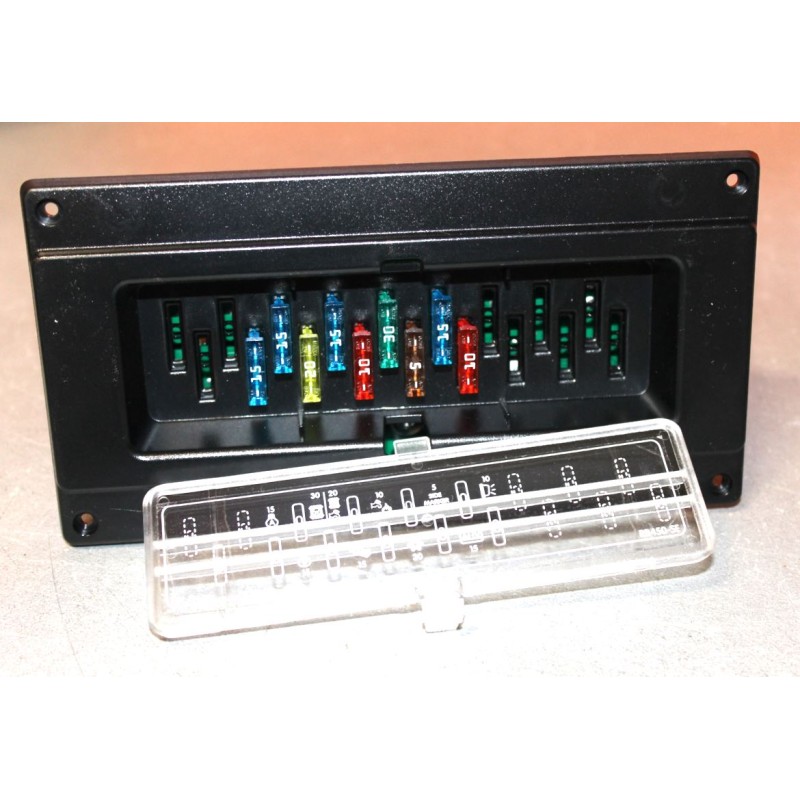

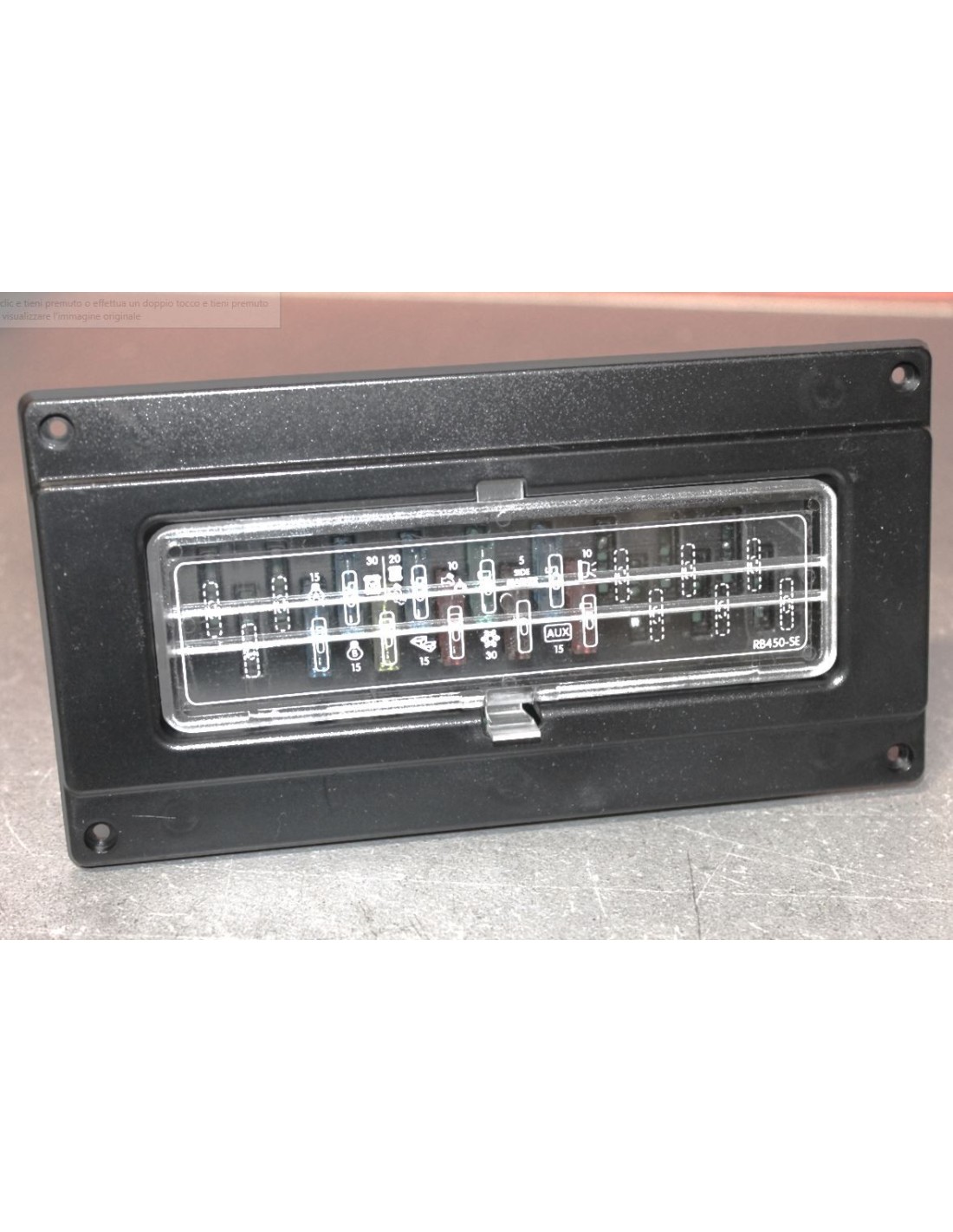

CBE RB450SE - 209255 FUSE HOLDER DERIVATOR

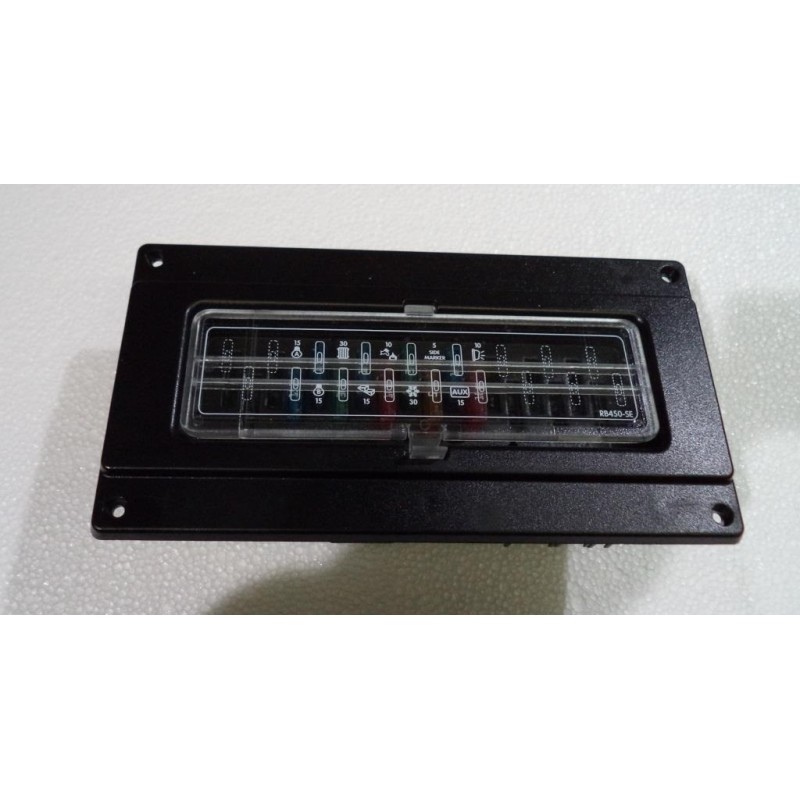

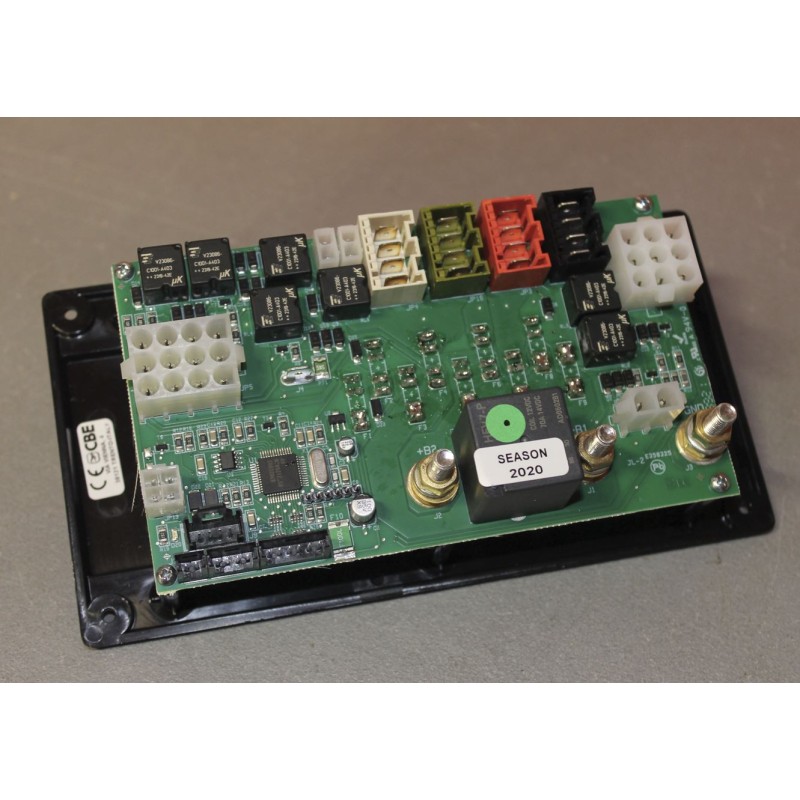

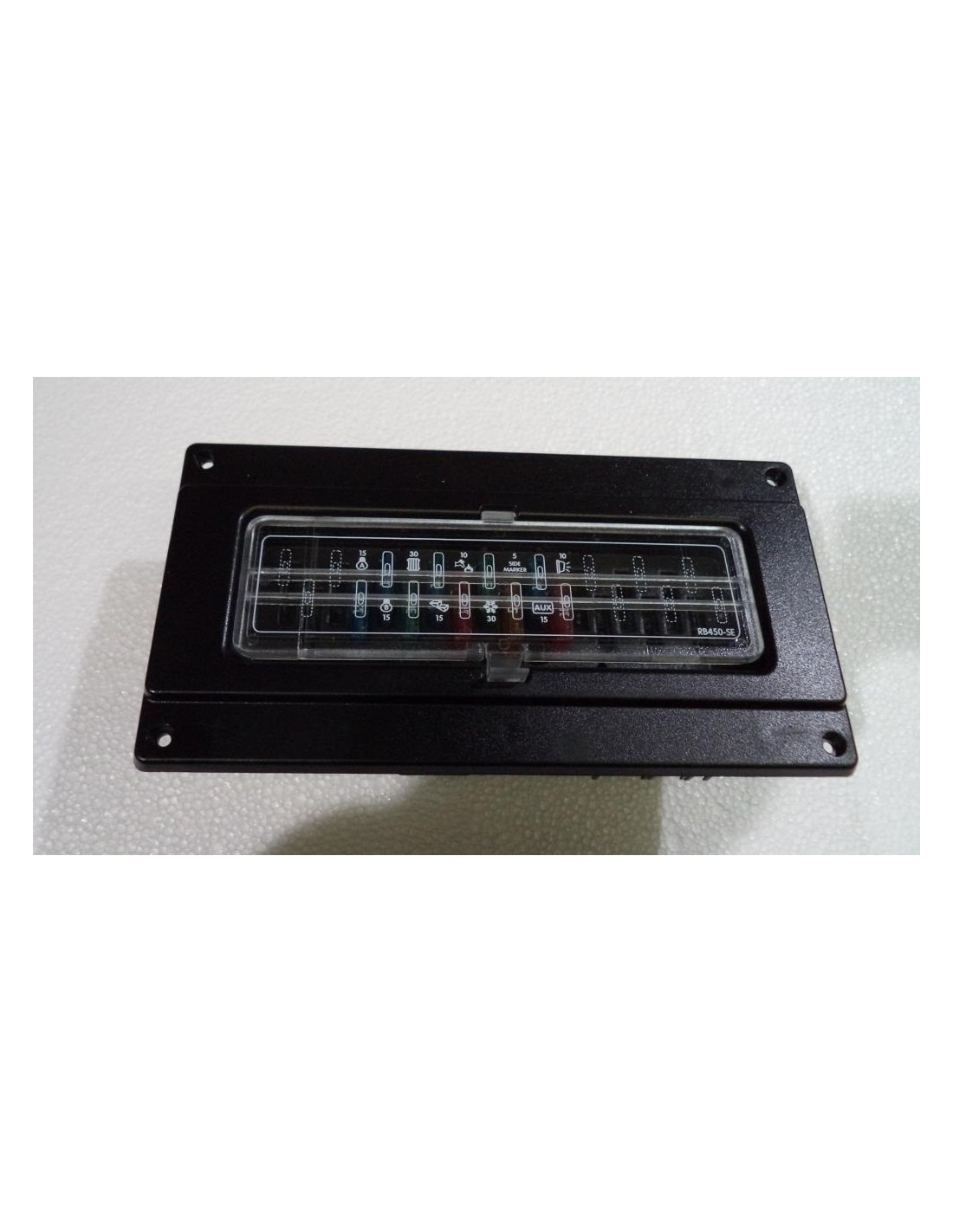

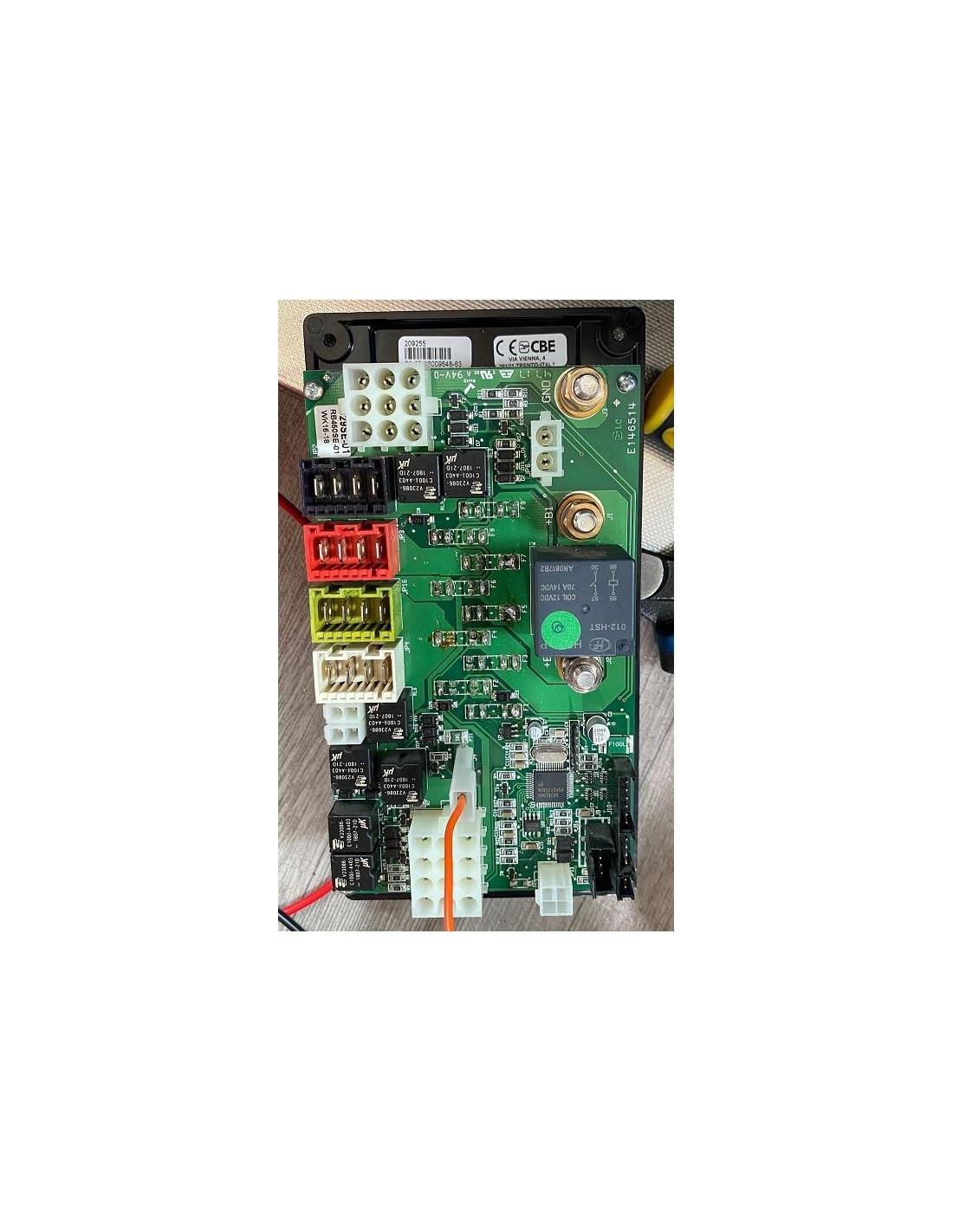

FUSE HOLDER RB450-SE - CBE 209255

The 12V DISTRIBUTION PANEL “RB450-SE” is associated with the CONTROL PANEL “PC180-SE”

SYSTEM FUNCTIONS

• CAR BATTERY CHARGING (B1)
• BATTERY RECHARGE SERVICES (B2)
• ELECTRONIC BATTERY SEPARATOR

See the extended description for details of the functions

Mounted on MOBILVETTA

SYSTEM FUNCTIONS

CAR BATTERY CHARGING (B1)

An electronic device controlled by the network signal, inserts the batteries in parallel with voltage
service battery B2 > 13.5V and disconnects it with the battery charger off or with voltage < 12.5V.

BATTERY RECHARGE SERVICES (B2)

• with alternator: via the separator relay when the engine is running.
• with 230V network: buffer system via battery charger
• with photovoltaic module: via solar regulator.

ELECTRONIC BATTERY SEPARATOR

An electronic device inserts the battery parallel in the presence of one of the following conditions:
1) With positive D+ signal (connector ref.14, pin 1).
2) With FIAT key + signal (connector ref.9, pin 3) and FIAT D+ negative signal (connector
ref. 9, pin 2).
This device controls the relays of the users dependent on the D+ output (fridge, external light, return
antenna etc).
