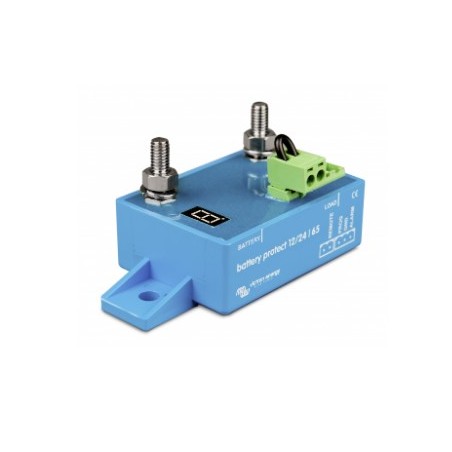

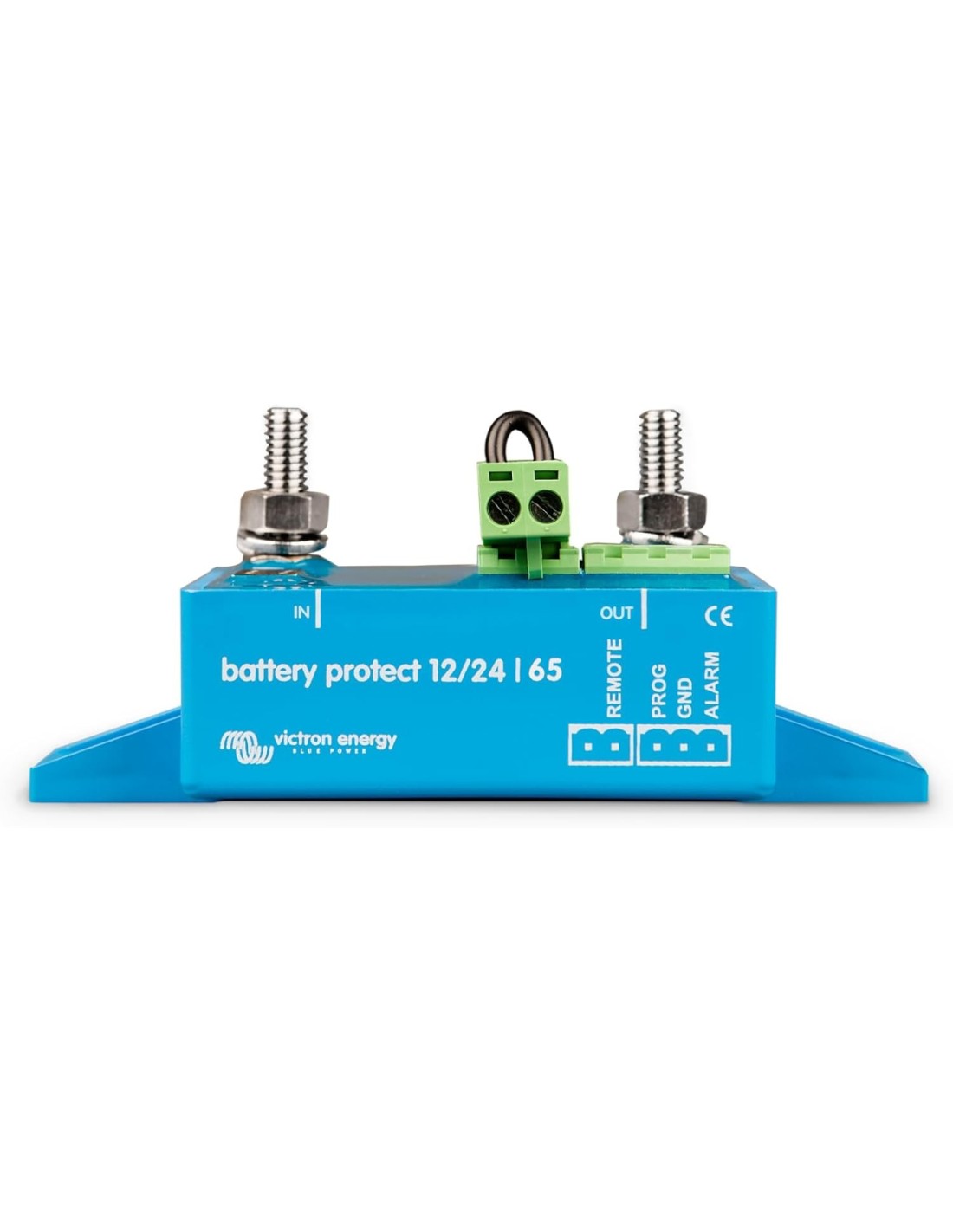

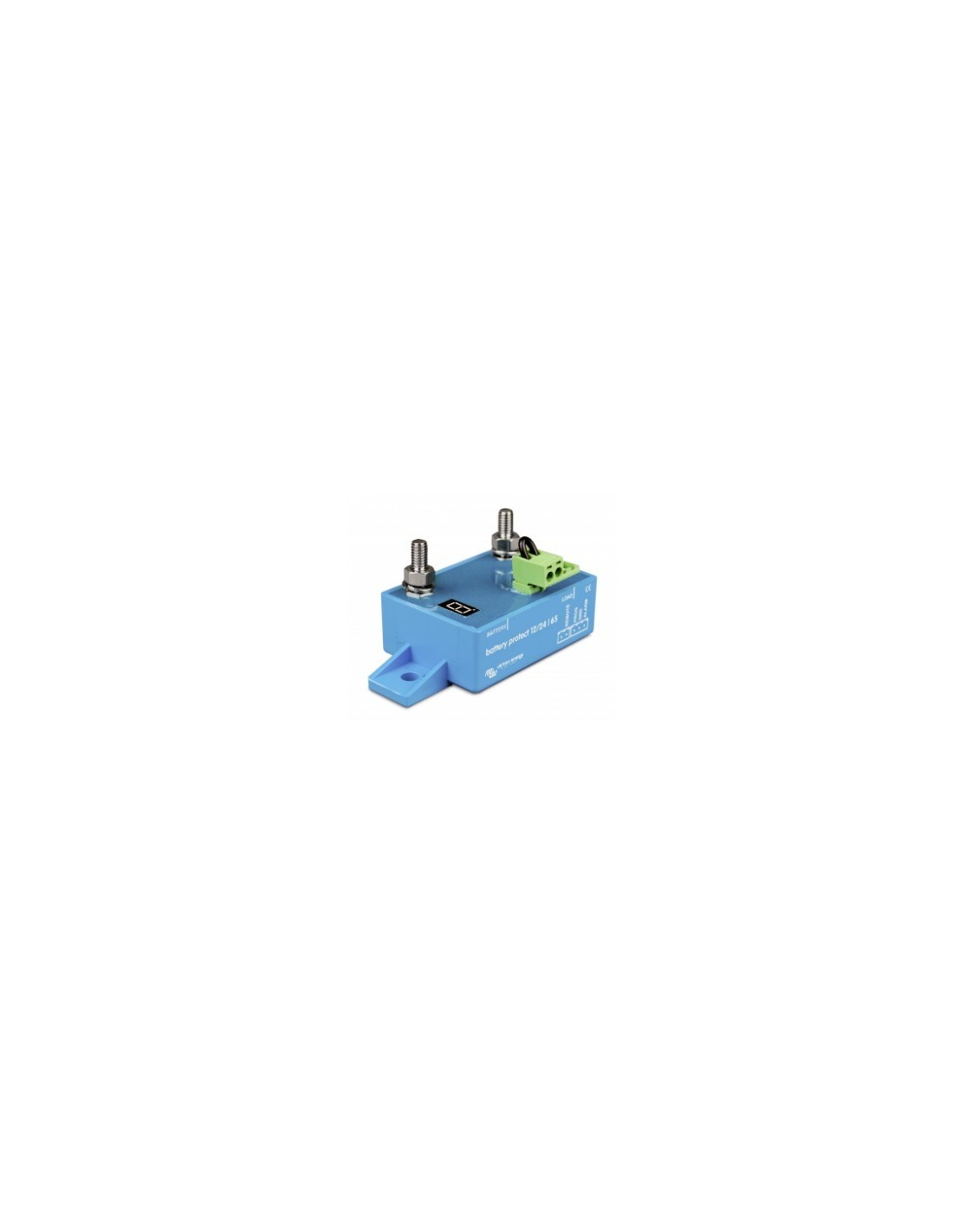

Battery Protect 12/24V 65A Victron Energy - BPR000065400

Battery Protect 12/24V 65A Victron Energy - BPR000065400

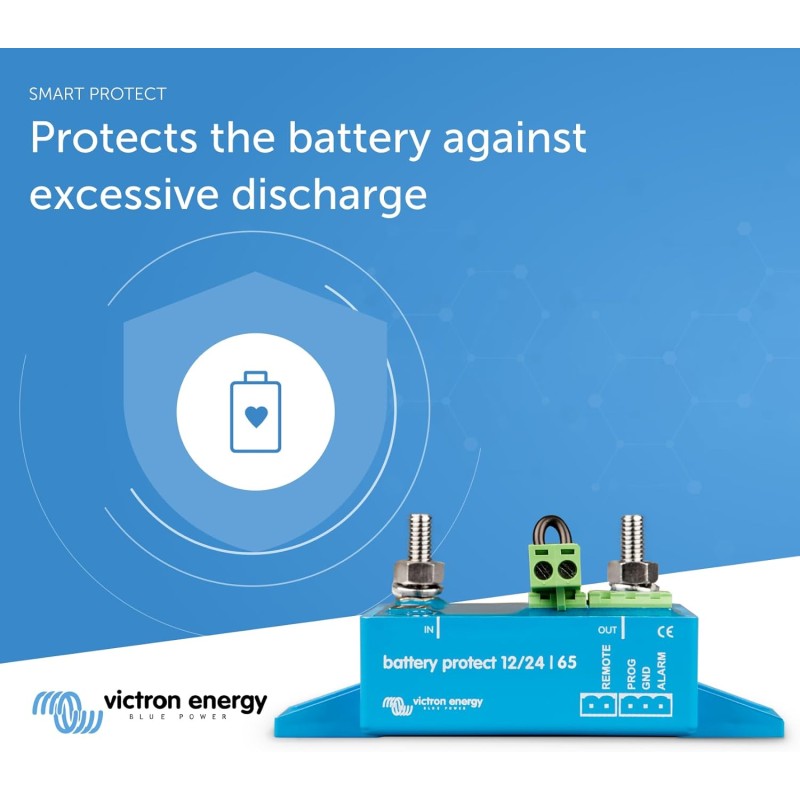

BatteryProtect disconnects the battery from non-essential loads before it fully discharges (which would damage it) or before reaching a charge level insufficient to start the engine.

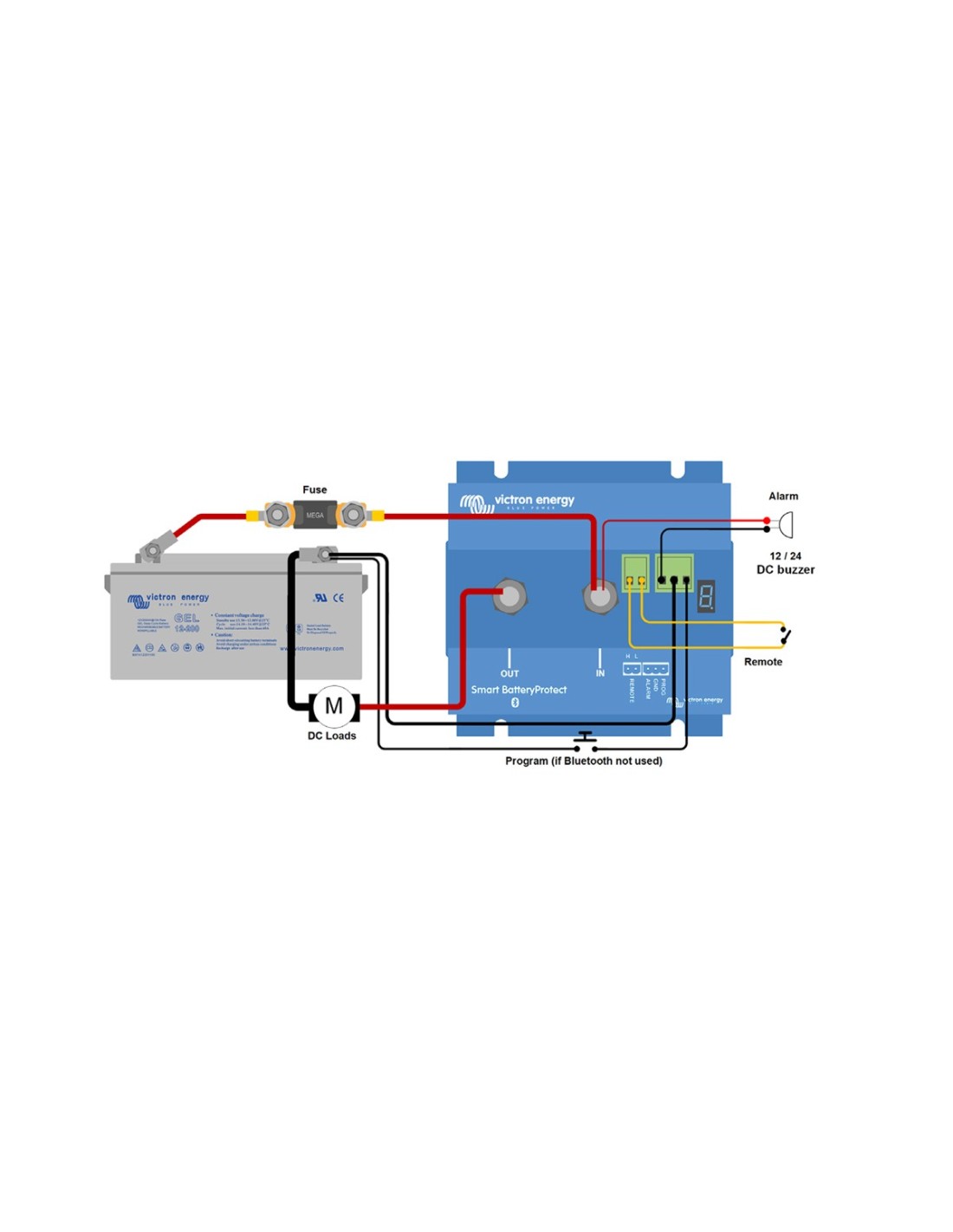

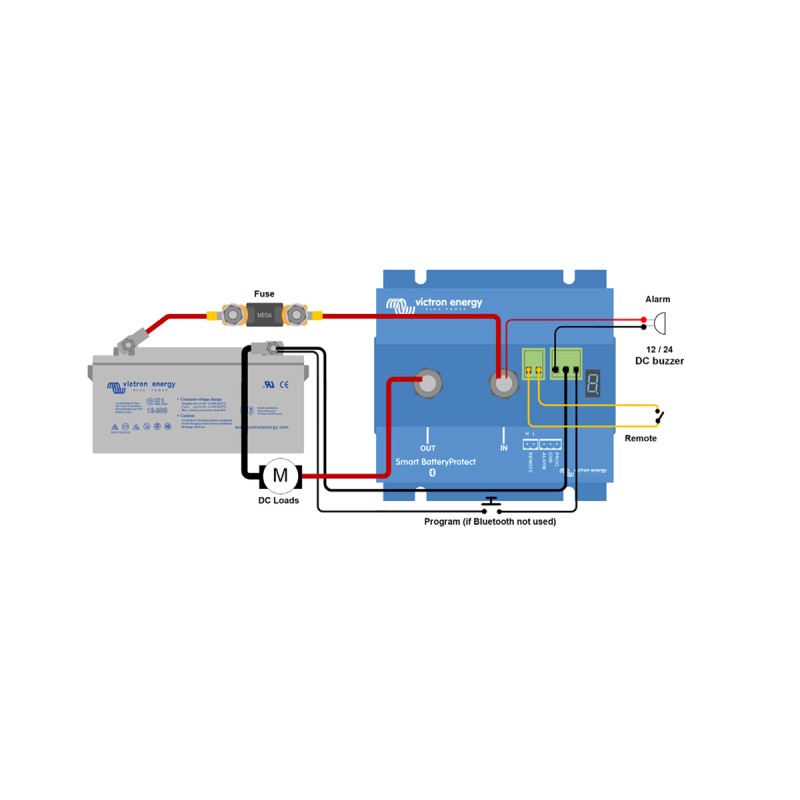

The BatteryProtect is a one-way device. It supports current in only one direction, i.e. current to a load or current from a charger, but not both currents at the same time. Furthermore, the current can only flow from the Battery terminal to the Load terminal. If used with a load, the battery connects to the Battery terminal and, if used with a battery charger, the latter connects to the Battery terminal.

Continuous load current: max 65A

Peak current (during 30 seconds): 250A

Operating voltage range: 6-35V

Power consumption

• BLE On When ON: 1.4 mA When OFF or in case of low voltage shutdown: 0.9 mA
• BLE Off When ON: 1.2 mA When off or low voltage shutdown: 0.7 mA

Alarm emission delay: 12 sec.

Max load on alarm output: 50 mA (short circuit resistant).

Load disconnection delay: 90 seconds (immediate if activated by the VE.Bus BMS)

Load reconnection delay: 30 sec.

Default thresholds:

• Deactivation: 10.5V or 21V
• Activation: 12V or 24V

Operating temperature range: Full load: -40°C to +40°C (up to 60% of rated load at 50°C)

IP class:

• Electronics: IP67 (encapsulated in resin)
• Connections: IP00

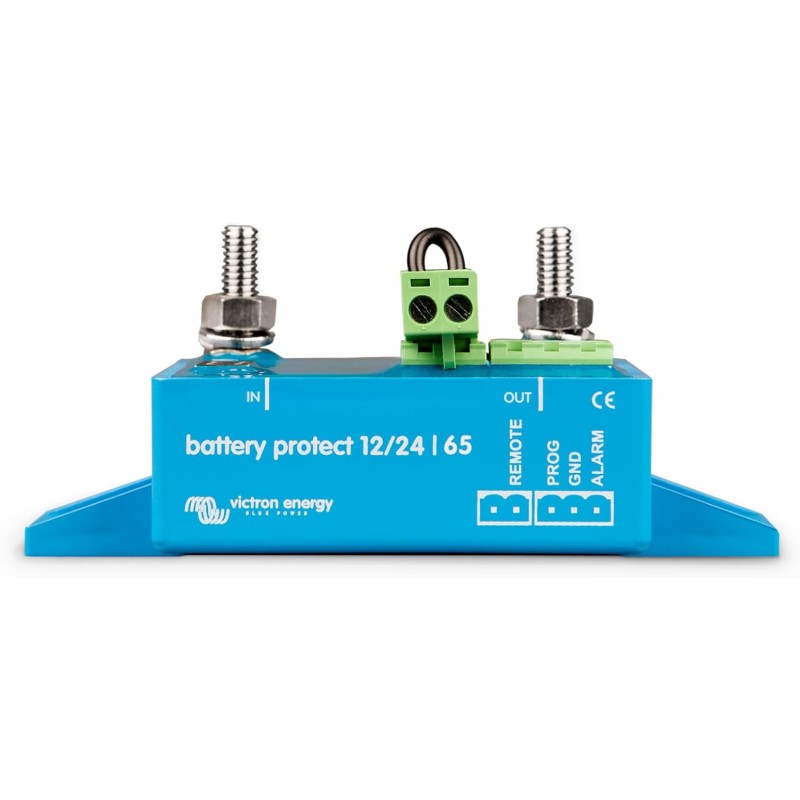

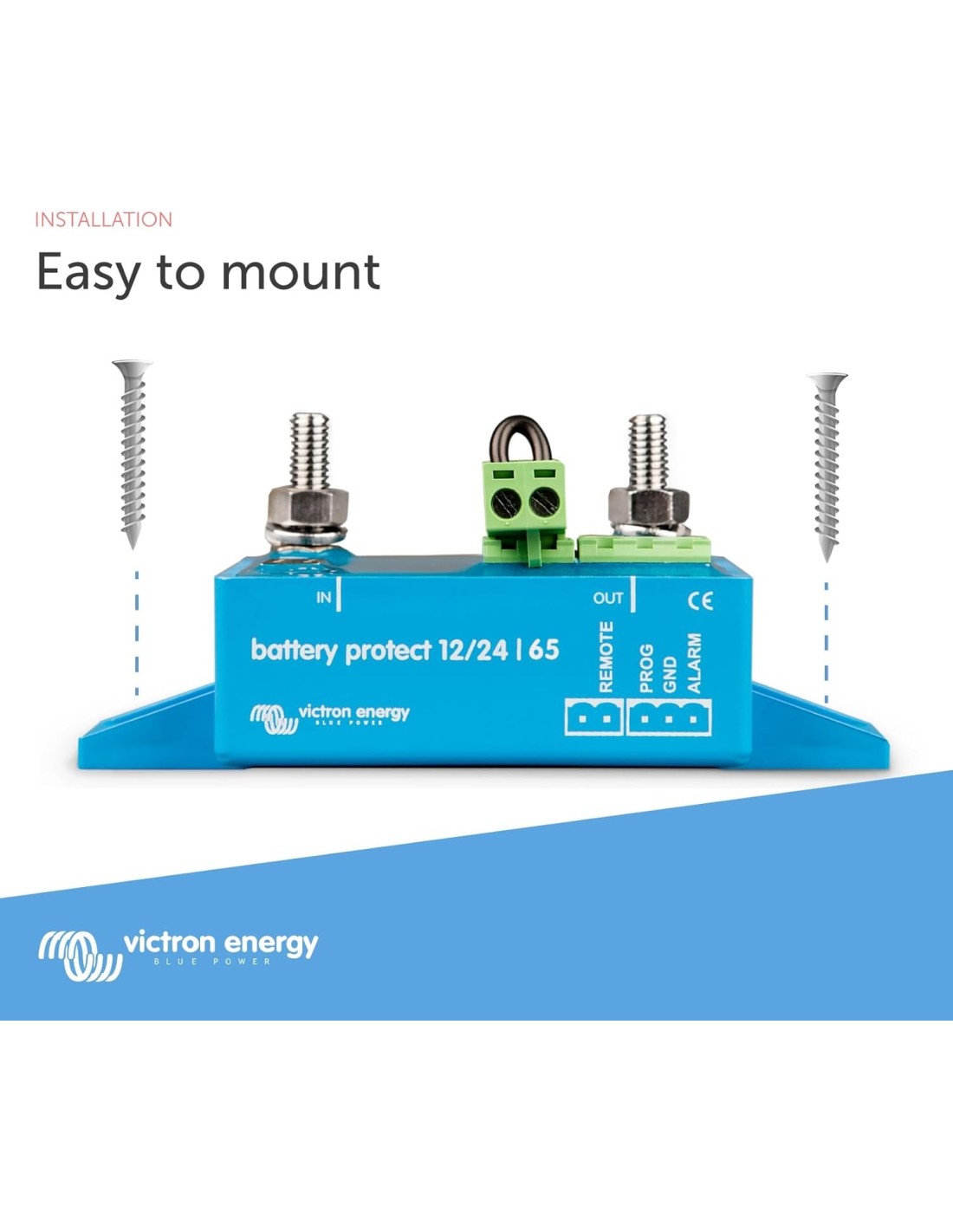

Connection: M6

Weight: 0.2kg

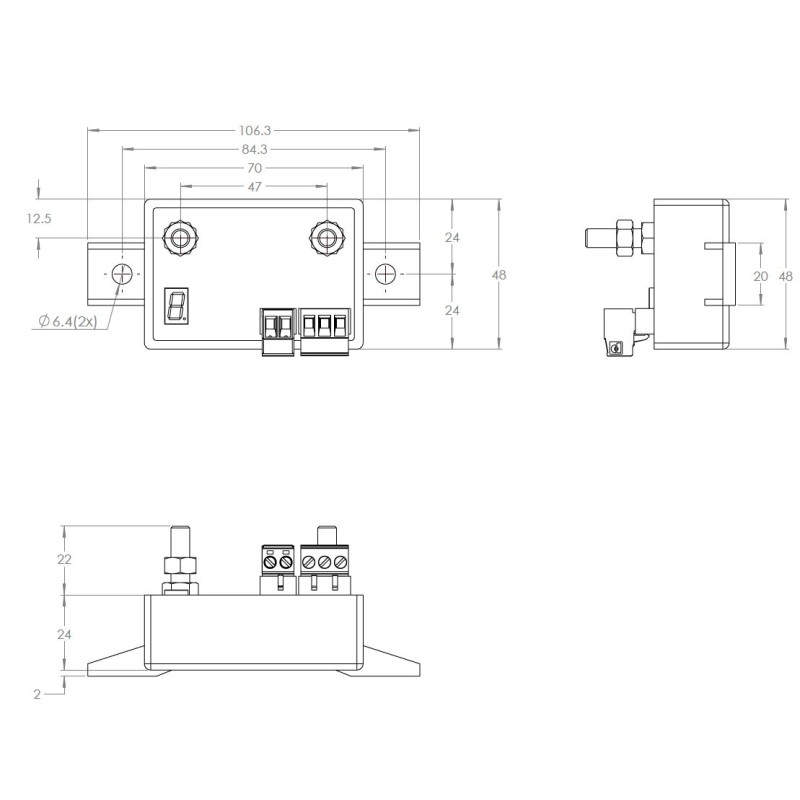

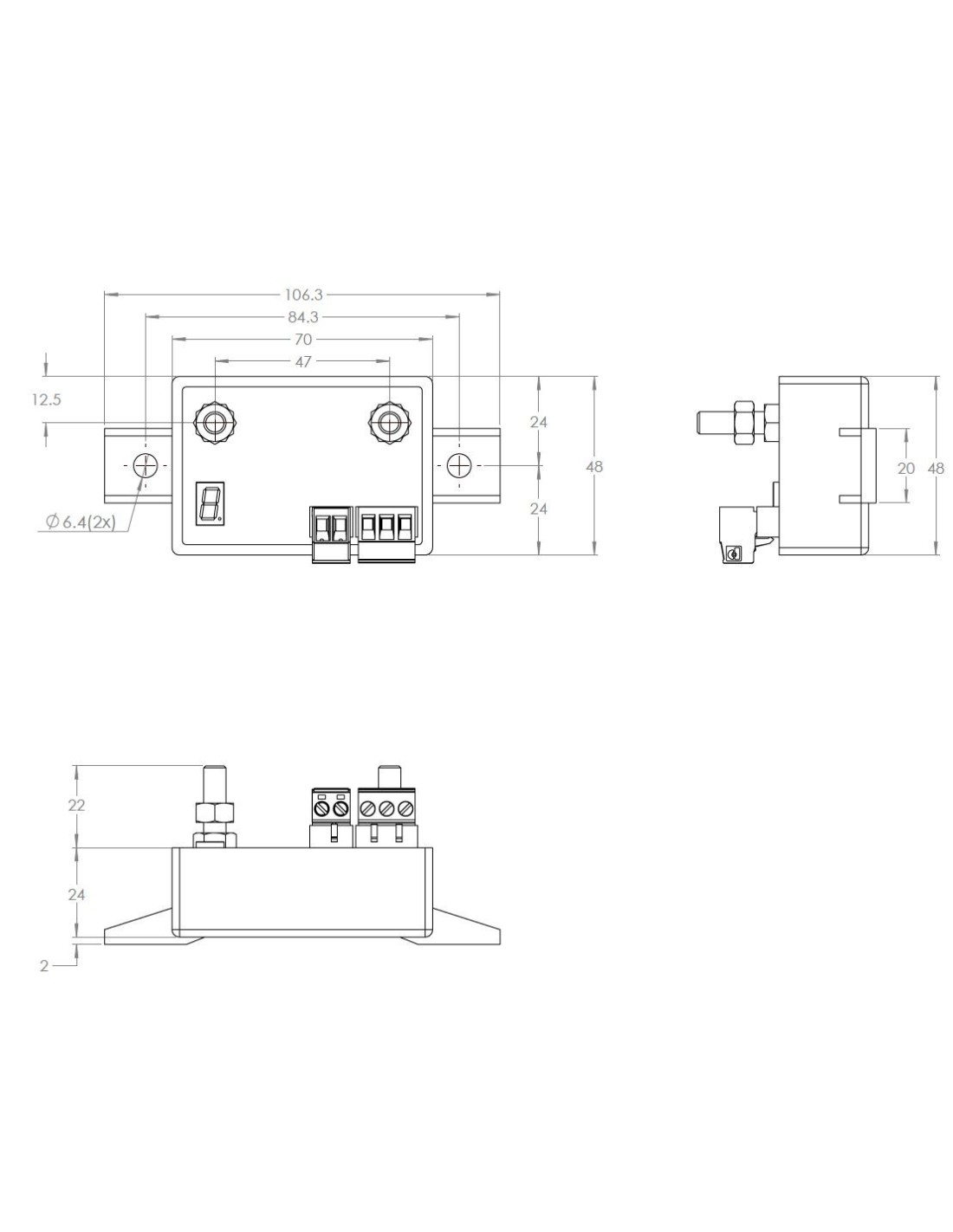

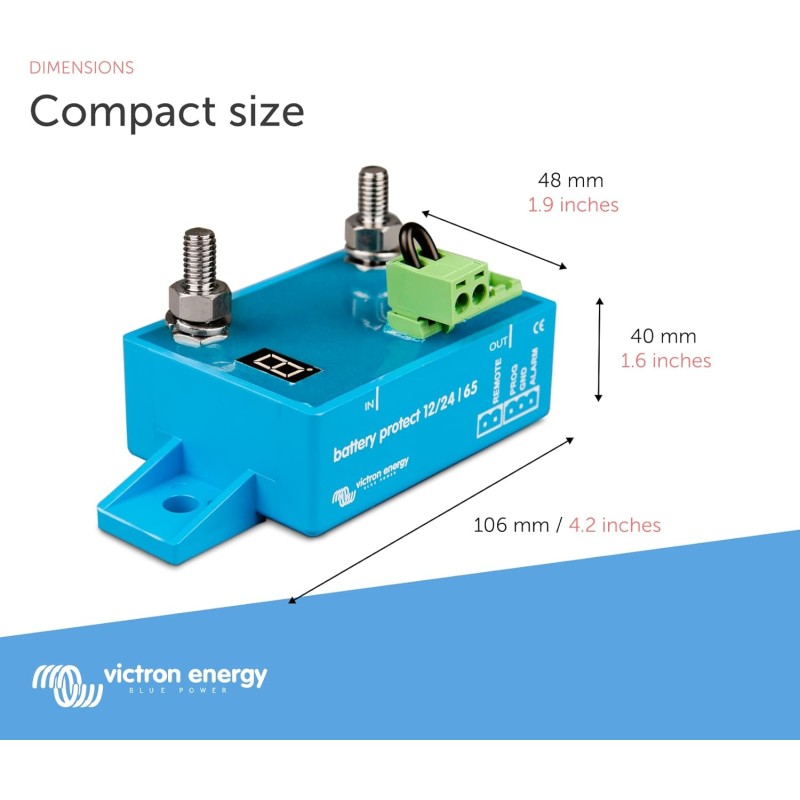

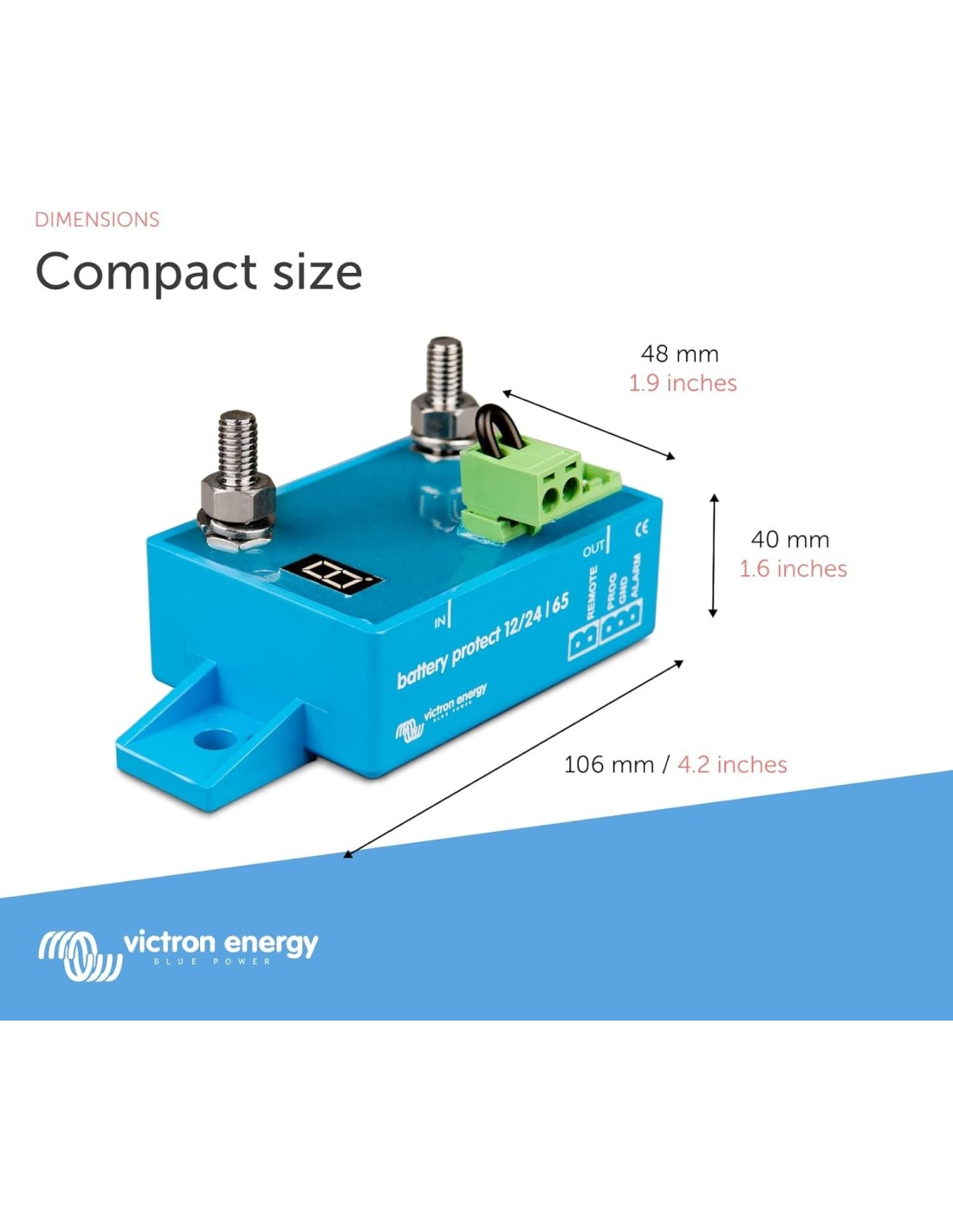

Dimensions (HxWxD in mm): 40 x 48 x 106 mm
